CAT Off-Highway Truck 777 Electrical Hydraulic Schematic

Size: 28.20 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Off-Highway Truck

Type of Manual: Cooling System Schematic, Electrical Schematic, Hydraulic Schematic

Model: CAT 777 Off-Highway Truck

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
M0139064-00: 777 Off-Highway Truck Hydraulic System (Interactive)(Function ISOLATION),309-2869-05, (For Serial Numbers 7M31-UP 7M41-UP 7M61-UP 7W21-UP 7W31-UP 7W41-UP 7W61-UP 7M21-UP)

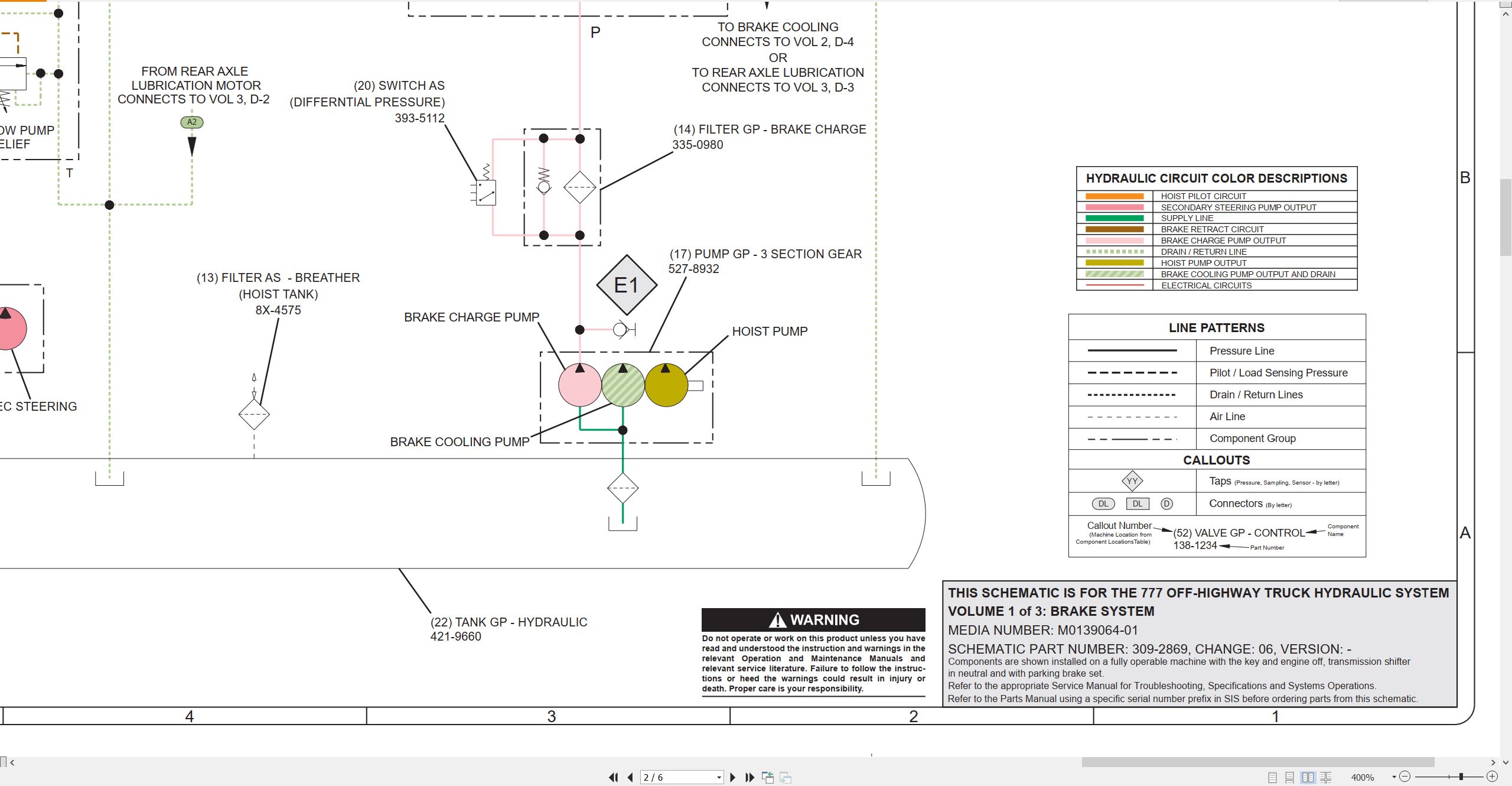

M0139064-01: 777 Off-Highway Truck Hydraulic System, 309-2869-06 (For Serial Numbers 7M21-UP 7W61-UP 7W41-UP 7W31-UP 7W21-UP 7M61-UP 7M41-UP 7M31-UP)
M0139066-00: 777 Off-Highway Truck Hydraulic System (Interactive)(Function Isolation),574-2669-01 (For Serial Numbers 7G81-UP 7W81-UP)
M0154931-00: 777 Off-Highway Truck Electrical System(Interactive)(Function Isolation), Cab-561-3216-01, Chassis-575-5386-01, Engine-583-0123-01, (For Serial Numbers 7G81-UP 7W81-UP)

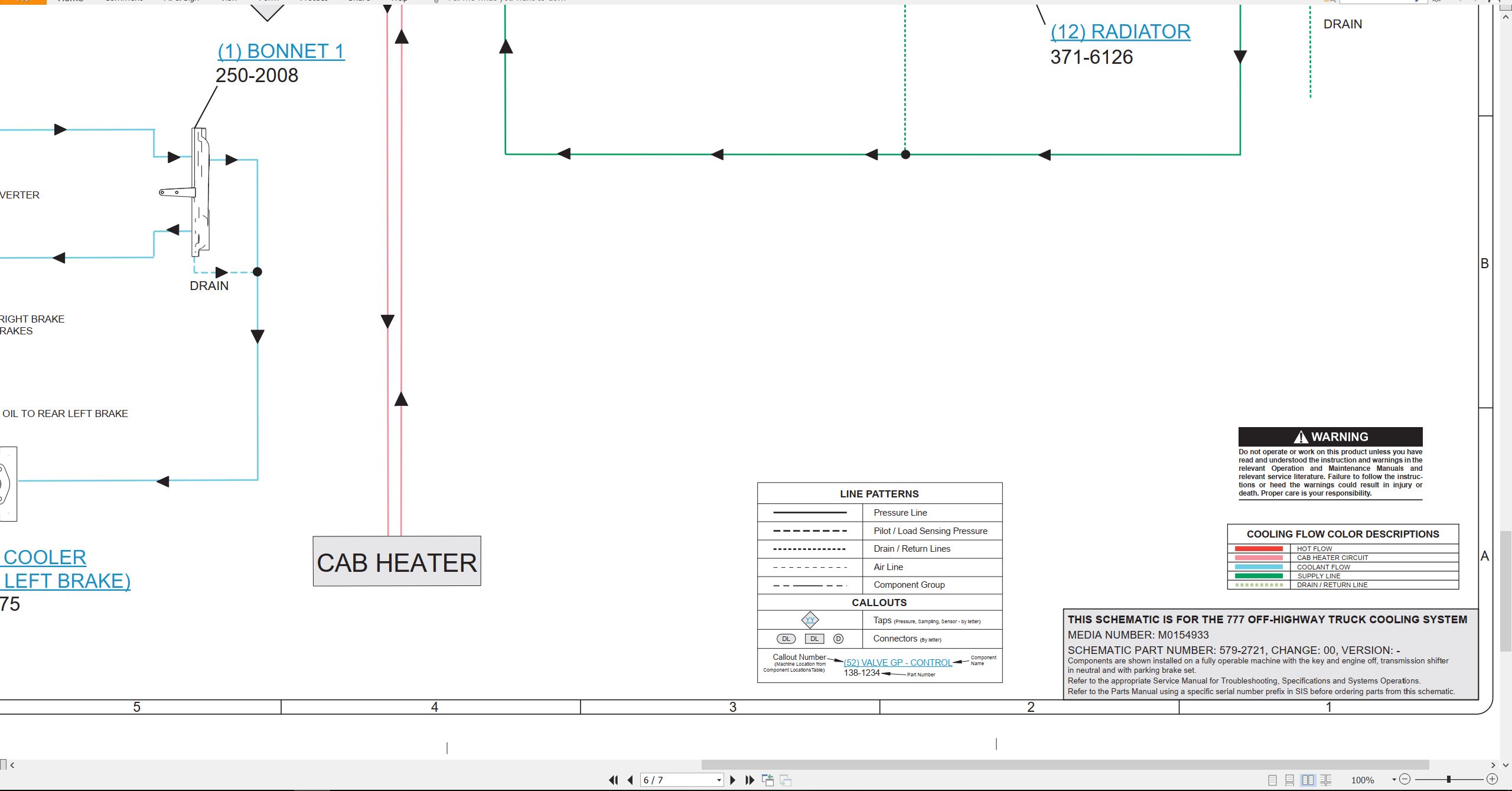

M0154933-00: 777 Off-Highway Truck Cooling System(Interactive)(Function Isolation), 579-2721-00 (For Serial Numbers 7G81-UP 7W81-UP)
M0163089-01: 777 Off-Highway Truck Electrical System (Interactive) (Function Isolation), 640-7991-00 (For Serial Numbers 7M21-UP 7M41-UP 7W21-UP 7W41-UP)
M0170299-00: 777 Off-Highway Truck Electrical System (Interactive) (Function Isolation), 640-7992-00 (For Serial Numbers 7M31-UP 7W61-UP 7W31-UP 7M61-UP)

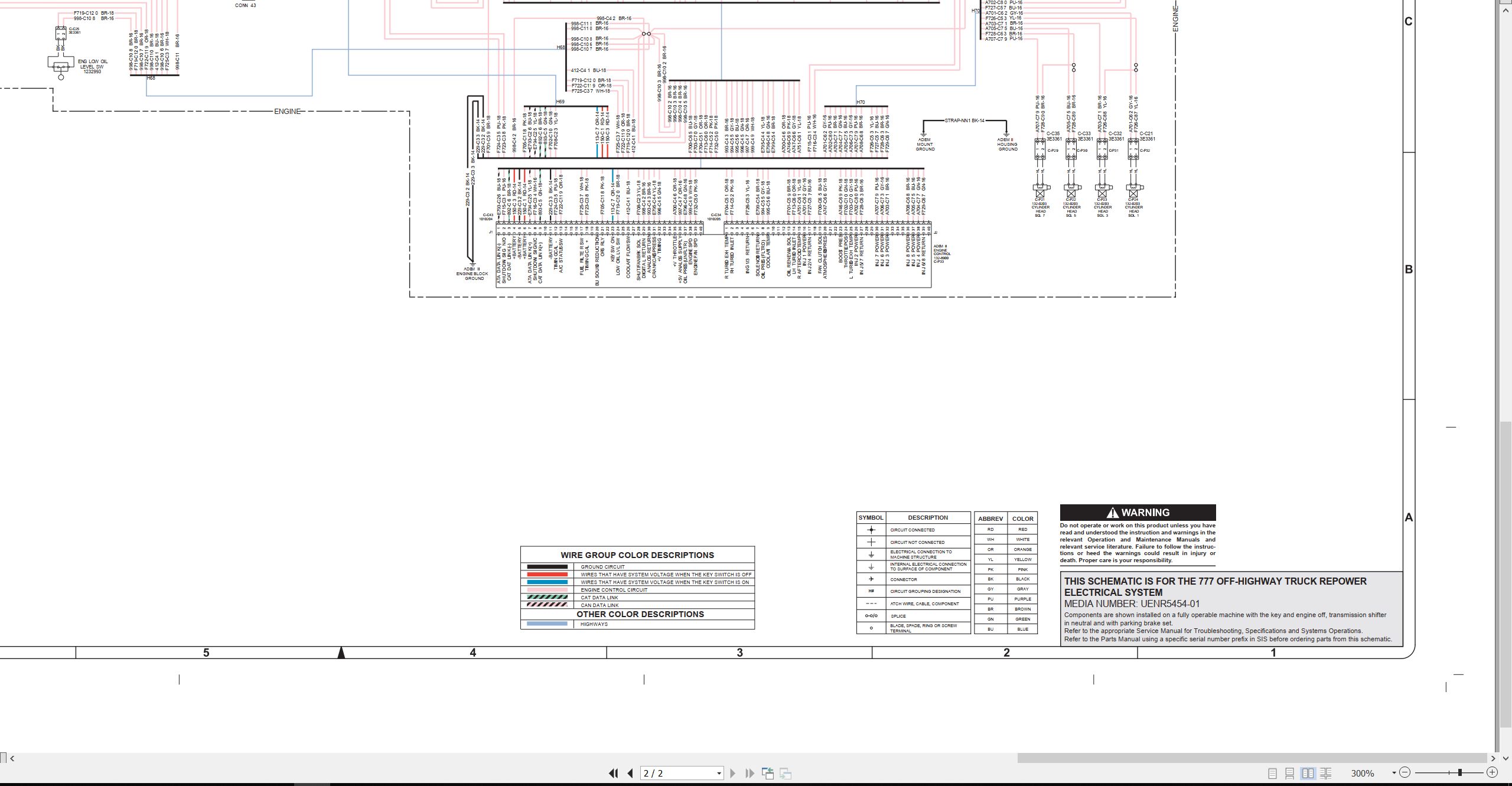

UENR5454-00: 777 Off-Highway Truck Tier 1 Repower Electrical System
UENR5454-01: 777 Off Highway Truck Repower Electrical System (For Serial Numbers 84A1-UP)
