CAT Off-Highway Truck 789 Electrical Hydraulic Schematic

CAT Off Highway Truck 789 Electrical Hydraulic Schematic (1)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (2)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (3)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (4)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (1)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (2)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (3)
CAT Off Highway Truck 789 Electrical Hydraulic Schematic (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Off-Highway Truck 789 Electrical Hydraulic Schematic

Size: 30.57 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Off-Highway Truck
Type of Manual: Air System Schematic, Electrical Schematic, Hydraulic Schematic, Power Train System Schematic, Transmission System Schematic
Model: CAT 789 Off-Highway Truck

50 USD

Tag:
  • Description

Description

List of Files:

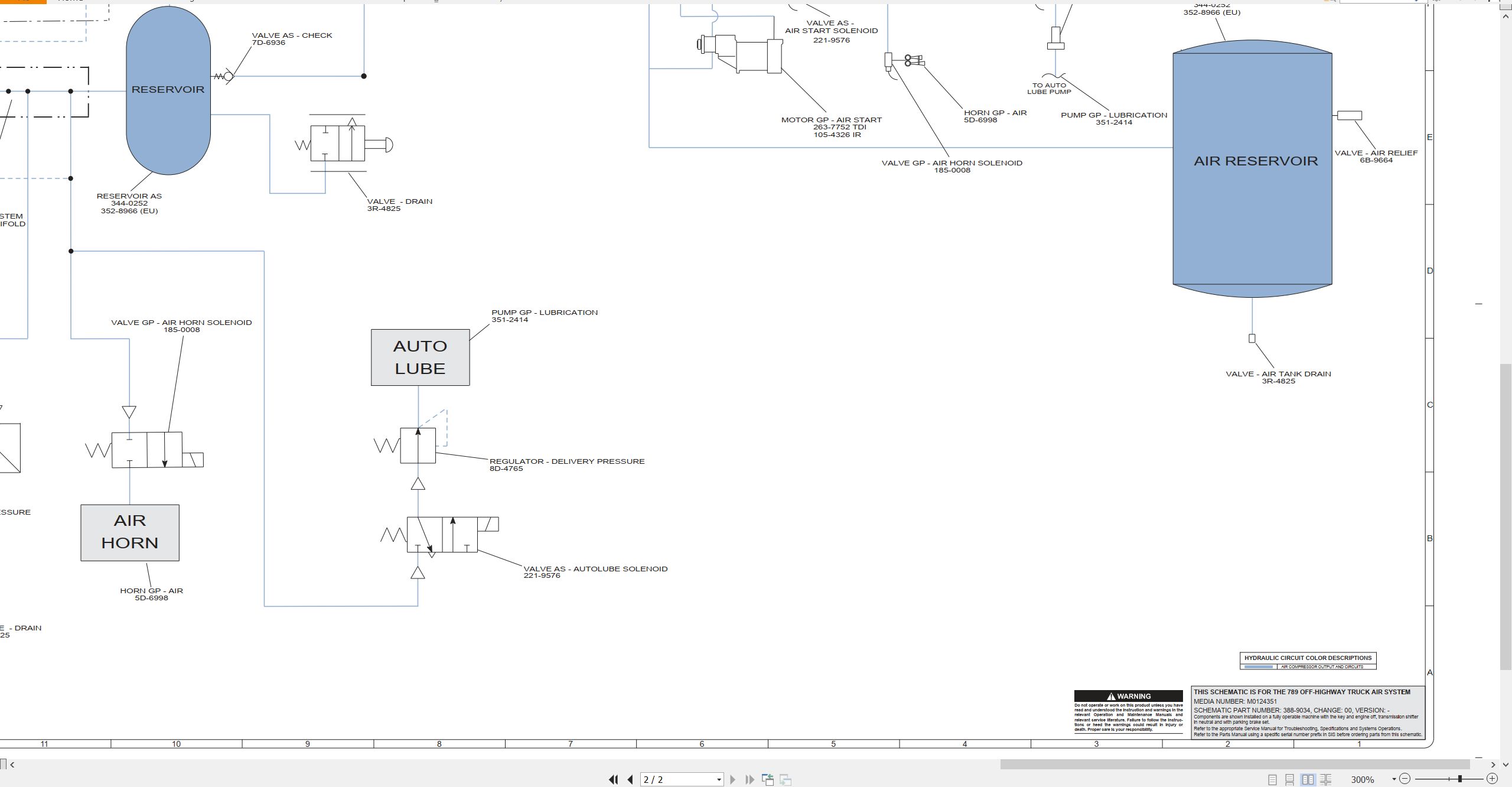

M0114032-00: 789 Off-Highway Truck Hydraulic System
M0124351-00: 789 Off-Highway Truck Air System
M0124351-01: 789 Off-Highway Truck Air System, 388-9034-00 (For Serial Numbers TR21-UP WRL1-UP)

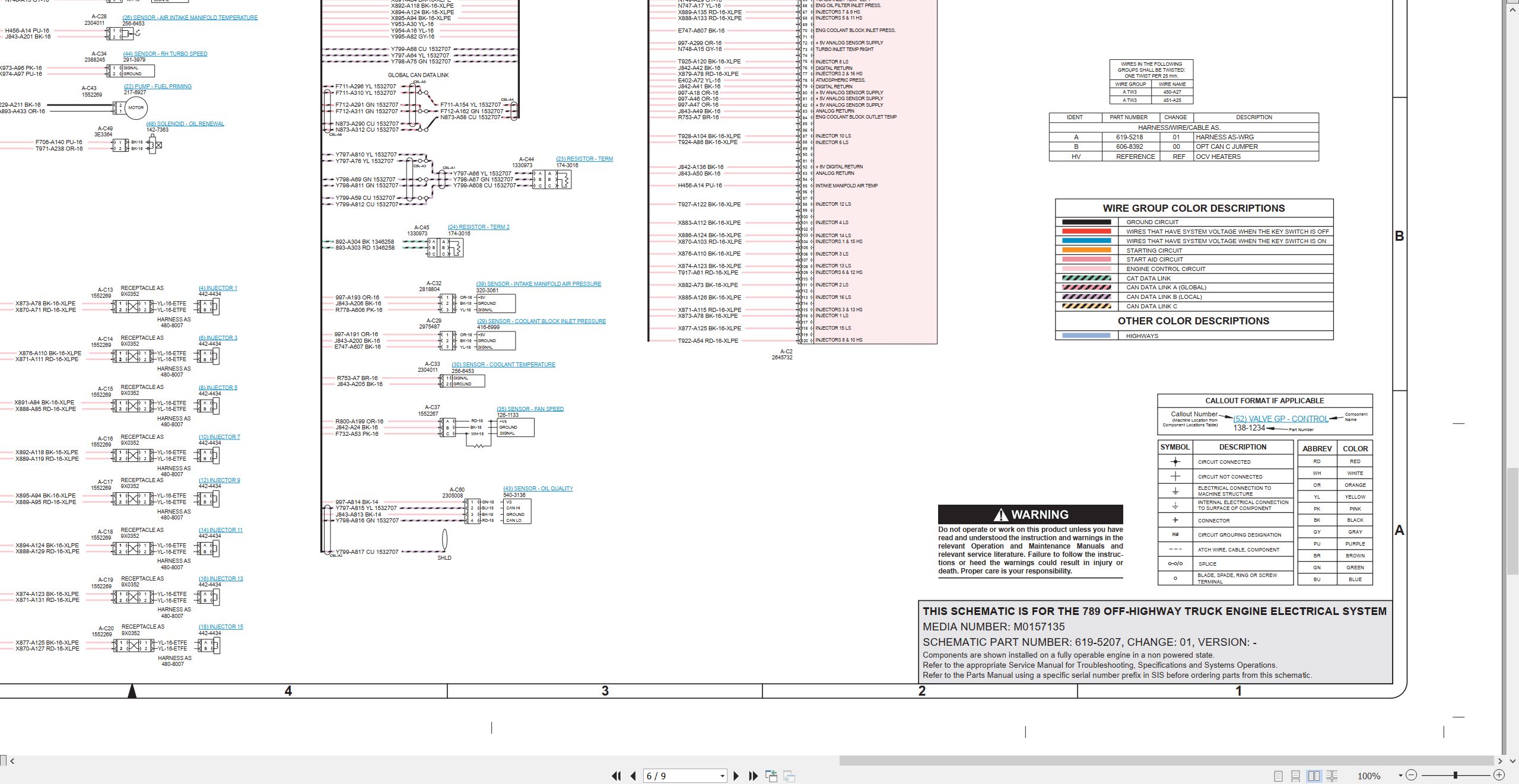

M0157135-00: 789 Off-Highway Truck Engine Electrical System(Interactive)(Function Isolation), 619-5207-01, (For Serial Numbers WRL1-UP)

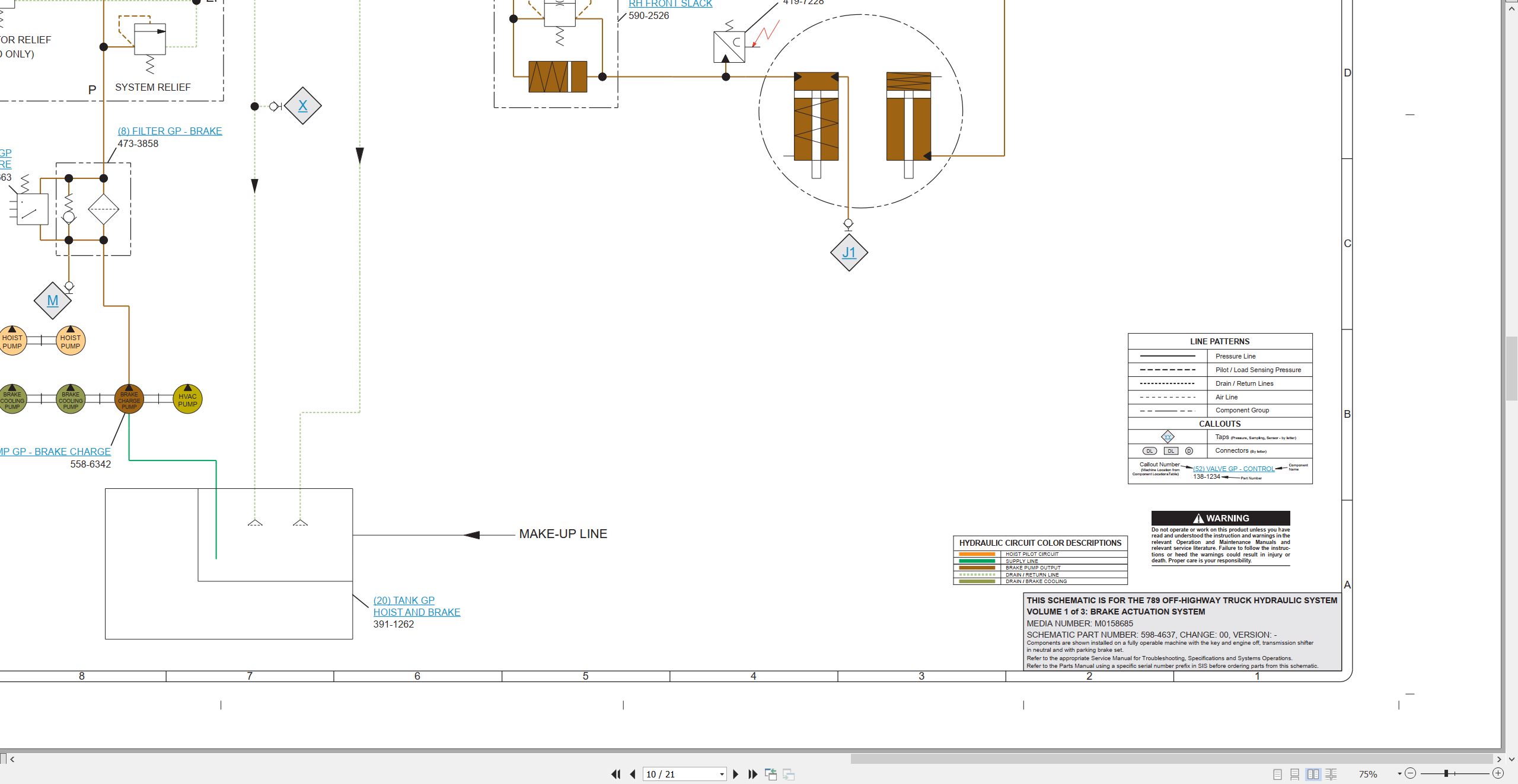

M0158685-00: 789 Off-Highway Truck Hydraulic System(Interactive)(Function Isolation), 598-4637-00, (For Serial Numbers WRL1-UP)
M0158685-01: 789 Off-Highway Truck Hydraulic System, 598-4637-00 (For Serial Numbers WRL1-UP)
M0158685-02: 789 Off-Highway Truck Hydraulic System (Interactive) (Function Isolation), 598-4637-00 (For Serial Numbers WRL1-UP)
M0158685-03: 789 Off-Highway Truck Hydraulic System, 598-4637-00 (For Serial Numbers WRL1-347)
M0158855-00: 789 Off-Highway Truck Electrical System ,CAB-561-7947-00,CHASSIS-594-4640-01,ENGINE-619-5207-01(FOR Serial Numbers WRL1-UP)
M0158855-01: 789 Off-Highway Truck Electrical System, Cab-561-7947-00, Chassis-594-4640-01, Engine-619-5207-01, Aftertreatment-444-0528-03 (For Serial Numbers WRL1-UP)
M0158855-03: 789 Off-Highway Truck Electrical System, Cab-561-7947-00, Chassis-594-4640-01, Engine-619-5207-01, Aftertreatment-444-0528-03 (For Serial Numbers WRL1-347)
M0181256-00: 789 Off-Highway Truck Electrical System, Cab-561-7947-01, Chassis-594-4640-02, Engine-619-5207-01, Aftertreatment-444-0528-06 (For Serial Numbers WRL348-UP)
M0181260-00: 789 Off-Highway Truck Hydraulic System, 598-4637-01 (For Serial Numbers WRL348-UP)
M0181266-00: 789 Off-Highway Truck Power Train System, 645-9760-00 (For Serial Numbers WRL1-UP)
M0181268-00: 789 Off-Highway Truck Transmission System, 476-9293-00 (For Serial Numbers WRL1-UP)
SENR3419-00: 785 And 789 Truck Electrical System (For Serial Numbers 8GB223-417 9ZC1-UP)
SENR4286-00: Caterpillar 789 Truck Electrical System
