Name: CAT Off-Highway Truck 789C Electrical Hydraulic Schematic
SKU: 668726
Availability: InStock

CAT Off Highway Truck 789C Electrical Hydraulic Schematic (1)

CAT Off Highway Truck 789C Electrical Hydraulic Schematic (2)

CAT Off Highway Truck 789C Electrical Hydraulic Schematic (3)

CAT Off Highway Truck 789C Electrical Hydraulic Schematic (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Off-Highway Truck 789C Electrical Hydraulic Schematic

Size: 39.60 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Off-Highway Truck

Type of Manual: Air System Schematic, Electrical Schematic, Hydraulic Schematic

Model: CAT 789C Off-Highway Truck

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

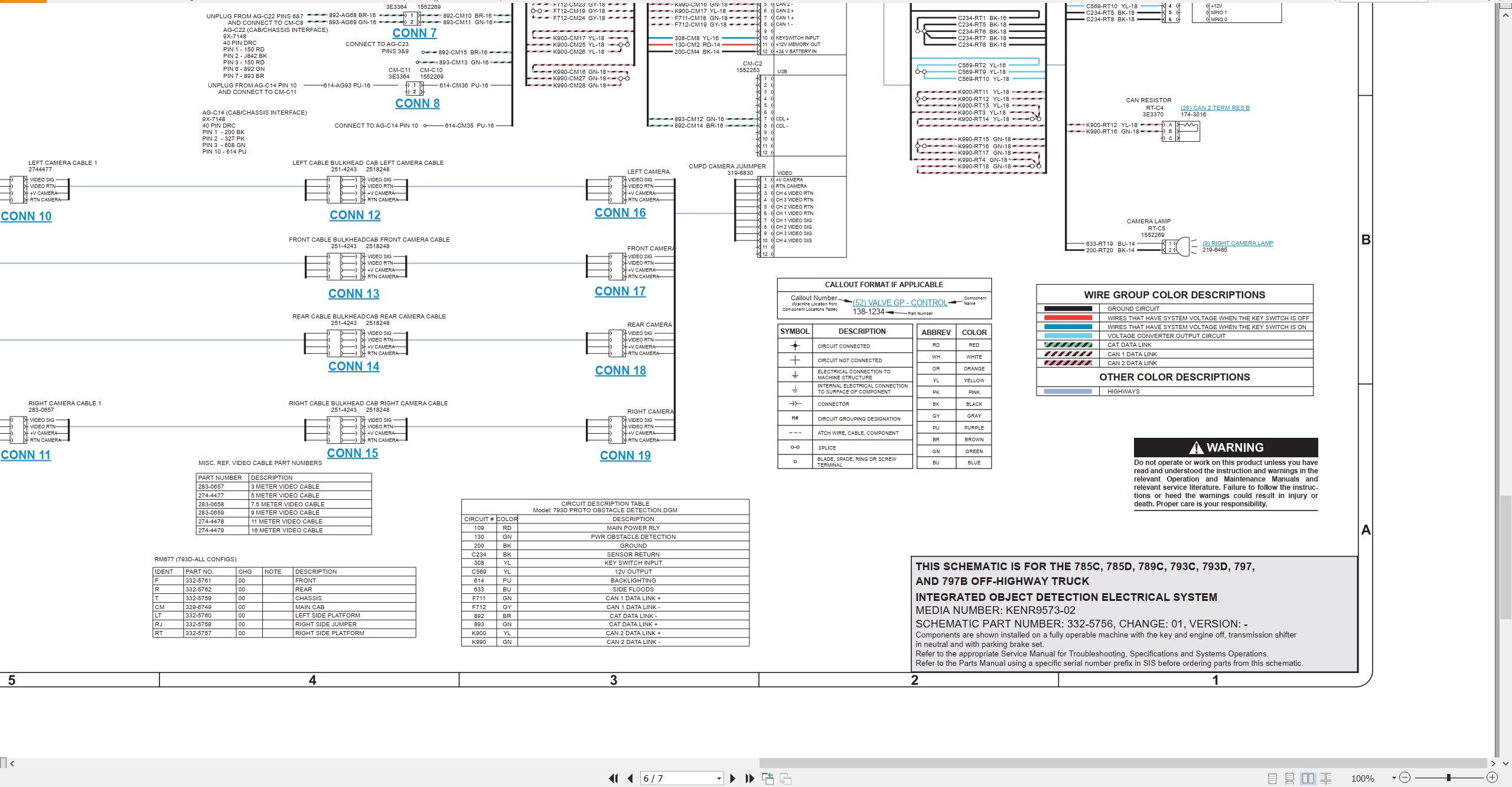

KENR9573-02: 785C, 785D, 789C, 793C, 793D, 797 And 797B Integrated Object Detection Electrical System (Interactive), 332-5756-01
KENR9573-03: 785C, 785D, 789C, 793C, 793D, 797 and 797B Integrated Object Detection Electrical System (Interactive) (Function Isolation), 332-5756-01 (For Serial Numbers APX1-UP JSM1-UP 5YW1-UP FDB1-UP ATY1-UP 2BW1-UP MSY1-UP 5AZ1-UP)
RENR2641-04: 789C Off-Highway Truck Electrical System (Interactive), Schematic Part Number 174-0518-01 (For Serial Numbers 2BW303-658)

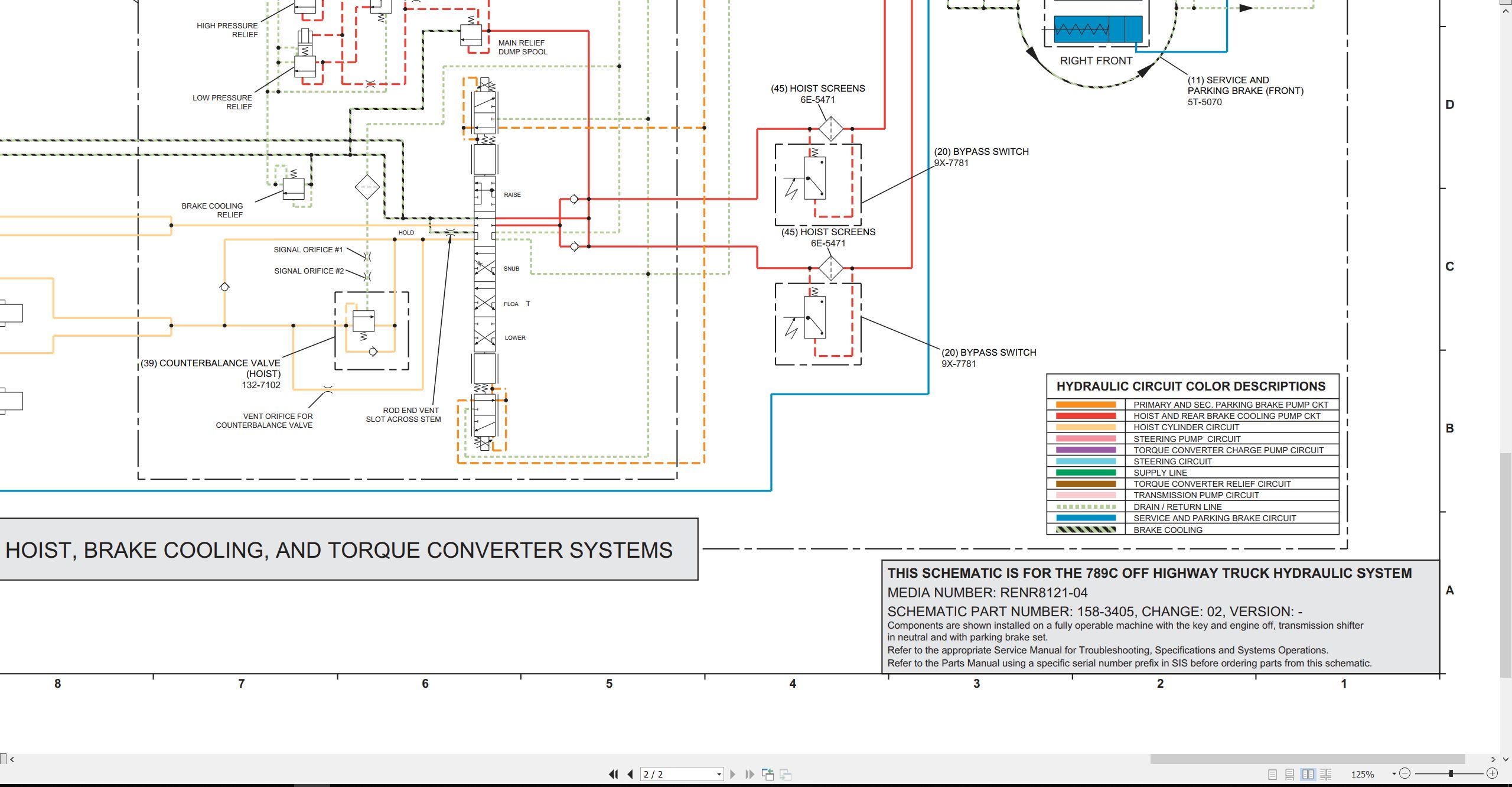

RENR8121-04: 789C Off-Highway Truck Hydraulic System, 158-3405-02 (Serial Number: 2BW659-UP)
RENR8121-05: 789C Off-Highway Truck Hydraulic System, 158-3405-02 (For Serial Numbers 2BW659-UP)
RENR8122-06: 789C Off-Highway Truck Electrical System, Cab 244-3760-01, Chassis 243-7227-01, Engine 243-7228-01 (For Serial Numbers 2BW659-1846)
SENR1533-02: 789C Off-Highway Truck Hydraulic System 158-3405-00 (For Serial Number Prefix 2BW1-658)
SENR1535-03: 789C Truck Electrical System (Interactive), 144-5426-01 (For Serial Numbers 2BW1-302)
UENR2447-02: 789C Off-Highway Truck Electrical System (Interactive), Cab 321-6340-00, Chassis 366-0109-00, Engine 397-5033-00 (For Serial Numbers 2BW1847-1893)
UENR2448-04: 789C Mining Truck Electrical System (Interactive)(Function Isolation), Cab 321-6340-01, Chassis 366-0109-00, Engine 397-5033-00 (For Serial Numbers 2BW1894-UP)

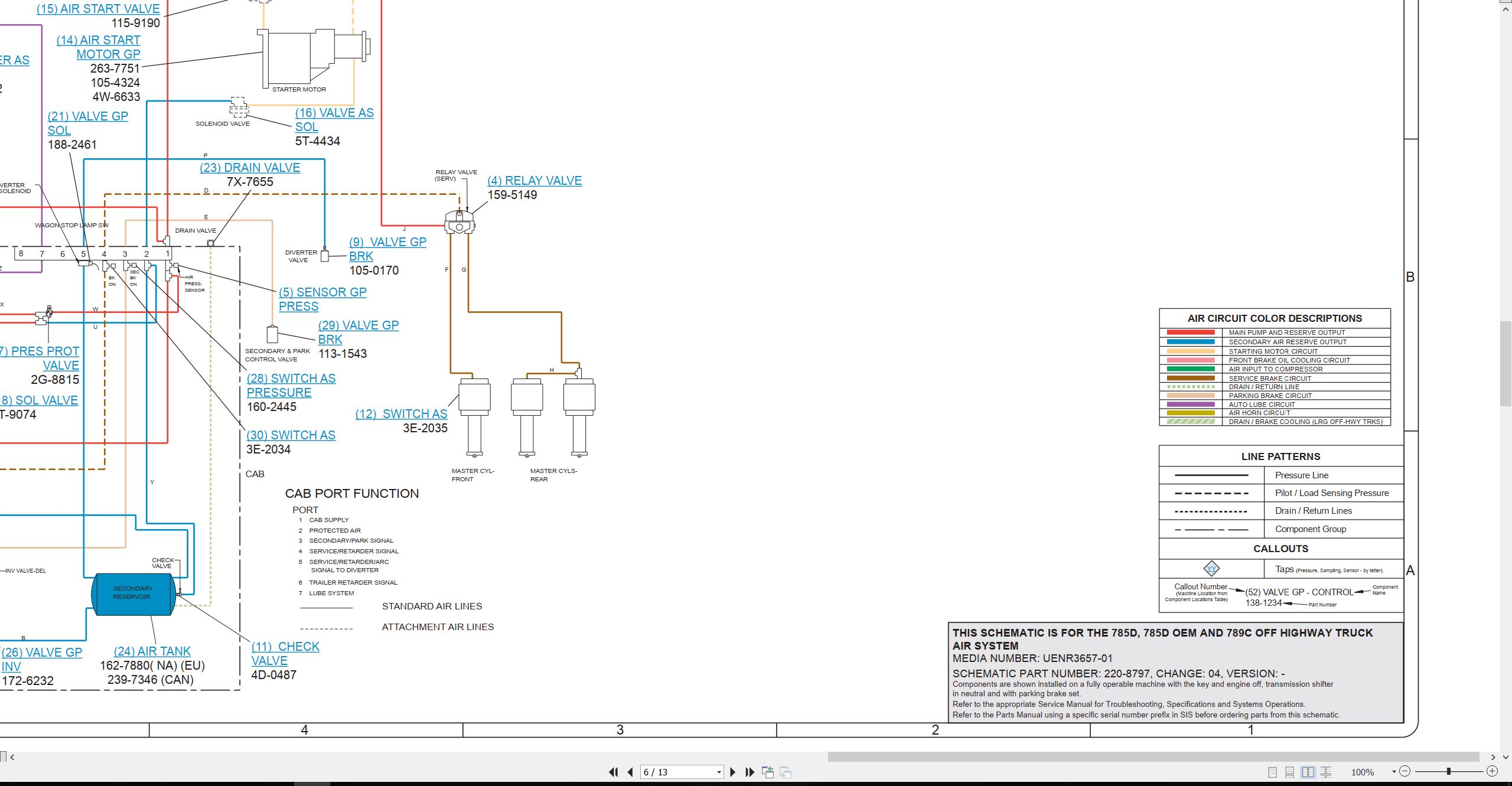

UENR3657-01: 785D, 785D OEM And 789C Off-Highway Truck Air System (Interactive) 220-8797-04
UENR3657-02: 785D, 785D OEM And 789C Off-Highway Truck Air System (Interactive)(Function Isolation) 220-8797-04, (For Serial Numbers 2BW1-UP MSY1-UP DMC1-UP)
UENR3657-04: 785D, 785D OEM, And 789C Off-Highway Truck Air System (Interactive) (Function Isolation), 220-8797-05 (For Serial Numbers DMC1-UP 2BW1-UP ZSP1-UP MSY1-UP)
