Name: CAT Off-Highway Truck 793F CMD Electrical Hydraulic Schematic
SKU: 668737
Availability: InStock

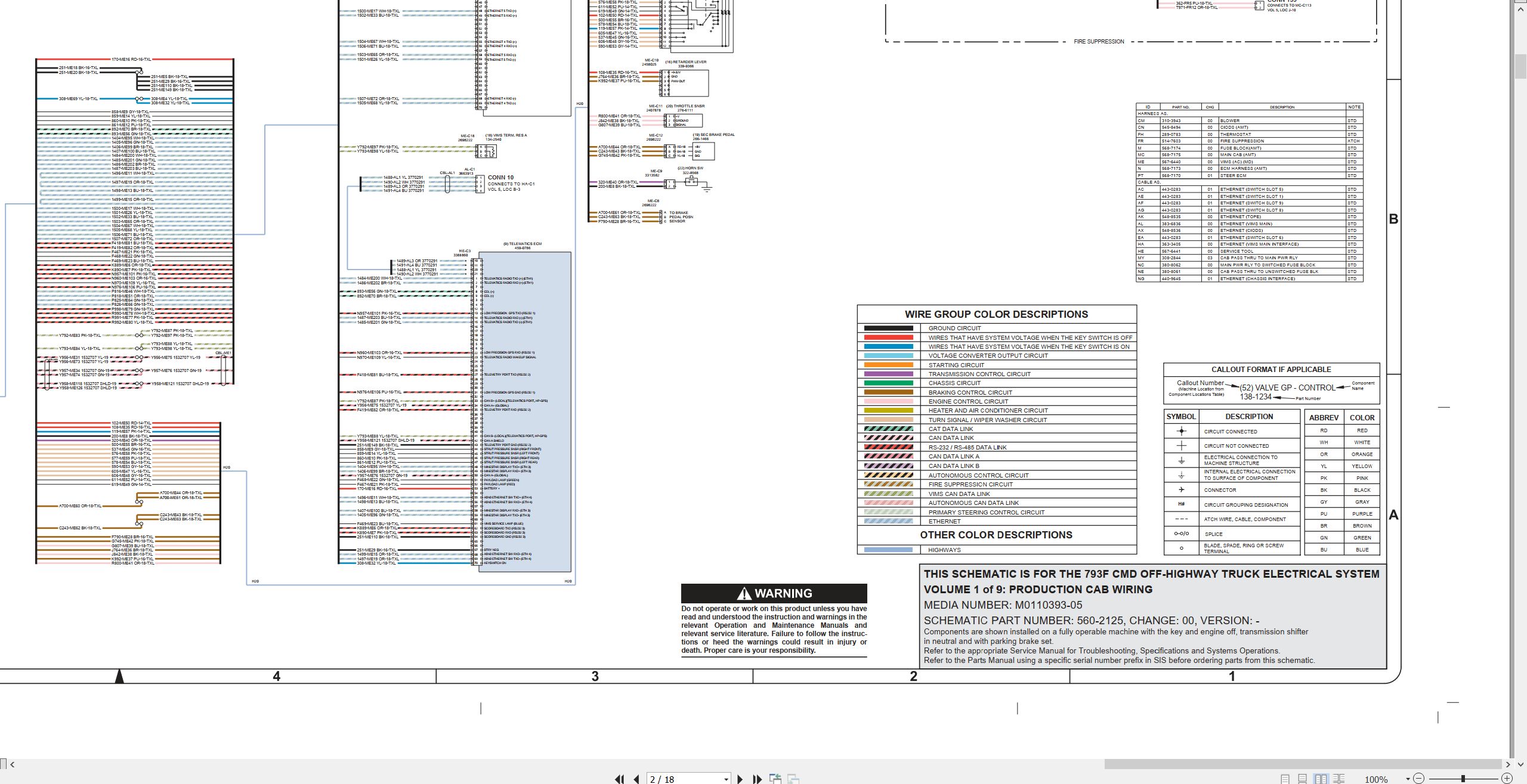

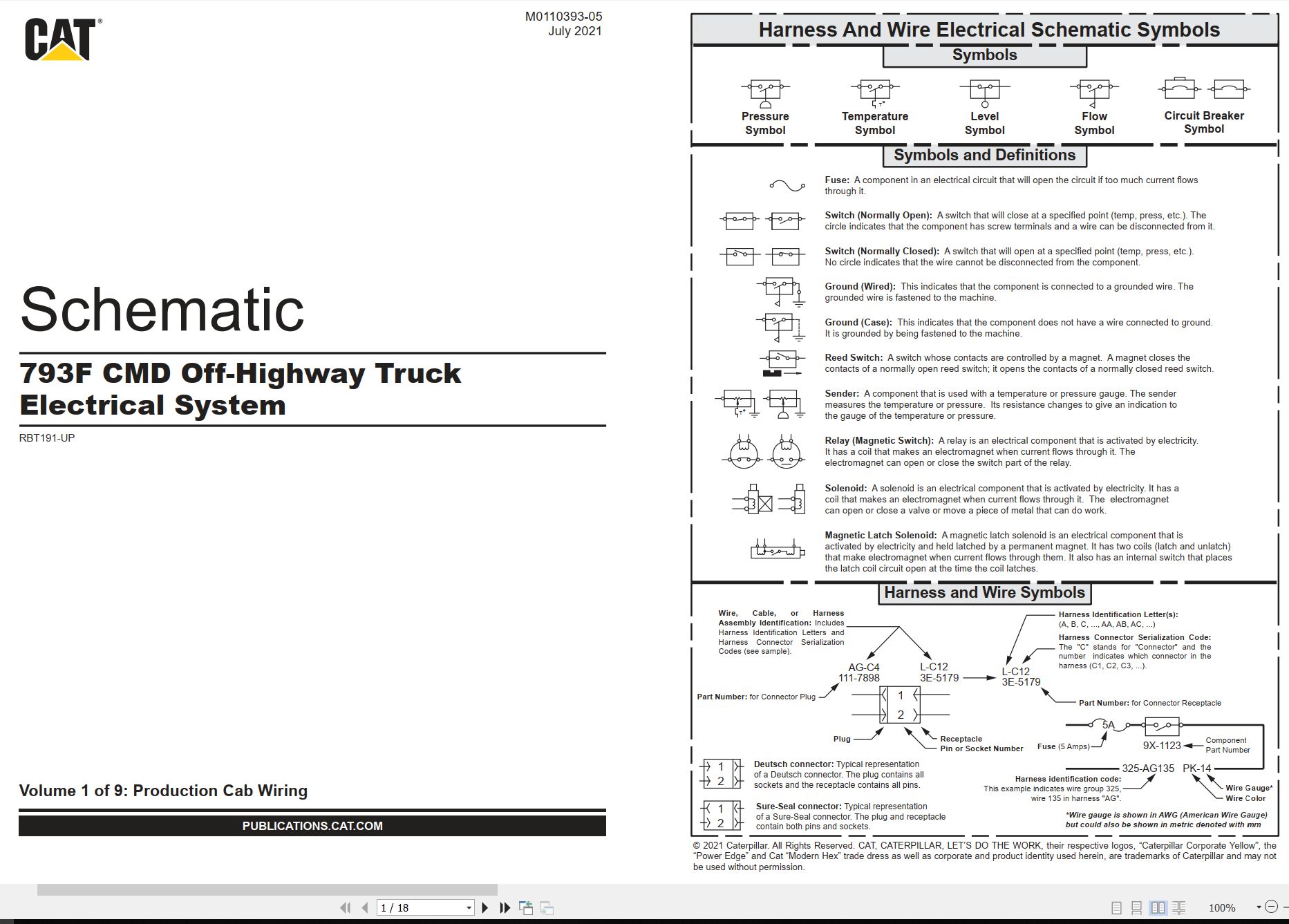

CAT Off Highway Truck 793F CMD Electrical Hydraulic Schematic (1)

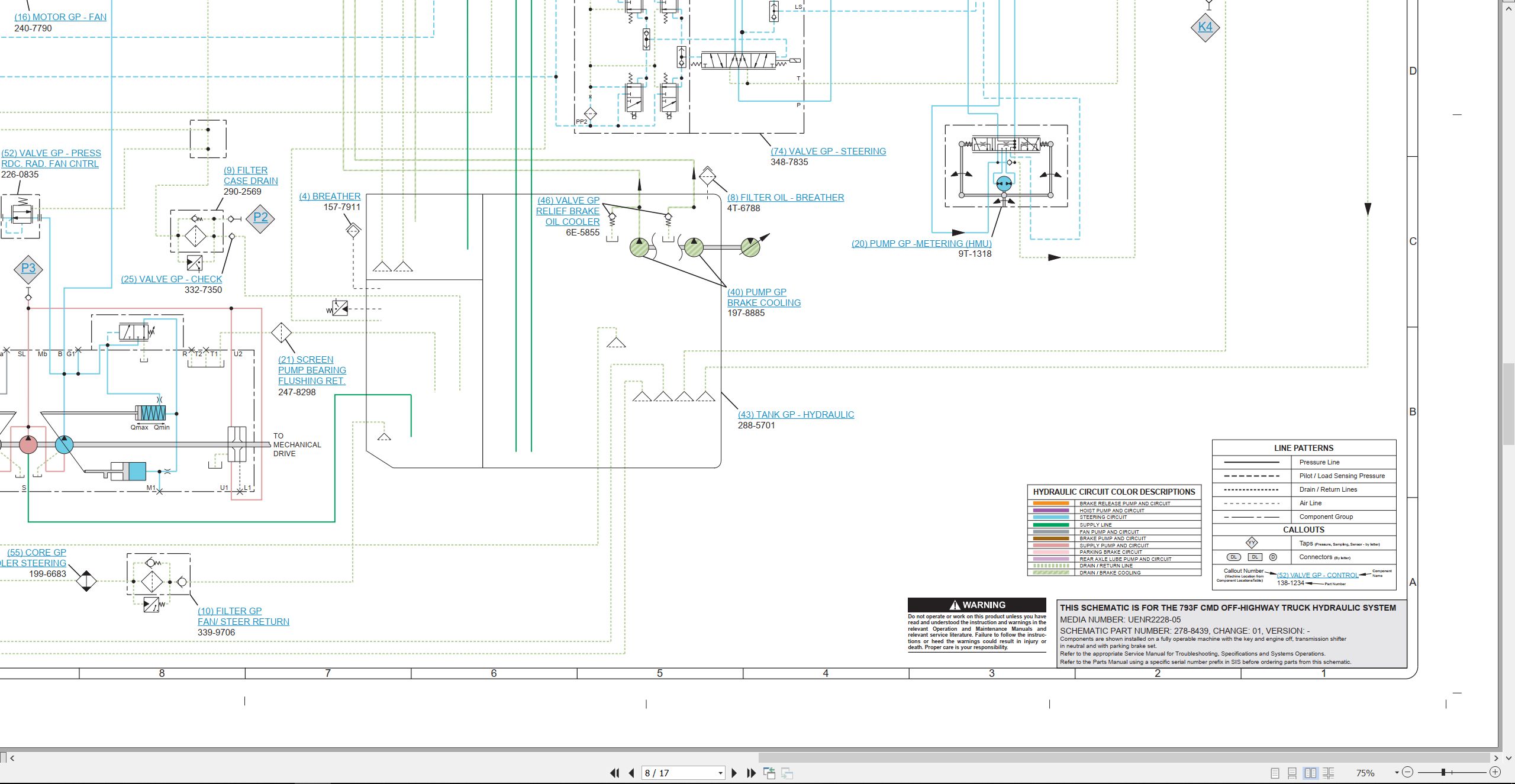

CAT Off Highway Truck 793F CMD Electrical Hydraulic Schematic (2)

CAT Off Highway Truck 793F CMD Electrical Hydraulic Schematic (3)

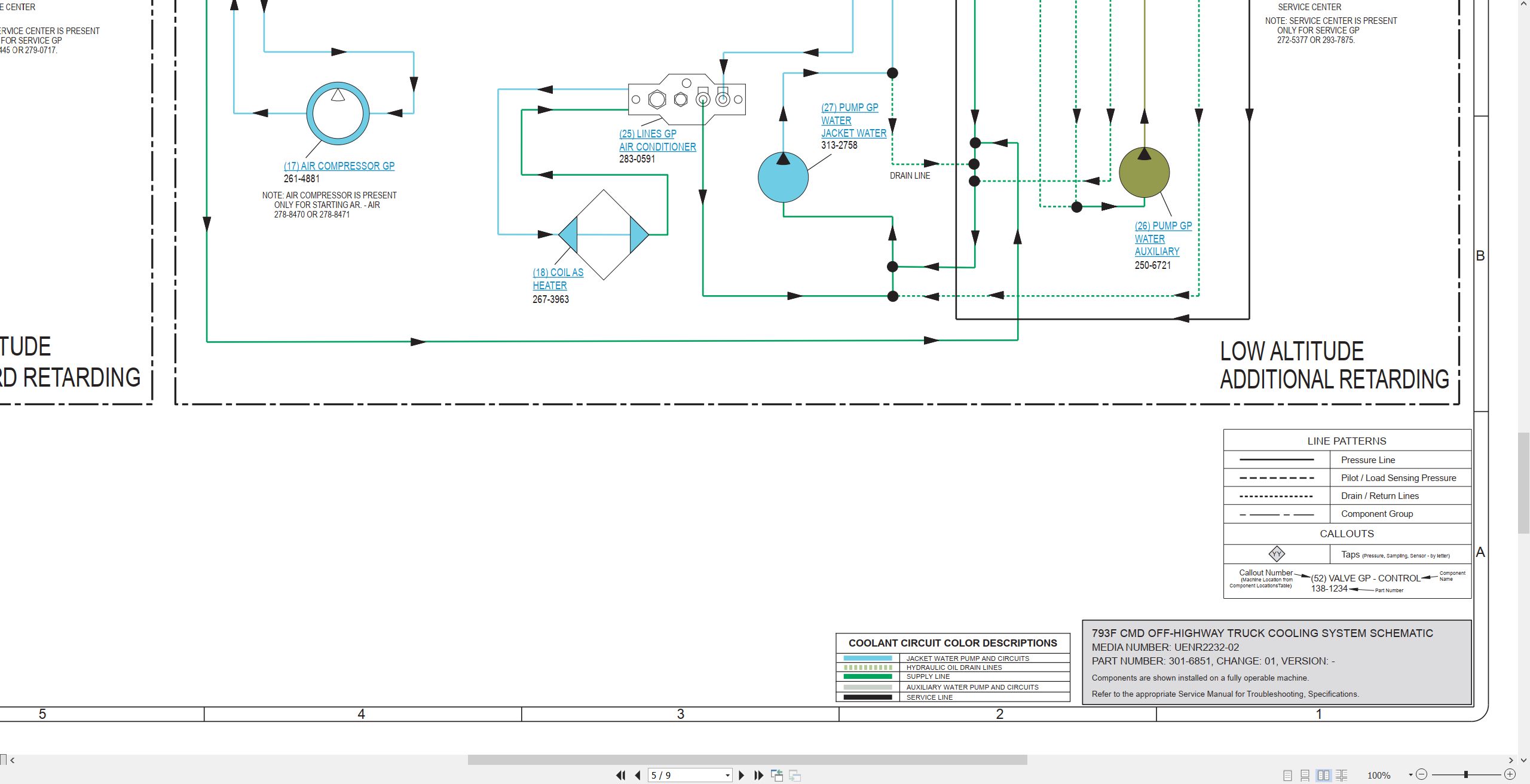

CAT Off Highway Truck 793F CMD Electrical Hydraulic Schematic (4)

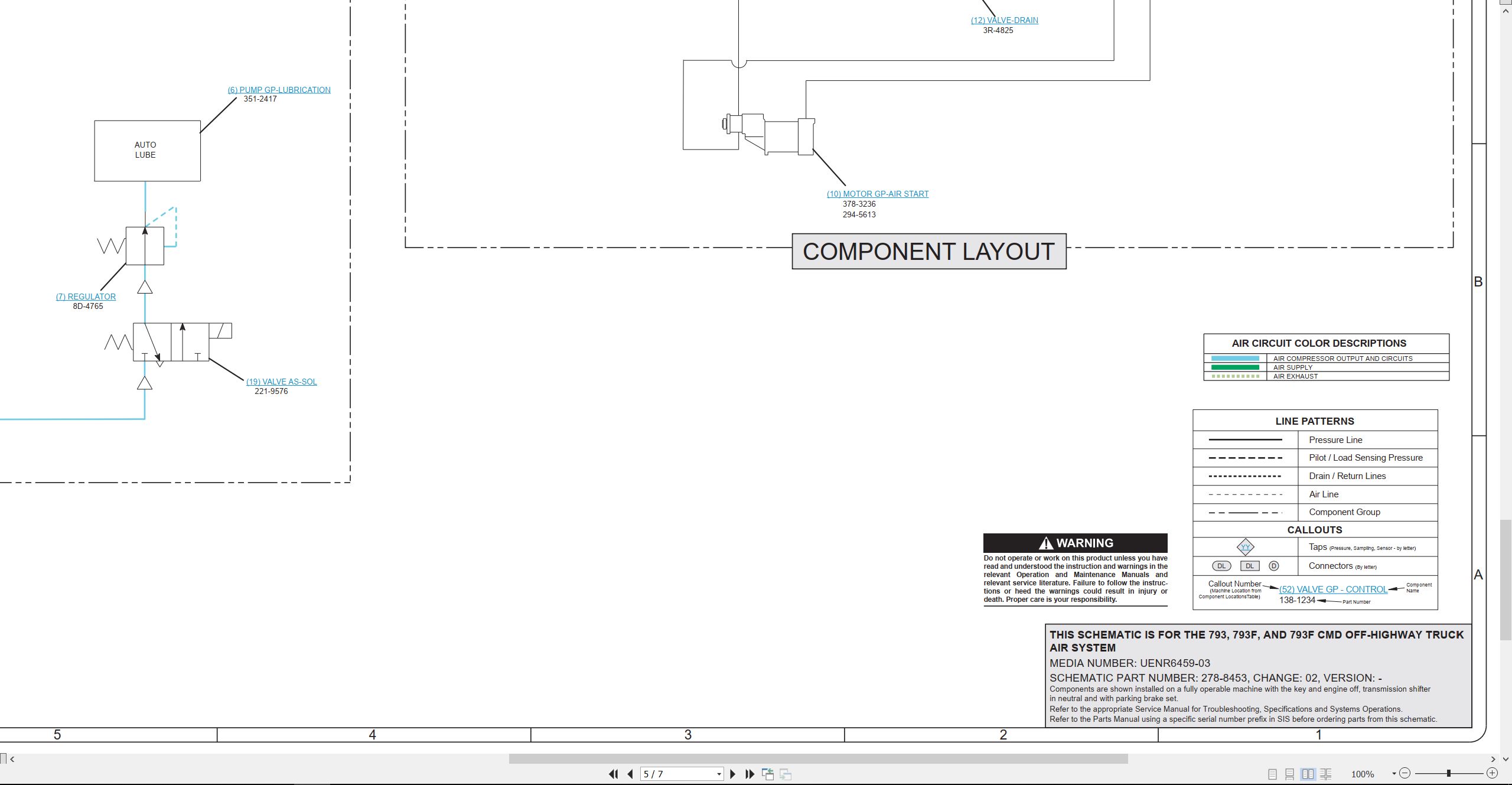

CAT Off Highway Truck 793F CMD Electrical Hydraulic Schematic (5)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Off-Highway Truck 793F CMD Electrical Hydraulic Schematic

Size: 114.30 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Off-Highway Truck

Type of Manual: Air System Schematic, Cooling System Schematic, Electrical Schematic, Hydraulic Schematic

Model: CAT 793F CMD Off-Highway Truck

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
M0110393-05: 793F CMD Off-Highway Truck Electrical System, Production Cab 560-2125-00, Cab CMD 337-7911-01, Chassis 337-7912-02, CMD Cabinet 337-7913-02, Cab 560-2125-00, Chassis 289-6289-07, Engine 330-0122-07, Retrofit Cab 337-7911-01, CMD Cabinet -563-8116-02 (For Serial Numbers RBT191-UP)
M0110393-07: 793F CMD Off-Highway Truck Electrical System, Production Cab 560-2125-00, Cab CMD 337-7911-01, Chassis CMD 337-7912-01, CMD Cabinet 337-7913-02, Cab 560-2125-00, Chassis 289-6289-07, Engine 330-0122-07, Retrofit Cab 337-7911-01, CMD Cabinet Gen 1.5 563-8116-02 (For Serial Numbers RBT191-UP)
M0110393-10: 793F CMD Off-Highway Truck Electrical System, Production Cab 560-2125-01, Cab CMD 337-7911-01, Chassis CMD 337-7912-01, CMD Cabinet 337-7913-02, Cab 560-2125-01, Chassis 289-6289-07, Engine 330-0122-07, Retrofit Cab 337-7911-01, CMD Cabinet Gen 1.5 563-8116-02 (For Serial Numbers RBT191-UP)
M0110393-11: 793F CMD Off-Highway Truck Electrical System, Production Cab 560-2125-01, Cab Wiring CMD 337-7911-01, Chassis CMD 337-7912-01, CMD Cabinet 337-7913-02, Cab 560-2125-01, Chassis 289-6289-07, Engine 330-0122-07, Retrofit Cab 337-7911-01, CMD Cabinet Gen 1.5 563-8116-02, CMD Cab Retrofit 560-2069-02 (For Serial Numbers RBT191-UP)
M0110393-12: 793F CMD Off-Highway Truck Electrical System, Production Cab Wiring – 560-2125-01, Cab Wiring (CMD) And Retrofit Cab Wiring – 337-7911-01, Chassis Wiring (CMD) – 337-7912-01, CMD Cabinet Wiring – 337-7913-02, Chassis – 289-6289-07, Engine Wiring – 330-0122-07, CMD Cabinet (Gen 1.5) – 563-8116-02, CMD Cab – Retrofit (Front) – 560-2069-02, CMD Cabinet A6N2 (Retrofit) – 602-7249-01 (For Serial Numbers RBT191-UP)
M0110393-13: 793F CMD Off-Highway Truck Electrical System, Production Cab Wiring – 560-2125-01, Cab Wiring (CMD) and Retrofit Cab Wiring – 337-7911-01, Chassis Wiring (CMD) – 337-7912-01, CMD Cabinet Wiring – 337-7913-02, Chassis – 289-6289-07, Engine Wiring – 330-0122-07, CMD Cabinet (GEN 1.5) – 563-8116-02, CMD Cabinet A6N2 (Retrofit) – 602-7249-01, CMD Cab – Retrofit (Front) – 560-2069-02 (For Serial Numbers RBT191-445)
M0110843-00: 793F CMD Off-Highway Truck Power Train And Hydraulic System (Interactive)(Function Isolation) ,278-8439-02 (For Serial Numbers RB41-UP)
M0113275-01: 793F CMD Off-Highway Truck Electrical System (Interactive)(Function Isolation), Cab And Ciods 559-5385-00, Cab Wiring 337-7911-01, Chassis Wiring 337-7912-01, CMD Cabinet Wiring 337-7913-02, Engine 463-5300-04, And Aftertreatment 444-0528-02 (For Serial Number RB41-UP)
M0113275-02: 793F CMD Off-Highway Truck Electrical System ,production Cab WIRING-560-2125-01, Chassis Wiring 337-7912-01, CHASSIS-286-6289-07,ENGINE-463-5300-04,AFTERTREATMENT-444-0528-02,CMD Cabinet (Gen 1.5)-563-8116-02 (For Serial Number RB41-UP)
M0113275-03: 793F CMD Off-Highway Truck Electrical System, Production Cab Wiring-560-2125-01, Chassis Wiring (CMD)-337-7912-01, Chassis-289-6289-07, Engine-463-5300-04, Aftertreatment-444-0528-02, CMD Cabinet (GEN 1.5)-563-8116-02 (For Serial Numbers RB41-131)
M0119773-00: 793F CMD Off-Highway Truck Cooling System
M0175997-00: 793F CMD Off-Highway Truck Electrical System, Production Cab Wiring-560-2125-02, Chassis Wiring (CMD)-337-7912-01, Chassis-289-6289-07, Engine-463-5300-04, Aftertreatment-444-0528-02, CMD Cabinet (GEN 1.5)-563-8116-02 (For Serial Numbers RB4132-UP)
M0175999-00: 793F CMD Off-Highway Truck Electrical System, Production Cab Wiring – 560-2125-02, Cab Wiring (CMD) and Retrofit Cab Wiring – 337-7911-01, Chassis Wiring (CMD) – 337-7912-01, CMD Cabinet Wiring – 337-7913-02, Chassis – 289-6289-07, Engine Wiring – 330-0122-07, CMD Cabinet (GEN 1.5) – 563-8116-02, CMD Cabinet A6N2 (Retrofit) – 602-7249-01, CMD Cab – Retrofit (Front) – 560-2069-02 (For Serial Numbers RBT446-UP)
M0175999-01: 793F CMD Off-Highway Truck Electrical System , (For Serial Numbers RBT446-UP)
UENR2228-05: 793F CMD Off-Highway Truck Hydraulic System (Interactive), 278-8439-01 (For Serial Numbers RBT1-171)
UENR2229-10: 793F CMD Off-Highway Truck Electrical System(Interactive)(Function Isolation), Cab Wiring 289-6290-04, Cab Wiring (CMD)337-7911, Chassis Wiring (CMD) 337-7912, CMD Cabinet Wiring 337-7913-03, Cab Wiring 392-0172-00, Chassis Wiring 289-6289-05, Engine Wiring 330-0122-07(FOR Serial Numbers RBT1-171)
UENR2229-11: 793F CMD Off-Highway Truck Electrical System , (For Serial Numbers RBT1-171)
UENR2230-02: 793F CMD Off-Highway Truck Air System (Interactive) 278-8453-01
UENR2232-02: 793F CMD Off-Highway Truck Cooling System (Interactive) 301-6851-01
UENR6329-07: 793F CMD Off-Highway Truck Electrical System , (For Serial Numbers RBT172-190)
UENR6459-03: 793, 793F, And 793F CMD Off-Highway Truck Air System(Interactive)(Function Isolation), 278-8453-02, (For Serial Numbers TWN1-UP RB41-UP D3T1-UP)
UENR7498-03: 793F And 793F CMD Off-Highway Truck Power Train And Hydraulic System – (Interactive) 278-8439-02
UENR7498-04: 793F CMD Off-Highway Truck Hydraulic System(Interactive)(Function Isolation), 278-8439-03, (For Serial Numbers RBT172-UP)
