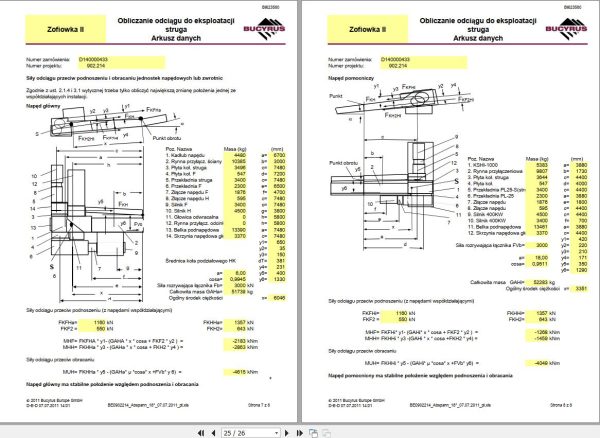

CAT Plow GH 1600 PF 4 1032 Overview Calculations Extraction Operation and Maintenance Manual BI623580 PL
Size: 768 KB
Format: PDF
Language: Polish
Brand: Caterpillar
Type of Machine: Plow
Type of Manual: Operation and Maintenance Manual
Model: CAT GH 1600 PF 4 1032 Overview Calculations Extraction Plow
Date: 2011
Number of Pages: 26 Pages
Part Number: BI623580
Original price was: 20.10Current price is: 10. USD
- Description
Description
Contents:
1 Determination of the chain forces FK and the drive-related forces
sliding forces FVA
2 Drive-dependent sliding forces FVA
3 Determination of the mass-dependent longitudinal sliding force FVG
4 Determination of the frictional force FR
5 Establish housing holding force FA
6 Determination of the required traction force FL against longitudinal displacement
Moving force FVA downhill
7 Retraction force required
8 Planning of the block extraction
9 Changing force FVA downhill, without loading
10 Moving the plow with loading
11 The number of block lashings required to move the device
12 Lifting the sampling system without loading
