Name: CAT Skid Steer Loader 255 Electrical Hydraulic Schematic
SKU: 668919
Availability: InStock

CAT Skid Steer Loader 255 Electrical Hydraulic Schematic (1)

CAT Skid Steer Loader 255 Electrical Hydraulic Schematic (2)

CAT Skid Steer Loader 255 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Skid Steer Loader 255 Electrical Hydraulic Schematic

Size: 31.14 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Skid Steer Loader

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT 255 Skid Steer Loader

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
M0159679-00: 255 And 265 Compact Track Loader Electrical System (Interactive) (Function Isolation), 591-9340-00 (For Serial Numbers KR41-UP FL71-UP)
M0159679-01: 255 and 265 Compact Track Loader Electrical System (Interactive)(Function Isolation) ,591-9340-00 (For Serial Numbers KR41-UP FL71-UP)

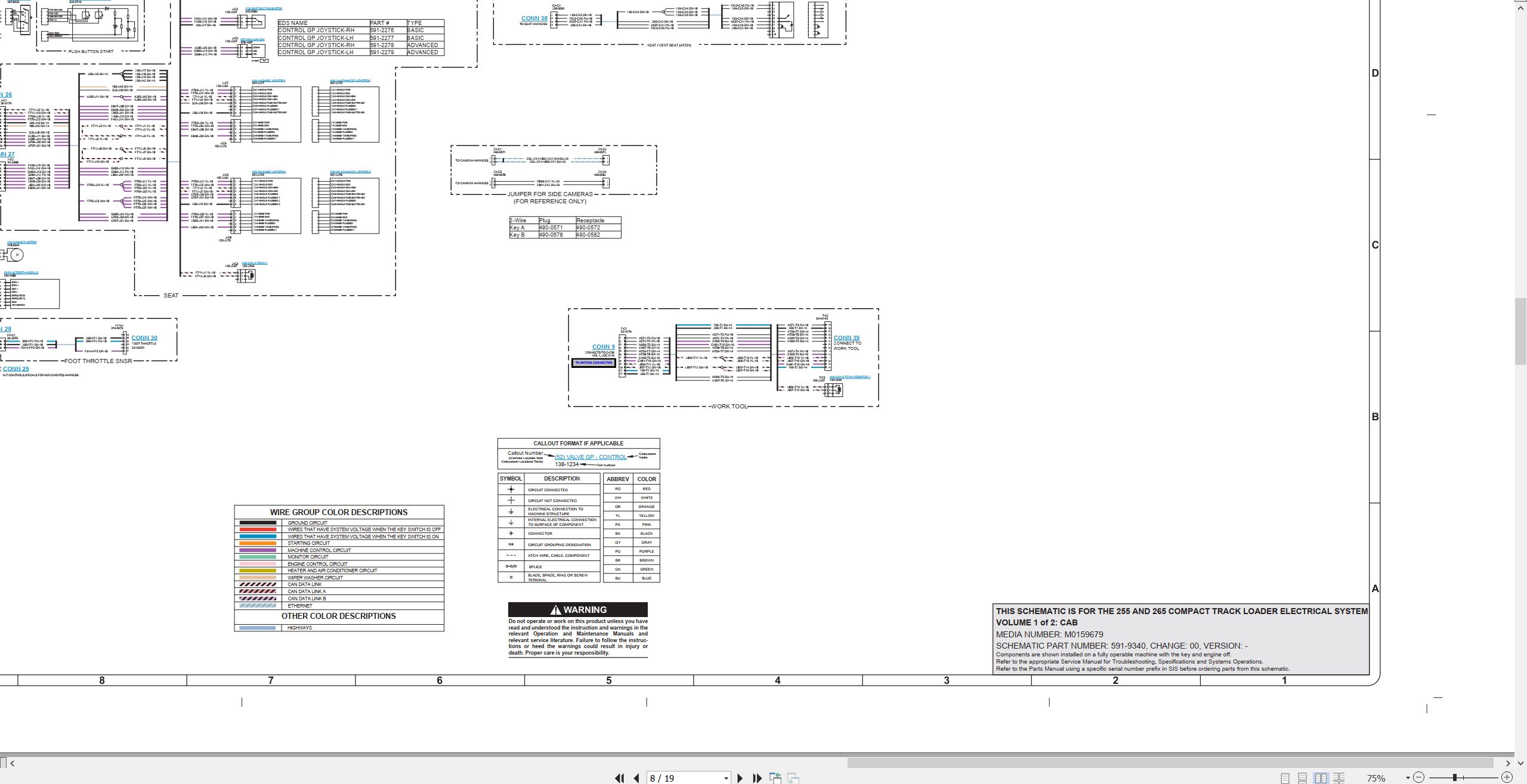

M0159679-02: 255 and 265 Compact Track Loader and 250 and 260 Skid Steer Loader Electrical System ,591-9340-00 (For Serial Numbers KR41-UP FL71-UP 5L91-UP 5L61-UP)

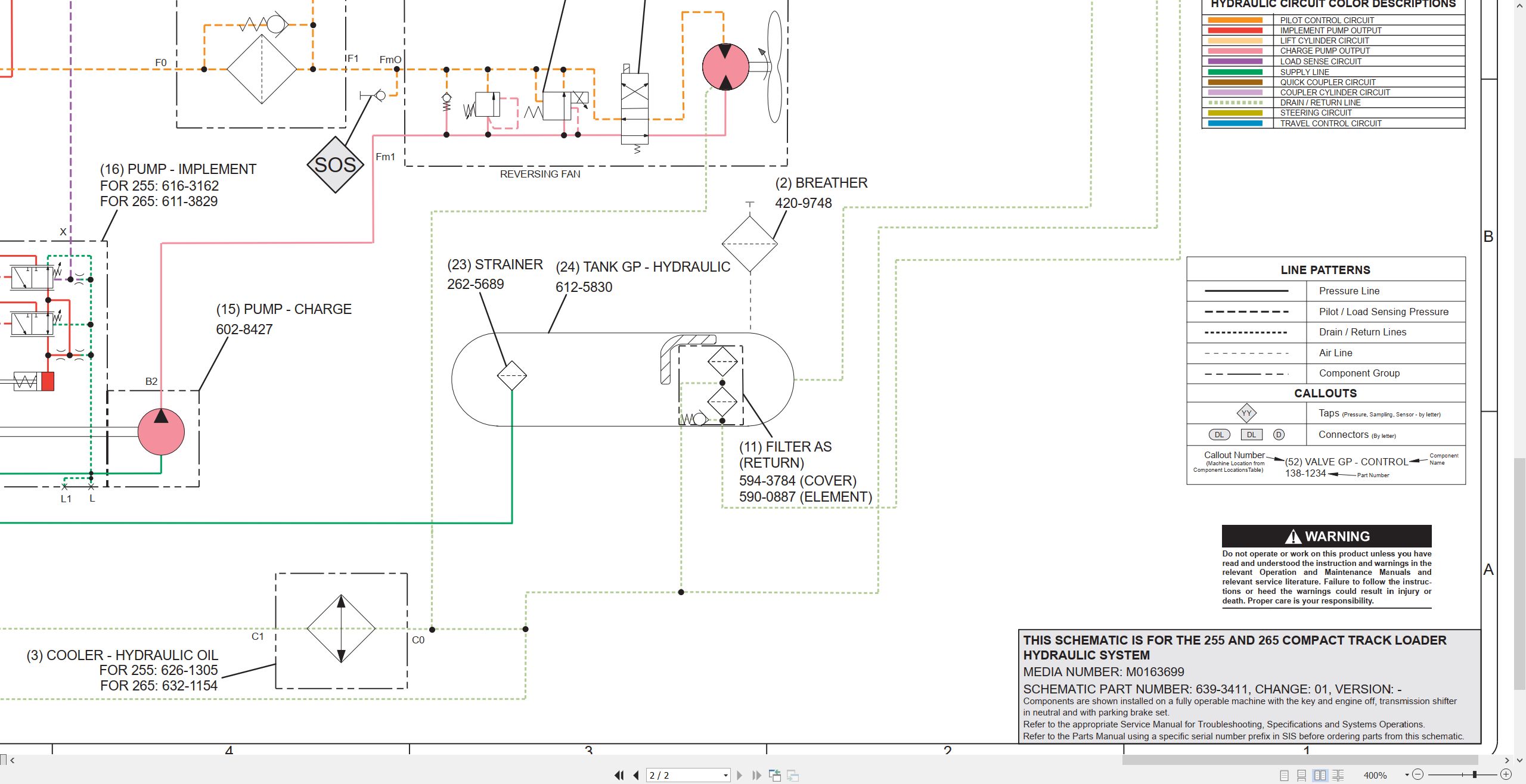

M0163699-00: 255 And 265 Compact Track Loader Hydraulic System 639-3411-01 (For Serial Numbers DY71-UP KR41-UP FL71-UP JN61-UP)
M0163699-02: 255, 260, 265, 275, 275XE, 285 and 285XE Compact Track Loader Hydraulic System 639-3411-02, (For Serial Numbers FL71-UP JN61-UP KR41-UP GPR1-UP P9F1-UP R8Y1-UP R761-UP ZE81-UP T8X1-UP 2X31-UP WH91-UP 2X21-UP M551-UP DY71-UP)
M0163699-03: 250, 260, 270, and 270XE Skid Steer Loader 255, 265, 275, 275XE, 285, and 285XE Compact Track Loader Hydraulic System, 639-3411-02 (For Serial Numbers 5L71-UP 5L61-UP 5L21-UP DY71-UP M551-UP 2X21-UP WH91-UP 2X31-UP T8X1-UP ZE81-UP R761-UP R8Y1-UP P9F1-UP GPR1-UP KR41-UP JN61-UP FL71-UP 5L91-UP 8L51-UP 7L51-UP 6L51-UP)
M0169279-00: 255 And 265 Compact Track Loader Electrical System, 591-9340-00 (For Serial Numbers DY71-UP JN61-UP)
M0169279-01: 255 and 265 Compact Track Loader,260 Skid Steer Loader Electrical System(Interactive)(Function Isolation), 591-9340-00 (For Serial Numbers M551-UP GPR1-UP JN61-UP DY71-UP)
M0169279-03: 255 and 265 Compact Track Loader, 250 and 260 Skid Steer Loader Electrical System (Interactive)(Function Isolation), 591-9340-00, (For Serial Numbers DY71-UP M551-UP 5L21-UP 5L71-UP GPR1-UP JN61-UP )
