CAT Track Drill MD5150C Electrical Hydraulic Schematic

CAT Track Drill MD5150C Electrical Hydraulic Schematic (1)
CAT Track Drill MD5150C Electrical Hydraulic Schematic (2)
CAT Track Drill MD5150C Electrical Hydraulic Schematic (3)
CAT Track Drill MD5150C Electrical Hydraulic Schematic (1)
CAT Track Drill MD5150C Electrical Hydraulic Schematic (2)
CAT Track Drill MD5150C Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Track Drill MD5150C Electrical Hydraulic Schematic

Size: 9.33 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Track Drill
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT MD5150C Track Drill
List of Files:

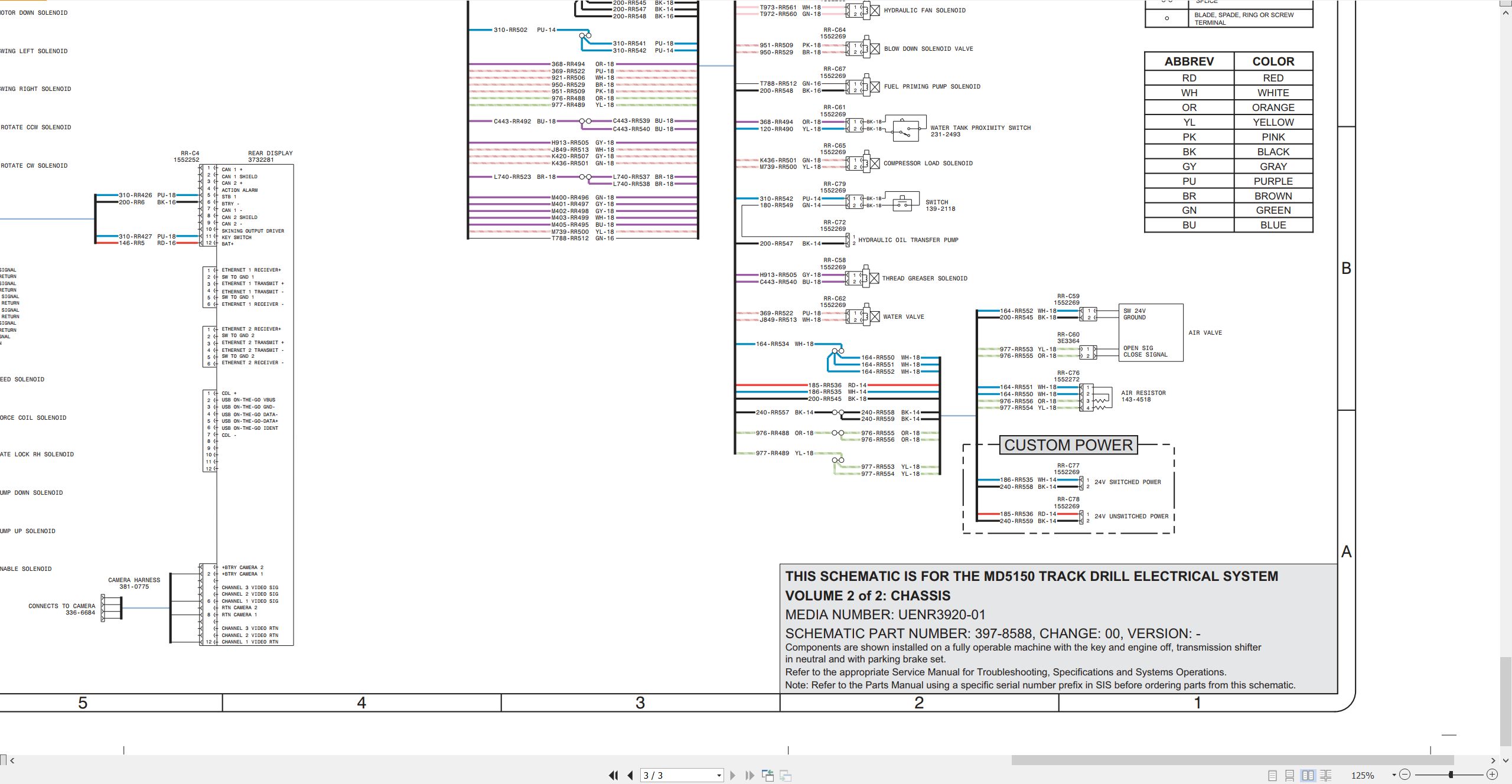

UENR3920-01: MD5150C Track Drill Electrical System 397-8588-00
UENR5501-03: MD5150C Track Drill Electrical System (Interactive), Cab Wiring 397-8588-02
UENR5501-04: MD5150C Track Drill Electrical System (Interactive)(Function Isolation) ,397-8588-02 (For Serial Numbers SEY115-UP)
UENR5966-00: Cat Terrain For Drilling MD5150C Track Drill Electrical System 445-1468
UENR5966-01: CAT Terrain for Drilling MD5150C Track Drill Electrical System 445-1468-00, (For Serial Numbers DNJ1-UP)Wire Tracing

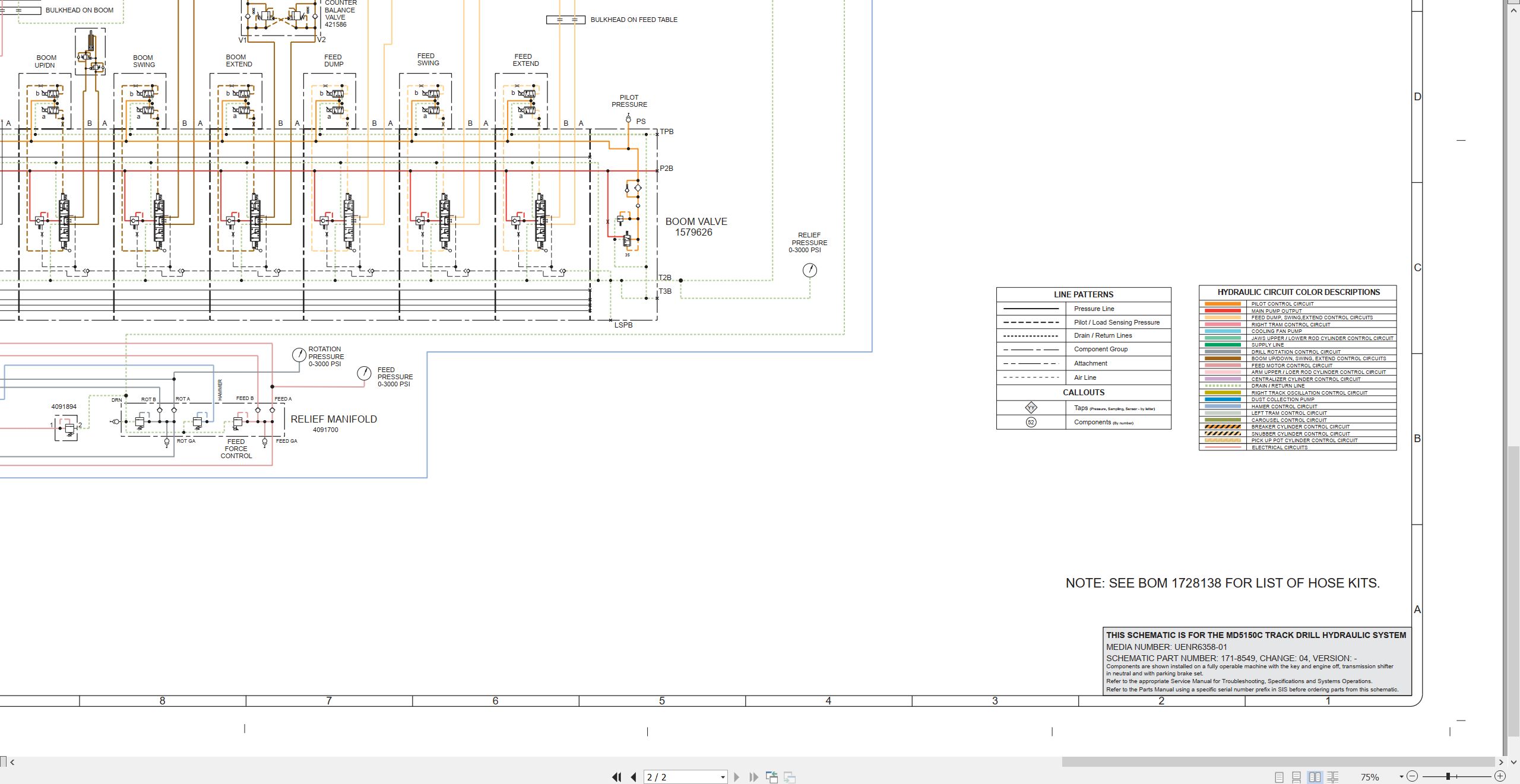

UENR6358-01: MD5150C Track Drill Hydraulic System, 171-8549-04

50 USD

Tag:
  • Description

Description

CAT Track Drill MD5150C Electrical Hydraulic Schematic
Size: 9.33 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Track Drill
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT MD5150C Track Drill
List of Files:
UENR3920-01: MD5150C Track Drill Electrical System 397-8588-00
UENR5501-03: MD5150C Track Drill Electrical System (Interactive), Cab Wiring 397-8588-02
UENR5501-04: MD5150C Track Drill Electrical System (Interactive)(Function Isolation) ,397-8588-02 (For Serial Numbers SEY115-UP)
UENR5966-00: Cat Terrain For Drilling MD5150C Track Drill Electrical System 445-1468
UENR5966-01: CAT Terrain for Drilling MD5150C Track Drill Electrical System 445-1468-00, (For Serial Numbers DNJ1-UP)Wire Tracing
UENR6358-01: MD5150C Track Drill Hydraulic System, 171-8549-04
