CAT Track-Type Tractor D10 Electrical Hydraulic Schematic

Expert Support

Full Speed

100% Working

CAT Track-Type Tractor D10 Electrical Hydraulic Schematic

Size: 31.14 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Track-Type Tractor
Type of Manual: Cooling System Schematic, Electrical Schematic, Hydraulic Schematic, Power Train System Schematic
Model: CAT D10 Track-Type Tractor

50 USD

  • Description

Description

List of Files:
M0114629-00: D10 Track-Type Tractor Power Train System (Interactive) (Function Isolation), 579-9713-01 (For Serial Numbers GKD1-UP MGY1-UP)

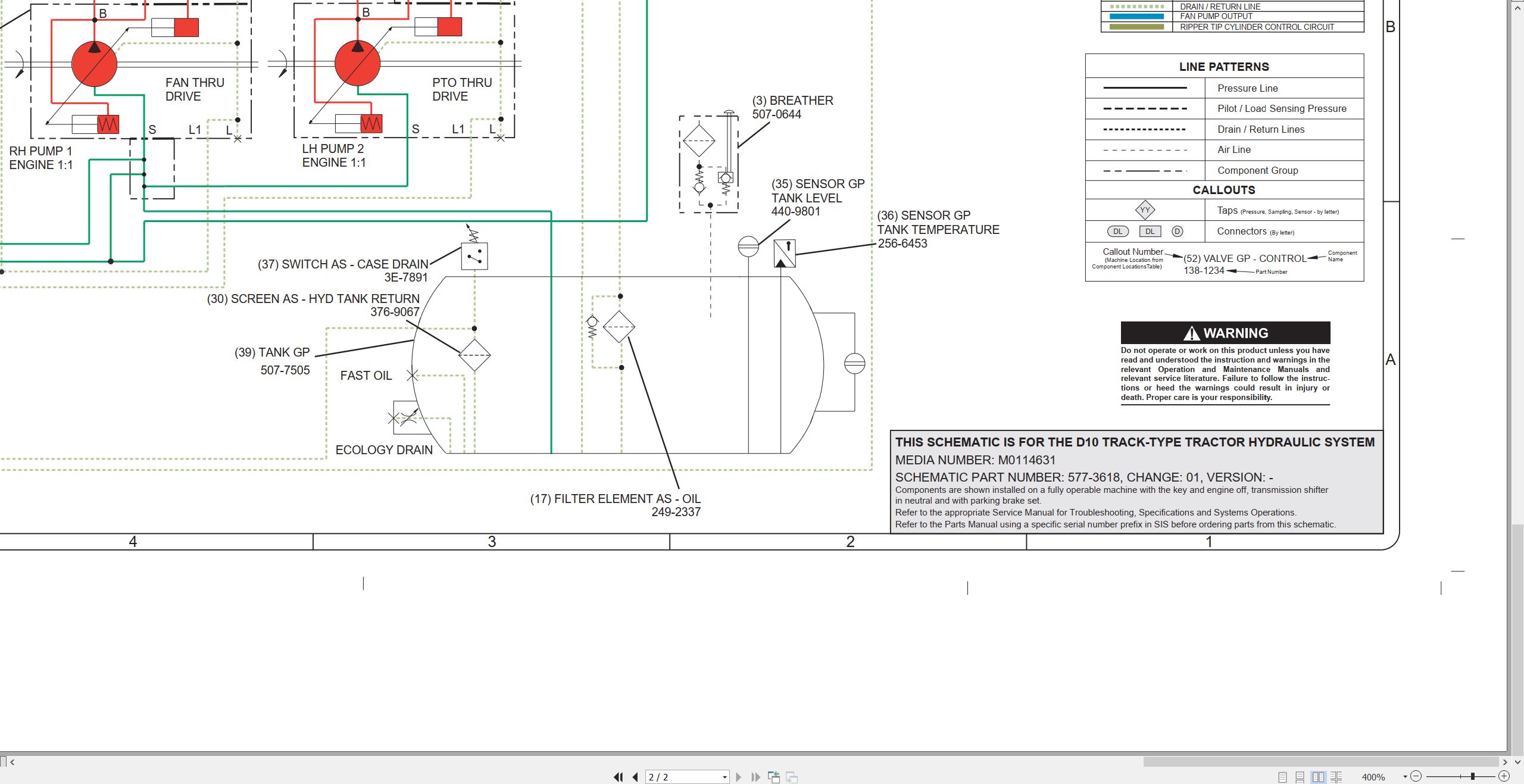

M0114631-00: D10 Track-Type Tractor Hydraulic System 577-3618-01, (For Serial Numbers MGY1-UP GKD1-UP)
M0114631-01: D10 Track-Type Tractor Hydraulic System (Interactive) (Function Isolation), 577-3618-01 (For Serial Numbers MGY1-UP GKD1-UP)

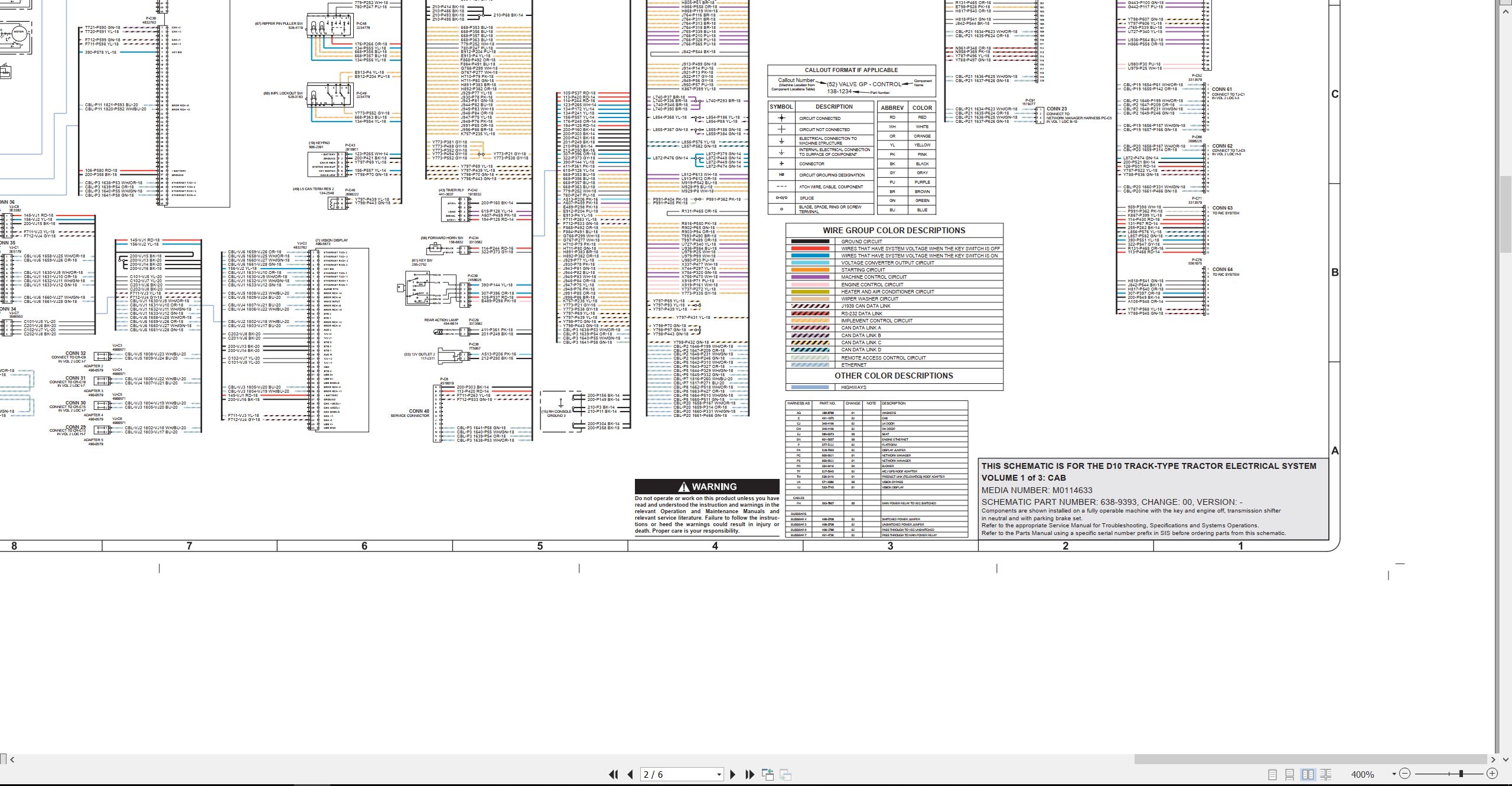

M0114633-00: D10 Track-Type Tractor Electrical System CAB-638-9393-00, CHASSIS-607-9882-00, ENGINE-359-5173-06, (For Serial Numbers GKD1-UP)
M0114633-01: D10 Track-Type Tractor Electrical System, Cab – 638-9393-00, Chassis – 607-9882-00, Engine – 359-5173-06 (For Serial Numbers GKD1-UP)
M0114635-03: D10 Track-Type Tractor Electrical System (Interactive) (Function Isolation), Cab – 638-9393-00, Chassis – 607-9882-00, Engine – 569-4633-01 (For Serial Numbers MGY1-UP)
M0114635-05: D10 Track-Type Tractor Electrical System, Cab-638-9393-00, Chassis-607-9882-00, Engine-656-4916-00 (For Serial Numbers MGY1-UP)Wire Tracing
M0126355-02: D10 And D11 Track-Type Tractor Onboard Remote Control Gen 4 Phase VII Electrical System, 521-3444-00 (For Serial Numbers GKD1-UP TKN1-UP WB61-UP KSN1-UP)
M0126355-03: Gen 4 Phase VII D9, D10, and D11 Track-Type Tractor Onboard Remote Control Electrical System 521-3444-00, (For Serial Numbers KSN1-UP WB61-UP TKN1-UP J3D1-UP JC21-UP GKD1-UP)
M0126355-05: D9, D10, and D11 Track-Type Tractor Onboard Remote Control Gen 4 Phase VII Electrical System (For Serial Numbers KSN1-UP WB61-UP TKN1-UP J3D1-UP JC21-UP GKD1-UP)
M0156467-00: D10 Track-Type Tractor Cooling System(Interactive)(Function Isolation), 610-9682-00, (For Serial Numbers GKD1-UP)
M0156523-00: D10 Track-Type Tractor Cooling System (Interactive)(Function ISOLATION),610-9683-00 (For Serial Numbers MGY1-UP)
M0168841-01: D9, D10, and D11 Track-Type Tractor Onboard Remote Control Gen 4 Phase VII Electrical System(Interactive)(Function Isolation),521-3444-01 (For Serial Numbers KSN1-UP J3D1-UP WB61-UP JC21-UP MGY1-UP GKD1-UP TKN1-UP)
