Name: CAT Track-Type Tractor D5N Electrical Hydraulic Schematic
SKU: 669134
Availability: InStock

CAT Track Type Tractor D5N Electrical Hydraulic Schematic (1)

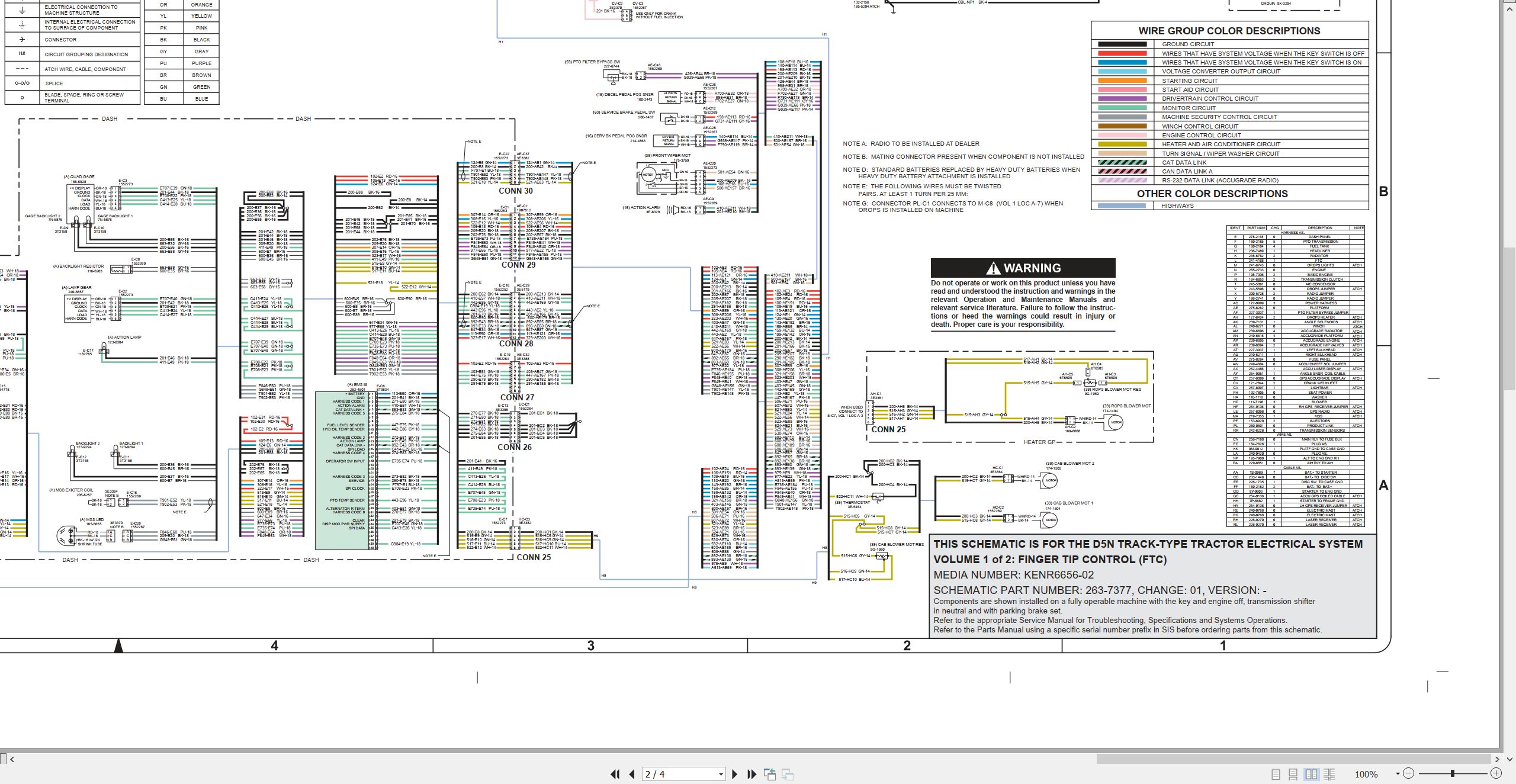

CAT Track Type Tractor D5N Electrical Hydraulic Schematic (2)

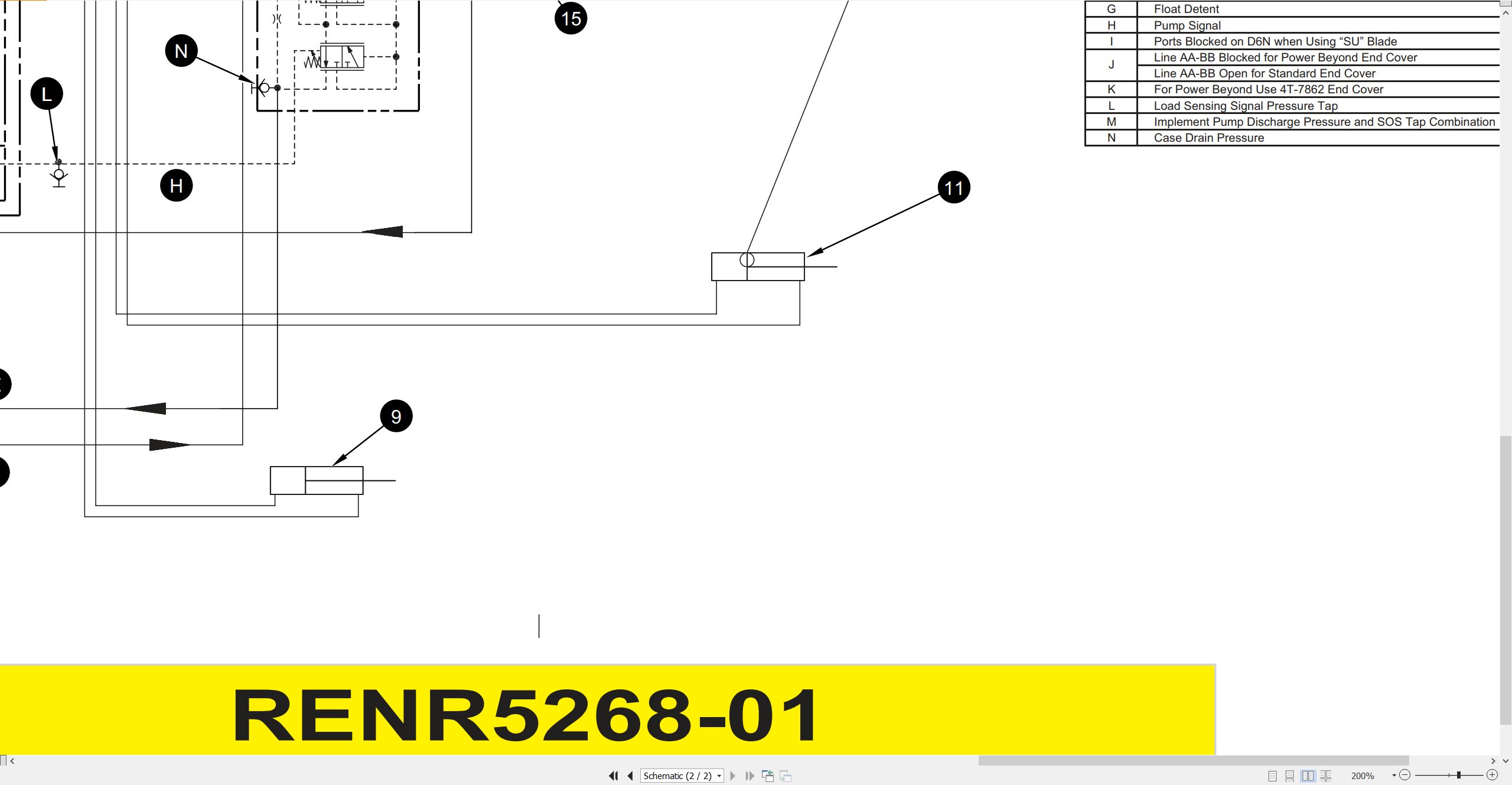

CAT Track Type Tractor D5N Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Track-Type Tractor D5N Electrical Hydraulic Schematic

Size: 15.45 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Track-Type Tractor

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT D5N Track-Type Tractor

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
KENR6500-01: D5N Track-Type Tractor Electrical System 263-7377-02 (For Serial Numbers AKD1674-UP And AGG2069-UP) (Interactive)
KENR6500-02: D5N Track-Type Tractor Electrical System (Interactive)(Function Isolation) ,263-7377-02 (For Serial Numbers AGG2069-UP AKD1674-UP)
KENR6656-01: D5N Track-Type Tractor Electrical System (For Serial Numbers AKD1634-1673 And AGG2017-2068) (Interactive) 263-7377-01
KENR6656-02: D5N Track-Type Tractor Electrical System 263-7377-01, (For Serial Numbers AGG2017-2068 AKD1634-1673 )
RENR5268-01: D5N And D6N Track-Type Tractor Hydraulic System
RENR5292-01: D5N Track-Type Tractor Electrical System (Interactive) 164-9445-02
RENR5292-02: D5N Track-Type Tractor Electrical System(Interactive)(Function Isolation) ,164-9445-02 (For Serial Numbers AGG1-1334 CFH1-299 CKT1-399 AKD1-1134)
RENR8190-04: D5N Track-Type Tractor Electrical System (For Serial Numbers AKD1135-1633, AGG1335-2016, CFH300-UP, And CKT400-UP) (Interactive)
RENR8190-05: D5N Track-Type Tractor Electrical System 263-7377-00, (For Serial Numbers AGG1335-2016 CFH300-UP CKT400-UP AKD1135-1633)
