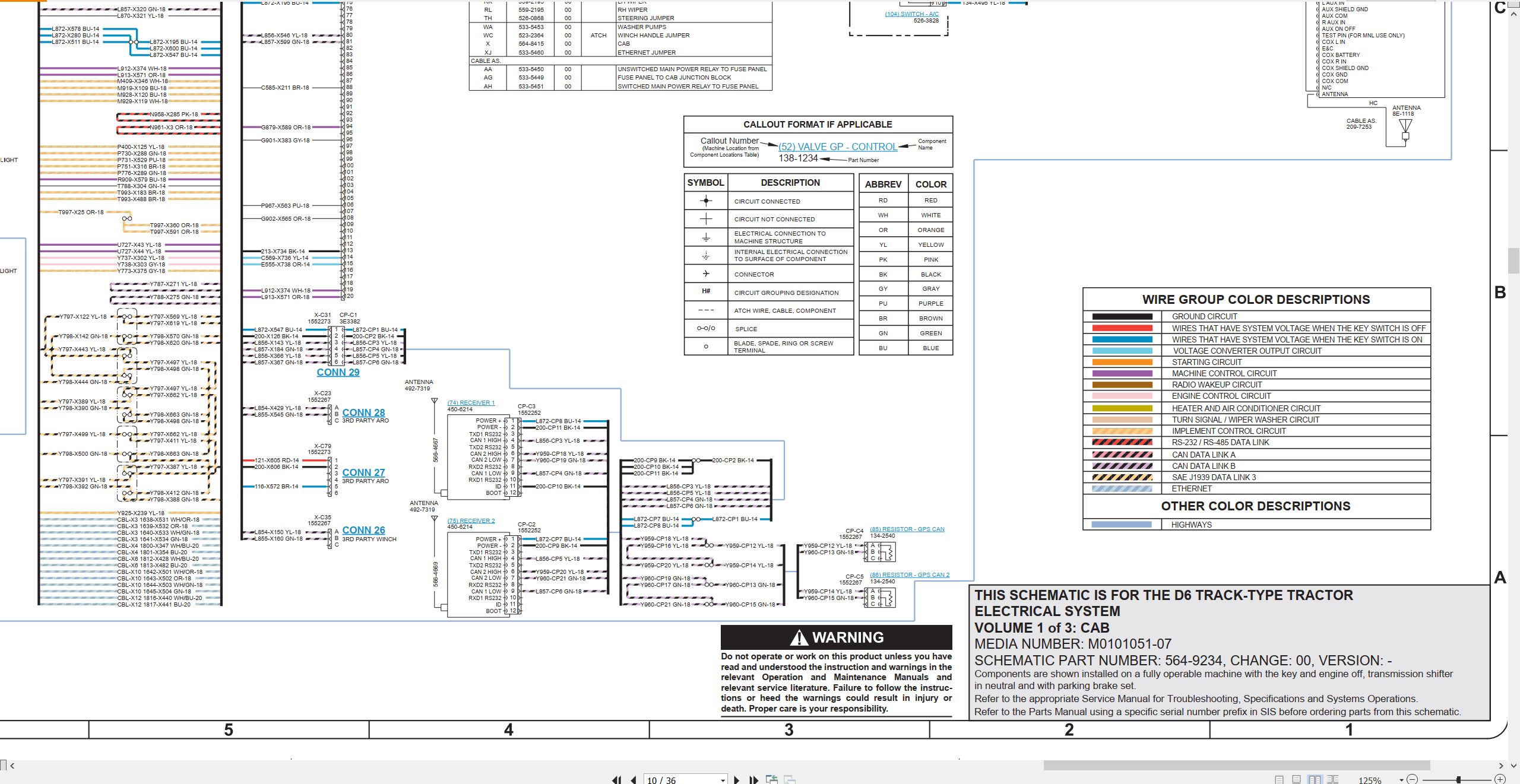

CAT Track-Type Tractor D6 LUC Electrical Hydraulic Schematic

Description

List of Files:
M0101051-07: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation), Cab 564-9234-00, Chassis 482-0746-00, Engine 525-5382-01, Petu 532-7851-01, Cem 491-6343-02 (For Serial Numbers KEW1-999 RDC1-999 SA91-999 RBP1-999 RA91-999 KTW1-999 GZ91-999 KMT1-999 HNK1-999 LF91-999 AG91-999 WH51-999 TB61-999 JJ61-999 HR91-999 SG61-999 KD51-999 LB51-999)
M0109227-00: D6 LUC Track – Type Tractor Hydraulic System (Interactive), Schematic Part Number 462-1805-03
M0109227-01: D6 LUC Track – Type Tractor Hydraulic System(Interactive)(Function Isolation) 462-1805-03, (For Serial Numbers TB61-UP JJ61-UP WH51-UP KD51-UP LB51-UP SG61-UP KMT1-UP KEW1-UP RBP1-UP RDC1-UP KTW1-UP SA91-UP LF91-UP GZ91-UP RA91-UP AG91-UP HR91-UP HNK1-UP)
M0109227-02: D6 LUC Track – Type Tractor Hydraulic System(Interactive)(Function Isolation) 462-1805-04, (For Serial Numbers WH51-UP JJ61-UP TB61-UP SG61-UP AG91-UP HR91-UP RA91-UP GZ91-UP LF91-UP SA91-UP KTW1-UP RDC1-UP RBP1-UP KEW1-UP KMT1-UP HNK1-UP LBG1-UP KDG1-UP)
M0109227-03: D6 LUC Track – Type Tractor Hydraulic System(Interactive)(Function Isolation) 462-1805-04, (For Serial Numbers TB61-9999 JJ61-9999 WH51-9999 KD51-9999 LB51-9999 SG61-9999 KMT1-9999 KEW1-9999 RBP1-9999 RDC1-9999 KTW1-9999 SA91-9999 LF91-9999 GZ91-9999 RA91-9999 AG91-9999 HR91-9999 HNK1-9999)
M0120295-02: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation), Cab 566-2021-01, Chassis Wiring 600-1318-00, Engine 525-5382-02, Petu 532-7851-02, Cem 491-6343-03(FOR Serial Numbers KTW1000-UP KD51000-UP HR91000-UP RDC1000-UP WH51000-UP RA91000-UP RBP1000-UP JJ61000-UP GZ91000-UP KEW1000-UP TB61000-UP LF91000-UP KMT1000-UP SG61000-UP SA91000-UP HNK1000-UP LB51000-UP AG91000-UP)
M0120295-03: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation), Cab 566-2021-01, Chassis Wiring 600-1318-00, Engine 525-5382-02, Petu 532-7851-02, Cem 491-6343-03(FOR Serial Numbers KTW1000-UP KD51000-UP HR91000-UP RDC1000-UP WH51000-UP RA91000-UP RBP1000-UP JJ61000-UP GZ91000-UP KEW1000-UP TB61000-UP LF91000-UP KMT1000-UP SG61000-UP SA91000-UP HNK1000-UP LB51000-UP AG91000-UP)
M0120295-04: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation) CAB-566-2021-01, Chassis WIRING-600-1318-00, ENGINE-525-5382-02 And PETU-532-7851-02, CEM-491-6343-03, (For Serial Numbers SA91000-UP SG61000-UP KMT1000-UP LF91000-UP TB61000-UP RDC1000-UP HR91000-UP KD51000-UP KTW1000-UP AG91000-UP LB51000-UP KEW1000-UP GZ91000-UP JJ61000-UP RBP1000-UP RA91000-UP WH51000-UP HNK1000-UP)
M0120295-05: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation), Cab 566-2021-01, Chassis 600-1318-00, ENGINE-525-5382-02 And PETU-532-7851-02 (For Serial Numbers KTW1000-UP KD51000-UP HR91000-UP RDC1000-UP WH51000-UP RA91000-UP RBP1000-UP JJ61000-UP GZ91000-UP KEW1000-UP TB61000-UP LF91000-UP KMT1000-UP SG61000-UP SA91000-UP HNK1000-UP LB51000-UP AG91000-UP)
M0120295-06: D6 LUC Track-Type Tractor Electrical System (Interactive)(Function Isolation), (For Serial Numbers SA91000-9999 SG61000-9999 KMT1000-9999 LF91000-9999 TB61000-9999 RDC1000-9999 HR91000-9999 KD51000-9999 KTW1000-9999 AG91000-9999 LB51000-9999 KEW1000-9999 GZ91000-9999 JJ61000-9999 RBP1000-9999 RA91000-9999 WH51000-9999 HNK1000-9999)
M0176498-00: D6 LUC Track-Type Tractor Electrical System Cab-615-4769-01, Chassis-630-2505-00, Engine-525-5382-05, (For Serial Numbers PVD1-UP XMM1-UP KKD1-UP EDL1-UP LB71-UP ZMA1-UP SA910000-UP SG610000-UP KMT10000-UP LF910000-UP TB610000-UP RDC10000-UP HR910000-UP KD510000-UP KTW10000-UP AG910000-UP LB510000-UP KEW10000-UP GZ910000-UP JJ610000-UP RBP10000-UP RA910000-UP WH510000-UP HNK10000-UP)
