Name: CAT Vibratory Asphalt Compactor CD54B Electrical Hydraulic Schematic
SKU: 669244
Availability: InStock

CAT Vibratory Asphalt Compactor CD54B Electrical Hydraulic Schematic (1)

CAT Vibratory Asphalt Compactor CD54B Electrical Hydraulic Schematic (2)

CAT Vibratory Asphalt Compactor CD54B Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Vibratory Asphalt Compactor CD54B Electrical Hydraulic Schematic

Size: 20.58 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Vibratory Asphalt Compactor

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT CD54B Vibratory Asphalt Compactor

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

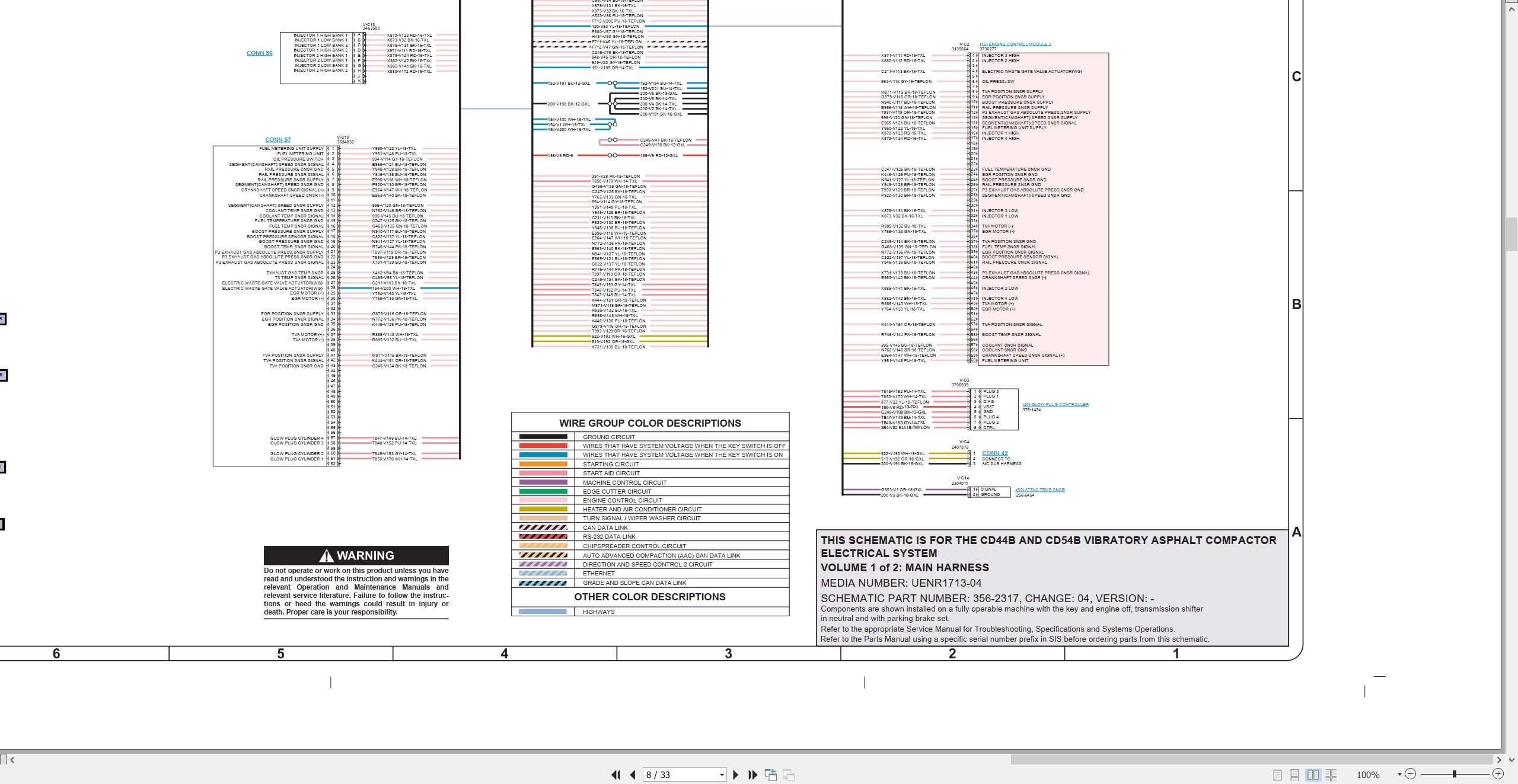

UENR1713-02: CD44B And CD54B Vibratory Asphalt Compactor Electrical System (Interactive), Main Harness 356-2317-04, Cab 356-2317-04
UENR1713-03: CD44B And CD54B Vibratory Asphalt Compactor Electrical System (Interactive) (Function Isolation), 356-2317-04 (For Serial Numbers 3981-UP JXE1-UP J9T1-UP GRT1-UP )
UENR1713-04: CD44B and CD54B Vibratory Asphalt Compactor Electrical System (Interactive) (Function Isolation), 356-2317-04 (For Serial Numbers 3981-UP JXE1-UP J9T1-UP GRT1-UP)

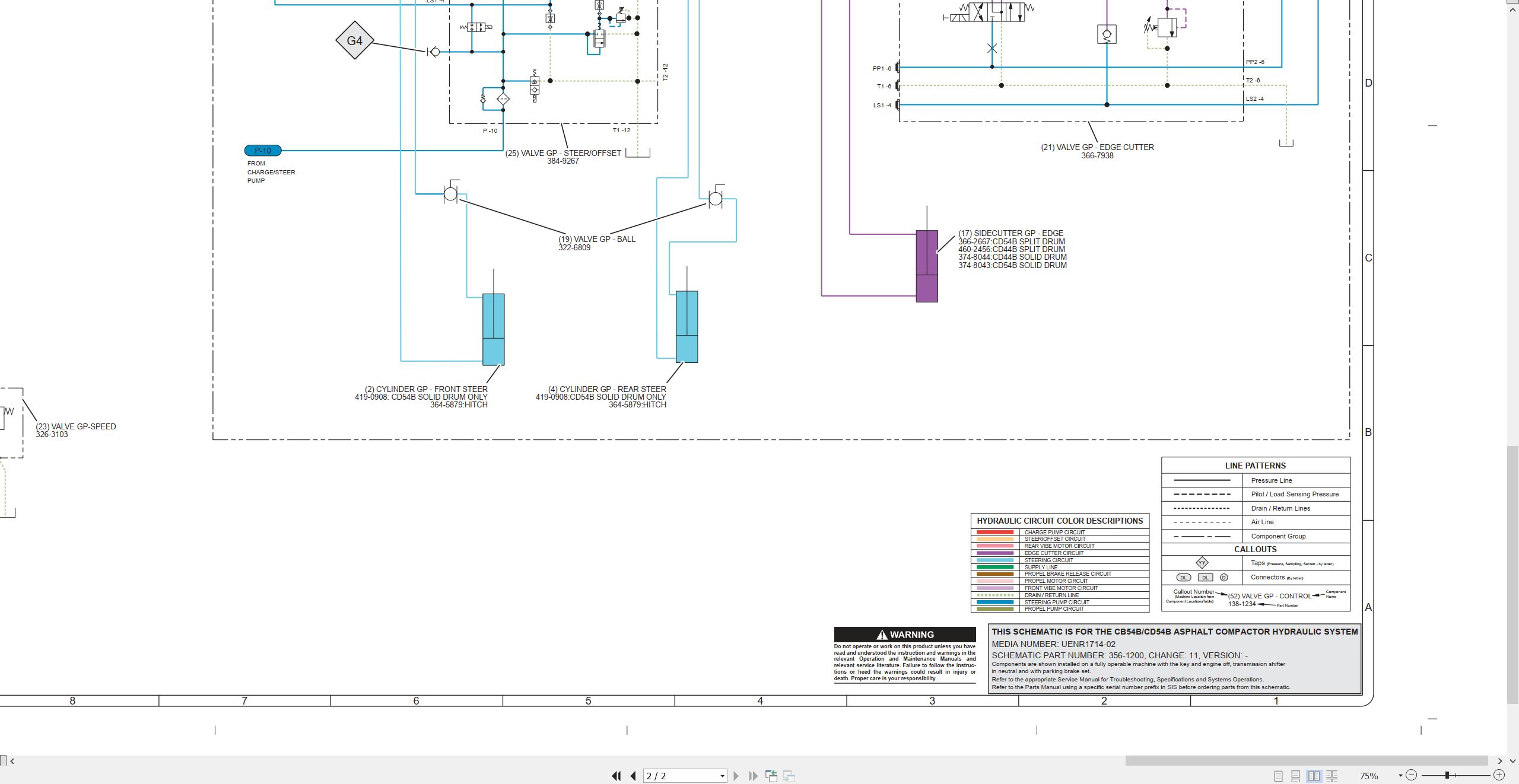

UENR1714-01: CB54B And CD54B Vibratory Compactor Asphalt Hydraulic System (Interactive), 356-1200 (For Serial Numbers RJN1-UP, GRT1-UP, And J9T1-UP)
UENR1714-02: CB54B And CD54B Vibratory Asphalt Compactor Hydraulic System 356-1200-11
UENR1714-03: CB54B And CD54B Vibratory Asphalt Compactor Hydraulic System 356-1200-11
UENR1714-04: CB54B And CD54B Vibratory Asphalt Compactor (Solid Drum) Hydraulic System 356-1200-11
UENR3240-02: CB44B, CD44B, CB46B, CB54B And CD54B Vibratory Asphalt Compactor Hydraulic System (Interactive), Schematic Part Number 356-1200-11 (For Serial Numbers JXL1-UP JC41-UP J9T1-UP GRT1-UP RJN1-UP JXE1-UP)
UENR3240-04: CB44B, CD44B, CB54B, And CD54B Vibratory Asphalt Compactor (Split Drum) Hydraulic System 356-1200-10
