Name: CAT Vibratory Compactor CB24B Electrical Schematic UENR7080-02 2020
SKU: 669278
Availability: InStock

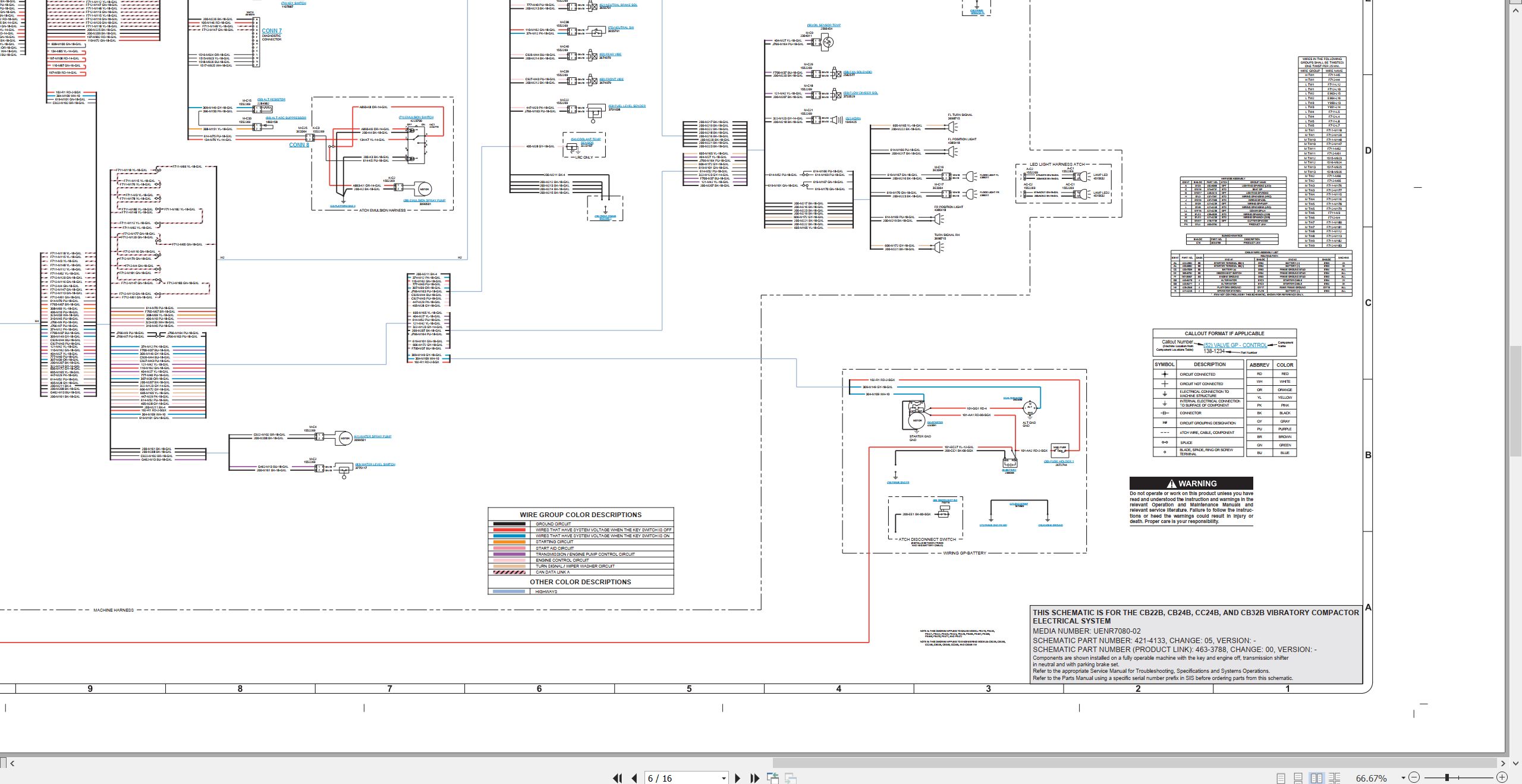

CAT Vibratory Compactor CB24B Electrical Schematic UENR7080 02 2020 (1)

CAT Vibratory Compactor CB24B Electrical Schematic UENR7080 02 2020 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Vibratory Compactor CB24B Electrical Schematic UENR7080-02 2020

Size: 2.87 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Vibratory Compactor

Type of Manual: Electrical Schematic

Model: CAT CB22B, CB24B, CC24B, CB32B Vibratory Compactor

Number of Pages: 16 Pages

Parts Number: UENR7080-02

Publication Date: 2020

20 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Schematic
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
021 (Orange) (Starting)
190 (Dk Pink) (Start Aid)
258 (Dk Purple) (Transmission/Engine Pump Control Circuit)
509 (Lt Pink) (Engine Control Circuit)
4665 (Tan) (Turn/Wiper/Washer)
CON 190 (CAN “A” D.L.)
Machine Views
Console Front
Console Left
Console Rear
Edge Cutter
Engine Right
Machine Front Left
Machine Front Lower Left
Machine Left
Machine Rear
Machine Right
