Name: CAT Vibratory Compactor CS-54 to CS-56 Electrical Schematic KENR5939-03 2021
SKU: 669323
Availability: InStock

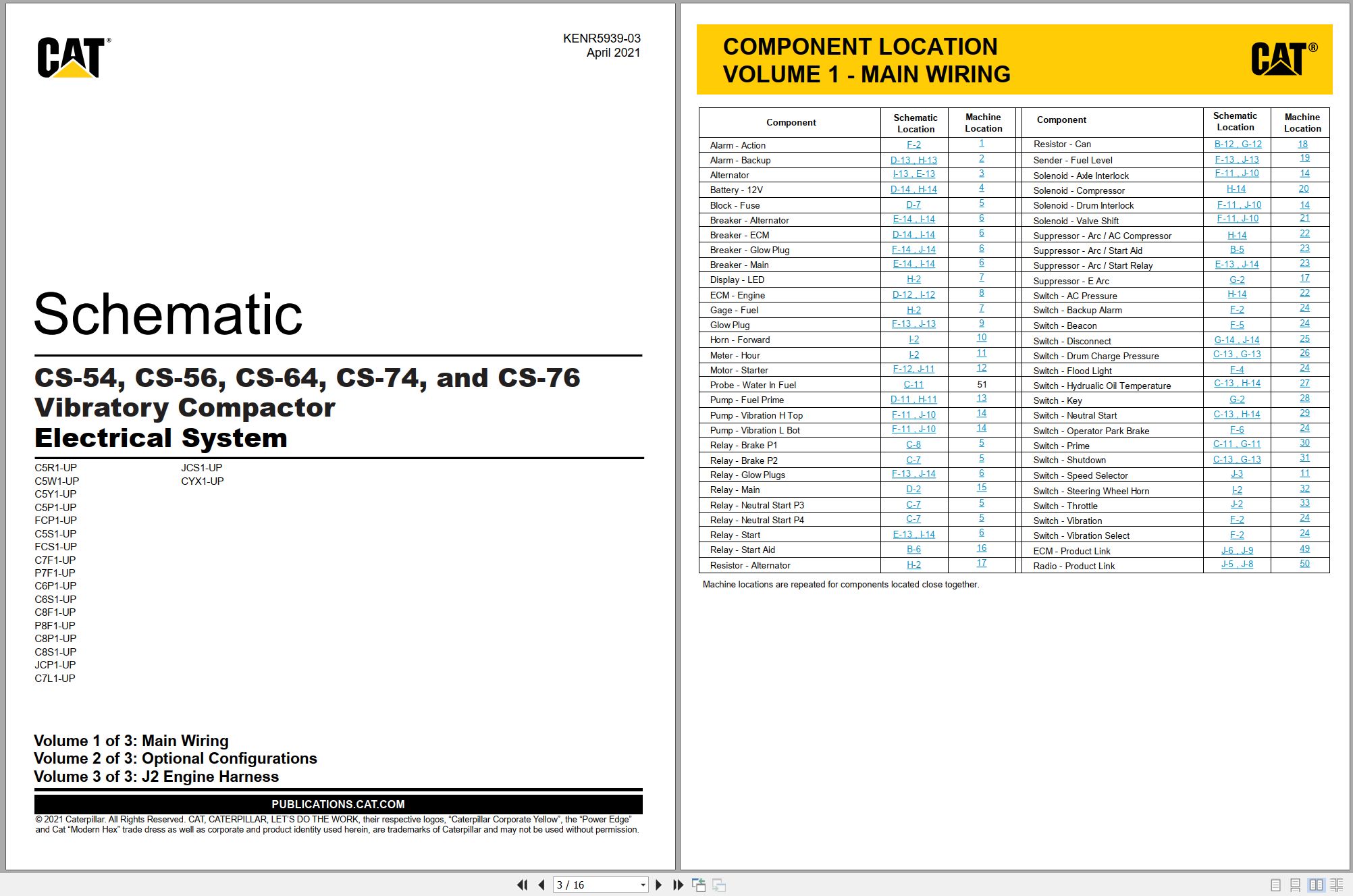

CAT Vibratory Compactor CS 54 to CS 56 Electrical Schematic KENR5939 03 2021 (1)

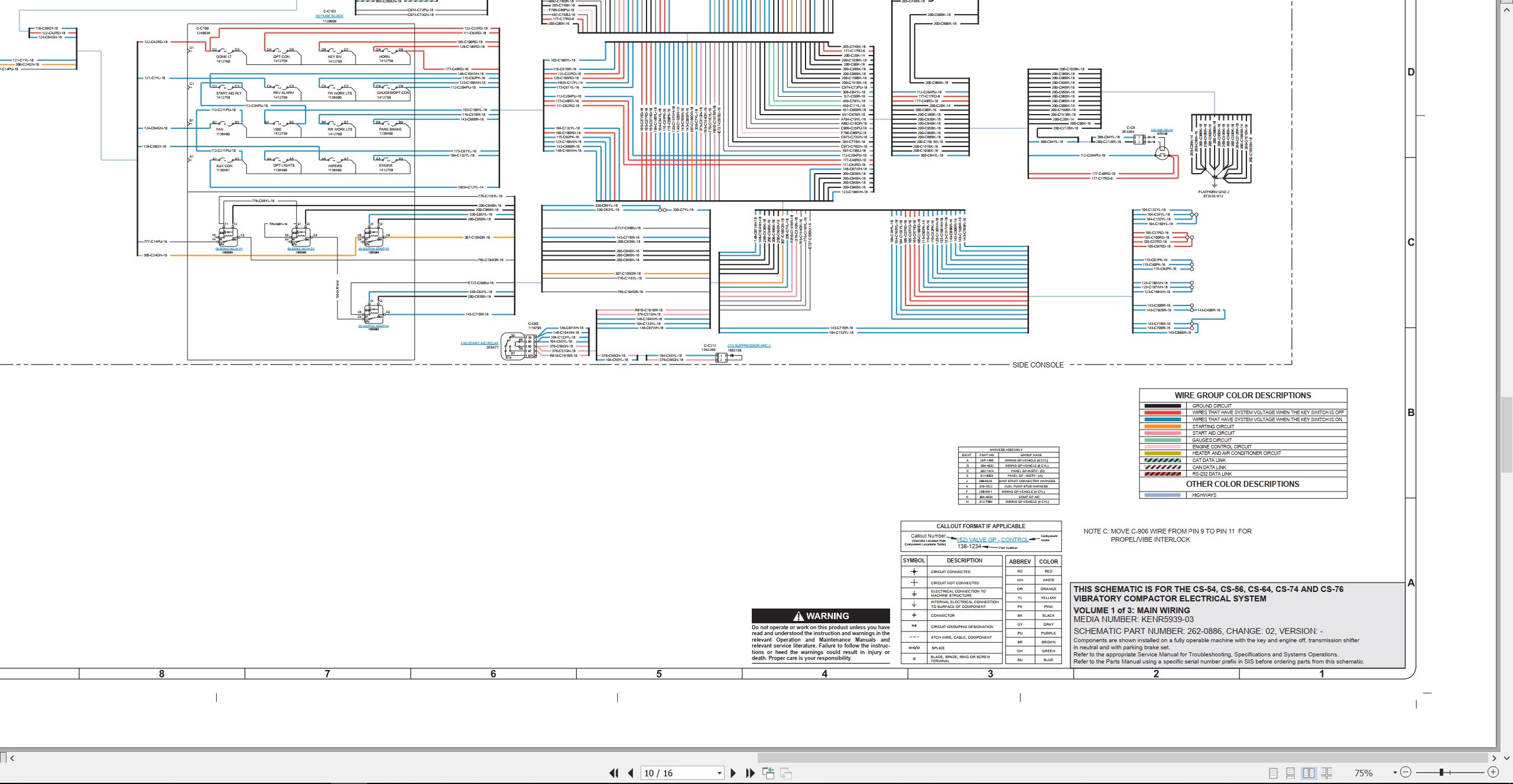

CAT Vibratory Compactor CS 54 to CS 56 Electrical Schematic KENR5939 03 2021 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Vibratory Compactor CS-54 to CS-56 Electrical Schematic KENR5939-03 2021

Size: 9.36 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Vibratory Compactor

Type of Manual: Electrical Schematic

Model: CAT CS-54, CS-56, CS-64, CS-74, CS-76 Vibratory Compactor

Number of Pages: 16 Pages

Parts Number: KENR5939-03

Publication Date: 2021

20 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Vol 1 – Main Wiring
Vol 2 – Optional Configurations
Vol 3 – J2 Engine Harness
Connector Location
Vol 1 – Main Wiring
Vol 2 – Optional Configurations
Vol 3 – J2 Engine Harness
Schematics
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Vol 1 – Main Wiring
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
021 (Orange) (Starting)
190 (Dk Pink) (Start Aid)
346 (Med Green) (Gauges Circuit)
509 (Lt Pink) (Engine Master)
613 (Dk Yellow) (Heat/AC)
CON 032 (RS232/485 D.L.)
CON 190 (CAN “A” D.L.)
CON 346 (CAT D.L.)
Vol 2 – Optional Configurations
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
305 (Lt Blue) (Converter 12v Out)
346 (Med Green) (Gauges Circuit)
613 (Dk Yellow) (Heat/AC)
4665 (Tan) (Turn/Wiper/Washer)
CON 190 (CAN “A” D.L.)
CON 5767 (Olive Green) (Recording Module Circuit)
Vol 3 – J2 Engine Harness
509 (Lt Pink) (Engine Master)
Machine Views
Vol 1 – Main Wiring
Machine Harness Connector and Component Locations
Vol 2 – Optional Configurations
Machine Harness Connector and Component Locations
Vol 3 – J2 Engine Harness
C4.4 Engine Wiring
C6.6 Engine Wiring
