Name: CAT Vibratory Utility Compactor CB2.9 Electrical Hydraulic Schematic
SKU: 669395
Availability: InStock

CAT Vibratory Utility Compactor CB2.9 Electrical Hydraulic Schematic (1)

CAT Vibratory Utility Compactor CB2.9 Electrical Hydraulic Schematic (2)

CAT Vibratory Utility Compactor CB2.9 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Vibratory Utility Compactor CB2.9 Electrical Hydraulic Schematic

Size: 20.07 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Vibratory Utility Compactor

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT CB2.9 Vibratory Utility Compactor

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

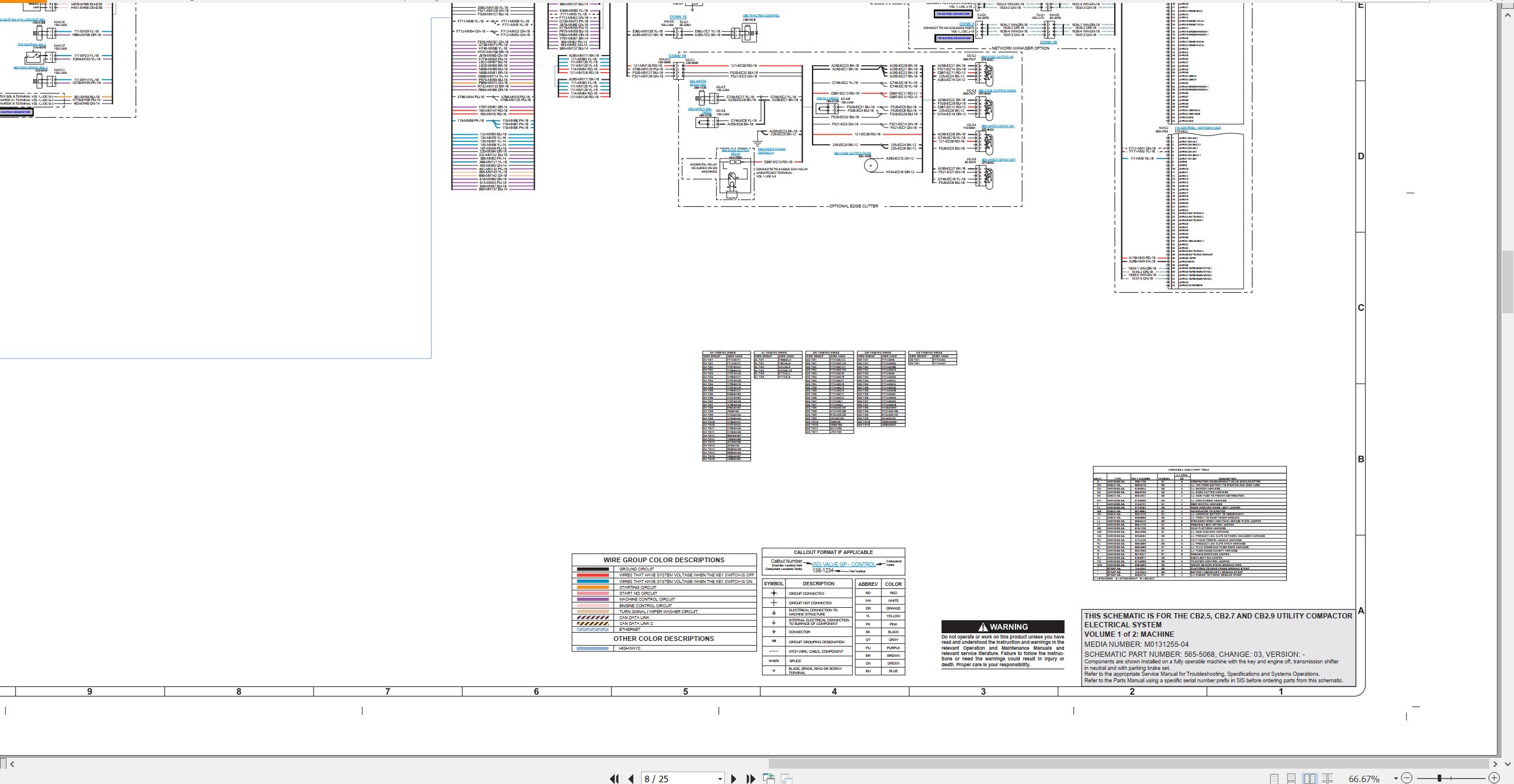

M0131255-00: CB2.5, CB2.7, And CB2.9 Utility Compactor Electrical System (Machine) 565-5068-01 (Engine) 598-4360
M0131255-02: CB2.5, CB2.7, And CB2.9 Utility Compactor Electrical System(Interactive)(Function Isolation), (Machine) 565-5068-02 (Engine) 598-4360 (For Serial Numbers 6471-UP 6481-UP 6461-UP)
M0131255-03: CB2.5, CB2.7, And CB2.9 Utility Compactor Electrical System(Interactive)(Function Isolation), MACHINE-565-5068-03, ENGINE-598-4360-00, (For Serial Numbers 6471-UP 6481-UP 6461-UP)
M0131255-04: CB2.5, CB2.7, And CB2.9 Utility Compactor Electrical System (Interactive)(Function Isolation), MACHINE-565-5068-03,ENGINE-598-4360-00(FOR Serial Numbers 6481-UP 6471-UP 6461-UP)
M0131257-00: CB2.5, CB2.7, And CB2.9 Utility Compactor Hydraulic System 565-5071
M0131257-02: CB2.5, CB2.7, And CB2.9 Utility Compactor Hydraulic System (Interactive)(Function Isolation), 565-5071-01 (For Serial Numbers 6471-UP 6481-UP 6461-UP)

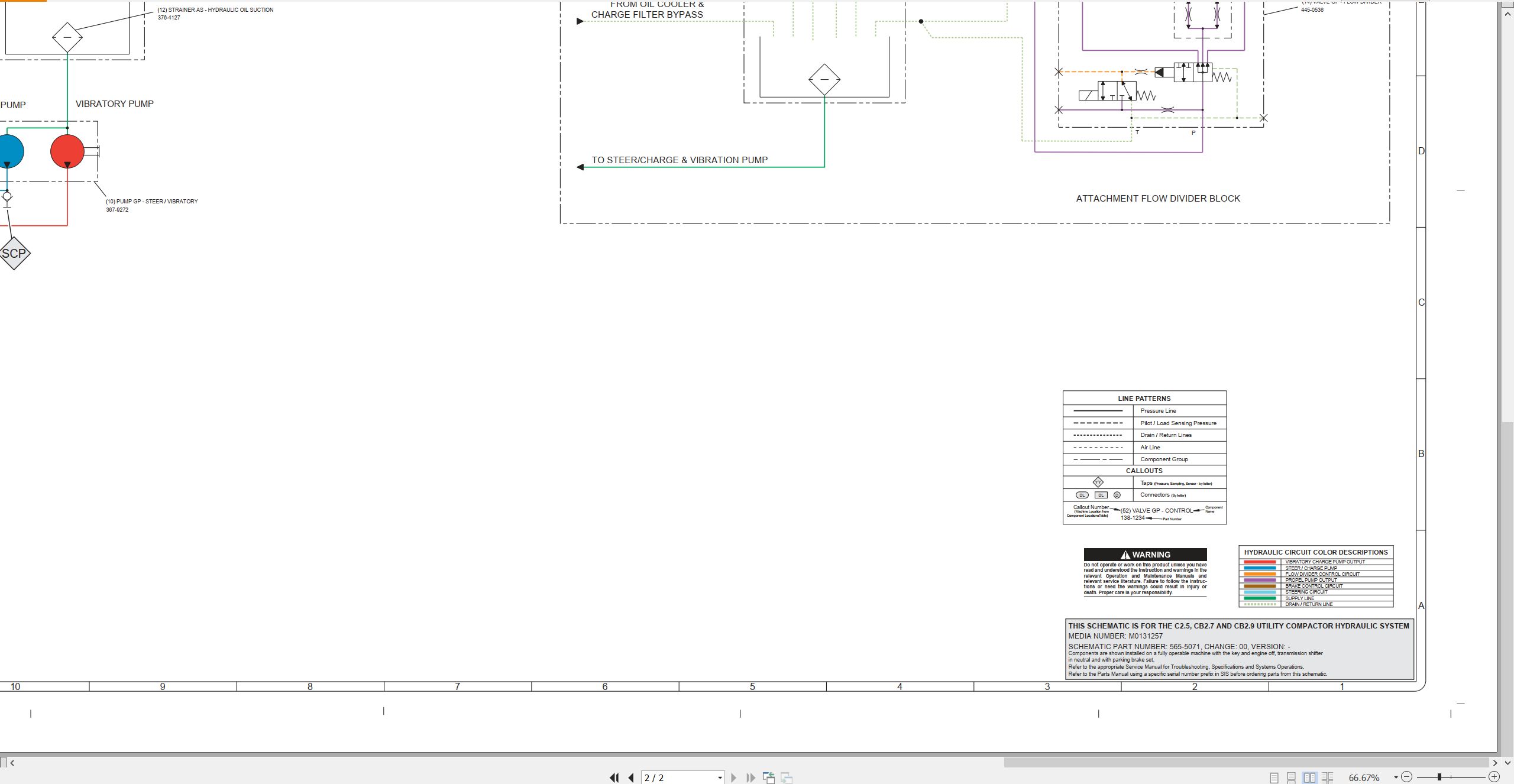

UENR7947-01: CB2.5, CB2.7 And CB2.9 Vibratory Compactor Hydraulic System (Interactive), 489-0008
UENR7949-00: CB2.5, CB2.7, CB2.9 And CC2.6 Vibratory Compactor Electrical System (Interactive), Schematic Part Number 489-0005-00
UENR7949-01: CB2.5, CB2.7, CB2.9 And CC2.6 Vibratory Compactor Electrical System (Interactive)(Function Isolation), 489-0005-00 (For Serial Numbers SPX1-UP XS31-UP R521-UP R2B1-UP)
