Name: CAT Wheel Tractor-Scraper 631K OEM Electrical Hydraulic Schematic
SKU: 669508
Availability: InStock

CAT Wheel Tractor Scraper 631K OEM Electrical Hydraulic Schematic (1)

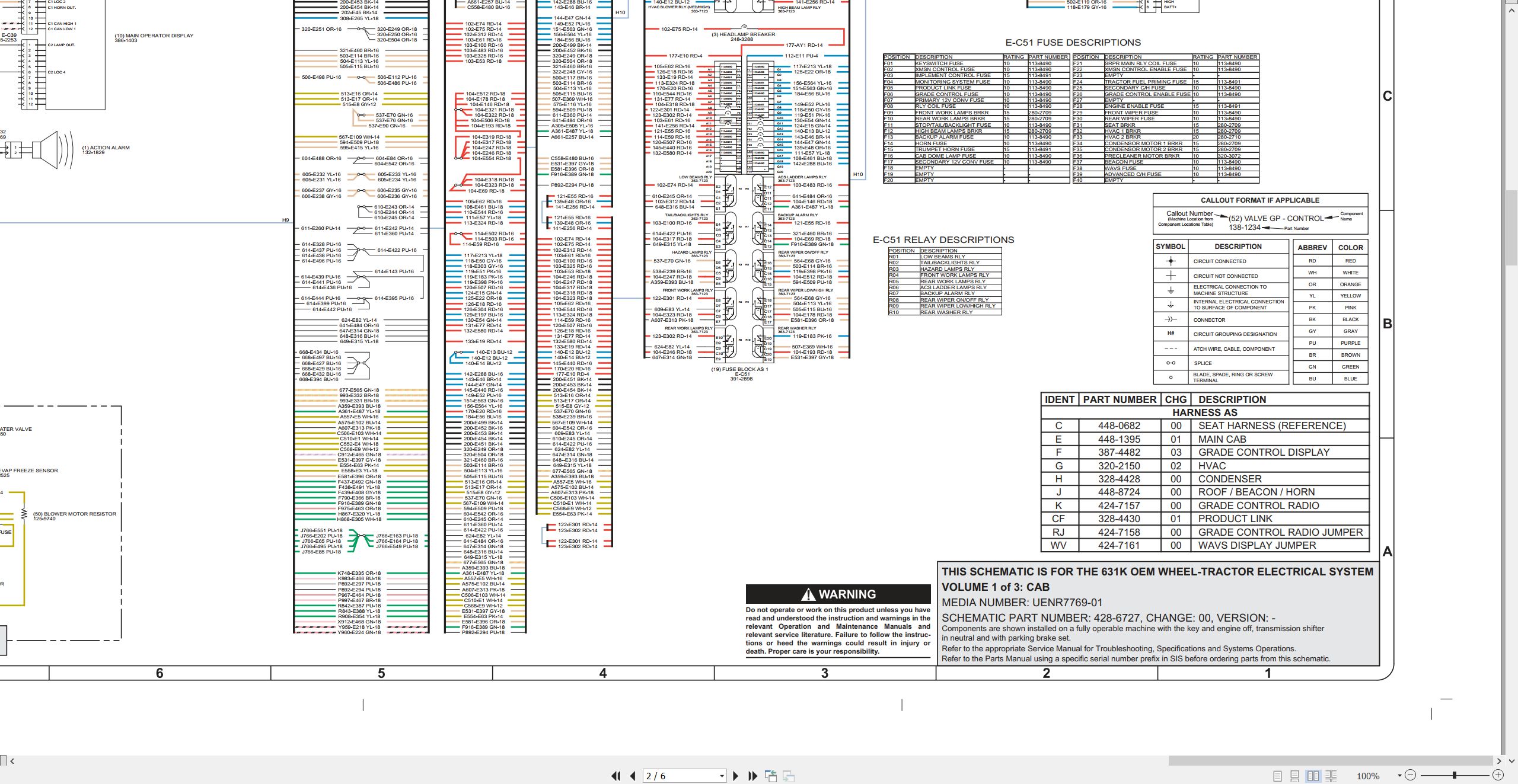

CAT Wheel Tractor Scraper 631K OEM Electrical Hydraulic Schematic (2)

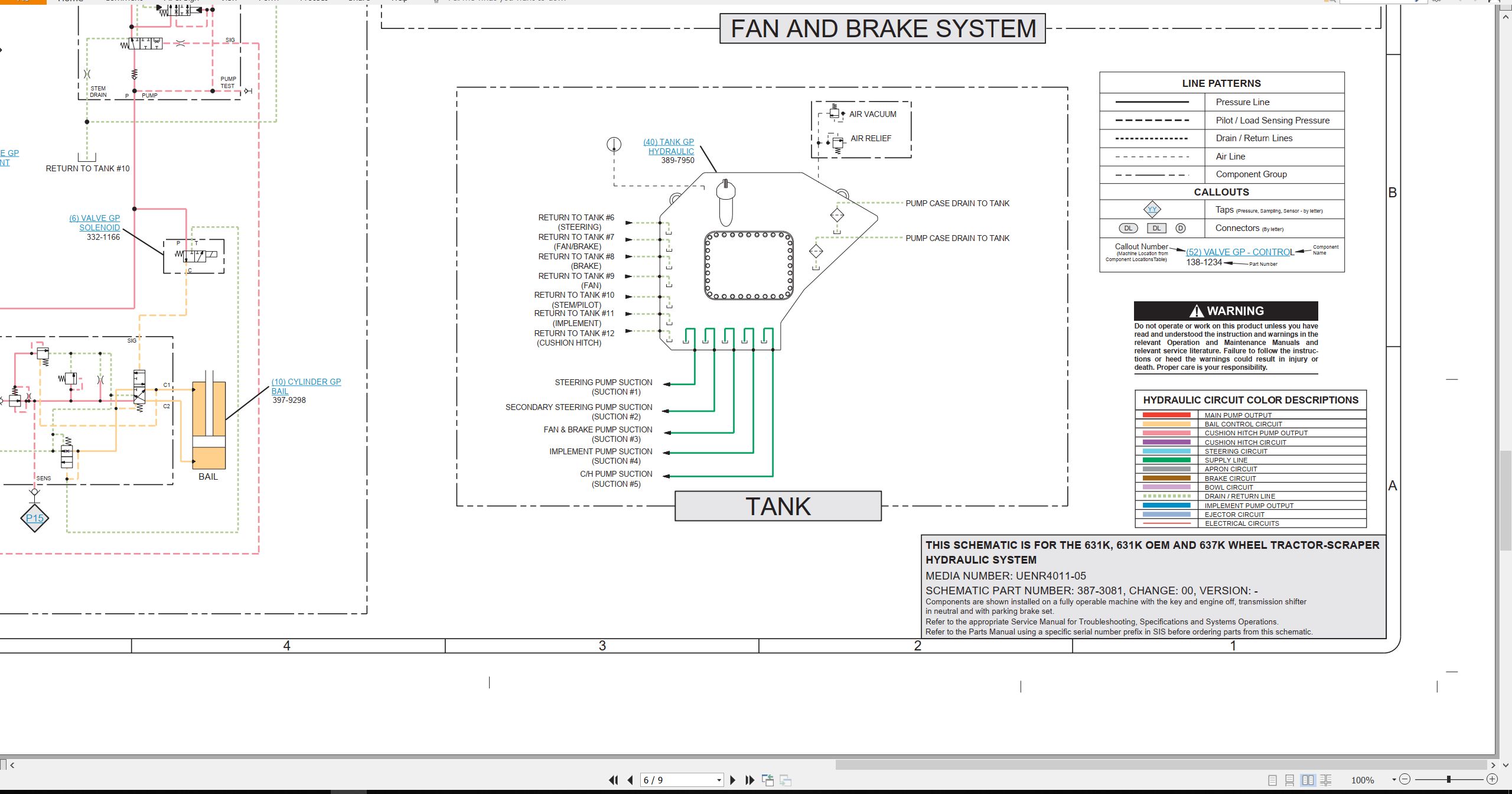

CAT Wheel Tractor Scraper 631K OEM Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheel Tractor-Scraper 631K OEM Electrical Hydraulic Schematic

Size: 17.21 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheel Tractor-Scraper

Type of Manual: Electrical Schematic, Hydraulic Schematic, Power Train System Schematic

Model: CAT 631K OEM Wheel Tractor-Scraper

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
UENR4011-04: 631K, 631K OEM And 637K Wheel Tractor-Scraper Hydraulic System, 387-3081
UENR4011-05: 631K, 631K OEM And 637K Wheel Tractor-Scraper Hydraulic System (Interactive)(Function ISOLATION),387-3081-00, (For Serial Numbers WTT1-UP WTX1-UP WTY1-UP WTW1-UP WT41-UP WT61-UP WTS1-UP WTR1-UP)
UENR4011-06: 631, 631 OEM, 637, 631K, 631K OEM,and 637K Wheel Tractor-Scraper Hydraulic System (Interactive)(Function ISOLATION),387-3081-00, (For Serial Numbers WTR1-UP WTS1-UP WT61-UP WT41-UP WTW1-UP WTY1-UP WTX1-UP WTT1-UP WYT1-UP WYS1-UP WYR1-UP WYN1-UP WY61-UP WY41-UP WYP1-UP WYM1-UP)
UENR4013-02: 631K, 631K OEM, And 637K Wheel Tractor-Scraper Powertrain System (Interactive), 390-8596-00 (For Serial Number Prefix WTR1-UP, WTW1-UP, WT41-UP, WT61-UP, WTS1-UP, WTT1-UP, WTX1-UP, And WTY1-UP)
UENR4013-03: 631, 631 OEM, 637, 631K, 631K OEM,and 637K Wheel Tractor-Scraper Power Train System (Interactive)(Function ISOLATION),390-8596-00, (For Serial Numbers WTR1-UP WYT1-UP WYS1-UP WYR1-UP WYN1-UP WY61-UP WY41-UP WYP1-UP WYM1-UP WT61-UP WT41-UP WTY1-UP WTX1-UP WTT1-UP WTS1-UP WTW1-UP)
UENR7769-01: 631K OEM Wheel Tractor Electrical System, Cab 428-6727-00 Chassis 501-6802-00 Engine 370-8552-12 (For Serial Number: WT41-UP)
UENR7769-02: 631 OEM And 631K OEM Wheel Tractor Electrical System(Interactive)(Function Isolation), CAB-428-6727-03, CHASSIS-501-6802-00, ENGINE-370-8552-12, (For Serial Numbers WY41-UP WT41-UP)
UENR7770-01: 631K OEM Wheel Tractor Electrical System, Cab 428-6727-00 Chassis 501-6815-00 Engien 416-8252-05 (For Serial Number: WT61-UP)
UENR7770-02: 631 OEM And 631K OEM Wheel Tractor Electrical System ,CAB-428-6727-03,CHASSIS-501-6815-00,ENGINE-416-8252-09 (For Serial Numbers WY61-UP WT61-UP)
