Name: CAT Wheel-Type Loader 902 Electrical Hydraulic Schematic
SKU: 669529
Availability: InStock

CAT Wheel Type Loader 902 Electrical Hydraulic Schematic (1)

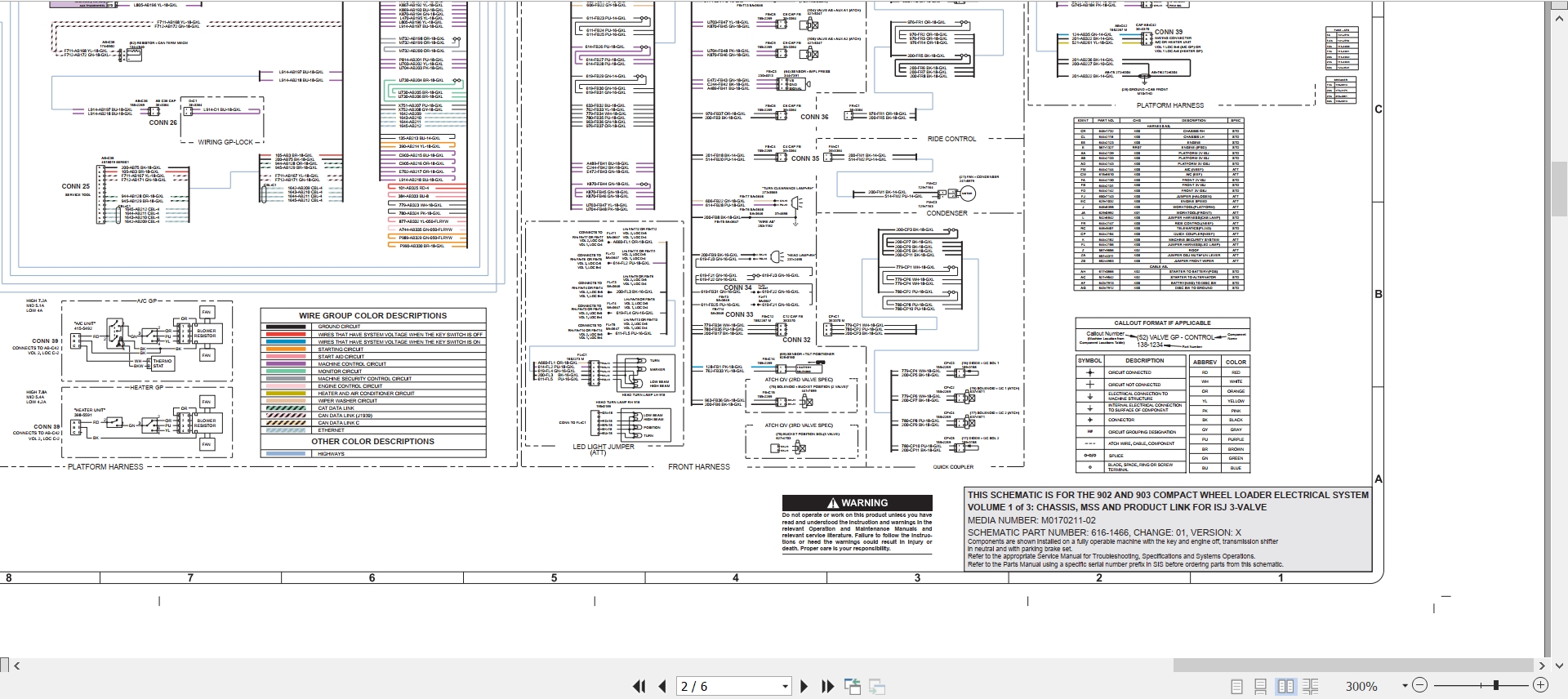

CAT Wheel Type Loader 902 Electrical Hydraulic Schematic (2)

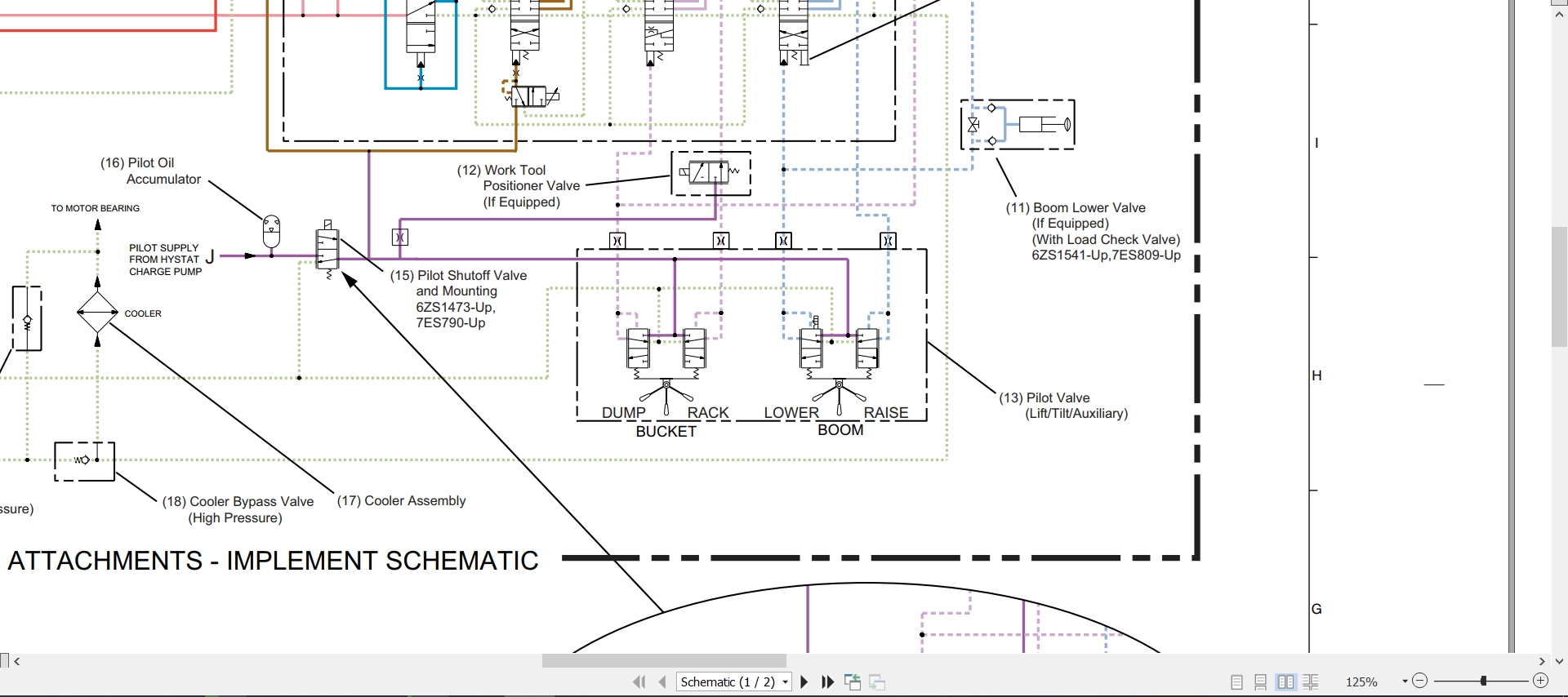

CAT Wheel Type Loader 902 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheel-Type Loader 902 Electrical Hydraulic Schematic

Size: 15.08 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheel-Type Loader

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT 902 Wheel-Type Loader

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
M0170097-00: 901, 902, and 903 Compact Wheel Loader Hydraulic System(Interactive)(Function Isolation) ,621-3446-03 (For Serial Numbers YH21-UP YH31-UP YH41-UP YHD1-UP)
M0170097-01: 901, 902, and 903 Compact Wheel Loader Hydraulic System 621-3446-03, (For Serial Numbers YHD1-UP YH41-999 YH31-999 YH21-999)
M0170211-00: 902 And 903 Compact Wheel Loader Electrical System, 616-1466-01 (For Serial Numbers YH21-UP YH41-UP YH31-UP)
M0170211-02: 902 and 903 Compact Wheel Loader Electrical System 616-1466-01, (For Serial Numbers YH31-999 YH41-999 YH21-999)
M0184198-00: 902 and 903 Compact Wheel Loader Electrical System 616-1466-03, (For Serial Numbers YH31000-UP YH51-UP YH41000-UP YH21000-UP)
M0184200-00: 902 and 903 Compact Wheel Loader Hydraulic System 621-3446-05, (For Serial Numbers YH51-UP YH41000-UP YH31000-UP YH21000-UP )
RENR4805-01: 902, 906, & 908 Compact Wheel Loader Electrical System
RENR4860-01: 902, 906 & 908 Compact Wheel Loader Electrical System
RENR9860-00: 902, 906 & 908 Compact Wheel Loader Electrical System
SENR1294-01: 902, 906 And 908 Compact Wheel Loader Hydraulic System
SENR1295-00: Caterpillar 902 And 906 Compact Wheel Loader Electrical System
