CAT Wheel-Type Loader 988K Electrical Hydraulic Schematic

CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (1)
CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (2)
CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (3)
CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (1)
CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (2)
CAT Wheel Type Loader 988K Electrical Hydraulic Schematic (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheel-Type Loader 988K Electrical Hydraulic Schematic

Size: 72.92 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Wheel-Type Loader
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT 988K Wheel-Type Loader

40 USD

Tag:
  • Description

Description

List of Files:
M0164833-00: 988K Wheel Loader Electrical System, Main CAB-356-6902-00, CHASSIS-356-6903-09, ENGINE-370-8552-09, Pump Electronics Tank Unit HEADER-491-6343-01 (For Serial Numbers T8E802-UP)
M0165605-00: 988K Wheel Loader Electrical System, Main CAB-356-6902-00, CHASSIS-356-6903-00, ENGINE-370-8552-09, Pump Electronics Tank Unit HEADER-491-6343-01 (For Serial Numbers T8E207-801)

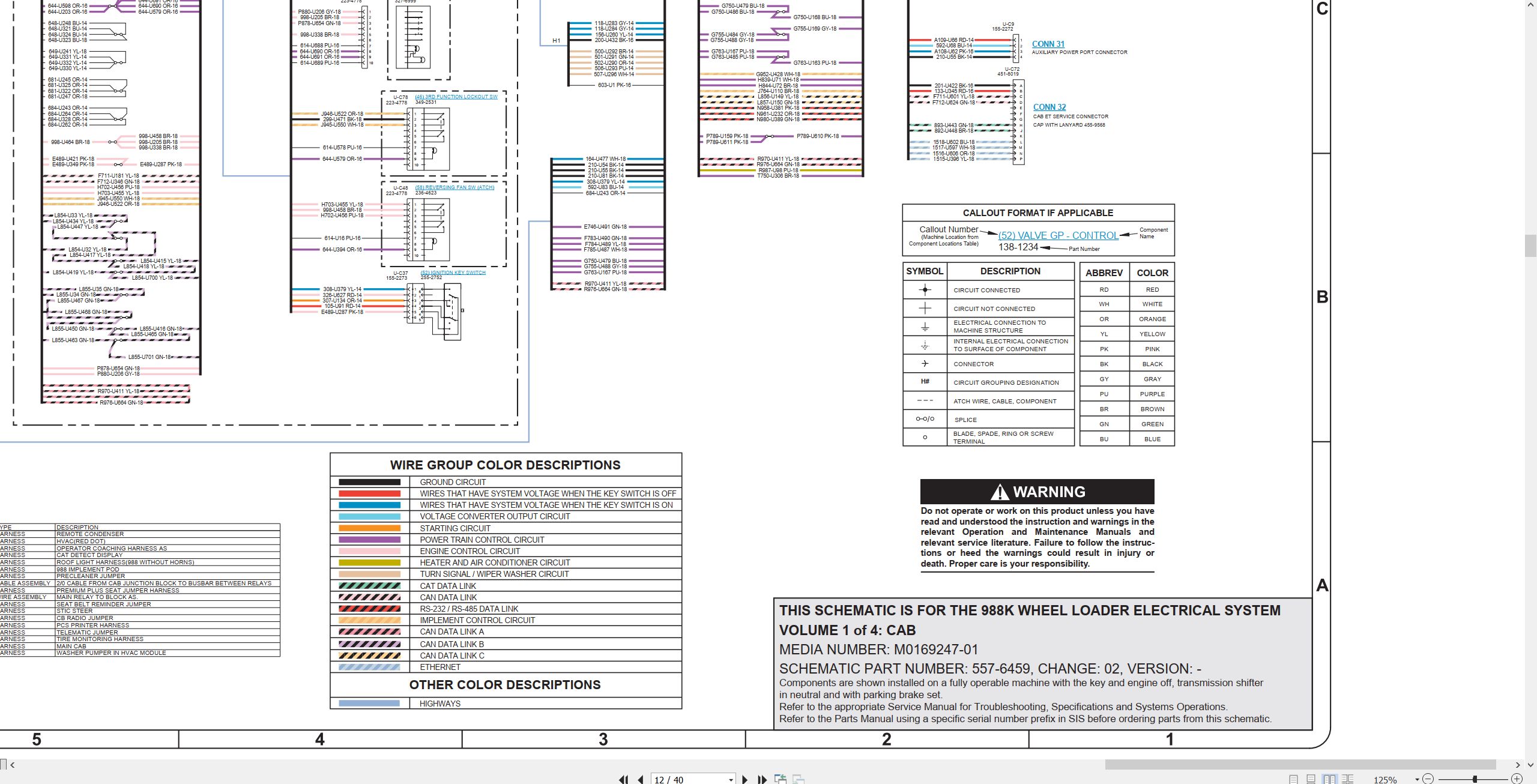

M0169247-00: 988K Wheel Loader Electrical System (Interactive) (Function Isolation), Main Cab – 356-6902-00, Chassis – 356-6903-00, Engine – 336-8660-03 (For Serial Numbers L8X280-524)
M0169247-01: 988K Wheel Loader Electrical System (Interactive) (Function Isolaton), Cab – 557-6459-02, Chassis – 356-6903-00, Engine – 336-8660-03 (For Serial Numbers L8X280-524)
M0169253-00: 988K Wheel Loader Electrical System (Interactive) (Function Isolation), Main Cab – 356-6902-00, Chassis – 356-6903-09, Engine – 336-8660-03 (For Serial Numbers L8X525-UP)
M0169253-01: 988K Wheel Loader Electrical System, Cab – 557-6459-02, Chassis – 356-6903-09, Engine – 336-8660-03 (For Serial Numbers L8X525-UP)

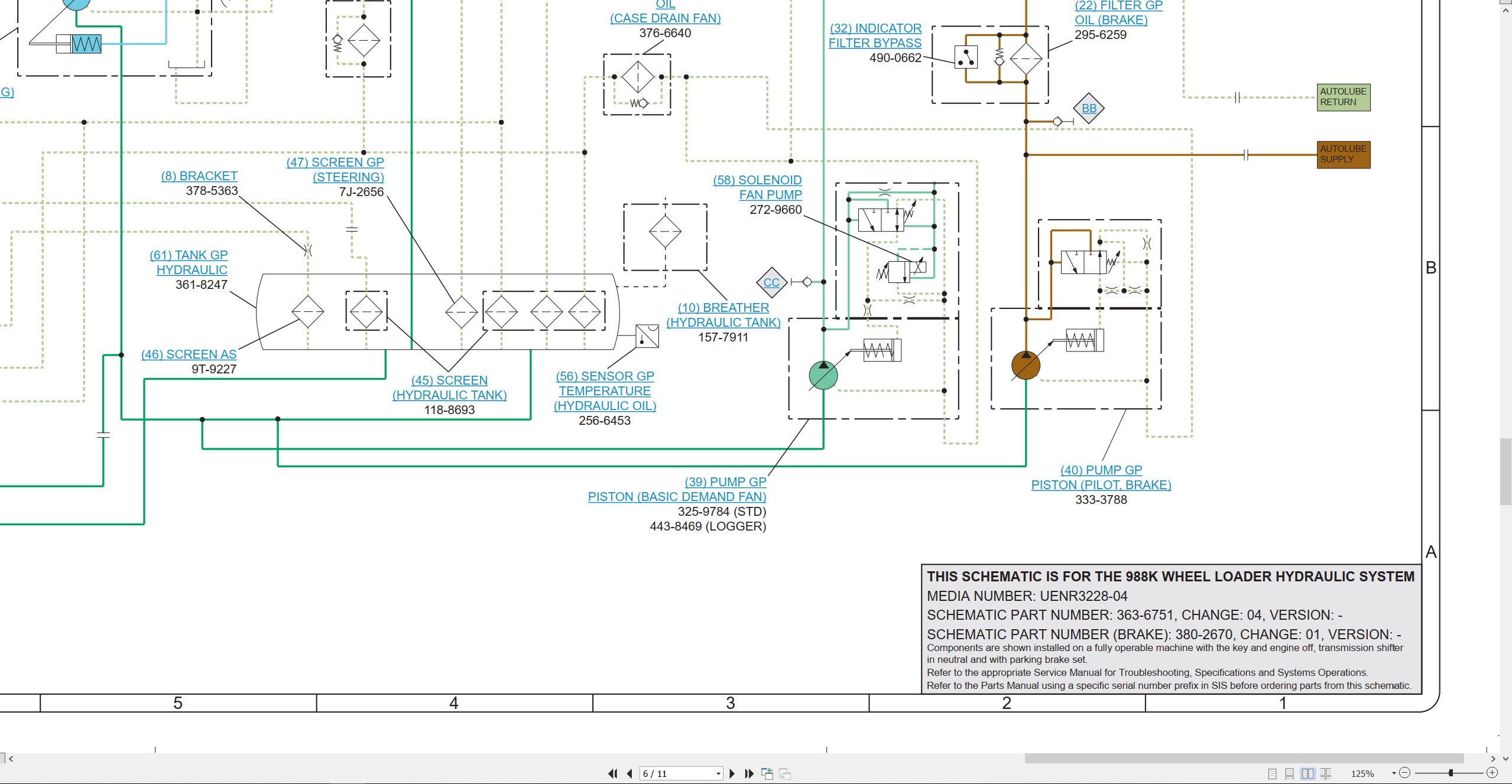

RENR9780-06: 988K Wheel Loader Hydraulic System (Interactive)(Function Isolation), Schematic Part Number 363-6751-04, Brake 380-2670-01 (For Serial Numbers T8E1-UP TWX1-UP)
RENR9781-10: 988K Wheel Loader Electrical System (Interactive), Cab 356-6902, Chassis 356-6903, Engine 370-8552-09, Pump Electronic Tank Unit Header (If Equipped), 491-6343-01
RENR9781-13: 988K Wheel Loader Electrical System, Main CAB-356-6902-00, CHASSIS-356-6903-00, ENGINE-370-8552-09, Pump Electronics Tank Unit HEADER-491-6343-01 (For Serial Numbers T8E1-206 TWX1-UP)
RENR9781-14: 988K Wheel Loader Electrical System (Interactive) (Function Isolation), Main Cab-356-6902-00, Chassis-356-6903-00, Engine-370-8552-09, Pump Electronics Tank Unit Header (If Equipped)-491-6343-01 (For Serial Numbers TWX1-UP T8E1-206)
UENR3228-04: 988K Wheel Loader Hydraulic System (Interactive), 363-6751-04, Brake 380-2670-01 (For Serial Numbers: L8X1-UP LWX1-UP)
UENR3875-03: 988K Wheel Loader Electrical System (Interactive), (Cab) 356-6902, (Chassis) 356-6903, (Engine) 336-8660-03
UENR3875-04: 988K Wheel Loader Electrical System (Interactive) (Function Isolation), Main Cab – 356-6902-00, Chassis – 356-6903-00, Engine – 336-8660-03 (For Serial Numbers LWX1-UP L8X1-279)
UENR7640-01: 988K Wheel Loader (Steel Mill Option) Electrical System (Interactive), Schematic Part Number 437-7054-02 (For Serial Numbers T8E1-UP TWX1-UP LWX1-UP L8X1-UP)
