Name: CAT Wheel-Type Loader 994K Electrical Hydraulic Schematic
SKU: 669831
Availability: InStock

CAT Wheel Type Loader 994K Electrical Hydraulic Schematic (1)

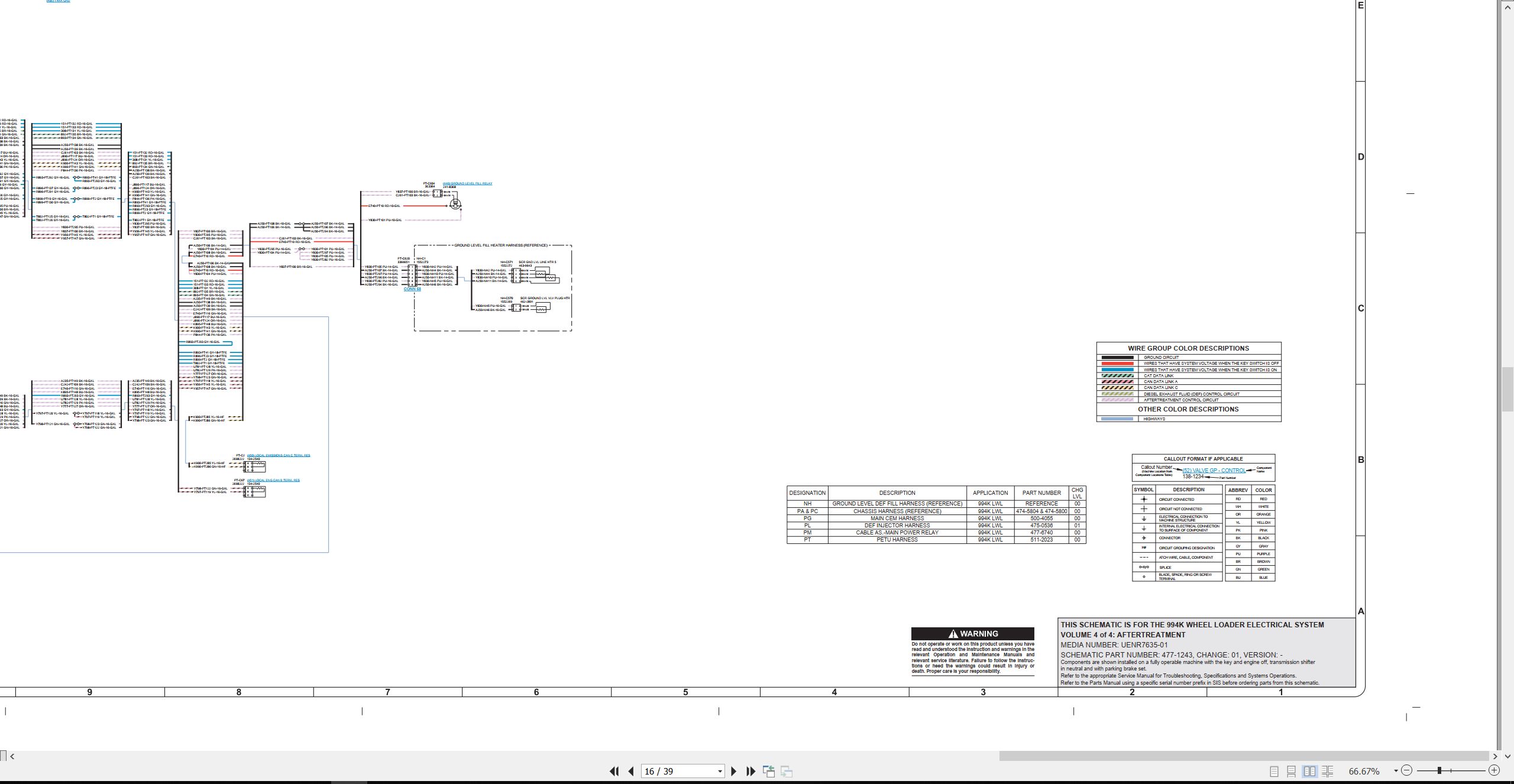

CAT Wheel Type Loader 994K Electrical Hydraulic Schematic (2)

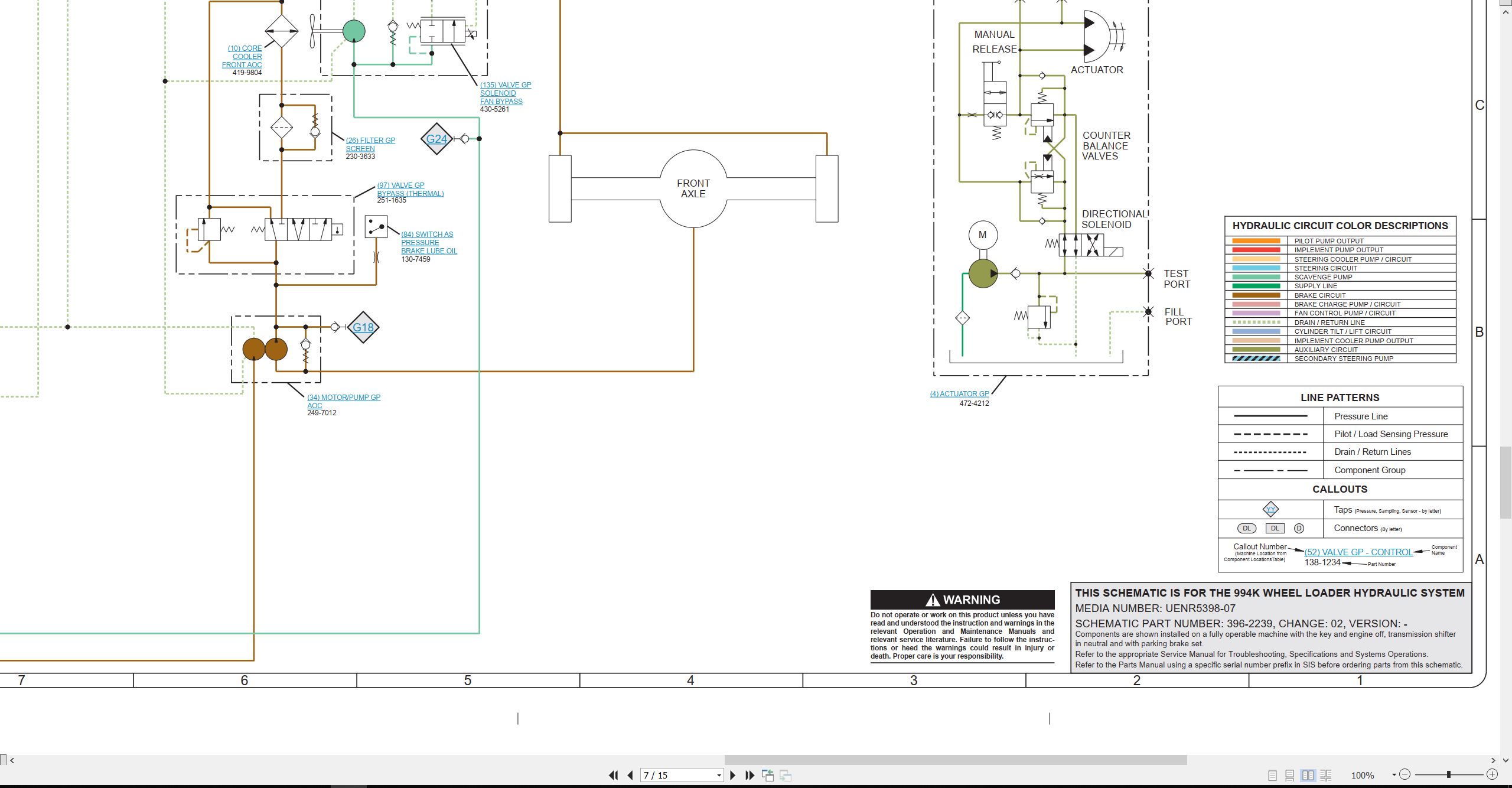

CAT Wheel Type Loader 994K Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheel-Type Loader 994K Electrical Hydraulic Schematic

Size: 36.08 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheel-Type Loader

Type of Manual: Brake System Schematic, Electrical Schematic, Hydraulic Schematic

Model: CAT 994K Wheel-Type Loader

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
KENR7454-03: 994K Wheel Loader Brake System (Interactive), 443-0956-00 (For Serial Numbers: MRK1-UP SMX1-UP MM91-UP)
UENR5398-07: 994K Wheel Loader Hydraulic System (Interactive), 396-2239-02 (For Serial Numbers MRK1-UP SMX1-UP MM91-UP)
UENR5398-08: 994K Wheel Loader Hydraulic System (Interactive)(Function Isolation), 396-2239-03 (For Serial Numbers MRK1-UP SMX1-UP MM91-UP)
UENR5398-09: 994K Wheel Loader Hydraulic System(Interactive)(Function Isolation), 396-2239-03 (For Serial Numbers MRK1-UP SMX1-UP MM91-UP)
UENR5398-10: 994K Wheel Loader Hydraulic System (Interactive) (Function Isolation), 396-2239-03 (For Serial Numbers MM91-UP SMX1-UP MRK1-UP)
UENR5399-03: 994K Wheel Loader Electrical System,cab WIRING-437-3826-00,CHASSIS WIRING-420-4826-00,ENGINE-425-3351-03 (For Serial Numbers MM91-UP MRK1-UP)
UENR7448-02: 994K Wheel Loader Power Train Hydraulic System – (Interactive) 417-3291-02
UENR7454-01: 994K Wheel Loader Brake System (Interactive), 443-0956-00 (For Serial Number: MRK1-UP)
UENR7635-01: 994K Wheel Loader Electrical System (Interactive)(Function Isolation), CAB-437-3826-01, CHASSIS-420-4826-01, ENGINE-473-6685-00, AFTERTREATMENT-477-1243-01 (For Serial Numbers SMX1-UP)
