Name: CAT Wheel-Type Loader 995 Electrical Hydraulic Schematic
SKU: 669832
Availability: InStock

CAT Wheel Type Loader 995 Electrical Hydraulic Schematic (1)

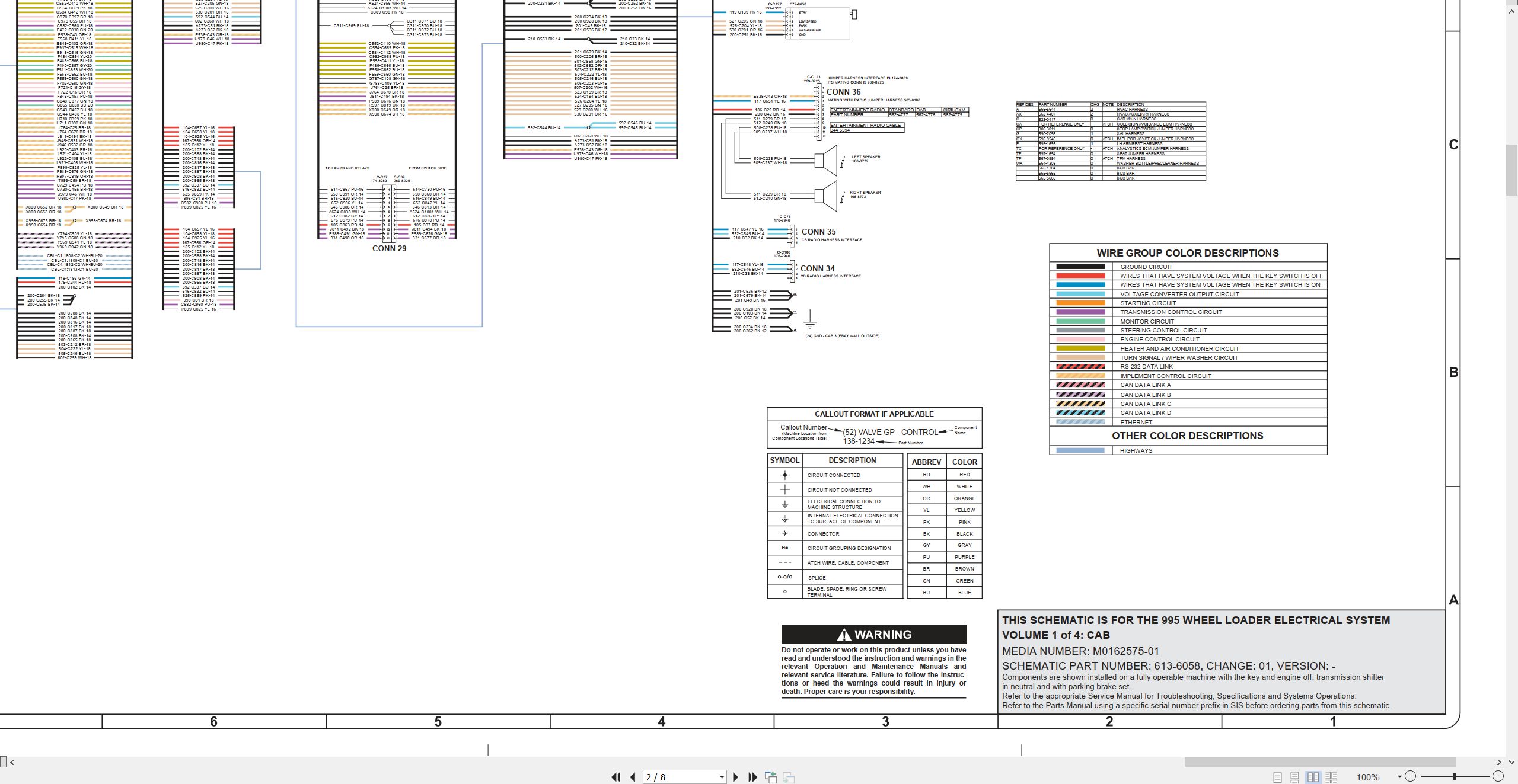

CAT Wheel Type Loader 995 Electrical Hydraulic Schematic (2)

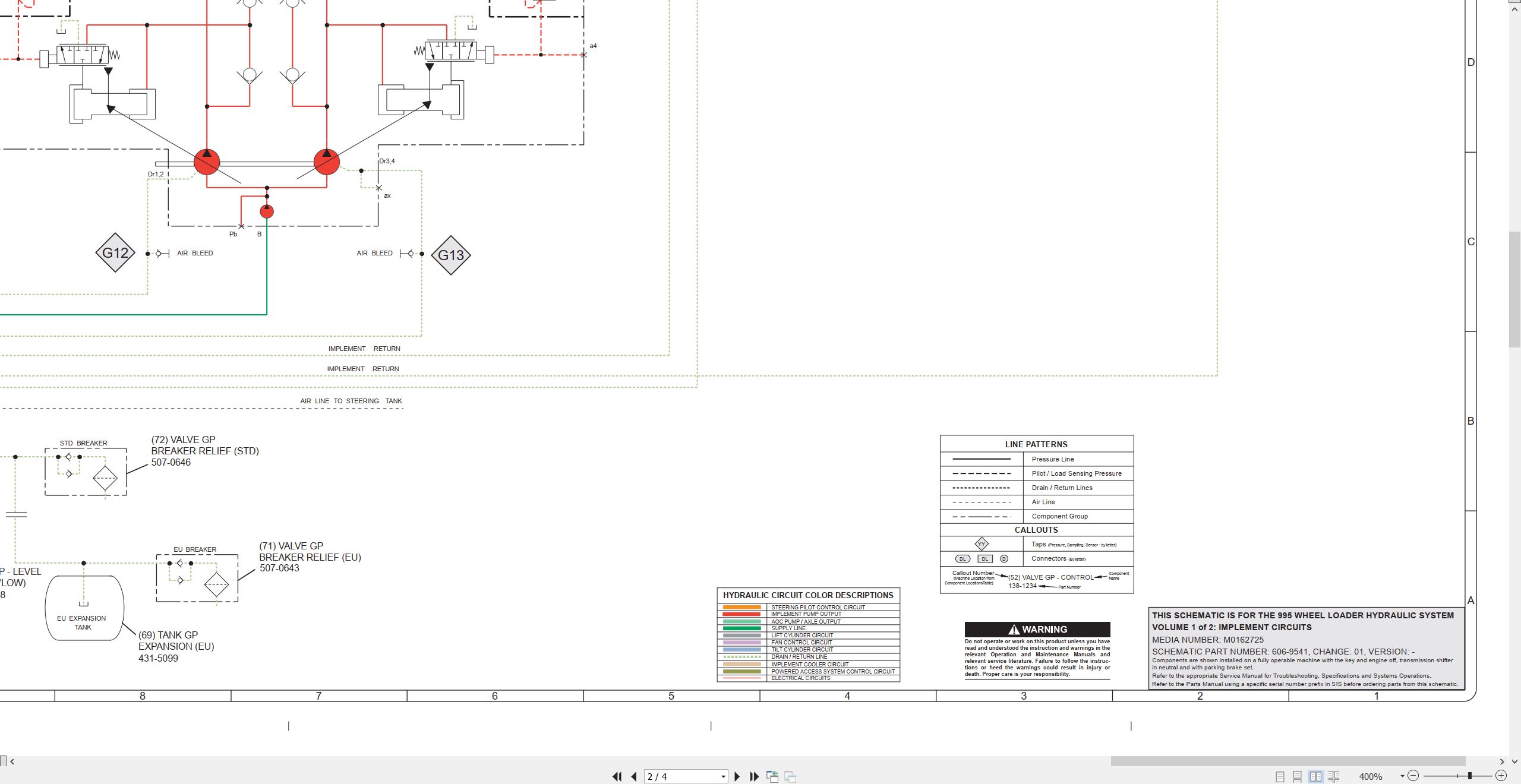

CAT Wheel Type Loader 995 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheel-Type Loader 995 Electrical Hydraulic Schematic

Size: 26.79 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheel-Type Loader

Type of Manual: Electrical Schematic, Hydraulic Schematic, Power Train System Schematic

Model: CAT 995 Wheel-Type Loader

40 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:
M0162573-00: 995 Wheel Loader Electrical System, CAB-613-6058-01, CHASSIS-607-9302-01, AFTERTREATMENT-477-1243-01, ENGINE-620-7081-03, Rops And PAS-607-9302-01 (For Serial Numbers R8M1-UP)
M0162575-00: 995 Wheel Loader Electrical System, CAB-613-6058-01, CHASSIS-607-9302-01, ENGINE-620-7081-03 (For Serial Numbers RXD1-UP)
M0162575-01: 995 Wheel Loader Electrical System, Cab-613-6058-01, Chassis, ROPS and PAS-607-9302-01, Engine-620-7081-03 (For Serial Numbers RXD1-UP)
M0162725-00: 995 Wheel Loader Hydraulic System, 606-9541-01 (For Serial Numbers R8M1-UP RXD1-UP)
M0162725-03: 995 Wheel Loader Hydraulic System, 606-9541-01 (For Serial Numbers R8M1-UP RXD1-UP)
M0162725-04: 995 Wheel Loader Hydraulic System, 606-9541-01 (For Serial Numbers R8M1-UP RXD1-UP)
M0163151-00: 995 Wheel Loader Power Train System (Interactive) (Function Isolation), 618-9368-01 (For Serial Numbers R8M1-UP RXD1-UP)
M0163151-01: 995 Wheel Loader Power Train System (Interactive) (Function Isolation), 618-9368-01 (For Serial Numbers R8M1-UP RXD1-UP)
M0163151-02: 995 Wheel Loader Power Train System (Interactive) (Function Isolation), 618-9368-01 (For Serial Numbers R8M1-UP RXD1-UP)
