Name: CAT Wheeled Excavator MH3040 Electrical Hydraulic Schematic
SKU: 669885
Availability: InStock

CAT Wheeled Excavator MH3040 Electrical Hydraulic Schematic (1)

CAT Wheeled Excavator MH3040 Electrical Hydraulic Schematic (2)

CAT Wheeled Excavator MH3040 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheeled Excavator MH3040 Electrical Hydraulic Schematic

Size: 33.96 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheeled Excavator

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT MH3040 Wheeled Excavator

50 USD

Tag: Caterpillar Schematics

Description

Description

List of Files:

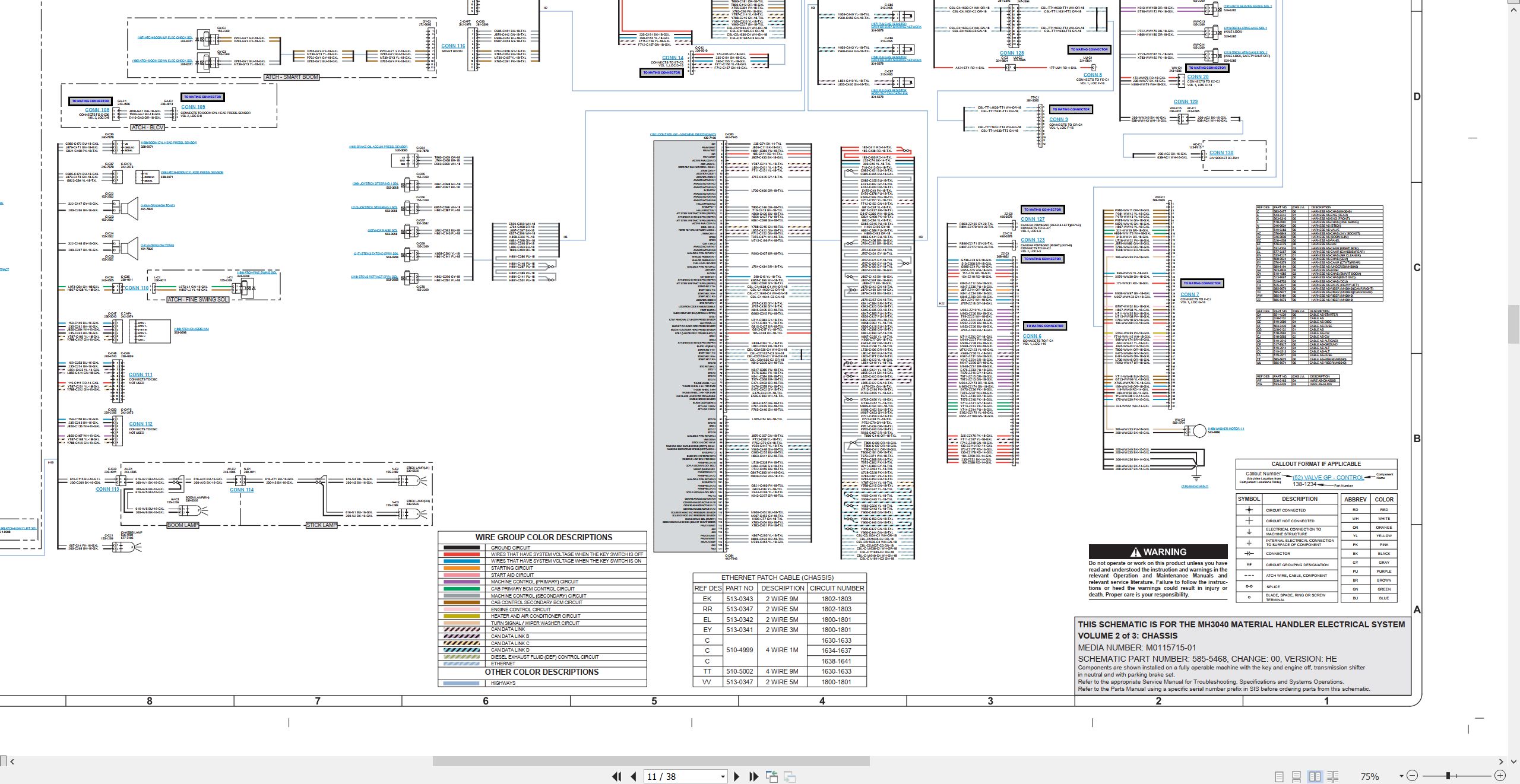

M0115715-01: MH3040 Material Handler Electrical System (Interactive) (Function Isolation), Cab Wiring 520-7491-01, Product Link 585-5470-00, Chassis 585-5468-00, Engine 375-7821-01(FOR Serial Numbers NTR1-UP EHP1-UP)

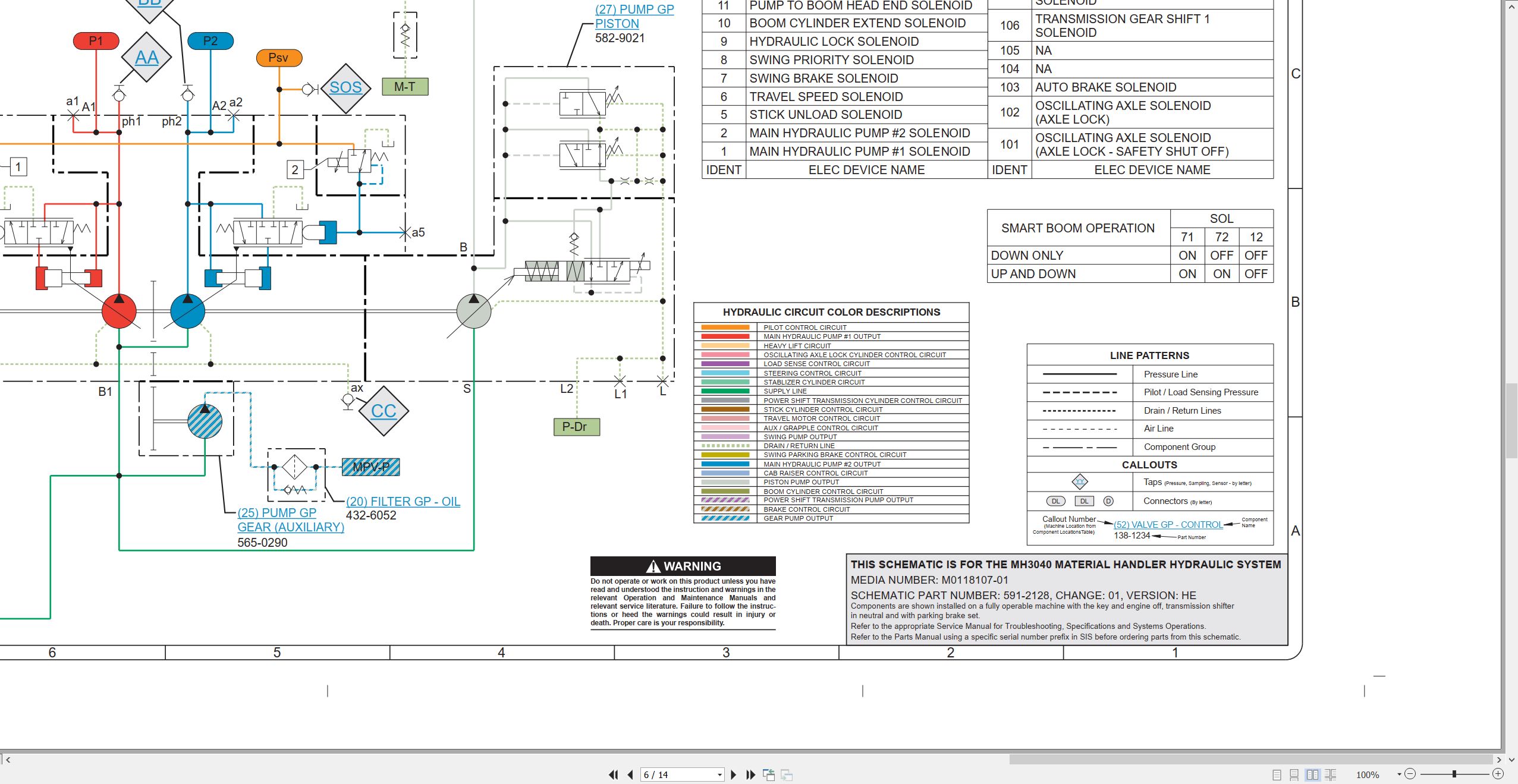

M0118107-01: MH3040 Material Handler Hydraulic System(Interactive)(Function ISOLATION),591-2128-01(FOR Serial Numbers NTR1-UP EHP1-UP)
M0118107-03: MH3040 Material Handler Hydraulic System (Interactive)(Function ISOLATION),591-2128-04(FOR Serial Numbers NTR1-UP GKT1-UP ENT1-UP EHP1-UP)
M0130667-00: MH3040 Material Handler Electrical System, Cab WIRING-520-7491-02,CHASSIS-606-7713-01,ENGINE-526-7676-00,PRODUCT LINK-585-5470-00 (For Serial Numbers GKT1-UP)
M0130667-01: MH3040 Material Handler Electrical System(Interactive)(Function Isolation), Cab WIRING-520-7491-02,CHASSIS-606-7713-01,ENGINE-526-7676-00,PRODUCT LINK-585-5470-00 (For Serial Numbers GKT1-UP)
M0130667-03: MH3040 Material Handler Electrical System CAB-520-7491-04, CHASSIS-606-7713-02, ENGINE-526-7676-02, Product LINK-585-5470-00, (For Serial Numbers ENT1-UP GKT1-UP)
M0167153-02: MH3032 and MH3040 Wheeled Material Handler Electrical System (Interactive)(Function Isolation) ,Cab-520-7491-05,Chassis Wiring-623-5982-01,Engine-526-7676-02,Product Link-605-4992-00 (For Serial Numbers K3E1-50000 KEY1-50000 FKH1-50000 EXT1-50000)
M0168429-01: MH3040 Material Handler Hydraulic System(Interactive)(Function Isolation) 591-2128-05, (For Serial Numbers FKH1-50000 EXT1-50000)
M0175350-00: MH3032 and MH3040 Wheeled Material Handler Electrical System (Interactive)(Function Isolation), Cab-520-7491-05, Chassis Wiring, Undercarriage and Boom/Stick Option-648-0250-00 and 625-1994-01, Engine-526-7676-02, Product Link-605-4992-00 (For Serial Numbers FKH50001-UP EXT50001-UP K3E50001-UP KEY50001-UP)
M0176203-00: MH3040 Material Handler Hydraulic System(Interactive)(Function Isolation) 591-2128-06, (For Serial Numbers EXT50001-UP FKH50001-UP)
