Name: CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic
SKU: 669886
Availability: InStock

CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic (1)

CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic (2)

CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic

Size: 7.47 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wheeled Excavator

Type of Manual: Electrical Schematic, Hydraulic Schematic

Model: CAT MH3050 Wheeled Excavator

List of Files:

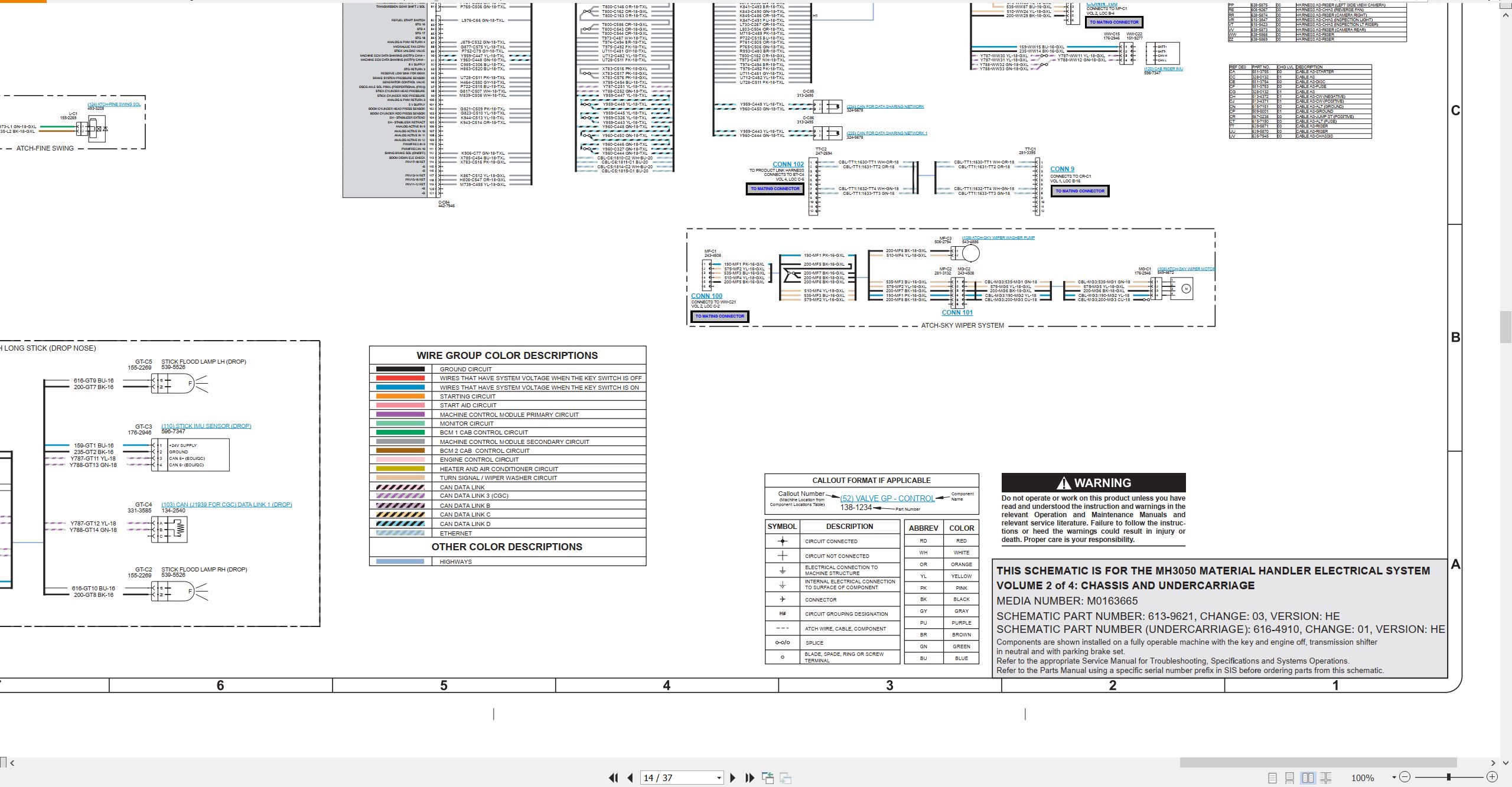

M0163665-00: MH3050 Material Handler Electrical System Cab WIRING-520-7491-04, Chassis And UNDERCARRIAGE-613-9621-03, ENGINE-525-5382-03 And CEM-491-6343-03, Product LINK-605-4992-00, (For Serial Numbers K5H1-UP KA51-UP)

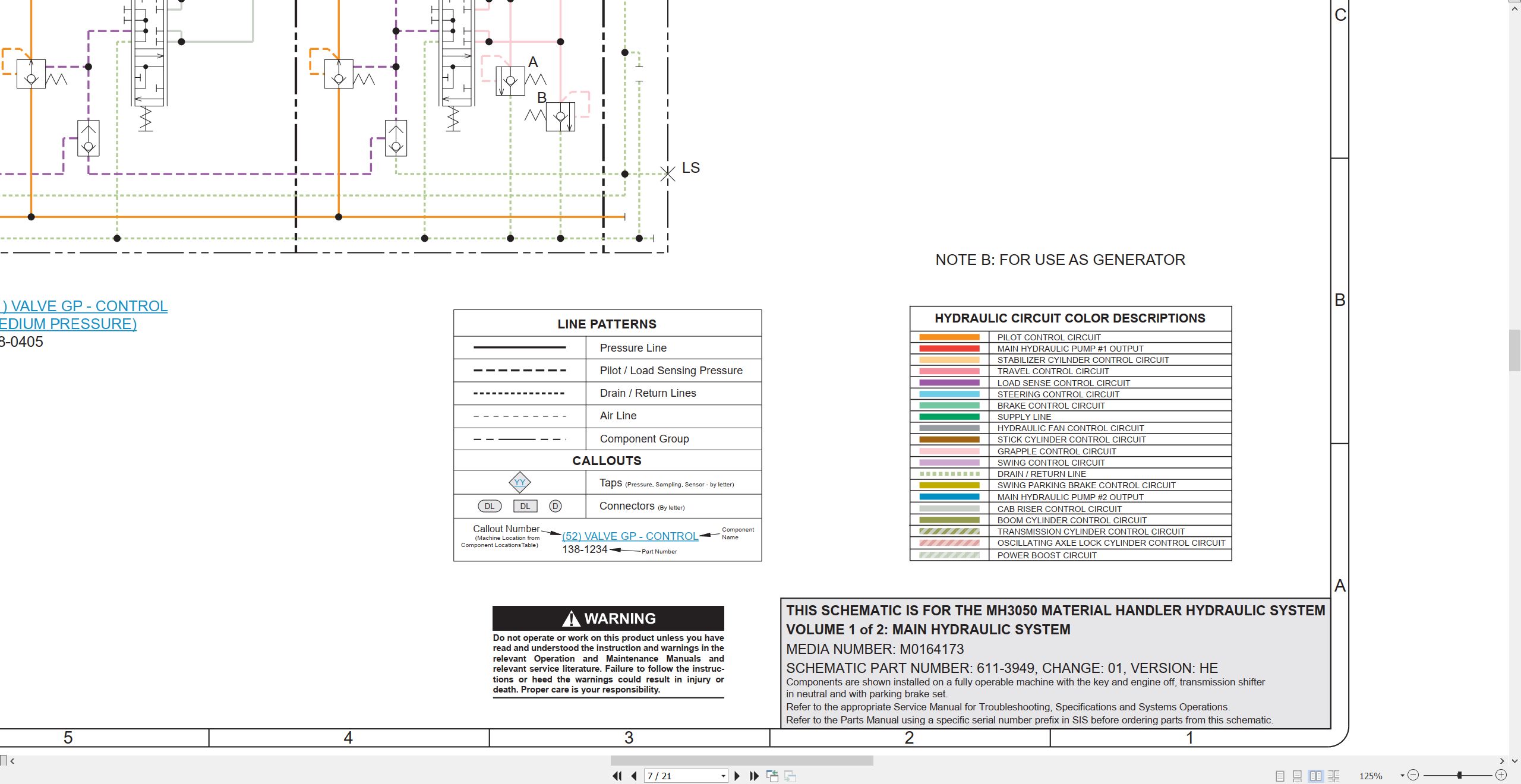

M0164173-00: MH3050 Material Handler Hydraulic System(Interactive)(Function Isolation), 611-3949-01, (For Serial Numbers K5H1-UP KA51-UP)

40 USD

Tag: Caterpillar Schematics

Description

Description

CAT Wheeled Excavator MH3050 Electrical Hydraulic Schematic
Size: 7.47 MB
Format: PDF
Language: English
Brand: Caterpillar
Type of Machine: Wheeled Excavator
Type of Manual: Electrical Schematic, Hydraulic Schematic
Model: CAT MH3050 Wheeled Excavator
List of Files:
M0163665-00: MH3050 Material Handler Electrical System Cab WIRING-520-7491-04, Chassis And UNDERCARRIAGE-613-9621-03, ENGINE-525-5382-03 And CEM-491-6343-03, Product LINK-605-4992-00, (For Serial Numbers K5H1-UP KA51-UP)
M0164173-00: MH3050 Material Handler Hydraulic System(Interactive)(Function Isolation), 611-3949-01, (For Serial Numbers K5H1-UP KA51-UP)
