Name: CAT Wide Body Truck TH43-C18 Power Train System Schematic M0165163-00 2023
SKU: 669887
Availability: InStock

CAT Wide Body Truck TH43 C18 Power Train System Schematic M0165163 00 2023 (1)

CAT Wide Body Truck TH43 C18 Power Train System Schematic M0165163 00 2023 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

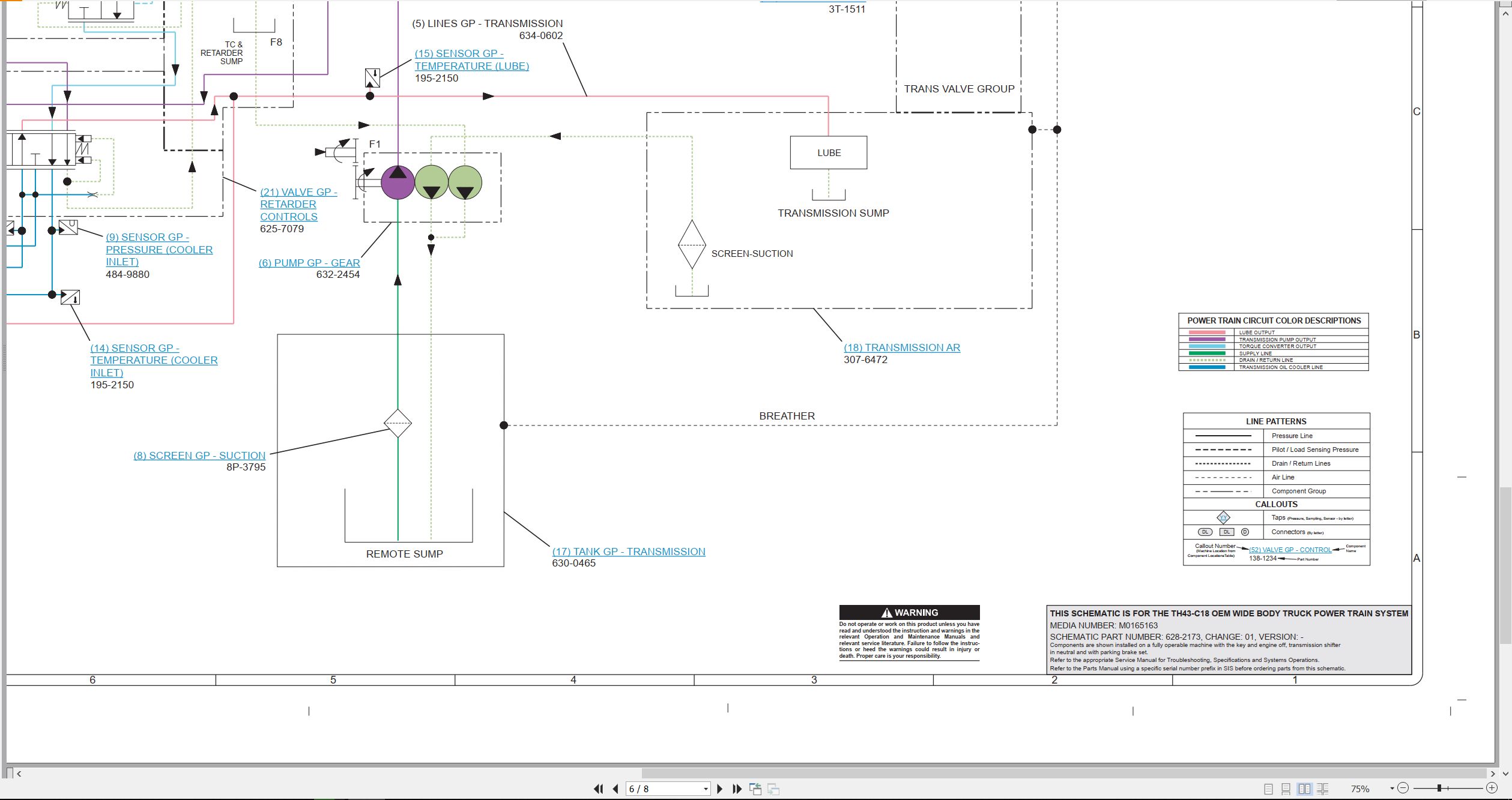

CAT Wide Body Truck TH43-C18 Power Train System Schematic M0165163-00 2023

Size: 1.74 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Wide Body Truck

Type of Manual: Power Train System Schematic

Model: CAT TH43-C18 OEM Wide Body Truck

Number of Pages: 8 Pages

Parts Number: M0165163-00

Publication Date: 2023

30 USD

Tag: Caterpillar Schematics

Description

Description

Contents:
Features
Cover Page
Information
Component Location
Tap Location
Schematic
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Lube Output (Dk Pink 190)
Transmission Pump Output (Dk Purple 258)
Torque Converter Output (Lt Blue 305)
Supply Line (Dk Green 347)
Drain / Return Line (Lt Green 577)
Transmission Oil Cooler Line (Blue 640)
Machine Views
Power Train Top View
Torque Converter Bottom View
