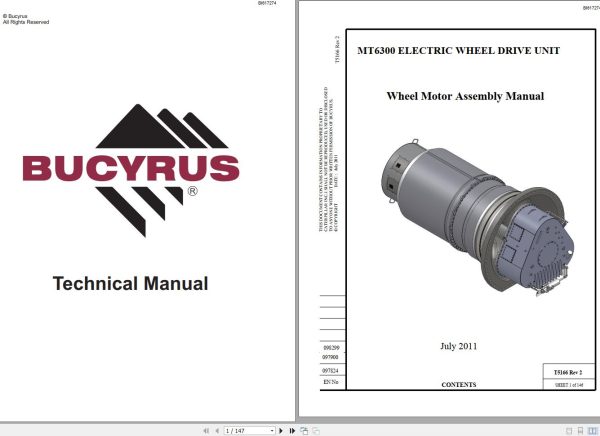

Name: Caterpillar Electric Wheel Drive Unit MT6300 Wheel Motor Assembly Manual BI617274
SKU: 393735
Availability: InStock

Caterpillar Electric Wheel Drive Unit MT6300 Wheel Motor Assembly Manual BI617274

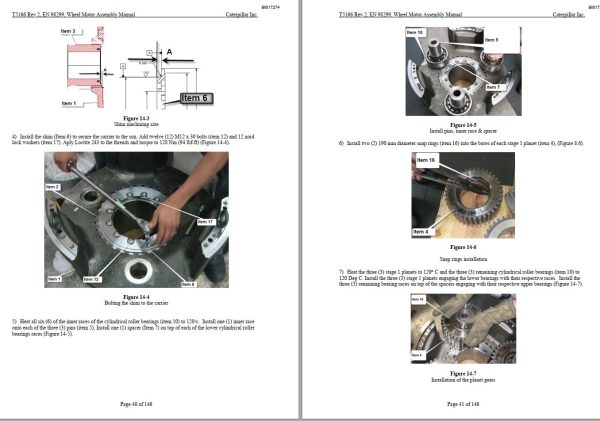

Caterpillar Electric Wheel Drive Unit MT6300 Wheel Motor Assembly Manual BI617274 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Caterpillar Electric Wheel Drive Unit MT6300 Wheel Motor Assembly Manual BI617274

Size: 17.3 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Electric Wheel Drive Unit

Type of Manual: Wheel Motor Assembly Manual

Model: Caterpillar MT6300 Electric Wheel Drive Unit

Part Number: BI617274

Number Of Pages: 147 Pages

10 USD

Tag: caterpillar

Description

Description

Contents:
1. REVISION NOTES
2. EWGU DESCRIPTION
3. GENERAL ASSEMBLY GUIDELINES
4. TUBING SUBASSEMBLY STATION
5. TRACTION MOTOR SUBASSEMBLY STATION
6. MECHANICAL FACE SEALS SUBASSEMBLY STATION
7. 3RD STAGE BEARING COVERS SUBASSEMBLY
8. 3RD SRTAGE RING GEAR AND OIL RING SUBASSEMBLY STATION
9. HUB AND TORQUE TUBE SUBASSEMBLY STATION
10. LIP SEAL SUBASSEMBLY STATION
11. GEARBOX SHIELD AND RING BRACKET SUBASSEMBLY STATION
12. STAGE 3 PINION SUBASSEMBLY STATION
13. RING BRACKET AND RING GEAR SUBASSEMBLY STATION
14. STAGE 1 CARRIER SUBASSEMBLY STATION
15. STAGE 1 SUN PINION SUBASSEMBLY STATION
16. PINION COVER SUBASSEMBLY STATION
17. MAIN ASSEMBLY STATION – WHEEL BEARING SIDE
18. MAIN ASSEMBLY STATION – GEARING SIDE
19. SPIN TEST
20. POST TEST ASSEMBLY STATION
21. PACKAGING
22. DRAWINGS AND BILLS OF MATERIALS
23. BRAKE ASSEMBLY
24. TRACTION MOTOR DATA
