Caterpillar Forklift NO20N2 Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00035788

Description

Contents:
001_01-01-01 ACCESSORIES
002_01-01-02 BATTERY LOCKING, FIXED
003_01-01-03 BATTERY LOCKING, OPEN TO LEFT – OPTION
004_01-01-04 BATTERY LOCKING, OPEN TO RIGHT – OPTION
005_01-01-05 BATTERY LOCKING, LI-ION – OPTION
006_01-01-06 BATTERY LOCK LEVERAGE
007_01-01-07 BATTERY CHANGING DEVICE, 465Ah – ACCESSORY
008_01-01-08 BATTERY CHANGING DEVICE, 620Ah – ACCESSORY
009_01-01-09 BATTERY CONNECTOR
010_01-01-10 BATTERY ROLLER
011_01-01-11 DRIVING SEAT (NEW)
012_01-01-12 DRIVING SEAT (OLD)
013_01-01-13 STEERING, 465Ah (FIXED PLATFORM)
014_01-01-14 STEERING, 620Ah (FIXED PLATFORM) – OPTION
015_01-01-15 STEERING (LIFT PLATFORM)
016_01-01-16 GAS SPRING
017_01-01-17 POWER SUPPLY 12V – ACCESSORY
018_01-01-18 POWER SUPPLY 24V – ACCESSORY
019_01-01-19 POWER SUPPLY 5V USB – ACCESSORY
020_01-01-20 ACCESSORY RAIL – ACCESSORY
021_01-01-21 STEPS
022_01-01-22 STORAGE UNIT (FIXED PLATFORM) – ACCESSORY
023_01-01-23 BUZZER – ACCESSORY
024_01-01-24 FIRE EXTINGUISHER ASSEMBLY
025_01-01-25 PICKING TRAY (LIFT PLATFORM) – ACCESSORY
026_01-01-26 ACCESSORY RACK, 1 PC, C-SIZE, RAM MOUNT – ACCESSORY
027_01-01-27 ACCESSORY RACK, 2 PCS, C-SIZE, RAM MOUNT – ACCESSORY
028_01-01-28 ACCESSORY RACK, 1 PC, D-SIZE, RAM MOUNT – ACCESSORY
029_01-01-29 ACCESSORY RACK, 2 PCS, D-SIZE, RAM MOUNT – ACCESSORY
030_01-01-30 ACCESSORY RACK, 1 PC, D-SIZE, RAM MOUNT ON TRAY – ACCESSORY
031_01-01-31 ACCESSORY RACK, 2 PCS, D-SIZE, RAM MOUNT ON TRAY – ACCESSORY
032_01-01-32 BUMPER (FRONT GUARD) – ACCESSORY
033_01-01-33 BUMPER (HEAVY BUMPER) – ACCESSORY
034_01-01-34 WRAPPING FOIL HOLDER (LOAD BACKREST) – ACCESSORY
035_01-01-35 WRAPPING FOIL HOLDER (RAIL) – ACCESSORY
036_01-01-36 WRAPPING FOIL HOLDER (RISING PLATFORM) – ACCESSORY
037_01-01-37 LI-ION BATTERY KIT (LIFT PLATFORM, INTEGRATED) – OPTION
038_01-01-38 LI-ION BATTERY KIT (FIXED PLATFORM, INTEGRATED) – OPTION
039_01-01-39 DRIVING LIGHT (LIFT PLATFORM)
040_01-01-40 DRIVING LIGHT (FIXED PLATFORM)
041_01-01-41 BLUE SPOT LIGHT (LIFT PLATFORM)
042_01-01-42 BLUE SPOT LIGHT (FIXED PLATFORM)
043_01-01-43 RED SPOT LIGHT (LIFT PLATFORM)
044_01-01-44 RED SPOT LIGHT (FIXED PLATFORM)
045_02-02-01 EL-PANEL (LOW LIFT)
046_02-02-02 EL-PANEL (LOW LIFT) – OLD
047_02-02-03 EL-PANEL (MAST LIFT)
048_02-02-04 EL-PANEL (MAST LIFT) – OLD
049_02-02-05 EL-PANEL (RL629754)
050_02-02-06 FAN
051_03-03-01 FORK CARRIAGE, STANDARD
052_03-03-02 FORK CARRIAGE, COLD STORAGE – OPTION
053_03-03-03 FORK CARRIAGE (540x1150mm, X=960) EUR PALLET – STANDARD
054_03-03-04 FORK CARRIAGE (540x2375mm, X=1465) 2 EUR PALLETS – OPTION
055_03-03-05 FORK CARRIAGE (540x3600mm, X=2500) 3 EUR PALLETS – OPTION
056_03-03-06 FORK CARRIAGE (540x1000mm, X=785) UK PALLET – OPTION
057_03-03-07 FORK CARRIAGE (540x2375mm, X=1670) 2 UK PALLETS – OPTION
058_03-03-08 FORK CARRIAGE (660x2375mm, X=1670) 2 UK PALLETS – OPTION
059_03-03-09 FORK CARRIAGE (520x1465mm, X=960) 2 TROLLEYS – OPTION
060_03-03-10 FORK CARRIAGE (520x2165mm, X=1050) 3 TROLLEYS – OPTION
061_03-03-11 FORK CARRIAGE (520x2165mm, X=1465) 3 TROLLEYS – OPTION
062_03-03-12 FORK CARRIAGE (520x2900mm, X=1800) 4 TROLLEYS – OPTION
063_03-03-13 FORK CARRIAGE (VARIABLE) SPECIAL PALLET – OPTION
064_03-03-14 FORK CARRIAGE (520x1800mm, X=1260) – OPTION
065_03-03-15 FORK CARRIAGE (520x2375mm, X=1465) – OPTION
066_03-03-16 FORK SPRING ASSEMBLY
067_03-03-17 FORK CROSSWIDE HANDLING – ACCESSORY
068_03-03-18 LEVERAGE ASSEMBLY
069_03-03-19 LEVER ASSEMBLY
070_03-03-20 SHAFT FOR LEVER (BASIC)
071_03-03-21 SHAFT FOR LEVER (COLD STORAGE) – OPTION
072_03-03-22 PUSH ROD (L=877, X=960mm, NORMAL)
073_03-03-23 PUSH ROD (L=702, X=960mm, NORMAL) – OPTION
074_03-03-24 PUSH ROD (L=1717, X=1800mm, HEAVY) – OPTION
075_03-03-25 PUSH ROD (L=2417, X=2500, HEAVY) – OPTION
076_03-03-26 PUSH ROD (L=967, X=1050, HEAVY) – OPTION
077_03-03-27 PUSH ROD (L=1382, X=1465, HEAVY) – OPTION
078_03-03-28 PUSH ROD (L=1587, X=1670, HEAVY) – OPTION
079_03-03-29 PUSH ROD (X=785-2500, HEAVY) – OPTION
080_03-03-30 PUSH ROD (L=1177, X=1260, HEAVY) – OPTION
081_04-04-01 CHASSIS, 465Ah (LOW LIFT) – STANDARD
082_04-04-02 CHASSIS, 620Ah (LOW LIFT) – OPTION
083_04-04-03 CHASSIS, 465Ah (MAST LIFT) – STANDARD
084_04-04-04 CHASSIS, 620Ah (MAST LIFT) – OPTION
085_04-04-05 CHASSIS (LOW LIFT)
086_04-04-06 CHASSIS (MAST LIFT)
087_04-04-07 CHASSIS, TRACTOR UNIT 465Ah
088_04-04-08 CHASSIS, TRACTOR UNIT 600Ah
089_05-05-01 HYDRAULIC SYSTEM, LOW LIFT WITHOUT PRESSURE SENSOR (FIXED PLATFORM)
090_05-05-02 HYDRAULIC SYSTEM, LOW LIFT WITH PRESSURE SENSOR (FIXED PLATFORM) – OPTION
091_05-05-03 HYDRAULIC SYSTEM, LOW LIFT WITHOUT PRESSURE SENSOR (LIFT PLATFORM)
092_05-05-04 HYDRAULIC SYSTEM, LOW LIFT WITH PRESSURE SENSOR (LIFT PLATFORM) – OPTION
093_05-05-05 HYDRAULIC SYSTEM, MAST LIFT WITHOUT PRESSURE SENSOR (FIXED PLATFORM)
094_05-05-06 HYDRAULIC SYSTEM, MAST LIFT WITH PRESSURE SENSOR (FIXED PLATFORM) – OPTION
095_05-05-07 HYDRAULIC SYSTEM, MAST LIFT WITHOUT PRESSURE SENSOR (LIFT PLATFORM)
096_05-05-08 HYDRAULIC SYSTEM, MAST LIFT WITH PRESSURE SENSOR (LIFT PLATFORM) – OPTION
097_05-05-09 HYDRAULIC AGGREGATE, MINI 3G 2,2kW
098_05-05-10 HYDRAULIC AGGREGATE, MINI 3G 2,2kW WITH VALVE BLOCK
099_05-05-11 HYDRAULIC AGGREGATE, MICRO POWER PACK 2G WITH 1,2kW (FOR LOW LIFT WITHOUT PRESSURE SENSOR)
100_05-05-12 HYDRAULIC AGGREGATE, MICRO POWER PACK 2G WITH 1,2kW (FOR LOW LIFT WITH PRESSURE SENSOR)
101_05-05-13 HYDRAULIC AGGREGATE, LOW LIFT WITH PRESSURE SENSOR – FIXED PLATFORM
102_05-05-14 HYDRAULIC AGGREGATE, LOW LIFT WITHOUT PRESSURE SENSOR
103_05-05-15 LIFT CYLINDER, 850mm
104_05-05-16 LIFT CYLINDER, 1200mm – OPTION
105_05-05-17 CYLINDER (LIFT PLATFORM)
106_05-05-18 CYLINDER (LOW LIFT)
107_06-06-01 MAIN ASSEMBLY (LOW LIFT)
108_06-06-02 MAIN ASSEMBLY (MAST LIFT)
109_06-06-03 TRACTOR UNIT (FIXED PLATFORM)
110_06-06-04 TRACTOR UNIT (LIFT PLATFORM)

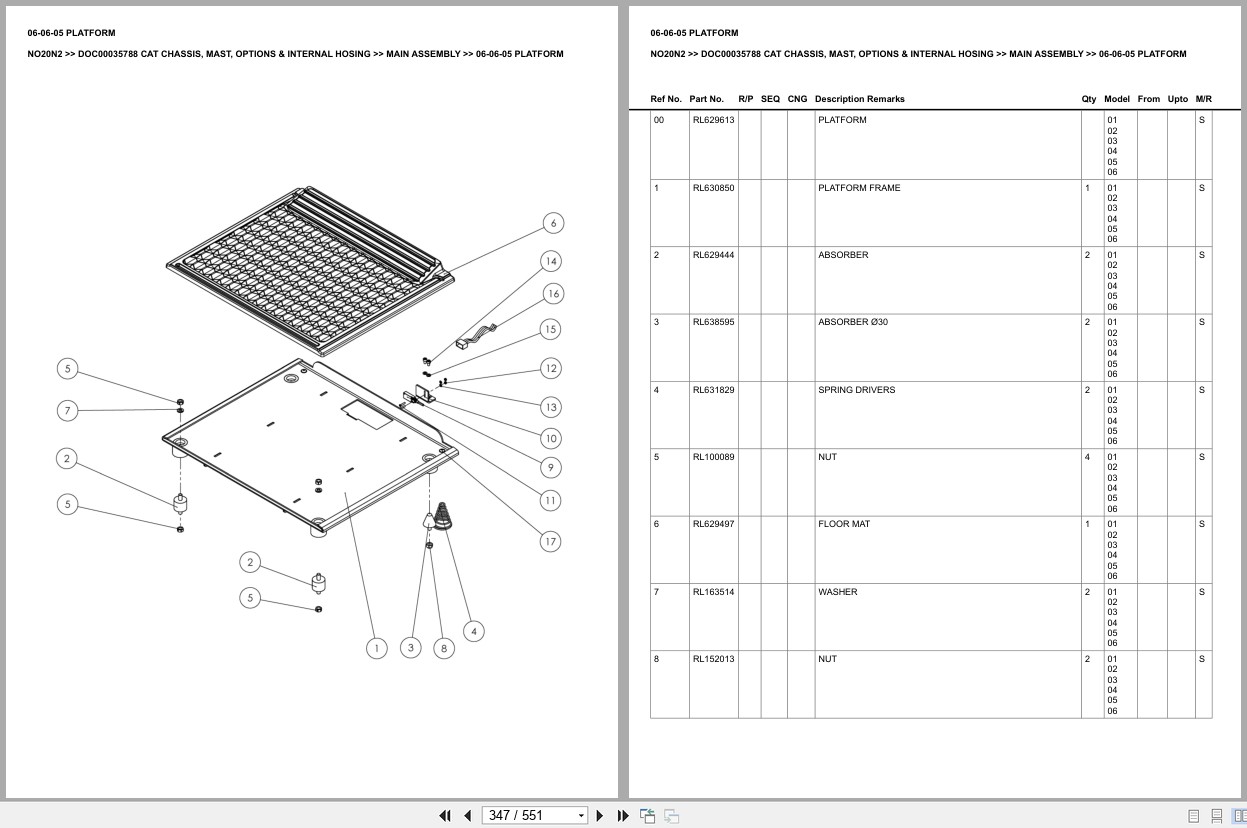

111_06-06-05 PLATFORM
112_06-06-06 INSTRUMENT PANEL, KEY+DISPLAY (FIXED PLATFORM)
113_06-06-07 INSTRUMENT PANEL, KEY+DISPLAY (LIFT PLATFORM)
114_06-06-08 INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY (FIXED PLATFORM)
115_06-06-09 INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY (LIFT PLATFORM)
116_06-06-10 INSTRUMENT PANEL, KEY+AURORA (FIXED PLATFORM)
117_06-06-11 INSTRUMENT PANEL, KEY+AURORA (LIFT PLATFORM)
118_06-06-12 INSTRUMENT PANEL, PIN KEY+AURORA (FIXED PLATFORM)
119_06-06-13 INSTRUMENT PANEL, PIN KEY+AURORA (LIFT PLATFORM)
120_06-06-14 INSTRUMENT PANEL, KEY+DISPLAY, LI-ION (FIXED PLATFORM)
121_06-06-15 INSTRUMENT PANEL, KEY+DISPLAY, LI-ION (LIFT PLATFORM)
122_06-06-16 INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY, LI-ION (FIXED PLATFORM)
123_06-06-17 INSTRUMENT PANEL, PIN KEY+PIN PAD+DISPLAY, LI-ION (LIFT PLATFORM)
124_06-06-18 INSTRUMENT PANEL, KEY+AURORA, LI-ION (FIXED PLATFORM)
125_06-06-19 INSTRUMENT PANEL, KEY+AURORA, LI-ION (LIFT PLATFORM)
126_06-06-20 INSTRUMENT PANEL, PIN KEY+AURORA, LI-ION (FIXED PLATFORM)
127_06-06-21 INSTRUMENT PANEL, PIN KEY+AURORA, LI-ION (LIFT PLATFORM)
128_06-06-22 KEYBOARD, PIN CODE UNIT
129_06-06-23 BATTERY COVER, 465Ah (FIXED PLATFORM)
130_06-06-24 BATTERY COVER, 620Ah (FIXED PLATFORM)
131_06-06-25 BATTERY COVER, 465Ah (LIFT PLATFORM)
132_06-06-26 BATTERY COVER, 620Ah (LIFT PLATFORM)
133_06-06-27 MACHINERY SHIELD ASSEMBLY
134_06-06-28 COVER PLATE
135_06-06-29 PLATE WITH FAN
136_06-06-30 PAPER HOLDER
137_06-06-31 PICKING TRAY
138_06-06-32 BACK PLATE
139_06-06-33 COVER PLATE
140_06-06-34 SWITCH
141_06-06-35 BACK REST
142_06-06-36 STEERING WHEEL
143_06-06-37 LIMIT SWITCH
144_06-06-38 OPERATOR COMPARTMENT, WITHOUT FLOOR SWITCH
145_06-06-39 OPERATING COMPARTMENT, WITH FLOOR SWITCH – OPTION
146_06-06-40 PEDAL, FLOOR SWITCH ASSEMBLY
147_06-06-41 EMERGENCY STOP – OPTION
148_06-06-42 EMERGENCY STOP, LI-ION – OPTION
149_06-06-43 WARNING LIGHT, WITHOUT 2ND LEVEL OR LOAD BACKREST – ACCESSORY
150_06-06-44 WARNING LIGHT, WITH 2ND LEVEL OR LOAD BACKREST – ACCESSORY
151_06-06-45 DECAL
152_07-07-01 MAST ASSEMBLY (LIFT PLATFORM)
153_07-07-02 MAST ASSEMBLY (FIXED PLATFORM)
154_07-07-03 MAST (LIFT HEIGHT 850mm, FW570, X=785) – STANDARD
155_07-07-04 MAST (LIFT HEIGHT 1200mm, FW540, X=635) – OPTION
156_07-07-05 MAST (LIFT HEIGHT 850mm, FW540, X=635) – OPTION
157_07-07-06 MAST (LIFT HEIGHT 1200mm, FW540, X=785) – OPTION
158_07-07-07 MAST (LIFT HEIGHT 850mm, FW540, X=785) – OPTION
159_07-07-08 MAST (LIFT HEIGHT 1200mm, FW570, X=635) – OPTION
160_07-07-09 MAST (LIFT HEIGHT 850mm, FW570, X=635) – OPTION
161_07-07-10 MAST (LIFT HEIGHT 1200mm, FW570, X=785) – OPTION
162_07-07-11 MAST (LIFT HEIGHT 850mm, FW540, X=1050) – CSM
163_07-07-12 LIFT CHAIN, 850mm
164_07-07-13 LIFT CHAIN, 1200mm – OPTION
165_07-07-14 LIFTING CARRIAGE (570×1150, X=785) – STANDARD
166_07-07-15 LIFTING CARRIAGE (540×1150, X=785) – OPTION
167_07-07-16 LIFTING CARRIAGE (570×1450, X=785) – OPTION
168_07-07-17 LIFTING CARRIAGE (540×1450, X=785) – OPTION
169_07-07-18 LIFTING CARRIAGE (540×950, X=635) – OPTION
170_07-07-19 LIFTING CARRIAGE (570×950, X=635) – OPTION
171_07-07-20 LIFTING CARRIAGE (540×2165, X=1050) – CSM
172_08-08-01 LOAD SUPPORT, 850mm – ACCESSORY
173_08-08-02 LOAD SUPPORT, 1200mm – ACCESSORY
174_09-09-01 DRIVE UNIT
175_09-09-02 GEAR
176_09-09-03 STEERING MOTOR
177_10-10-01 DRIVING WHEEL, VULKOLLAN
178_10-10-02 DRIVING WHEEL, FRICTION – OPTION
179_10-10-03 LOAD WHEEL, TANDEM (LOW LIFT)
180_10-10-04 LOAD WHEEL, TANDEM (MAST LIFT)
181_10-10-05 LOAD WHEEL, TANDEM, COLD STORAGE (MAST LIFT)
