Name: Caterpillar Forklift NPV25NH Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032556
SKU: 573389
Availability: InStock

Caterpillar Forklift NPV25NH Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032556 (1)

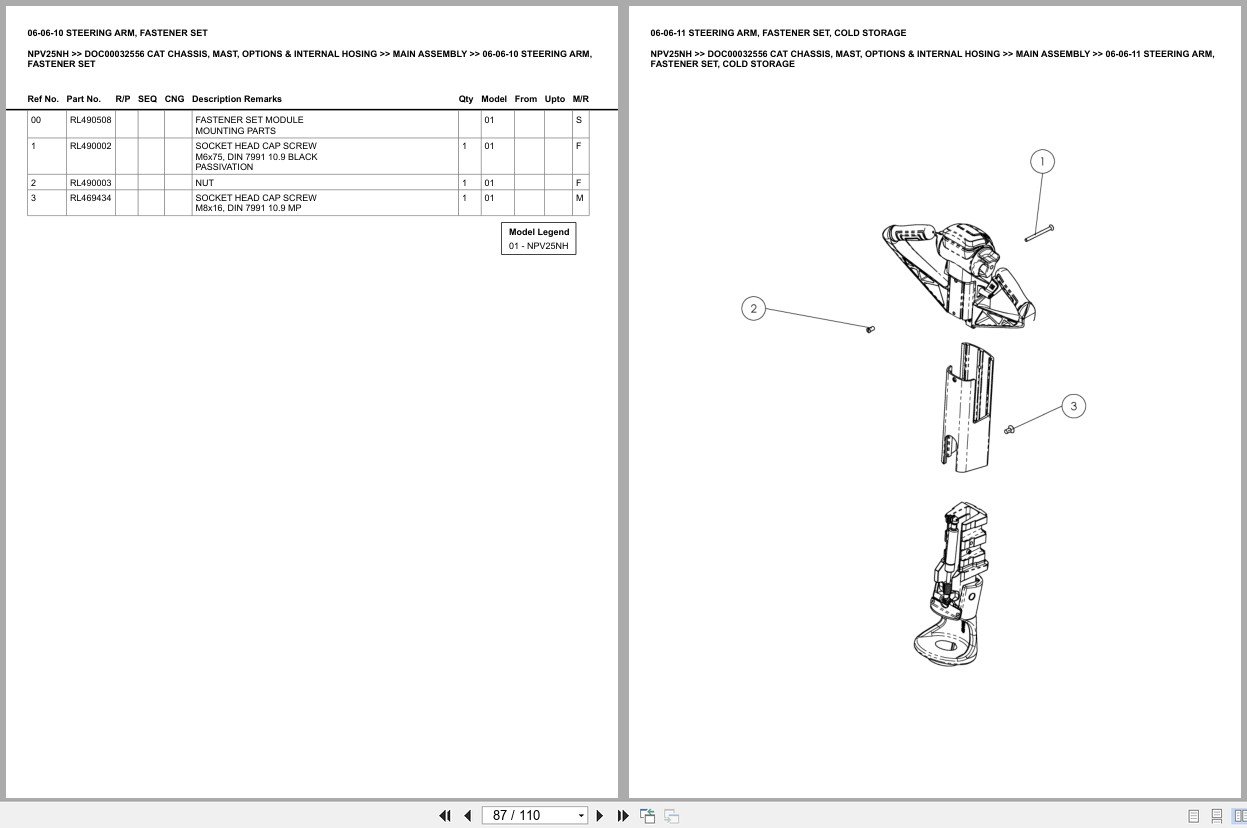

Caterpillar Forklift NPV25NH Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032556 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Caterpillar Forklift NPV25NH Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032556

Size: 13.81 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: Caterpillar NPV25NH Chassis Mast Options Internal Hosing Forklift

Region: Europe

Part Number: DOC00032556

Number of Pages: 110 Pages

50 USD

Tags: Caterpillar Forklift Manual, Caterpillar Parts Catalog, NPV25NH

Description

Description

Contents:
001_01-01-01 BATTERY CHANGING DEVICE
002_01-01-02 FAN, HEAVY DUTY
003_01-01-03 QUICK BATTERY LOCK
004_01-01-04 RESISTOR
005_01-01-05 ROLLBAR
006_01-01-06 SAFETY RAIL, LEFT
007_01-01-07 SAFETY RAIL, RIGHT
008_02-02-01 EL-PANEL
009_03-03-01 FORK CARRIAGE, H.L. 550
010_03-03-02 FORK CARRIAGE, H.L. 550, COLD STORAGE
011_03-03-03 FORK CARRIAGE, H.L. 685
012_03-03-03 FORK CARRIAGE, H.L. 685_1
013_03-03-04 FORK CARRIAGE, H.L. 685, COLD STORAGE
014_03-03-05 FORK CARRIAGE, H.L. 550-685
015_03-03-06 FORK CARRIAGE, H.L. 550-685, COLD STORAGE
016_03-03-07 LEVERAGE
017_04-04-01 BATTERY COVER
018_04-04-02 BATTERY ROLLER, L=215
019_04-04-03 BATTERY ROLLER, L=220
020_04-04-04 BUMPER
021_04-04-05 HINGE
022_04-04-06 KEY SWITCH
023_04-04-07 PANEL ASSEMBLY
024_04-04-08 PANEL, CODE PANEL
025_04-04-09 PLATFORM, BACK WALL STANDARD
026_05-05-01 CYLINDER
027_05-05-02 HYDRAULIC AGGREGATE
028_05-05-03 LIFTING CYLINDER, LOAD SENSOR
029_05-05-04 OIL TANK
030_05-05-05 PUMP
031_06-06-01 MAIN ASSEMBLY
032_06-06-02 MACHINERY SHIELD
033_06-06-03 OPERATORS MODULE
034_06-06-04 PLATFORM, SOLID SIDE WALLS
035_06-06-05 PLATFORM, COMPLETE VISOR
036_06-06-06 STEERING ARM, MANIPULATOR
037_06-06-07 STEERING ARM, MANIPULATOR, COLD STORAGE
038_06-06-08 STEERING UNIT, TILLER ARM CONTROL UNIT
039_06-06-09 STEERING UNIT, TILLER ARM PUSH BUTTONS
040_06-06-10 STEERING ARM, FASTENER SET
041_06-06-11 STEERING ARM, FASTENER SET, COLD STORAGE
042_06-06-12 STEERING ARM, JOINT
043_06-06-13 STEERING ARM, JOINT, COLD STORAGE
044_06-06-14 STEERING ARM, PIPE
045_06-06-15 STEERING ARM, ASSEMBLY (PRE 2007)
046_06-06-16 STEERING ARM (PRE 2007)
047_06-06-17 STEERING ARM, MANIPULATOR (PRE 2007)
048_09-09-01 DRIVE UNIT, ABM 2,0kW AC VULKOLLAN
049_09-09-02 DRIVE UNIT, ABM 2,0kW AC POWER FRICTION
050_09-09-03 DRIVE UNIT
051_10-10-01 CASTER WHEEL
