Name: Caterpillar Forklift NSV12N Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032618
SKU: 573497
Price: 50.00 USD
Availability: InStock

Caterpillar Forklift NSV12N Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032618 (1)

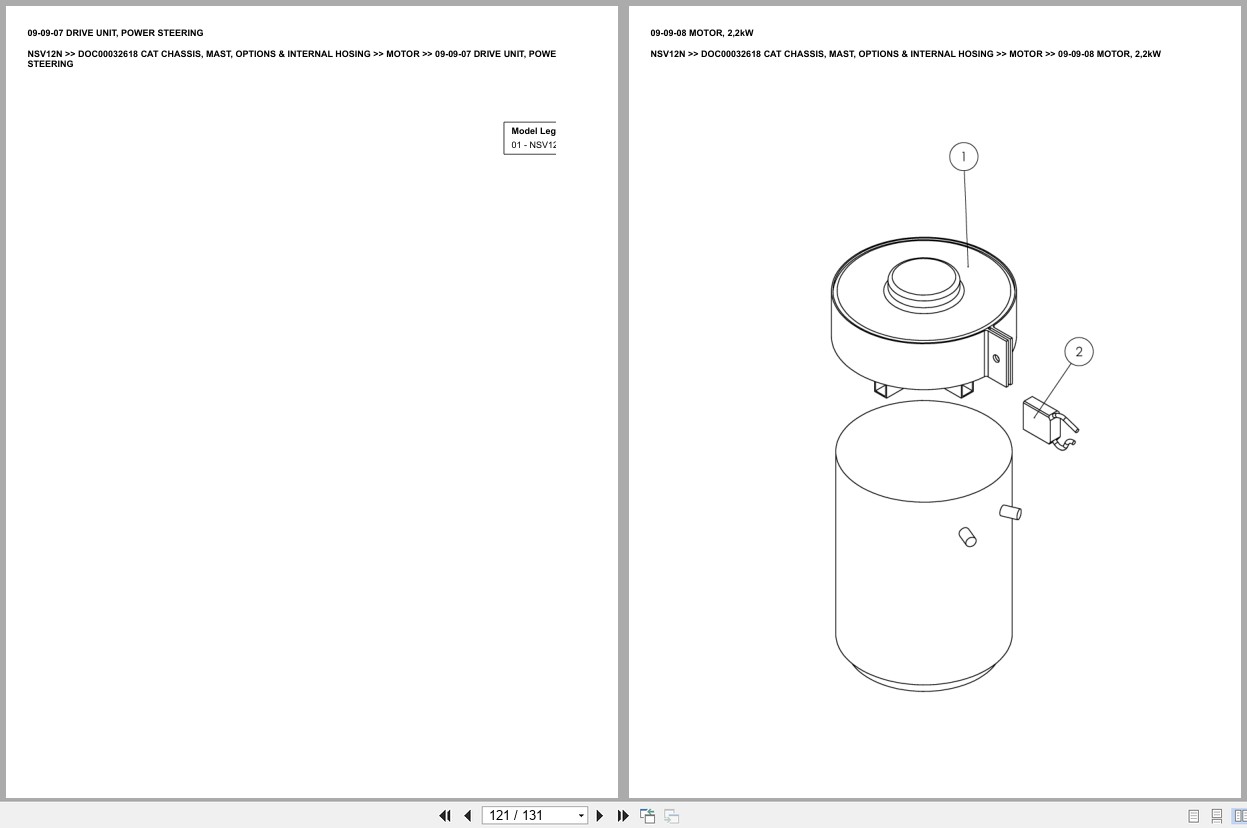

Caterpillar Forklift NSV12N Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032618 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Caterpillar Forklift NSV12N Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032618

Size: 15.20 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: Caterpillar NSV12N Chassis Mast Options Internal Hosing Forklift

Region: Europe

Part Number: DOC00032618

Number of Pages: 131 Pages

50 USD

Tags: Caterpillar Forklift Manual, Caterpillar Parts Catalog, NSV12N

Description

Description

Contents:
001_01-01-01 BATTERY SPACE
002_01-01-02 FAN, MANUAL STEERING, HEAVY DUTY
003_01-01-03 FAN, 24V
004_01-01-04 ROLLBAR
005_01-01-05 ROLLBAR, WITHOUT SIDE SAFETY
006_02-02-01 EL-PANEL
007_02-02-02 EL-PANEL, POWER STEERING
008_02-02-03 MANIPULATOR, STEERING ARM
009_03-03-01 LIFTING CARRIAGE, D_DF 570×1150 x=625
010_03-03-02 LIFTING CARRIAGE, ASSEMBLY
011_03-03-03 SUPPORTING FORK
012_04-04-01 ASSEMBLING SET
013_04-04-02 BATTERY COVER
014_04-04-03 BATTERY ROLLER
015_04-04-04 BUMPER, LOW RIDE HEIGHT
016_04-04-05 BUMPER, NARROW
017_04-04-06 BUMPER, WIDE
018_04-04-07 FASTENER SET
019_04-04-08 JOINT
020_04-04-09 KEY SWITCH
021_04-04-10 PANEL
022_04-04-11 PIPE
023_04-04-12 PLATFORM, BACK WALL
024_04-04-13 STEERING ARM
025_05-05-01 CYLINDER, ASSEMBLY
026_05-05-02 CYLINDER WHEEL, LOAD CYLINDER
027_05-05-03 HYDRAULIC AGGREGATE, STANDARD
028_05-05-04 HYDRAULIC AGGREGATE, W_ PROPORTIONAL VALVE
029_05-05-05 HYDRAULIC SYSTEM, STANDARD
030_05-05-06 HYDRAULIC SYSTEM, W_ PROPORTIONAL VALVE
031_05-05-07 HYDRAULIC SYSTEM, SIMPLEX
032_05-05-08 HYDRAULIC SYSTEM, DUPLEX, TRIPLEX
033_05-05-09 VALVE ELEMENT (K5101633)
034_06-06-02 PLATFORM, COMPLETE VISOR
035_06-06-03 PLATFORM, SOLID SIDE WALLS
036_06-06-04 STEERING UNIT, TILLER ARM PUSH BUTTONS
037_06-06-05 MACHINERY SHIELD
038_06-06-06 STEERING UNIT, TILLER ARM CONTROL UNIT
039_06-06-07 POWER STEERING
040_06-06-08 STEERING ARM, POWER STEERING
041_07-07-02 MAST UNIT, DUPLEX W_ FREE LIFT
042_07-07-04 MAST UNIT, TRIPLEX W_ FREE LIFT
043_07-07-05 OUTER MAST SECTION, SIMPLEX
044_08-08-01 CHAIN WHEEL
045_08-08-02 CHAIN YOKE
046_08-08-03 CHAIN YOKE, COLD STORAGE
047_08-08-04 CHAIN, DUPLEX W_ FREE LIFT
048_08-08-05 CHAIN, TRIPLEX W_ FREE LIFT
049_08-08-06 HOSE ROLLER
050_09-09-01 DRIVE UNIT, ASSEMBLY
051_09-09-02 DRIVE UNIT, 0,8kW
052_09-09-03 DRIVE UNIT, 2,0kW AC, VULKOLLAN
053_09-09-04 DRIVE UNIT, 2,0kW AC, POWER FRICTION
054_09-09-05 DRIVE UNIT (RL476657)
055_09-09-06 DRIVE UNIT (RL467334)
056_09-09-07 DRIVE UNIT, POWER STEERING
057_09-09-08 MOTOR, 2,2kW
058_10-10-01 CASTER WHEEL
059_10-10-02 CASTER WHEEL, COLD STORAGE
060_10-10-03 LOAD WHEEL, SINGLE, VULKOLLAN
061_10-10-04 LOAD WHEEL, TANDEM, VULKOLLAN
