Name: Caterpillar Forklift NSV12NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032628
SKU: 573501
Availability: InStock

Caterpillar Forklift NSV12NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032628 (1)

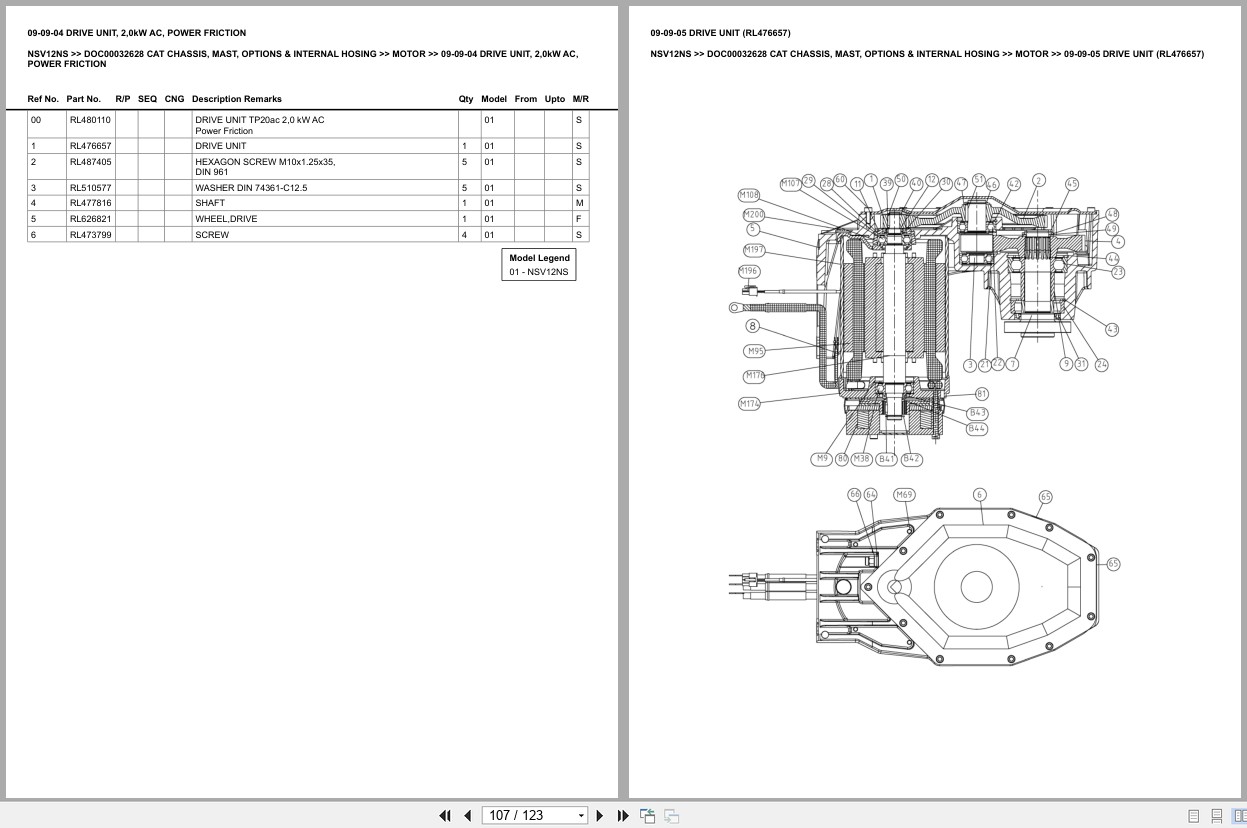

Caterpillar Forklift NSV12NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032628 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Caterpillar Forklift NSV12NS Chassis Mast Options Internal Hosing Europe Parts Catalog DOC00032628

Size: 15.37 MB

Format: PDF

Language: English

Brand: Caterpillar

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: Caterpillar NSV12NS Chassis Mast Options Internal Hosing Forklift

Region: Europe

Part Number: DOC00032628

Number of Pages: 123 Pages

50 USD

Tags: Caterpillar Forklift Manual, Caterpillar Parts Catalog, NSV12NS

Description

Description

Contents:
001_01-01-01 BATTERY SPACE
002_01-01-02 FAN, 24V
003_01-01-03 FAN, MANUAL STEERING, HEAVY DUTY
004_01-01-04 FORK CARRIAGE, STRADDLE
005_01-01-05 ROLLBAR
006_01-01-06 ROLLBAR, WITHOUT SIDE SAFETY
007_02-02-01 EL-PANEL
008_02-02-02 MANIPULATOR, STEERING ARM
009_03-03-01 LIFTING CARRIAGE, ASSEMBLY
010_03-03-02 LIFTING CARRIAGE, D_DF 570×1150 x=625
011_03-03-03 SUPPORTING FORK
012_04-04-01 ASSEMBLING SET
013_04-04-02 BATTERY COVER
014_04-04-03 BATTERY ROLLER
015_04-04-04 BUMPER, LOW RIDE HEIGHT
016_04-04-05 BUMPER, NARROW
017_04-04-06 BUMPER, WIDE
018_04-04-07 FASTENER SET
019_04-04-08 JOINT
020_04-04-09 KEY SWITCH
021_04-04-10 PANEL
022_04-04-11 PIPE
023_04-04-12 PLATFORM, BACK WALL
024_04-04-13 STEERING ARM
025_05-05-01 CYLINDER, ASSEMBLY
026_05-05-02 CYLINDER WHEEL, LOAD CYLINDER
027_05-05-03 HYDRAULIC AGGREGATE, STANDARD
028_05-05-04 HYDRAULIC AGGREGATE, W_ PROPORTIONAL VALVE
029_05-05-05 HYDRAULIC SYSTEM, STANDARD
030_05-05-06 HYDRAULIC SYSTEM, W_ PROPORTIONAL VALVE
031_05-05-07 HYDRAULIC SYSTEM, SIMPLEX
032_05-05-08 HYDRAULIC SYSTEM, DUPLEX, TRIPLEX
033_05-05-09 VALVE ELEMENT (K5101633)
034_06-06-01 MACHINERY SHIELD
035_06-06-03 PLATFORM, COMPLETE VISOR
036_06-06-04 PLATFORM, SOLID SIDE WALLS
037_06-06-05 STEERING UNIT, TILLER ARM CONTROL UNIT
038_06-06-06 STEERING UNIT, TILLER ARM PUSH BUTTONS
039_07-07-02 MAST UNIT, DUPLEX W_ FREE LIFT
040_07-07-03 MAST UNIT, TRIPLEX
041_07-07-05 OUTER MAST SECTION, SIMPLEX
042_08-08-01 CHAIN WHEEL
043_08-08-02 CHAIN YOKE
044_08-08-03 CHAIN YOKE, COLD STORAGE
045_08-08-04 CHAIN, DUPLEX W_ FREE LIFT
046_08-08-05 CHAIN, TRIPLEX W_ FREE LIFT
047_08-08-06 HOSE ROLLER
048_09-09-01 DRIVE UNIT, ASSEMBLY
049_09-09-02 DRIVE UNIT, 0,8kW
050_09-09-03 DRIVE UNIT, 2,0kW, AC VULKOLLAN
051_09-09-04 DRIVE UNIT, 2,0kW AC, POWER FRICTION
052_09-09-05 DRIVE UNIT (RL476657)
053_09-09-06 DRIVE UNIT (RL467334)
054_09-09-07 MOTOR, 2,2kW
055_10-10-01 CASTER WHEEL
056_10-10-02 CASTER WHEEL, COLD STORAGE
057_10-10-03 LOAD WHEEL, SINGLE, VULKOLLAN
058_10-10-04 LOAD WHEEL, TANDEM, VULKOLLAN
