Name: Challenger Field Cultivators 5730 5750 Parts Catalog 79035674
SKU: 490111
Availability: InStock

Challenger Field Cultivators 5730 5750 Parts Catalog 79035674 1

Challenger Field Cultivators 5730 5750 Parts Catalog 79035674 2

Challenger Field Cultivators 5730 5750 Parts Catalog 79035674 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Challenger Field Cultivators 5730 5750 Parts Catalog 79035674

Size: 5.77 MB

Format: PDF

Language: English

Brand: Challenger

Type of Machine: Tillage, Field Cultivators

Type of Manual: Parts Catalog

Model: Challenger 5730, 5750 Field Cultivators

Part Number: 79035674

Number of Pages: 146 Pages

10 USD

Tag: Challenger Parts Catalog

Description

Description

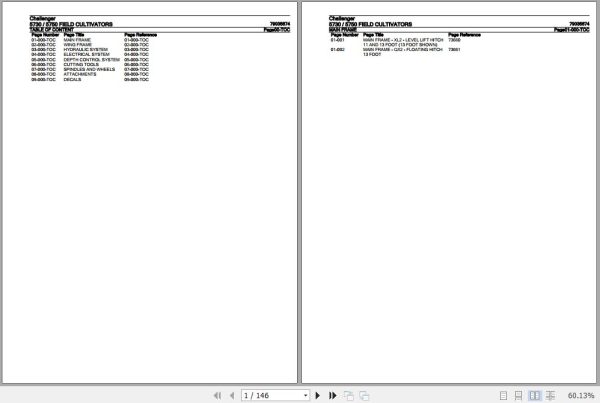

Contents:
Main Frame
Main Frame – Xl2
Main Frame – Qx2
Wing Frame
Wing – Xl2

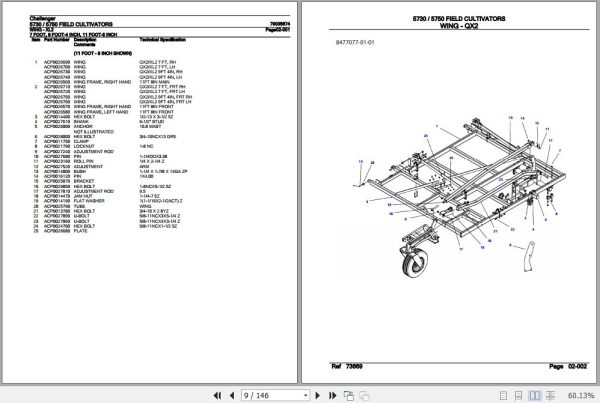

Wing – Qx2
008_5 Section Inner Wing – Xl2
009_5 Section Inner Wing – Qx2
Outer Wing – Xl2 Qx2
Outer Wing
012_5 Section Outer Wing Hinge – Xl2 Qx2
013_5 Section Inner Wing Hinge
014_3 Section Inner Wing – Lift
Floating Outer Wing – With Gauge Wheel
Wing Rest – Xl2
Hydraulic System
Hose Clamp
Gauge Wheel – Hydraulics
Xl2 Depth Control Hydraulics – 11 Foot Mainframe, 7 Foot Inner Wing
Xl2 Depth Control Hydraulics – 11 Foot Mainframe, 9 Foot-4 Inch Inner Wing
Xl2 Depth Control Hydraulics – 13 Foot Mainframe, 9 Foot-4 Inch Inner Wing
Xl2 Depth Control Hydraulics – 13 Foot Mainframe, 11 Foot-8 Inch Inner Wing
Qx2 Depth Control Hydraulics – 13 Foot Mainframe, 7 Foot Inner Wing
Qx2 Depth Control Hydraulics – 13 Foot Mainframe, 9 Foot-4 Inch Inner Wing
Qx2 Depth Control Hydraulics – 13 Foot Mainframe, 11 Foot-8 Inch Inner Wing
Xl2 Fold Hydraulics – 11 Foot Mainframe, 9 Foot-4 Inch Inner Wing
Xl2 Fold Hydraulics – 13 Foot Mainframe, 9 Foot-4 Inch And 11 Foot-8 Inch Inner Wing
Xl2 Fold Hydraulics – 13 Foot Mainframe, 11 Foot-8 Inch Inner Wing
Qx2 Fold Hydraulics – 13 Foot Mainframe, 9 Foot-4 Inch And 11 Foot-8 Inch Inner Wing
Qx2 Fold Hydraulics – 13 Foot Mainframe, 11 Foot-8 Inch Inner Wing
Weight Balance Kit – Optional
Electrical System
Lights
Depth Control System
Depth Gauge

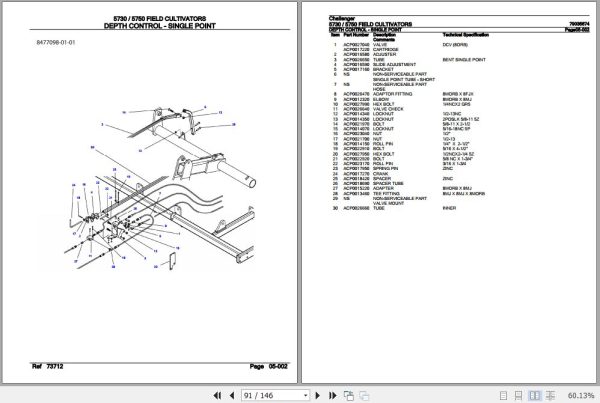

Depth Control – Single Point
Cutting Tools
Shovels
Shank Assembly – Single Spring
Shank Assembly – Twin Spring
Spindles And Wheels
Main Axle And Walking Tandem – Xl2 Qx2
Parallel Link Gauge Wheel
Parallel Link Gauge Wheel – Qx2 Mainframe
Parallel Link Gauge Wheel – Qx2 Wing Frame
Gauge Wheel – Outer Wing
Hub And Spindle Assembly
Hub Assembly – 8 Bolt, 2-1 2 Inch Spindle
Hub And Spindle Assembly – Gauge Wheel
Tire And Wheel
Attachments
Hitch – Xl2
Hitch – Qx2
Rear Hitch And Brace Arms – Heavy Duty
Harrow Arm
Harrow Basket
Harrow Section – Bar
Coil Tine
Harrow Section – Coil Tine Bar
Angled Bracket – Coil Tine
Extension – Spike Tooth Harrow
Decals
Safety Decals
