Name: Challenger Planter 9531VER 24R HZ FF PP Parts Catalog 652350
SKU: 490164
Availability: InStock

Challenger Planter 9531VER 24R HZ FF PP Parts Catalog 652350 1

Challenger Planter 9531VER 24R HZ FF PP Parts Catalog 652350 2

Challenger Planter 9531VER 24R HZ FF PP Parts Catalog 652350 3

✓

Expert Support

✓

Full Speed

✓

100% Working

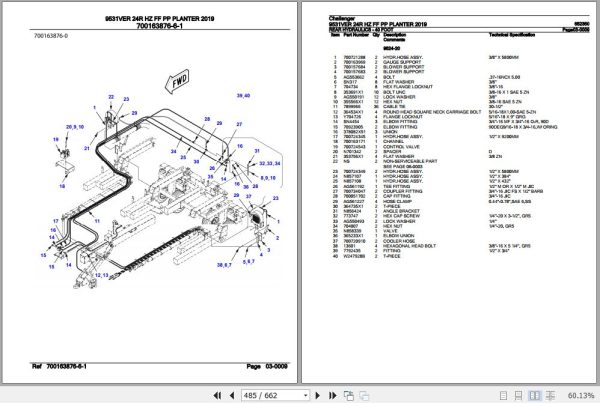

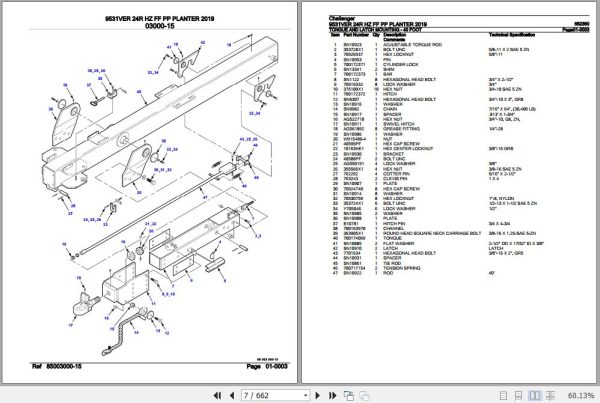

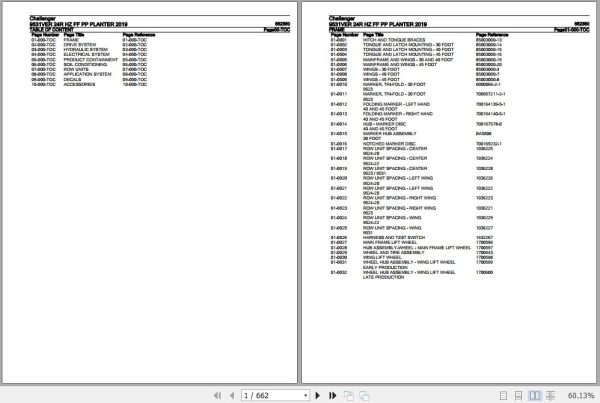

Challenger Planter 9531VER 24R HZ FF PP Parts Catalog 652350

Size: 33.17 MB

Format: PDF

Language: English

Brand: Challenger

Type of Machine: Planter

Type of Manual: Parts Catalog

Model: Challenger 9531VER 24R HZ FF PP Planter 2019

Part Number: 652350

Number of Pages: 662 Pages

20 USD

Tag: Challenger Parts Catalog

Description

Description

Contents:
Frame
Hitch And Tongue Braces
Tongue And Latch Mounting – 30 Foot
Tongue And Latch Mounting – 40 Foot
Tongue And Latch Mounting – 45 Foot
Mainframe And Wings – 30 And 40 Foot
Mainframe And Wings – 45 Foot
Wings – 30 Foot
Wings – 40 Foot
Wings – 45 Foot
Marker, Tri-Fold – 30 Foot
Folding Marker – Left Hand
Folding Marker – Right Hand
Hub – Marker Disc
Marker Hub Assembly
Notched Marker Disc
Row Unit Spacing – Center
Harness And Test Switch
Parallel Link – With Angles
Row Unit
Lower Assembly – Row Unit
Lever – Depth Adjustment
Lockup
Parallel Link – Extension
Row Unit Spacing – Left Wing
Parallel Link
Row Unit Spacing – Right Wing
Row Unit Spacing – Wing
Main Frame Lift Wheel
Hub Assembly-Wheel – Main Frame Lift Wheel
Wheel And Tire Assembly
Wing Lift Wheel
Wheel Hub Assembly – Wing Lift Wheel
Drive System
Chain – Row Unit
Row Unit Chain – Set Back
Chain Drive – Center
Sprocket And Tensioner – Without Swath
Support – Shaft
Chain Drive – Left Wing
Chain Drive – Right Wing
Drive Sprocket Assembly
Drives – Center
Tensioner
Lift Switch
Drives – Left Wing
Storage Tube
Drives – Right Wing
Drives – Upper
Driveline Assembly
Mounting – Motor
Flex Shaft Drive
Mounting – Gearbox
Gearbox – Metering Unit
Flex Shaft Drive – Center
Support And Braces – Flex Shaft Drive
Flex Shaft Drive – Left Wing
Flex Shaft Drive – Right Wing
Point Row Clutch
Point Row Clutch Kit – Components
Point Row Clutch Kit
Without Point Row Clutch
Clutch – Point Row Shutoff
Drive Chains
Hydraulic System
Hydraulics – Central Fill System
Center Fill Blower Control Valve Assembly
Air Compressor
Pto Pump And Mount
Pump And Reservoir – Pto
Rear Hydraulics – 30 Foot
Blower Assembly
Rear Hydraulics – 40 Foot
Rear Hydraulics – 45 Foot
Hydraulic Valve, Load Sense Blocking
Control Valve – Dual Flow Control
Blower Motor – Hydraulic
Hydraulic Drive Motor
Hydraulic Motor Assembly
Blower Hydraulics – Center Fill
Control Valve – Blower
Tongue Lift – Hydraulics
Hydraulic Cylinder Assembly – Tongue Lift
Lift And Lower Hydraulics
Flow Divider – Hydraulic
Hydraulic Control Valve
Lift – Left Hand
Lift And Lower Hydraulics – Right Hand
Lift And Lower Hydraulics – Left Hand
Frame Fold Hydraulics – Left Hand
Frame Fold Hydraulics – Right Hand
Frame Fold Hydraulics – Center
Hydraulic Cylinder Assembly – Fold
Wheel Lift Hydraulics – Center And Left Wing
Wheel Lift Hydraulics – Center And Right Wing
Wing Wheel Lift Hydraulics
Hydraulic Cylinder Assembly – Wheel Lift
Hydraulic Cylinder – Wheel Lift
Hydraulic Flow Divider Assembly – Wheel Lift
Marker Hydraulics – Front
Sequencing Valve – Hydraulic
Marker Hydraulics – Left Hand
Marker Hydraulics – Right Hand
Marker Hydraulic – Right Hand
Hydraulic – Fold
Fold – Hydraulic
Marker Hydraulics
Hydraulic Cylinder – Marker
Hydraulic Cylinder
Hydraulics – Marker Mounting Hydraulics
Hydraulics – Marker Hydraulic Cylinder Assembly
Quick Coupler
Electrical System
Electrical Connectors – Kit, Repair
Row Sensor, Tongue – Harness
Row Sensor – Mounting
Row Sensor, Left
Row Sensor, Center Left
Row Sensor, Center Right
Row Sensor, Right
