Name: Challenger Powerflex Header BR Parts Catalog CPCFL04
SKU: 490167
Availability: InStock

Challenger Powerflex Header BR Parts Catalog CPCFL04 1

Challenger Powerflex Header BR Parts Catalog CPCFL04 2

Challenger Powerflex Header BR Parts Catalog CPCFL04 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Challenger Powerflex Header BR Parts Catalog CPCFL04

Size: 4.49 MB

Format: PDF

Language: English

Brand: Challenger

Type of Machine: Harvesting Attachment, Powerflex Header

Type of Manual: Parts Catalog

Model: Challenger BR Powerflex Header

Part Number: CPCFL04

Number of Pages: 150 Pages

10 USD

Tag: Challenger Parts Catalog

Description

Description

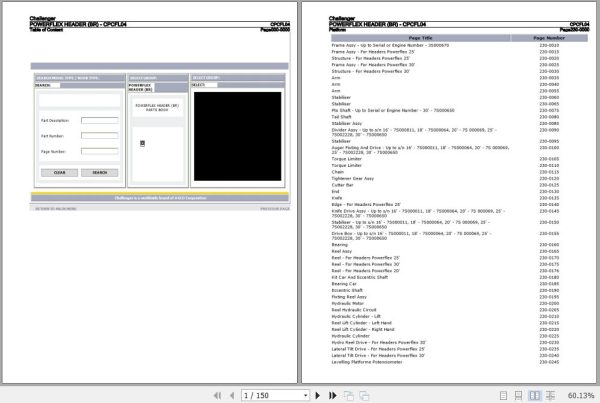

Contents:
Platform
Frame Assy – Up To Serial Or Engine Number 3s000670
Frame Assy – For Headers Powerflex 25′
Structure – For Headers Powerflex 25′
Frame Assy – For Headers Powerflex 30′
Structure – For Headers Powerflex 30′
Arm
Stabiliser
Pto Shaft – Up To Serial Or Engine Number 30′ – 7s000650
Tail Shaft
Stabiliser Assy
Divider Assy – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650

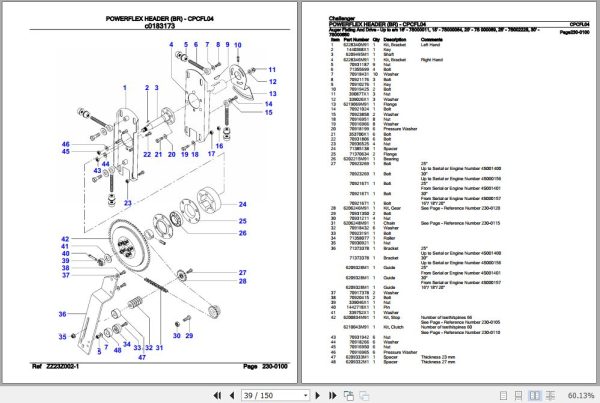

Auger Fixting And Drive – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650
Torque Limiter
Chain
Tightener Gear Assy
Cutter Bar
End
Knife
Edge – For Headers Powerflex 25′
Knife Drive Assy – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650
Stabiliser – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650
Drive Box – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650
Bearing
Reel Assy
Reel – For Headers Powerflex 25′
Reel – For Headers Powerflex 30′
Reel – For Headers Powerflex 20′
Kit Car And Eccentric Shaft
Bearing Car
Eccentric Shaft
Fixting Reel Assy
Hydraulic Motor
Reel Hydraulic Circuit
Hydraulic Cylinder – Lift
Reel Lift Cylinder – Left Hand
Reel Lift Cylinder – Right Hand
Hydraulic Cylinder
Hydro Reel Drive – For Headers Powerflex 30′
Lateral Tilt Drive – For Headers Powerflex 25′
Lateral Tilt Drive – For Headers Powerflex 30′
Levelling Platforme Potenciometer
Slider
Flexibles Plates Assy
Protector – Left Hand – Up To S N 16′ – 7s000011, 18′ – 7s000064, 20′ – 7s 000069, 25′ – 7s002228, 30′ – 7s000650
Baffler
Protection
Reel Torque Limiter
Decals
Auger – For Headers Powerflex 30′
Auger – For Headers Powerflex 25′
Assembly Retractable Fingers
Shaft
Cover
Kit Auger Speed Reducter
Table Waggon Transport
Bumper
Wheel
Bean Kit – Perforate Botton Plate
Bean Kit – Culture Lift – For Headers Powerflex 25′
Bean Kit – Culture Lift – For Headers Powerflex 30
