Challenger Tractor MT735 MT745 MT755 MT765 Parts Catalog 79019526

Description

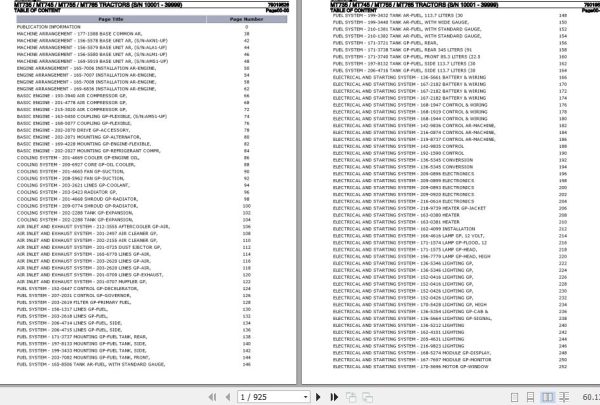

Contents:
Publication Information
177-1588 Base Common Ar,
156-5578 Base Unit Ar, (S N Akn1-Up)
156-5579 Base Unit Ar, (S N Ala1-Up)
156-5580 Base Unit Ar, (S N Alm1-Up)
169-5919 Base Unit Ar, (S N Ams1-Up)
165-7006 Installation Ar-Engine,
165-7007 Installation Ar-Engine,
165-7008 Installation Ar-Engine,
169-6836 Installation Ar-Engine,
193-3940 Air Compressor Gp,
201-4778 Air Compressor Gp,
215-3020 Air Compressor Gp,
163-0450 Coupling Gp-Flexible, (S N Ams1-Up)
168-5077 Coupling Gp-Flexible,
202-2070 Drive Gp-Accessory,
202-2071 Mounting Gp-Alternator,
169-4228 Mounting Gp-Engine-Flexible,
202-2027 Mounting Gp-Refrigerant Compr,
201-4669 Cooler Gp-Engine Oil,
200-6927 Core Gp-Oil Cooler,
201-4665 Fan Gp-Suction,
208-5962 Fan Gp-Suction,
203-2621 Lines Gp-Coolant,
203-5423 Radiator Gp,
201-4668 Shroud Gp-Radiator,
209-0774 Shroud Gp-Radiator,
202-2288 Tank Gp-Expansion,
212-3555 Aftercooler Gp-Air,
201-2497 Air Cleaner Gp,
202-2155 Air Cleaner Gp,
201-0725 Dust Ejector Gp,
165-6770 Lines Gp-Air,

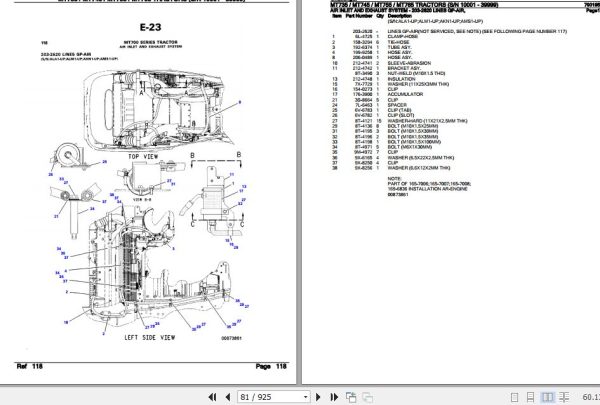

203-2620 Lines Gp-Air,
201-0709 Lines Gp-Exhaust,
201-0707 Muffler Gp,
152-0447 Control Gp-Decelerator,
207-2031 Control Gp-Governor,
203-2619 Filter Gp-Primary Fuel,
156-1317 Lines Gp-Fuel,
203-2618 Lines Gp-Fuel,
206-4714 Lines Gp-Fuel, Side,
206-4715 Lines Gp-Fuel, Side,
171-3737 Mounting Gp-Fuel Tank, Rear,
197-8133 Mounting Gp-Fuel Tank, Side,
199-3433 Mounting Gp-Fuel Tank, Side,
203-7082 Mounting Gp-Fuel Tank, Front,
165-8506 Tank Ar-Fuel, With Standard Gauge,
199-3432 Tank Ar-Fuel, 113.7 Liters (30
199-3440 Tank Ar-Fuel, With Wide Gauge,
210-1381 Tank Ar-Fuel, With Standard Gauge,
210-1382 Tank Ar-Fuel, With Standard Gauge,
171-3721 Tank Gp-Fuel, Rear,
171-3738 Tank Gp-Fuel, Rear 345 Liters (91
171-3740 Tank Gp-Fuel, Front 85.3 Liters (22.5
197-8132 Tank Gp-Fuel, Side 113.7 Liters (30
206-4716 Tank Gp-Fuel, Side 113.7 Liters (30
136-5661 Battery & Wiring

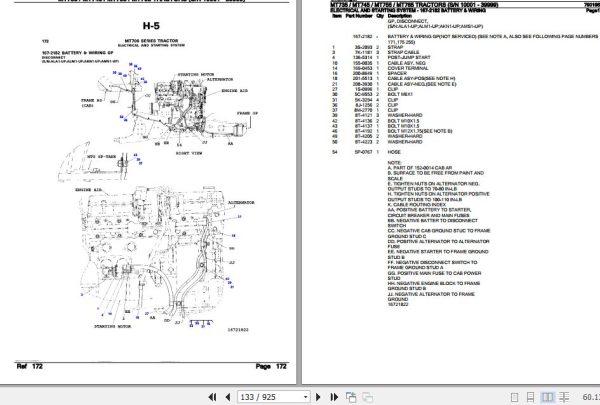

167-2182 Battery & Wiring
168-1947 Control & Wiring
168-1919 Control & Wiring
168-1944 Control & Wiring
142-9836 Control Ar-Machine,
216-0874 Control Ar-Machine,
219-8737 Control Ar-Machine,
142-9835 Control
192-1590 Control
136-5345 Conversion
209-0896 Electronics
209-0899 Electronics
209-0893 Electronics
209-0920 Electronics
216-0614 Electronics
218-9739 Heater Gp-Jacket
163-0380 Heater
163-0381 Heater
162-4099 Installation
166-4616 Lamp Gp, 12 Volt,
171-1574 Lamp Gp-Flood, 12
171-1575 Lamp Gp-Head,
196-7779 Lamp Gp-Head, High
136-5346 Lighting Gp,
152-0416 Lighting Gp,
152-0426 Lighting Gp,
170-5428 Lighting Gp, High
136-5354 Lighting Gp-Cab &
136-5664 Lighting Gp-Signal,
136-5212 Lighting
162-4101 Lighting
205-4631 Lighting
216-9823 Lighting
168-5274 Module Gp-Display,
167-7697 Module Gp-Monitor
170-5696 Motor Gp-Window
173-2745 Mounting
169-6380 Panel Gp-Fuse,
212-8823 Panel Gp-Fuse,
173-6510 Sensor & Mtg
161-8904 Sensor Gp-Position,
215-6495 Sensor Gp-Position,
161-9932 Sensor Gp-Pressure,
194-6725 Sensor Gp-Pressure,
194-6726 Sensor Gp-Pressure,
183-4584 Sensor Gp-Speed,
169-3646 Starting Motor
207-1539 Starting Motor
142-9834 Switch Gp-Receiver,
135-9967 Switch Gp-Wiper,
162-4098 Transmitter &
173-6509 Warning Gp-Backup,
173-6505 Wiring Gp, Steering
214-3504 Wiring Gp,
162-4097 Wiring
152-0420 Wiring Gp-Cab,
195-9532 Wiring Gp-Compact
166-1211 Wiring Gp-Console,
136-5667 Wiring Gp-Machine,
162-4096 Wiring Gp-Shutoff,
173-6501 Wiring Gp-Shutoff,
162-4102 Wiring Gp-Trailer,
155-9593 Case & Parts Gp-Planetary, Standard,
165-0414 Case & Parts Gp-Planetary, Creeper,
155-9583 Clutch Gp, Input Shaft,
155-9586 Clutch Gp, Intermediate Shaft,
155-9589 Clutch Gp, Reverse Shaft,
155-9590 Clutch Gp, Output Shaft,
166-0668 Clutch Gp, Output Planetary,
162-4104 Control Gp-Creeper,
155-9594 Control Gp-Transmission Hyd,
199-8159 Differential Gp, Steering,
163-0397 Drain Gp-Ecology,
169-8568 Drive Gp-Creeper, (S N 8ay1-Up)
161-8857 Drive Gp-Pump, (S N 7py1-Up;8ay1-Up)
164-3905 Fastener Gp-Final Drive,
163-0395 Filler Gp-Power Train Oil,
194-7086 Final Drive Gp, Standard Gauge,
195-3950 Final Drive Gp, Wide Gauge,
199-9217 Final Drive Gp, Ultra Wide Gauge,
168-3454 Housing Asy-Differential,
157-1709 Plug Gp-Shipping,
200-5011 Power Train Ar, Std Gauge W Std
200-5012 Power Train Ar, Std Gauge W Std
200-5013 Power Train Ar, Wide Gauge With
200-5014 Power Train Ar, Wide Gauge With
200-5015 Power Train Ar, Std Gauge W Creeper
200-5016 Power Train Ar, Std Gauge W Creeper
200-5017 Power Train Ar, Wide Gauge With
200-5018 Power Train Ar, Wide Gauge With
213-8788 Power Train Ar, Ultra Wide Gauge W Std
213-8789 Power Train Ar, Ultra Wide Gauge
151-6970 Shaft Gp-Input,
152-5241 Transmission Ar, Standard,
153-8962 Transmission Ar, Creeper,
173-2462 Transmission Ar, (S N 8ay1-Up)
170-5152 Valve Gp, Creeper, (S N 8ay1-Up)
166-5880 Valve Gp-Modulating, 12 Volt Clutch
216-5343 Valve Gp-Modulating, 12 Volt
187-3065 Valve Gp-Relief, Charge Pressure,
165-7159 Bracket Gp, Counterweight-Front,
159-9486 Chassis Ar,
156-1358 Counterweight Gp-Front, 1188kg
191-3096 Counterweight Gp-Front, 908kg (2002
177-4585 Counterweight Gp-Idler, 227 Kg (500
177-4586 Counterweight Gp-Idler, 455 Kg
177-4587 Counterweight Gp-Idler, 682 Kg
177-4588 Counterweight Gp-Idler, 909 Kg
177-4590 Counterweight Gp-Idler, 1136 Kg
178-8047 Counterweight Gp-Idler, 1575 Kg
201-5074 Cover Gp-Access,
162-4110 Extension Gp-Fender,
156-1319 Fender Gp,
156-1323 Frame Gp,
197-4774 Grill Gp-Radiator,
201-9925 Guard Gp, Tensioner Wire,
201-9926 Guard Gp, Tensioner Wire,
174-6313 Guard Gp-Bottom,
156-1334 Guard Gp-Power Take-Off,
175-1290 Guard Gp-Power Train,
203-9178 Handhold Gp, Outer,
156-1312 Hood & Guard Gp,
222-7965 Mounting Gp-Monitor,
152-0430 Mounting Gp-Rops,
180-3992 Plug Gp-Counterweight,
156-1325 Step Gp,
190-5600 Support Gp-Fuel Tank,
217-7762 Support Gp-Hood, Brace,
172-8886 Warning Gp-Slow Moving Vehicle,
155-5611 Arm Gp,
171-4005 Axle Ar, 1524-2235 Mm (60-88 In)
171-4006 Axle Ar, 1524-2235 Mm (60-88 In)
171-4010 Axle Ar, 2032-3048 Mm (80-120 In)
171-4011 Axle Ar, 2032-3048 Mm (80-120 In)
213-8802 Axle Ar, 3048-4064 Mm (120-160 In)
156-6057 Belt Ar, Extreme Applications 356 Mm
156-6061 Belt Ar, General Ag 457 Mm (18 In),
156-6065 Belt Ar, General Ag 635 Mm (25 In),
176-7202 Belt Ar, Extreme Applications 635 Mm
203-2792 Belt Ar, Extreme Applications 406 Mm
203-2793 Belt Ar, Extreme Applications 457 Mm
173-1774 Belt Tensioner Gp, Rh,
173-1777 Belt Tensioner Gp, Lh,
155-5614 Bogie Gp,
204-7335 Enclosure Gp,
3048 Mm (80
163-0677 Frame Gp-Track Roller,
172-4506 Gauge Ar-Standard, 1524-2235
178-2338 Gauge Ar-Standard, 1524-2235
200-6231 Gauge Ar-Standard, 1524-2235
200-6232 Gauge Ar-Standard, 1524-2235
172-4507 Gauge Ar-Wide, 2032-3048
178-2339 Gauge Ar-Wide, 2032-3048
200-6233 Gauge Ar-Wide, 2032-3048
200-6234 Gauge Ar-Wide, 2032-3048
213-4079 Gauge Ar-Wide, Ultra 3048-4064
213-4080 Gauge Ar-Wide, Ultra 3048-4064
213-6920 Guard Gp-Wiring, Tensioner Wire,
156-4859 Idler Gp,
160-7164 Lever Gp-Idler,
184-6717 Mounting Gp-Belt Tensioner,
177-4589 Mounting Gp-Idler,
156-4889 Roller Ar, 90 Mm (3.5 In),
156-4890 Roller Ar, Middle 112 Mm (4.4 In),
156-4892 Roller Ar, 204 Mm (8 In),
156-4887 Support Gp, With Standard Gauge,
156-4888 Support Gp, With Wide Gauge,
208-0560 Support Gp, With Ultra Wide Gauge,
162-2415 Support Gp-Drive Wheel, Rh Wide
162-2416 Support Gp-Drive Wheel, Lh Wide
163-0546 Undercarriage Ar, Wide Gauge,
163-0554 Undercarriage Ar, Standard Gauge,
213-6921 Undercarriage Ar, Ultra Wide Gauge,
177-3666 Wheel Ar-Drive, 87 Mm (3.4 In),
177-3663 Wheel Ar-Idler, 80 Mm (3.2 In),
192-6358 Accumulator & Mtg Gp-Brake,
192-6370 Brake Ar, Service,
200-4370 Brake Ar, Service,
161-8212 Brake Gp-Parking,
200-4350 Control Gp-Parking Brake,
210-7485 Control Gp-Parking Brake, Manual,
165-8558 Cylinder Gp-Master, Brake,
165-8559 Lines Gp-Service Brake,
189-8685 Lines Gp-Service Brake,
179-8300 Tank & Lines Gp-Air,
180-4854 Tank Ar-Air,
200-4351 Valve Gp-Parking Brake,
217-9779 Control Gp-Steering,
196-4234 Head Gp-Pump,
158-2405 Lines Gp-Steering,
177-4469 Lines Gp-Steering,
158-2402 Motor & Mtg
162-9597 Motor Gp-Piston,
189-2957 Pump Gp-Gear,
180-0459 Pump Gp-Piston,
202-7850 Pump Gp-Piston,
189-9384 Rotating Gp-Motor,
192-8863 Rotating Gp-Motor,
196-4232 Rotating Gp-Pump,
196-4623 Rotating Gp-Pump,
198-5376 Steering Ar, High
198-5378 Steering Ar, Standard
180-0496 Valve Gp-Flow Control
133-8740 Valve Gp-Flushing,
196-4233 Actuator Gp-Swashplate,
178-7162 Connector Gp-Valve, 0 To 60
180-7174 Connector Gp-Valve, Above 60
189-5909 Conversion Gp-Control Valve,
179-8087 Drain Gp-Hydraulic Case,
158-2348 Filter & Mtg Gp-Hydraulic,
197-2049 Filter Gp-Oil, Implement,
201-8648 Filter Gp-Oil, Transmission,
222-1599 Filter Gp-Oil,
158-2341 Hydraulic Ar,
172-4504 Kit-Valve, 5 Valve To 6 Valve
180-4824 Kit-Valve, 3 Valve To 4 Valve
180-4827 Kit-Valve, 4 Valve To 5 Valve
180-4828 Kit-Valve, 4 Valve To 5 Valve
183-1214 Kit-Valve, 3 Valve To 4 Valve
183-1215 Kit-Valve, 5 Valve To 6 Valve
192-6380 Lines Gp-Coupler,
165-7897 Lines Gp-Hydraulic,
158-2355 Lines Gp-Implement,
158-2355 Lines Gp-Implement, (S N Ala201-Up;Alm228-Up;Akn178-Up;, Ams261-Up)
165-7902 Lines Gp-Implement, 63cc,
158-2338 Mounting Gp-Valve,
158-2359 Plug Gp-Implement Valve, Without
178-7157 Pump & Lines Ar-Implement, 63 Cc,
158-2344 Pump & Mounting Gp, 63cc
158-2396 Pump & Mounting Gp, 71 Cc,
205-5980 Pump Gp-Piston, 63 Cc Implement,
190-6501 Rotating Gp-Pump, 63cc Implement
189-5906 Valve & Mounting Gp,
189-5907 Valve & Mounting Gp,
189-5908 Valve & Mounting Gp,
189-5910 Valve & Mtg Gp-Control,
189-5911 Valve & Mtg Gp-Control, 5 Valve
172-4497 Valve Ar, 3 Implements & Hitch,
172-4498 Valve Ar, 3 Implements, Hitch &
172-4499 Valve Ar, 4 Implements & Hitch,
172-4500 Valve Ar, 4 Implements, Hitch &
172-4501 Valve Ar, 5 Implements & Hitch,
172-4502 Valve Ar, 5 Implements, Hitch &
163-0587 Valve Gp-Bank 4, 3 Implements &
157-3905 Valve Gp-Bank 5, 4 Implements &
167-7482 Valve Gp-Bank 5, 3 Implements,
163-0589 Valve Gp-Bank 6, 5 Implements &
167-7485 Valve Gp-Bank 6, 4 Implements,
167-7486 Valve Gp-Bank 7, 5 Implements,
192-6368 Valve Gp-Brake Control,
180-0497 Valve Gp-Control, 3 Point Hitch,
180-0498 Valve Gp-Control, Implement,
180-0499 Valve Gp-Control, Steerable 3
196-4235 Valve Gp-Electric Servo,
190-6495 Valve Gp-Press & Flow Cmpnstr,
201-9105 Valve Gp-Press & Flow Cmpnstr,
123-7557 Valve Gp-Relief,
3e-8590 Valve Gp-Solenoid, 12 Volt,
170-2316 Coupler
177-0665 Cylinder & Seal
177-0666 Cylinder & Seal
204-9024 Cylinder & Seal
171-1243 Cylinder
171-1242 Cylinder
157-1708 Drawbar
169-0070 Drawbar
157-1710 Hitch Ar,
157-1715 Hitch Ar,
170-2287 Hitch Ar, Wide
157-1714 Hitch Gp-3
157-1719 Hitch Gp-3
158-2362 Lines Gp-Hitch,
205-5811 Lines Gp-Hitch,
205-5819 Lines Gp-Hitch,
205-5824 Lines Gp-Hitch,
205-5830 Lines Gp-Hitch,
200-0007 Link Gp-Lift,
197-5030 Link Gp-Upper,
173-6500 Plug Gp-Hitch,
195-4531 Power Take-Off
195-4532 Power Take-Off
169-0077 Shaft
184-5059 Support
174-5756 Adjuster Gp-Console,
151-9986 Air Conditioner & Mounting Gp,
166-4592 Air Conditioner & Mounting Gp,
152-0427 Air Conditioner Gp, Deluxe,
152-0428 Air Conditioner Gp,
168-1951 Antenna Gp-Radio,
210-1570 Antenna Gp-Radio, Business Band,
152-0014 Cab Ar, Deluxe,
152-0015 Cab Ar,
152-0001 Cab Gp,
173-6507 Changer Gp-Compact Disc,
152-0429 Console Gp,
152-0434 Console Gp-Operator,
166-4586 Control Gp-Air & Temperature,
152-0438 Control Gp-Clutch & Brake,
152-0445 Control Gp-Hitch, Rear 3 Point,
136-5355 Control Gp-Implement, 4th Handle,
152-0443 Control Gp-Implement, 4 Handles,
152-0448 Control Gp-Implement, 6th Handle,
166-4590 Control Gp-Implement, 5 Handles,
178-5026 Control Gp-Implement, 3 Handles,
209-8704 Control Gp-Implement,
169-6346 Control Gp-Transmission,
169-6347 Control Gp-Transmission,
216-7694 Control Gp-Transmission,
151-9997 Door Gp-Lh,
166-4556 Filter Gp-Cab Air,
152-0418 Headliner Gp,
197-4511 Kit-Seat,
197-4513 Kit-Seat Suspension,
208-2879 Lines Gp-Heater,
208-2882 Lines Gp-Heater,
192-5590 Mirror Gp-Rear View, Power
192-5592 Mirror Gp-Rear View, Manual
167-0090 Mounting Gp-Fire Extinguisher,
187-4896 Rack & Mounting Gp, Global
168-1952 Radio Gp, 12 Volt Heavy Duty,
152-0417 Roof Gp-Cab,
152-0436 Seat Gp,
152-0433 Seat Gp-Companion,
161-9200 Seat Gp-Suspension,
152-0419 Speaker Gp-Radio,
173-6506 Speaker Gp-Radio, Subwoofer,
166-3611 Steering Column Gp,
197-4510 Suspension Gp-Seat,
152-0450 Trim Gp-Cab,
152-0424 Visor Gp-Cab (Sun Visor), Front,
162-4095 Visor Gp-Cab (Sun Visor), Rear,
151-9994 Window Gp-Cab,
152-0422 Wiper Gp-Window,
152-0425 Wiper Gp-Window, Deluxe,
162-4103 Wiper Gp-Window, Rh,
155-0757 Film Gp, Mt735,
155-0758 Film Gp, Mt745,
155-0760 Film Gp, Mt755,
155-0761 Film Gp, Mt765,
178-4950 Film Gp,
173-4472 Plate & Film Gp,
180-3725 Protection
203-9712 Tool Gp-Axle Gauge
Paint, Paint
Recommended Dealer Stock, Recommended
