Chery T1C 1.5T+CVT25 2021 Electric Diagrams
Size: 72.2 MB
Format: PDF
Language: English
Brand: Chery
Type of Machine: Automotive
Type of Manual: Electric Diagrams
Model: Chery T1C 1.5T+CVT25 2021
Number of Pages: 326 Pages
20 USD
- Description
Description

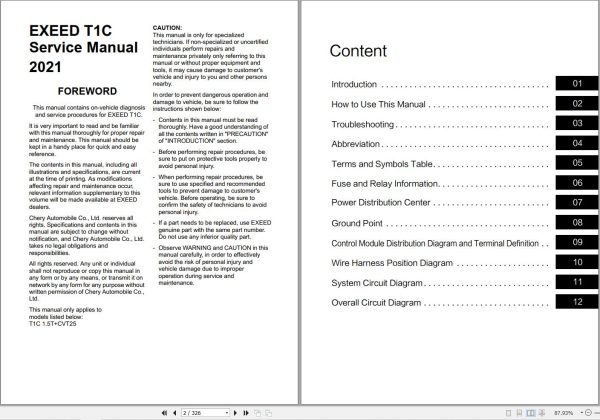

Contents:
Introduction
How to Use This Manual
Troubleshooting
Abbreviation
Terms and Symbols Table
Fuse and Relay Information
Power Distribution Center
Ground Point
Control Module Distribution Diagram and Terminal Definition
Wire Harness Position Diagram

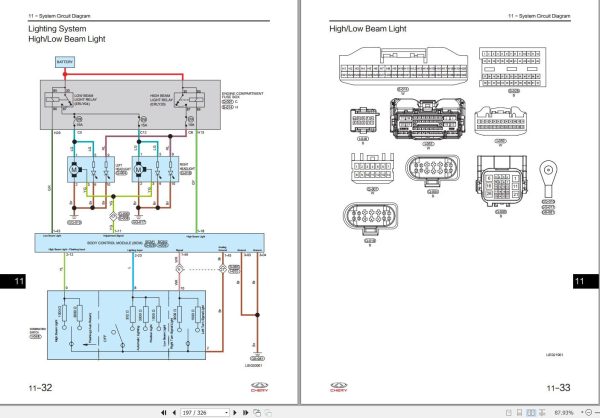

System Circuit Diagram
Overall Circuit Diagram
