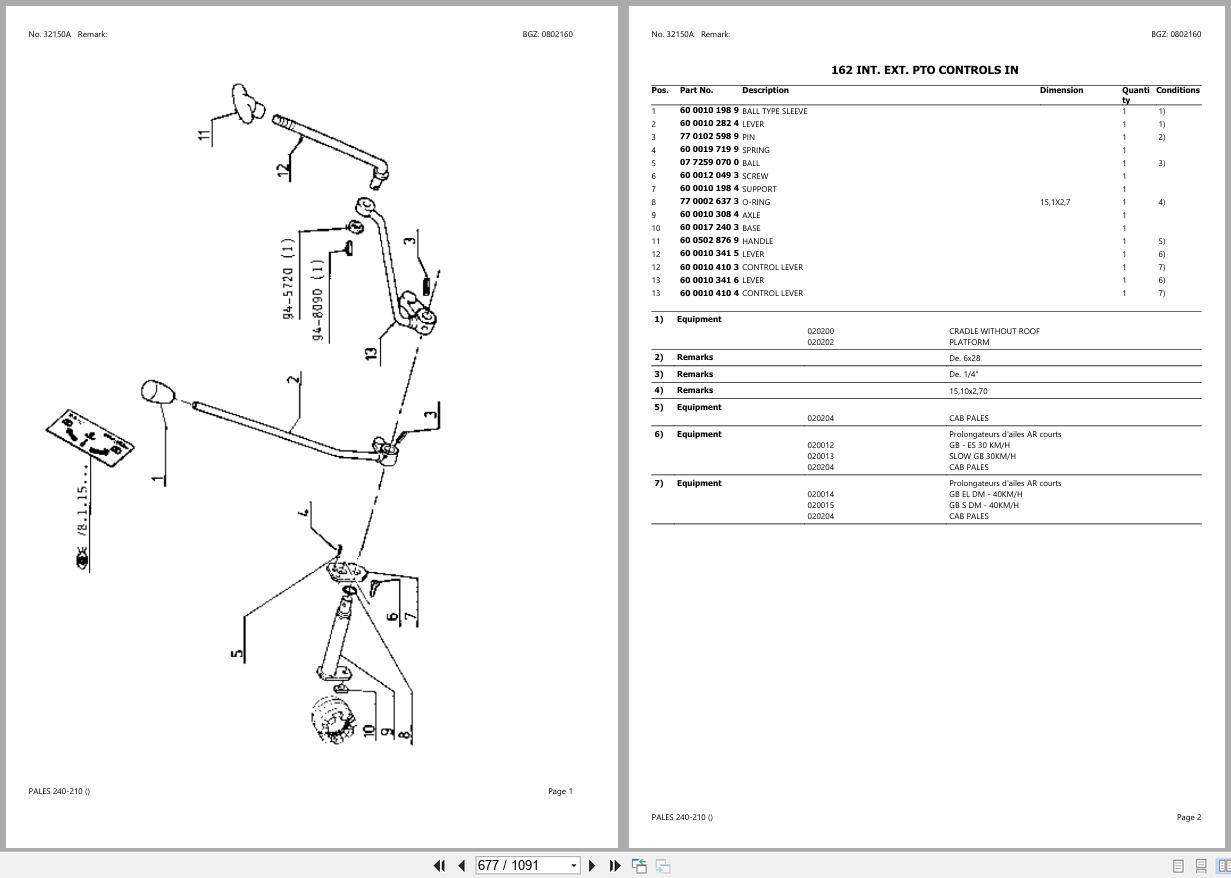

CLAAS PALES 240-210 CT72D3000-CT72D5999 Spare Parts Catalog

Description

Contents:
001 – PALES 240-210 (SPL-ID ZT578)
002 – 01 ENGINE
003 – 02 COMPLETE COMPONENT
004 – 010 COMPLETE ENGINE
005 – 10 ENGINE HOUSING
006 – 100 CRANKCASE
007 – 100 CRANKCASE (1)
008 – 120 TIMING CASE
009 – 160 OIL PAN
010 – 15 ENGINE UNIT
011 – 100 CYLINDER LINER, PISTON
012 – 100 CYLINDER LINER, PISTON (1)
013 – 100 CYLINDER LINER, PISTON (2)
014 – 120 CONNECTING ROD, CONNECTING ROD BEARINGS
015 – 120 CONNECTING ROD, CONNECTING ROD BEARINGS (1)
016 – 140 CRANKSHAFT
017 – 161 CRANKSHAFT PULLEY WHEEL
018 – 200 MASS BALANCING
019 – 220 FLYWHEEL
020 – 20 CYLINDER HEAD VALVES IDLER GEAR
021 – 100 CYLINDER HEAD
022 – 100 CYLINDER HEAD (1)
023 – 100 CYLINDER HEAD (2)
024 – 140 VALVES
025 – 140 VALVES (1)
026 – 140 VALVES (2)
027 – 160 ROCKER ARM
028 – 160 ROCKER ARM (1)
029 – 180 CAMSHAFT, CAMSHAFT BEARING BUSHES
030 – 201 IDLER GEAR
031 – 25 INJECTION – FUEL SYSTEM
032 – 100 FUEL TANK
033 – 120 FUEL DELIVERY PUMP
034 – 140 FUEL PIPES
035 – 160 FUEL FILTER
036 – 200 INJECTION PUMP HIGH PRESSURE PUMP
037 – 220 INJECTION PIPES
038 – 220 INJECTION PIPES (1)
039 – 240 INJECTORS
040 – 240 INJECTORS (1)
041 – 30 LUBRICATING OIL SYSTEM
042 – 100 OIL PUMP
043 – 100 OIL PUMP (1)
044 – 100 OIL PUMP (2)
045 – 120 OIL FILTER
046 – 141 OIL PIPES
047 – 160 OIL COOLER
048 – 160 OIL COOLER (1)
049 – 160 OIL COOLER (2)
050 – 35 COOLING SYSTEM
051 – 120 FAN BELT
052 – 500 COOLING FAN
053 – 40 EXHAUST SYSTEM
054 – 120 EXHAUST MANIFOLD
055 – 140 EXTERIOR SOUND ABSORBER
056 – 140 EXTERIOR SOUND ABSORBER (1)
057 – 45 AIR INTAKE
058 – 100 PRE-FILTER
059 – 100 PRE-FILTER (1)
060 – 120 AIR CLEANER
061 – 120 AIR CLEANER (1)
062 – 120 AIR CLEANER (2)
063 – 120 AIR CLEANER (3)
064 – 140 AIR INTAKE, LINES
065 – 140 AIR INTAKE, LINES (1)
066 – 140 AIR INTAKE, LINES (2)
067 – 180 COLD-START SYSTEM
068 – 200 INLET MANIFOLD
069 – 900 RETROFIT KIT
070 – 50 ENGINE ATTACHMENT PARTS
071 – 100 STARTER MOTOR
072 – 100 STARTER MOTOR (1)
073 – 100 STARTER MOTOR (2)
074 – 120 ALTERNATOR
075 – 120 ALTERNATOR (1)
076 – 120 ALTERNATOR (2)
077 – 120 ALTERNATOR (3)
078 – 122 ALTERNATOR, DETAIL
079 – 122 ALTERNATOR, DETAIL (1)
080 – 122 ALTERNATOR, DETAIL (2)
081 – 122 ALTERNATOR, DETAIL (3)
082 – 55 ENGINE CONTROL
083 – 120 ENGINE SHUT OFF
084 – 140 ACCELARATOR PEDAL
085 – 140 ACCELARATOR PEDAL (1)
086 – 140 ACCELARATOR PEDAL (2)
087 – 140 ACCELARATOR PEDAL (3)
088 – 140 ACCELARATOR PEDAL (4)
089 – 140 ACCELARATOR PEDAL (5)
090 – 140 ACCELARATOR PEDAL (6)
091 – 140 ACCELARATOR PEDAL (7)
092 – 160 HAND THROTTLE
093 – 160 HAND THROTTLE (1)
094 – 90 ACCESSORIES
095 – 910 REPAIR KIT
096 – 920 SEALING KIT
097 – 02 GEARBOX CLUTCH UNIVERSAL DRIVE SHAFT
098 – 15 MECHANICAL CLUTCH
099 – 100 HOUSING RELEASE FORK
100 – 100 HOUSING RELEASE FORK (1)
101 – 100 HOUSING RELEASE FORK (2)
102 – 100 HOUSING RELEASE FORK (3)
103 – 120 CLUTCH, DOUBLE CLUTCH
104 – 140 RELEASE BEARING GUIDE
105 – 140 RELEASE BEARING GUIDE (1)
106 – 140 RELEASE BEARING GUIDE (2)
107 – 160 CLUTCH SHAFTS
108 – 160 CLUTCH SHAFTS (1)
109 – 160 CLUTCH SHAFTS (2)
110 – 160 CLUTCH SHAFTS (3)
111 – 18 CLUTCH CONTROL
112 – 100 CLUTCH ACTUATION
113 – 100 CLUTCH ACTUATION (1)
114 – 121 CLUTCH ACTUATION
115 – 20 MECHANICAL REVERSER
116 – 100 REVERSING GEAR
117 – 100 REVERSING GEAR (1)
118 – 120 INTERNAL SHIFTING, SHIFTING INTO REVERSE
119 – 120 INTERNAL SHIFTING, SHIFTING INTO REVERSE (1)
120 – 28 REVERSER CONTROL
121 – 100 EXTERNAL SWITCHING, SHIFTING INTO REVERSE
122 – 100 EXTERNAL SWITCHING, SHIFTING INTO REVERSE (1)
123 – 30 MECHANICAL GEARBOX
124 – 100 HOUSING COVER
125 – 100 HOUSING COVER (1)
126 – 100 HOUSING COVER (2)
127 – 100 HOUSING COVER (3)
128 – 100 HOUSING COVER (4)
129 – 120 INPUT DRIVE SHAFT
130 – 120 INPUT DRIVE SHAFT (1)
131 – 120 INPUT DRIVE SHAFT (2)
132 – 160 FRONT INTERMEDIATE SHAFT
133 – 160 FRONT INTERMEDIATE SHAFT (1)
134 – 200 OUTPUT DRIVE SHAFT
135 – 200 OUTPUT DRIVE SHAFT (1)
136 – 34 POWERSHIFT GEARBOX
137 – 100 RANGE DOUBLER
138 – 100 RANGE DOUBLER (1)
139 – 100 RANGE DOUBLER (2)
140 – 180 INNER RANGE GEAR SHIFT MECHANISM
141 – 180 INNER RANGE GEAR SHIFT MECHANISM (1)
142 – 38 GEARBOX CONTROL
143 – 100 INNER GEARSHIFTS RANGE
144 – 100 INNER GEARSHIFTS RANGE (1)
145 – 100 INNER GEARSHIFTS RANGE (2)
146 – 120 OUTER GEARSHIFTS RANGE
147 – 120 OUTER GEARSHIFTS RANGE (1)
148 – 120 OUTER GEARSHIFTS RANGE (2)
149 – 120 OUTER GEARSHIFTS RANGE (3)
150 – 120 OUTER GEARSHIFTS RANGE (4)
151 – 121 EXT. HYDRAULIC CONTROLS
152 – 180 EXT.LINK._SPLITTER
153 – 180 EXT.LINK._SPLITTER (1)
154 – 40 REAR AXLE HOUSING
155 – 100 CASING COVER
156 – 100 CASING COVER (1)
157 – 120 PINION BEARINGS
158 – 160 FULL-FLOATING AXLES GEAR RING
159 – 180 TRUMPET HOUSING
160 – 900 RETROFIT KIT (1)
161 – 900 RETROFIT KIT (2)
162 – 42 DIFFERENTIAL
163 – 100 DIFFERENTIAL
164 – 120 DIFFERENTIAL LOCK
165 – 120 DIFFERENTIAL LOCK (1)
166 – 50 MECHANICAL FRONT AXLE DRIVE
167 – 100 HOUSING SEALING PLUG
168 – 120 PINIONS SHAFTS
169 – 120 PINIONS SHAFTS (1)
170 – 140 INSIDE OUTSIDE CONTROLS
171 – 160 4 WD SHAFT GUARDS
172 – 160 4 WD SHAFT GUARDS (1)
173 – 52 ELECTRO-HYDRAULICAL FRONT AXLE DRIVE
174 – 100 HOUSING SEALING PLUG (1)
175 – 120 PINIONS SHAFTS (2)
176 – 120 PINIONS SHAFTS (3)
177 – 140 INSIDE OUTSIDE CONTROLS (1)
178 – 160 4 WD SHAFT GUARDS (2)
179 – 160 4 WD SHAFT GUARDS (3)
180 – 55 GEARBOX COOLING SYSTEM
181 – 101 GEARBOX COOLER
182 – 101 GEARBOX COOLER (1)
183 – 101 GEARBOX COOLER (2)
184 – 03 CHASSIS
185 – 20 STEERING AXLE
186 – 100 AXLE SUPPORT
187 – 120 STEERING AXLE
188 – 140 STUB AXLE
189 – 160 TRACK ROD
190 – 25 DRIVEN STEERING AXLE, FRONT
191 – 100 CHASSIS BEARING BRACKET
192 – 120 AXLE BODY
193 – 140 STUB AXLE (1)
194 – 160 C W + PINION SET
195 – 180 DIFFERENTIAL
196 – 200 INSERTABLE SHAFT
197 – 220 HUB REDUCTION GEARS
198 – 240 TRACK ROD
199 – 40 FRONT WHEELS
200 – 100 TYRES, WHEEL RIMS, FRONT
201 – 100 TYRES, WHEEL RIMS, FRONT (1)
202 – 100 TYRES, WHEEL RIMS, FRONT (2)
203 – 100 TYRES, WHEEL RIMS, FRONT (3)
204 – 45 REAR WHEELS
205 – 100 TYRES, WHEEL RIMS, REAR
206 – 100 TYRES, WHEEL RIMS, REAR (1)
207 – 100 TYRES, WHEEL RIMS, REAR (2)
208 – 100 TYRES, WHEEL RIMS, REAR (3)
209 – 04 BRAKE
210 – 05 SERVICE BRAKE
211 – 100 CASING COVER (2)
212 – 120 BRAKING MECHANISM
213 – 140 MECHANICAL OPERATION LINKAGES
214 – 160 HYDR. OPERATION MASTER BRAKE CYLINDER BRAKE VALVE
215 – 180 BRAKE LINES
216 – 180 BRAKE LINES (1)
217 – 220 BRAKE PEDAL
218 – 220 BRAKE PEDAL (1)
219 – 220 BRAKE PEDAL (2)
220 – 220 BRAKE PEDAL (3)
221 – 220 BRAKE PEDAL (4)
222 – 220 BRAKE PEDAL (5)
223 – 900 ADD-ON KIT
224 – 900 ADD-ON KIT (1)
225 – 900 ADD-ON KIT (2)
226 – 15 PARKING BRAKE
227 – 120 PARKING BRAKE
228 – 120 PARKING BRAKE (1)
229 – 120 PARKING BRAKE (2)
230 – 25 TRAILER HYDRAULIC BRAKE
231 – 100 BRAKE VALVE
232 – 100 BRAKE VALVE (1)
233 – 100 BRAKE VALVE (2)
234 – 120 BRAKE VALVE LINES
235 – 120 BRAKE VALVE LINES (1)
236 – 120 BRAKE VALVE LINES (2)
237 – 120 BRAKE VALVE LINES (3)
238 – 05 STEERING
239 – 05 STEERING (1)
240 – 100 STEERING WHEEL, STEERING COLUMN
241 – 100 STEERING WHEEL, STEERING COLUMN (1)
242 – 800 STEERING LINES
243 – 800 STEERING LINES (1)
244 – 800 STEERING LINES (2)
245 – 800 STEERING LINES (3)
246 – 800 STEERING LINES (4)
247 – 801 STEERING CYLINDER LINES
248 – 801 STEERING CYLINDER LINES (1)
249 – 801 STEERING CYLINDER LINES (2)
250 – 830 ORBITROL
251 – 830 ORBITROL (1)
252 – 840 STEERING CYLINDER
253 – 06 LIFT DEVICE
254 – 05 REAR POWER LIFT
255 – 100 HOUSING SEALING PLUG (2)
256 – 100 HOUSING SEALING PLUG (3)
257 – 120 CARRIER ARM BUSHING LIFTING SHAFT
258 – 141 RISING DISTRIBUTOR
259 – 141 RISING DISTRIBUTOR (1)
260 – 180 DETECTION EFFORT CONTROL
261 – 180 DETECTION EFFORT CONTROL (1)
262 – 200 INNER CONTROLS
263 – 200 INNER CONTROLS (1)
264 – 220 CONTROL LEVERS
265 – 220 CONTROL LEVERS (1)
266 – 220 CONTROL LEVERS (2)
267 – 280 LOWER LINK FOR REAR POWER LIFT
268 – 280 LOWER LINK FOR REAR POWER LIFT (1)
269 – 300 UPPER LINK FOR REAR POWER LIFT
270 – 320 DRAW HOOK
271 – 340 LIFT ROD
272 – 340 LIFT ROD (1)
273 – 380 TRACTOR LINKAGE DRAWBAR
274 – 400 REAR POWER LIFT SIDE STRUT
275 – 901 ADD-ON KIT
276 – 07 HITCH
277 – 05 COUPLING FRAME
278 – 100 HITCH BLOCK
279 – 100 HITCH BLOCK (1)
280 – 120 TRAILER COUPLING OPERATION
281 – 08 DRIVES
282 – 02 REAR PTO
283 – 102 REAR PTO SHAFT
284 – 102 REAR PTO SHAFT (1)
285 – 102 REAR PTO SHAFT (2)
286 – 102 REAR PTO SHAFT (3)
287 – 102 REAR PTO SHAFT (4)
288 – 102 REAR PTO SHAFT (5)
289 – 140 PTO STUB SHAFT -PROTECTION
290 – 160 REAR POWER TAKE-OFF ENGAGEMENT
291 – 160 REAR POWER TAKE-OFF ENGAGEMENT (1)
292 – 160 REAR POWER TAKE-OFF ENGAGEMENT (2)
293 – 161 PTO SHAFT IN GEARBOX CONTROL
294 – 162 INT. EXT. PTO CONTROLS IN
295 – 161 PTO SHAFT IN GEARBOX CONTROL (1)
296 – 09 HYDRAULIC SYSTEM
297 – 10 PUMPS
298 – 100 HYDRAULIC PUMP
299 – 100 HYDRAULIC PUMP (1)
300 – 100 HYDRAULIC PUMP (2)
301 – 15 HYDRAULIC LINES
302 – 100 SUCTION CIRCUIT
303 – 100 SUCTION CIRCUIT (1)
304 – 100 SUCTION CIRCUIT (2)
305 – 100 SUCTION CIRCUIT (3)
306 – 140 HIGH PRESSURE HYDRAULIC LINE
307 – 140 HIGH PRESSURE HYDRAULIC LINE (1)
308 – 180 AUX. DISTRIB. CIRCUIT
309 – 180 AUX. DISTRIB. CIRCUIT (1)
310 – 180 AUX. DISTRIB. CIRCUIT (2)
311 – 180 AUX. DISTRIB. CIRCUIT (3)
312 – 180 AUX. DISTRIB. CIRCUIT (4)
313 – 180 AUX. DISTRIB. CIRCUIT (5)
314 – 180 AUX. DISTRIB. CIRCUIT (6)
315 – 240 HYDRAULIC FLUID FILTER
316 – 20 VALVES
317 – 100 DISTRIBUTOR
318 – 120 FLOW DIVIDEUR
319 – 120 FLOW DIVIDEUR (1)
320 – 160 AUXILIARY VALVES
321 – 160 AUXILIARY VALVES (1)
322 – 160 AUXILIARY VALVES (2)
323 – 160 AUXILIARY VALVES (3)
324 – 160 AUXILIARY VALVES (4)
325 – 160 AUXILIARY VALVES (5)
326 – 160 AUXILIARY VALVES (6)
327 – 35 HYDRAULIC SYSTEM CONTROL MONITORING
328 – 100 LEVERS SUPPORTS
329 – 90 ACCESSORIES (1)
330 – 900 ADD-ON KIT (3)
331 – 900 ADD-ON KIT (4)
332 – 900 ADD-ON KIT (5)
333 – 900 ADD-ON KIT (6)
334 – 10 ELECTRICAL ELECTRONIC EQUIPMENT
335 – 05 POWER SUPPLY
336 – 100 BATTERY WITH ACCESSORIES
337 – 10 CENTRAL ELECTRICS
338 – 200 CENTRAL ELECTRICS
339 – 220 ELECTRICAL CONNECTIONS
340 – 240 IGNITION SWITCH
341 – 260 SWITCHES
342 – 890 SAFELY WARNING SWITCHES
343 – 892 SPEED SENSOR(S)
344 – 900 RETROFIT KIT (3)
345 – 900 RETROFIT KIT (4)
346 – 15 WIRING HARNESSES
347 – 320 DASHBOARD WIRING LOOM
348 – 320 DASHBOARD WIRING LOOM (1)
349 – 340 CAB WIRING LOOM
350 – 360 WIRING LOOM GUARD
351 – 20 DRIVING LIGHTS
352 – 100 DRIVING LIGHTS
353 – 140 HEADLIGHT ON WING
354 – 140 HEADLIGHT ON WING (1)
355 – 180 REAR LIGHTS ON WING
356 – 220 LICENSE PLATE LIGHT
357 – 260 REFLECTOR SUPPORT
358 – 300 WARNING BEACONS
359 – 300 WARNING BEACONS (1)
360 – 340 CAB INTERIOR LIGHT
361 – 25 WORKING LIGHTS
362 – 100 REAR WORK LIGHTS
363 – 100 REAR WORK LIGHTS (1)
364 – 30 BOARD COMPUTER INDICATORS
365 – 201 TRACTOR METERS
366 – 201 TRACTOR METERS (1)
367 – 12 CAB OPERATOR’S PLATFORM
368 – 05 CAB SUSPENSION
369 – 100 STEPS
370 – 100 STEPS (1)
371 – 100 STEPS (2)
372 – 100 STEPS (3)
373 – 120 CAB SUPPORT DETAIL
374 – 10 CAB
375 – 010 COMPLETE CABIN
376 – 010 COMPLETE CABIN (1)
377 – 100 CABIN FRAME
378 – 120 EXTERIOR ROOF TRIM
379 – 120 EXTERIOR ROOF TRIM (1)
380 – 140 SUPPORT VARIOUS PANELS
381 – 180 DOORS AND SURROUNDS
382 – 220 WINDOWS WINDOW SEALS
383 – 240 REAR WINDOW FITTINGS
384 – 280 FASTENINGS FOR FOLDING WINDSCREEN
385 – 340 LOWER TRIM
386 – 340 LOWER TRIM (1)
387 – 340 LOWER TRIM (2)
388 – 340 LOWER TRIM (3)
389 – 402 FRONT WINDSCREEN WIPER
390 – 422 REAR_SIDE WINDSCREEN WIPER
391 – 442 WINDSCREEN WASHER
392 – 15 OPERATOR’S PLATFORM
393 – 120 SAFETY ARCH
394 – 120 SAFETY ARCH (1)
395 – 140 SUPPORT VARIOUS PANELS (1)
396 – 900 ADD-ON KIT (7)
397 – 901 ADD-ON KIT (1)
398 – 20 OPERATOR’S PLATFORM
399 – 120 VARIOUS PANELS
400 – 120 VARIOUS PANELS (1)
401 – 120 VARIOUS PANELS (2)
402 – 25 MIRROR
403 – 100 MIRROR
404 – 30 SEAT
405 – 010 SEAT ASSEMBLY
406 – 100 PADDING AND REINFORCEMENT
407 – 120 SUSPENSION
408 – 35 CAB HEATER
409 – 100 HEATING HEAT EXCHANGER FILTER
410 – 100 HEATING HEAT EXCHANGER FILTER (1)
411 – 120 FAN
412 – 120 FAN (1)
413 – 900 ADD-ON KIT (8)
414 – 40 AIR CONDITION
415 – 100 AIR CONDITIONER COMPRESSOR
416 – 120 CONDENSER
417 – 140 V-BELTS SUPPORTS
418 – 140 V-BELTS SUPPORTS (1)
419 – 160 EVAPORATOR
420 – 180 AIR CONDITIONING LINES
421 – 220 VENTILATION
422 – 90 ACCESSORIES (2)
423 – 900 VARIOUS ACCESSORIES
424 – 80 VARIOUS COMPONENTS MACHINE BODY
425 – 25 PANELLINGS HOODS
426 – 100 BONNET
427 – 100 BONNET (1)
428 – 100 BONNET (2)
429 – 100 BONNET (3)
430 – 100 BONNET (4)
431 – 100 BONNET (5)
432 – 150 PANELLINGS
433 – 150 PANELLINGS (1)
434 – 150 PANELLINGS (2)
435 – 150 PANELLINGS (3)
436 – 200 SIDE TRIM
437 – 200 SIDE TRIM (1)
438 – 300 SIDE FLAPS
439 – 30 MUD GUARDS
440 – 100 FRONT MUD GUARDS
441 – 100 FRONT MUD GUARDS (1)
442 – 150 REAR MUD GUARDS
443 – 150 REAR MUD GUARDS (1)
444 – 150 REAR MUD GUARDS (2)
445 – 150 REAR MUD GUARDS (3)
446 – 150 REAR MUD GUARDS (4)
447 – 150 REAR MUD GUARDS (5)
448 – 300 LENGTH EXTENSION WIDTH EXTENSION
449 – 901 ADD-ON KIT (2)
450 – 901 ADD-ON KIT (3)
451 – 901 ADD-ON KIT (4)
452 – 35 BALLAST ADDITIONAL WEIGHT
453 – 100 FRONT WEIGHTS
454 – 100 FRONT WEIGHTS (1)
455 – 900 ADD-ON KIT (9)
456 – 45 LEGAL EQUIPMENT
457 – 100 IDENTIFICATION PLATE
458 – 120 WARNING STICKER
459 – 160 MACHINE LABELLING
460 – 200 WHEEL CHOCKS
461 – 90 ACCESSORIES INSTALATION KIT
462 – 160 TOOL BOX
463 – 160 TOOL BOX (1)
464 – 160 TOOL BOX (2)
