Name: Combilift Forklift C5000XL Parts Manual
SKU: 532734
Price: 15.00 USD
Availability: InStock

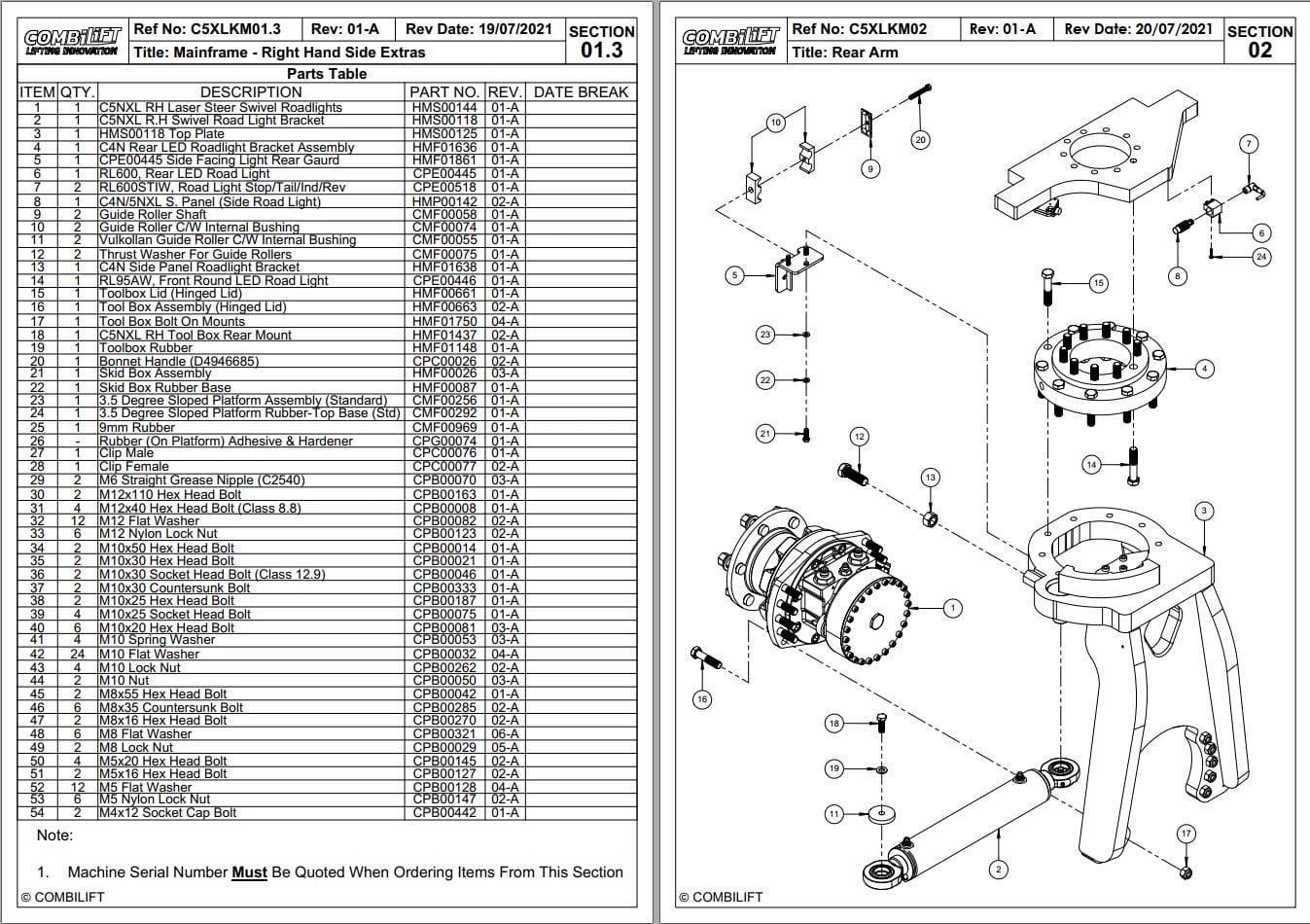

Combilift Forklift C5000XL Parts Manual (1)

Combilift Forklift C5000XL Parts Manual (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Combilift Forklift C5000XL Parts Manual

Size: 14.2 MB

Format: PDF

Language: English

Brand: Combilift

Type of Machine: Forklift

Type of Manual: Spare Parts Catalog

Model: Combilift C5000XL Forklift

Number of Pages: 163 Pages

15 USD

Tags: C5000XL, Combilift Forklift Manual, Combilift Parts Manual

Description

Description

Contents:
Wheels
Mainframe – Left Hand Side
Front Wheel Motor
Front Steering Cylinder
Steering Valve
Bleed Block
Mainframe – Right Hand Side
Right Hand Side Swivel
Mainframe – Left Hand Side Extras
Mainframe – Right Hand Side Extras
Rear Arm
Rear Wheel Motor
Rear Arm Steering Cylinder
Radiator/Oil Cooler
Bonnet
Hydraulic Tank
Brake Diverter Valve
Air Filter
Diesel Tank
Cabin – I
Inch Brake Pedal
Lever Dash
Joystick Dash
Lever Valve Chest – I
Lever Valve Chest – II
Cut-Out Solenoid Valve
Joystick Valve Chest – I
Joystick Valve Chest – II
Cabin – II
Steering Motor
Cabin Door
Cabin – Insulation & Accessories
Air Conditioning Unit
Joystick Valves
Cabin Heater Hoses
Exhaust
Drive Pump And Coupling
Drive Block Valve
Three-Port Diverter Valve
Engine
Injector & Wire Harnesses
Air Conditioning
Oil Pan
DPF Muffler Sensors & Pressure Pipes
Oil Separator
Standard Mast Carriage
Mast Carriage Cylinder
Mast Tilt Cylinder (85/40)
Mast Tilt Cylinder (100/50)
Mast Tilt Cylinder (100/60)
Side Shifting Mast Carriage
Mast Tilt Cylinder – Optional Side Shift Mast
Mast Side Shift Cylinder – Optional Side Shift Mast
Engine Loom & Fuses
Cabin Fuses, Loom & Electrical Extras
Left Hand Side Swivel
Mast & Mounted Extras
Hydraulic Accumulator
Hydraulic Oil Flow Divider
Standard Hydraulic Fork Positioning
Wide Hydraulic Fork Positioning
Drive Pump Feed & Return (Oil Cooler) Lines
Drive Pump To Inch Valve, Brake Valve & Tank
Front Motor Drive Lines
Front Motor Bleed & Brake Lines
Rear Motor Drive Lines
Rear Motor Bleed & Brake Lines
Steering Motor & Valve Chest Feed & Return Lines
Steering Motor Lines
Steering Cylinder Lines
Lift & Auxiliary Section Lines
Reach Cylinder Lines
Tilt Cylinder Lines
Fork Positioner Lines (Elecar Mast With Flow Divider)
Optional Joystick/Valve Chest Lines – I
Optional Joystick/Valve Chest Lines – II
Optional Joystick/Valve Chest Lines – III
Optional Joystick/Valve Chest Lines – IV
Drive Pump To Inch Valve, Brake Valve & Tank
Front Motor Drive Lines
Front Motor Bleed & Brake Lines
Rear Motor Drive Lines
Rear Motor Bleed & Brake Lines
Steering Motor & Valve Chest Feed & Return Lines
Steering Motor Lines
Steering Cylinder Lines
Lift & Auxiliary Section Lines
Reach Cylinder Lines
Tilt Cylinder Lines
Fork Positioner Lines (Elecar Mast With Flow Divider)
Optional Joystick/Valve Chest Lines – I
Optional Joystick/Valve Chest Lines – II
Optional Joystick/Valve Chest Lines – III
Optional Joystick/Valve Chest Lines – IV
Appendix 1: Routine Maintenance Parts
