Name: Combilift Forklift STE Parts Manual
SKU: 532742
Availability: InStock

✓

Expert Support

✓

Full Speed

✓

100% Working

Combilift Forklift STE Parts Manual

Size: 11.0 MB

Format: PDF

Language: English

Brand: Combilift

Type of Machine: Forklift

Type of Manual: Spare Parts Catalog

Model: Combilift STE Forklift

Number of Pages: 140 Pages

15 USD

Tags: Combilift Forklift Manual, Combilift Parts Manual, STE

Description

Description

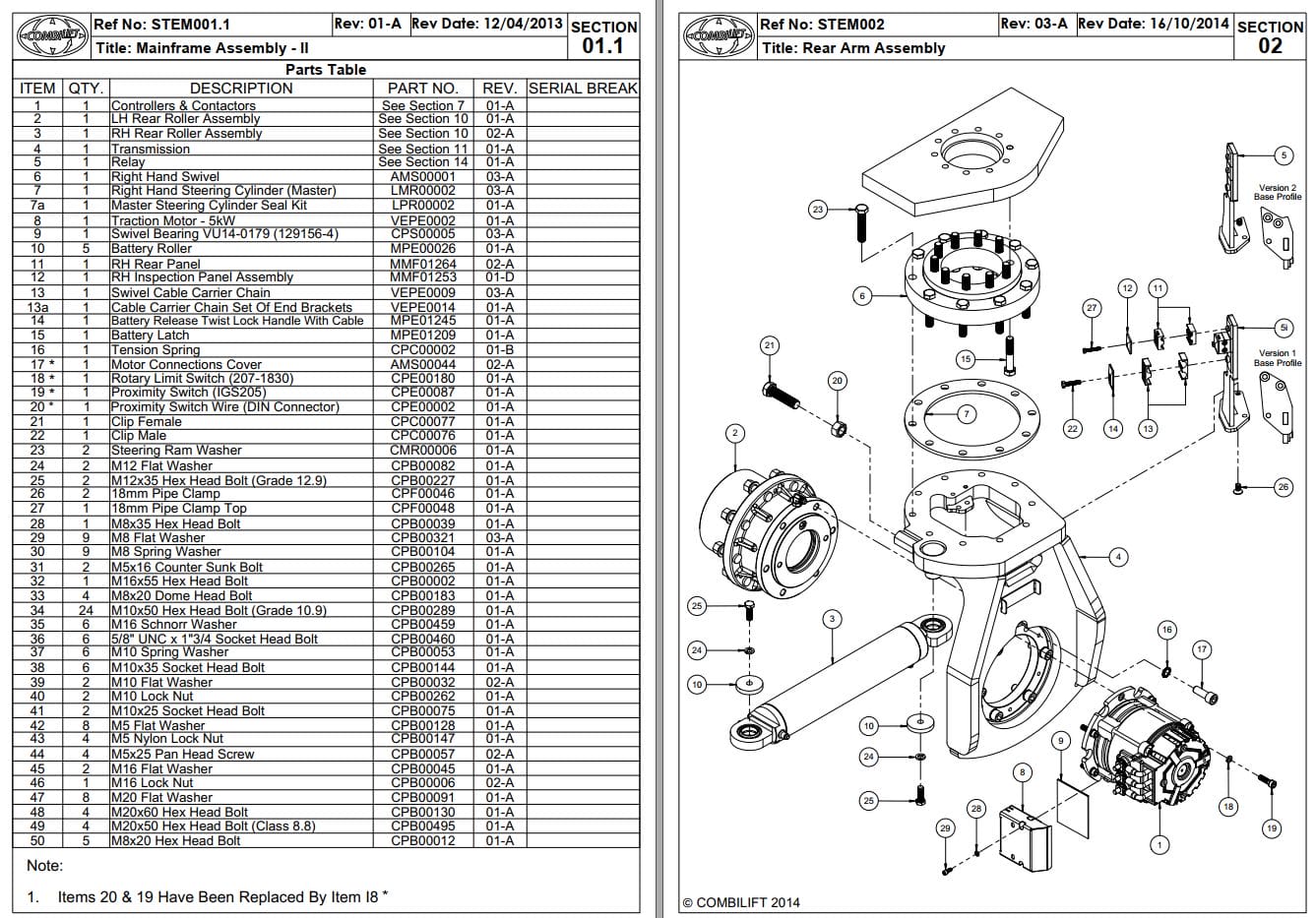

Contents:
Mainframe – I
Mainframe – II
Rear Arm
Battery – Standard With Fork Pockets
Battery – Standard Roll Out
Battery – L-Shaped With Fork Pockets
Battery – L-Shaped Roll Out
Hydraulic Tank
Stand-Up Cabin – I
Stand-Up Cabin – II
Stand-Up Cabin Safety Bar
Diagonal Seated Cabin – I
Diagonal Seated Cabin – II
Seated Cabin 6-Port Valve
Diagonal Seated Cabin – Seat
Diagonal Seated Cabin – Door
Motor Controllers
Electrical Contactors
Motor/Pump
Traction Motor
6-Port Diverter Valve. 4-Port Changeover Valve & Check Valve
Pilot (Reduced) Pressure Valve, Brake Valve & Double Overcentre Valve
Joystick
Guide Rollers
Front Transmission & Wheels
Rear Transmission & Wheels
Stand-Up Valve Chest – I
Stand-Up Valve Chest – II
Seated Cabin Valve Chest – I
Seated Cabin Valve Chest – II
Steering Motor (Stand-Up Cabin)
Steering Motor (Seated Cabin)
Steering Cylinders
Relay Box
Fuse Box
Mast Carriage
Left Hand Carriage Cylinder
Right Hand Carriage Cylinder
Mast
Hydraulic Accumulator
Standard Hydraulic Fork Positioning
Wide Hydraulic Fork Positioning
Steering Motor & Valve Chest Feed & Return Lines (Stand-Up Cabin)
Steering Motor & Valve Chest Feed & Return Lines (Diagonal Seated Cabin)
Steering Cylinder Lines (Stand-Up Cabin)
Steering Cylinder Lines (Diagonal Seated Cabin)
Steering Motor Lines (Stand-Up Cabin)
Steering Motor Lines (Diagonal Seated Cabin)
Brake Lines
Joystick Feed & Return Lines (Stand-Up Cabin)
Joystick Feed & Return Lines (Diagonal Seated Cabin)
Joystick To Valve Chest Lines (Stand-Up Cabin)
Joystick To Valve Chest Lines (Diagonal Seated Cabin)
Reach (Mast Carriage) Cylinder Lines
Reach (Mast Carriage) Cylinder Lines With Overcentre Valve
Valve Chest To Bulkheads On Mast – Tilt & Lift Lines (Stand-Up Cabin)
Valve Chest To Bulkheads On Mast – Tilt & Lift Lines (Diagonal Seated Cabin)
