Crown Forklift C-5 Cushion Engine 4024AN25 Parts Manual

Size: 31.50 MB

Format: PDF

Language: English

Brand: Crown

Type of Machine: Forklift

Type of Manual: Parts Catalog

Model: Crown C-5 Cushion Engine 4024AN25 Forklift

Number of Pages: 665 Pages

20 USD

Tag: Crown Forklift Truck Manual

Description

Description

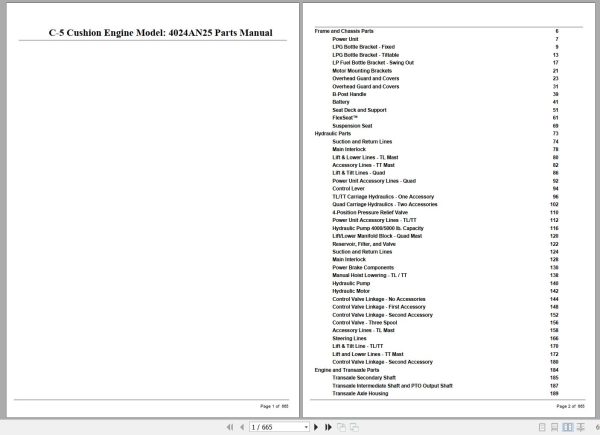

Contents:
Frame and Chassis Parts
Power Unit

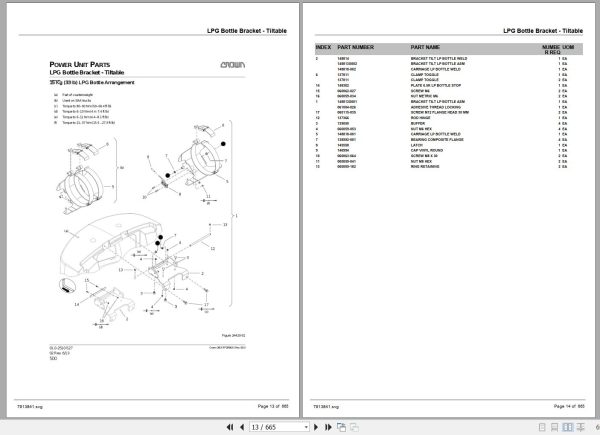

LPG Bottle Bracket – Fixed
LPG Bottle Bracket – Tiltable
LP Fuel Bottle Bracket – Swing Out
Motor Mounting Brackets
Overhead Guard and Covers
B-Post Handle
Battery
Seat Deck and Support
FlexSeatâ„¢
Suspension Seat
Hydraulic Parts
Suction and Return Lines
Main Interlock
Lift & Lower Lines – TL Mast
Accessory Lines – TT Mast
Lift & Tilt Lines – Quad
Power Unit Accessory Lines – Quad
Control Lever
TL/TT Carriage Hydraulics – One Accessory
Quad Carriage Hydraulics – Two Accessories
4-Position Pressure Relief Valve
Power Unit Accessory Lines – TL/TT
Hydraulic Pump 4000/5000 lb. Capacity
Lift/Lower Manifold Block – Quad Mast
Reservoir, Filter, and Valve
Power Brake Components
Manual Hoist Lowering – TL / TT
Hydraulic Pump
Hydraulic Motor
Control Valve Linkage – No Accessories
Control Valve Linkage – First Accessory
Control Valve Linkage – Second Accessory
Control Valve – Three Spool
Accessory Lines – TL Mast
Steering Lines
Lift & Tilt Line – TL/TT
Lift and Lower Lines – TT Mast
Engine and Transaxle Parts
Transaxle Secondary Shaft
Transaxle Intermediate Shaft and PTO Output Shaft
Transaxle Axle Housing
Transaxle Bevel Gear Set and Output Shaft
Transaxle Differential and Half-Shafts
Transmission Cooling System
Crankshaft/Bearings
Engine Air Intake
Transaxle Transmission Housing
Transaxle Mounting – Power Brake
Transaxle Converter
Transaxle Primary Shaft – Clutch
Balancer Shaft
Transaxle Mounting – Drum Brake
Transaxle Control Valve and Inching Lever
Transaxle-Sensors
Engine Mounts and Lift Straps
Wiring Harness, LP Fuel
Oil Pan
Rocker Arm Cover
Water Pump and Thermostat
Oil Cooler and Filter
Starter Motor
Alternator
Engine Oil Dipstick
Fan Drive and Belt Tensioner
Timing Gear Cover and Crankshaft Pulley
Fuel System
Rear Oil Seal
Auxiliary Drive
Oil Pump
Exhaust Manifold
Flywheel and Housing
Engine Block Heater
Pistons and Connecting Rod
Engine Exhaust and Oxygen Sensors
Air Filter
LPS Disconnect Switch
Engine Cooling System
Engine Cooling System – Coolant Bottle
Cylinder Head
Ignition System
Rocker Arm
Drive Tire
Electrical Parts
Electrical Components – Overhead Guard
Connectors
Directional Control
D4 Armrest Assemblies and Mounting
Armrest – Upper
Access 1
Parking Brake Switchâ€“Power Brake
Tilt Limit Switch
Operator Fan
Strobe Light
Overhead Guard – Rear Lights
Turn Signal
Floor Spotlight – TT, TL, and Quad Mast
Diagnostic Port
Control Cable – TL
Overhead Guard – Front Worklights and Mirrors
Brake Parts
Two Pedal Assembly – Drum Brake
Three Pedal Assembly – Drum Brake
Two Pedal Assembly – Power Brake
Three Pedal Assembly – Power Brake
Parking Brake â€“ Drum Brake
Power Brake
Drum Brake
Drum Brake Lines
Steering Parts
Steering Column – Part 1
Steering Column – Part 2
Steer Axle
Steer Tire
Lifting Mechanism Parts
Quad Mast
Yoke – TT (Standard and 1 Accessory
Fork
Fork Positioner Forks
Yoke – Quad
Mast – TL
Mast – TT
Fork Carriage – TL
TT Fork Carriage
Quad Fork Carriage
Lift Chain – TL
Lift Chain – TT
Load Backrest
Cylinder Parts
Mast Cylinder – Quad
Carriage Cylinder – TT
Steer Cylinder
Mast Cylinder – TL
Mast Cylinder – TT
Sideshifter Cylinder
Fork Position Cylinder
Tilt Cylinder
Attachment Parts
Sideshifter – TL/TT
Fork Positioner
Integral Sideshifter, 2,495 kg (5,000 lb)
Integral Sideshifter, Class III- 6,500 lb Capacity
Accessories
Work Assist Accessories
InfoLinkÂ® Accessories
Entry Assist Handles – Soft Cabin
Labels and Decals
