Crown Forklift TS – 1st Generation Prior to 1989 Parts Manual

Size: 11.22 MB

Format: PDF

Language: English

Brand: Crown

Type of Machine: Forklift

Type of Manual: Parts Catalog

Model: Crown TS – 1st Generation Prior to 1989 Forklift

Number of Pages: 402 Pages

15 USD

Tag: Crown Forklift Truck Manual

Description

Description

Contents:

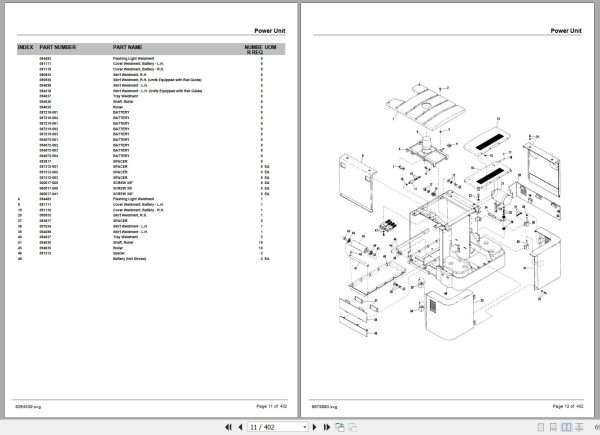

Power Unit Parts
Power Unit
Power Unit
Hydraulic Parts
Hydraulic System – Power Unit
Hydraulic System – Power Unit
Hydraulic System – Main Frame
Hydraulic System – Main Frame
Hydraulic System – Platform
Hydraulic System – Platform
Motor – Lift
Servo Motor
Valve Assembly
Manifold Valve
Manifold Traverse/Sideshift
Control Valve Linkage
Control Valve Servo
Servo Control Valve
Hydraulic Motor
Drive Unit Parts
Drive Unit Lubrication System
Motor – Drive – 72 V
(This Form Supersedes 3.2-14-001)
Tire Assembly
Electrical Parts
Electrical Components – Power Unit
Electrical Components – Power Unit
Electrical Components – Door Assembly
Electrical Components – Door
Electrical Components – Platform
Contactor Panel – 91422
Contactor Panel – Traction – 93819
Motor Control – Traction
Motor Control – Traction
Motor Control – Lift
Motor Control – Lift
Motor Control – Steering Servo
Motor Control – Accessory
Micro Processor – Power Unit
Power Unit Microprocessor Box
Micro Processor – Platform
Relay Control – Wire Guide
Sensor Amp. Wire Guide
Servo Driver
Travel Sensor
Directional Contactor – 93846, 93847
Contactor – 91418
Contactor – 91419
Control Linkage – R.H.
Control Linkage – R.H.
Control Linkage – L.H.
Control Linkage – L.H.
Control Linkage – R.H. – Tn, Tf
Control Linkage – R.H. – Tn, Tf
Control Linkage – L.H. – Tn, Tf
Accelerator Assembly
Accelerator Assembly – Tn, Tf
Accelerator Assembly – Tn, Tf
Hour Meter Panel Assembly
Fuse Panel Assembly
Resistor Panel Assembly
Control Cable Assembly
Limit Switch Auxiliary Mast
Flashing Light
Operator Compartment Lights
Operator Compartment Lights And Fan
Brake Parts
Brake System, Drive Unit
Brake System – Drive Unit
Brake System – Load Wheel
Foot Brake Assembly
Foot Brake
Brake Assembly
Steering Parts
Steering System
Steering Gearbox
Steering Controls
72 V Motor – Steering Servo
Lifting Mechanism Parts
Mast Assembly
Mast Assembly
Load Wheel Assembly
Rail Guide Wheel
Yoke Assembly
Yoke Assembly – Auxiliary
Mast Pulleys – Tip Out
Mast Pulleys – Rear
Mast Pulleys – Hose Take-Up
Mast Pulleys – Hose Take-Up
Hose Take-Up Pulleys
Lift Chain
Mast Assembly – Auxiliary
Mast Assembly – Auxiliary
Mast – Auxiliary
Mast – Auxiliary
Cylinder Parts
Cylinder – Main Lift, Tn
Cylinder – Main Lift, Tf
Cylinder – Lift, Tf
Cylinder – Auxiliary Lift
Cylinder – Sideshift
Cylinder – Brake
Cylinder – Brake – Load Wheel
Cylinder – Pivot
Cylinder – Pivot Latch
Cylinder – Snubber
Platform
Platform Assembly – View 1
Platform Assembly – View 1
Platform Assembly – View 2
Platform Assembly – View 2
Console Assembly
Console Assembly
Seat Assembly
Seat Assembly
Height Sensor
Height Sensor
Sideshift Assembly
Sideshift Assembly
Turret Carriage
Turret Carriage
Console
Console
Labels And Decals, Accessories
Labels And Decals
