Name: Crown Narrow-Aisle Turret Truck 30TSP Parts Manual
SKU: 497591
Availability: InStock

Crown Narrow Aisle Turret Truck 30TSP Parts Manual 1

Crown Narrow Aisle Turret Truck 30TSP Parts Manual 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Crown Narrow-Aisle Turret Truck 30TSP Parts Manual

Size: 16.54 MB

Format: PDF

Language: English

Brand: Crown

Type of Machine: Narrow-Aisle Turret Truck

Type of Manual: Parts Catalog

Model: Crown 30TSP Narrow-Aisle Turret Truck

Number of Pages: 398 Pages

15 USD

Tag: Crown Forklift Truck Manual

Description

Description

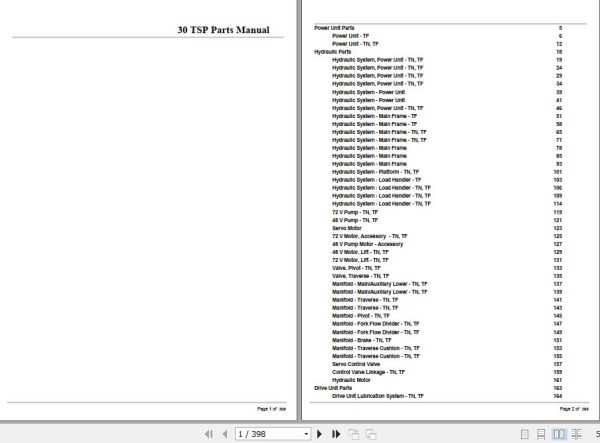

Contents:
Power Unit Parts
Power Unit – Tf
Power Unit – Tf
Power Unit – Tn, Tf
Power Unit – Tn, Tf
Hydraulic Parts
Hydraulic System, Power Unit – Tn, Tf
Hydraulic System, Power Unit – Tn, Tf

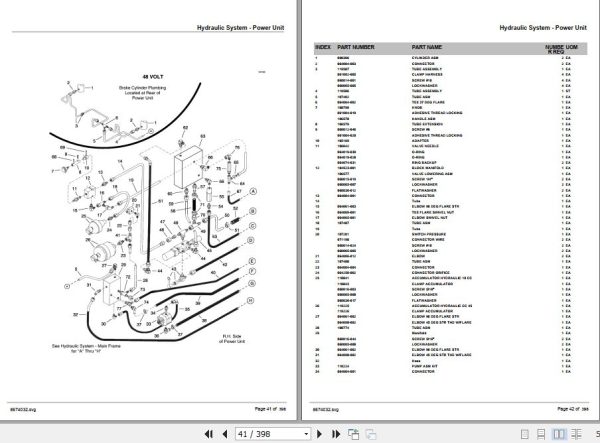

Hydraulic System – Power Unit
Hydraulic System – Power Unit
Hydraulic System – Main Frame – Tf
Hydraulic System – Main Frame – Tf
Hydraulic System – Main Frame – Tn, Tf
Hydraulic System – Main Frame – Tn, Tf
Hydraulic System – Main Frame
Hydraulic System – Main Frame
Hydraulic System – Platform – Tn, Tf
Hydraulic System – Load Handler – Tf
Hydraulic System – Load Handler – Tf
Hydraulic System – Load Handler – Tn, Tf
Hydraulic System – Load Handler – Tn, Tf
72 V Pump – Tn, Tf
48 V Pump – Tn, Tf
Servo Motor
72 V Motor, Accessory – Tn, Tf
48 V Pump Motor – Accessory
48 V Motor, Lift – Tn, Tf
72 V Motor, Lift – Tn, Tf
Valve, Pivot – Tn, Tf
Valve, Traverse – Tn, Tf
Manifold – Main/Auxiliary Lower – Tn, Tf
Manifold – Traverse – Tn, Tf
Manifold – Pivot – Tn, Tf
Manifold – Fork Flow Divider – Tn, Tf
Manifold – Brake – Tn, Tf
Manifold – Traverse Cushion – Tn, Tf
Servo Control Valve
Control Valve Linkage – Tn, Tf
Hydraulic Motor
Drive Unit Parts
Drive Unit Lubrication System – Tn, Tf
Drive Unit Lubrication System
Drive Unit – Tn, Tf
Drive Unit – Tn, Tf
Drive Unit
Drive Unit
Motor Drive – Tn, Tf
Tire Assembly
Electrical Parts
Electrical Components, Power Unit – Tn, Tf
Electrical Components, Power Unit – Tn, Tf
Electrical Components, Platform – Tn, Tf
Electrical Components, Platform – Tn, Tf
Electrical Components – Platform
Electrical Components – Platform
Platform
Contactor Panel, 107075-001â€“107075-002 – Tf
Contactor Panel, 107075-001â€“107075-002 – Tf
Contactor Panel, 107075-001â€“107075-002 – Tn, Tf
Contactor Panel, 107075-001â€“107075-002 – Tn, Tf
Motor Control, Steering Servo – Tn, Tf
Electronic Box, Power Unit – Tf
Electronic Box, Power Unit – Tn, Tf
Electronic Box, Power Unit – Tn, Tf
Electronic Box, Platform – Tn, Tf
Wire Guidance – Line Driver
Sensor Bar, End Aisle Control – Tn, Tf
Contactor, P3,P2,P1, Ed1 114393 – Tn, Tf
Contactor
Control Linkage, L.H. – Tn, Tf
Control Linkage, L.H. – Tn, Tf
Speed Controls – Tf
Speed Controls – Tn, Tf
Speed Controls – Tn, Tf
Display Panel – Tn, Tf
Control Cables – Tn, Tf
Line Driver
Brake Parts
Brake System
Brake System, Load Wheel – Tn, Tf
Steering Parts
Steering Gearbox – Tn, Tf
Lifting Mechanism Parts
Mast (Tf)
Mast (Tf)
Mast – Tn
Mast – Tn
Load Wheel Assembly
Guide Wheels – Tn, Tf
Tip Out – Tn
Lift Chain – Tn, Tf
Lift Chain – Tn, Tf
Cylinder Parts
Cylinder, Main Lift – Tn
Cylinder, Main Lift – Tn
Cylinder Free Lift – Tf
Cylinder, Fork – Telescopic – Tn, Tf
Cylinder, Brake
Cylinder, Brake – Load Wheel – Tn, Tf
Cylinder, Pivot – Tn, Tf
Cylinder, Auxiliary Lift – Tn, Tf
Platform – View 1 – Tn, Tf
Platform – View 1 – Tn, Tf
Platform – View 2 – Tn, Tf
Platform – View 2 – Tn, Tf
Traverse Drive – Tn, Tf
Traverse Drive – Tn, Tf
Shock Absorber – Tn, Tf
Height Sensor – Tn, Tf
Gate – Tn, Tf
Load Handler – Tn, Tf
Pivot Mechanism – Tn, Tf
Pivot Mechanism – Tn, Tf
Fork Carriage – Telescopic – Tn, Tf
Fork Carriage – Fixed – Tn, Tf
Labels And Decals, Accessories
Labels And Decals – Tn, Tf
Labels And Decals – Tn, Tf
Labels And Decals
