Name: Crown Order Picker SP3500 3-Wheel Parts Manual
SKU: 497607
Availability: InStock

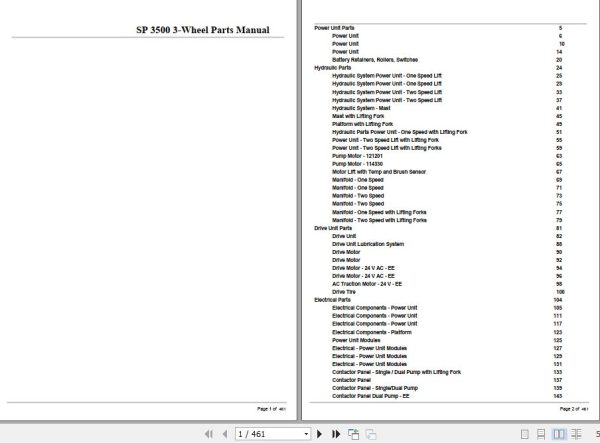

Crown Order Picker SP3500 3 Wheel Parts Manual 1

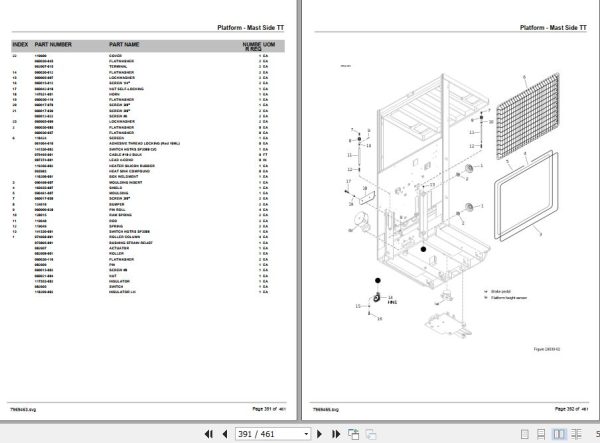

Crown Order Picker SP3500 3 Wheel Parts Manual 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Crown Order Picker SP3500 3-Wheel Parts Manual

Size: 16.79 MB

Format: PDF

Language: English

Brand: Crown

Type of Machine: Order Picker

Type of Manual: Parts Catalog

Model: Crown SP3500 3-Wheel Order Picker

Number of Pages: 461 Pages

15 USD

Tag: Crown Forklift Truck Manual

Description

Description

Contents:
Power Unit Parts
Power Unit
Battery Retainers, Rollers, Switches
Hydraulic Parts
Hydraulic System Power Unit – One Speed Lift
Hydraulic System Power Unit – Two Speed Lift
Hydraulic System – Mast
Mast With Lifting Fork
Platform With Lifting Fork
Hydraulic Parts Power Unit – One Speed With Lifting Fork
Power Unit – Two Speed Lift With Lifting Fork
Power Unit – Two Speed Lift With Lifting Forks
Pump Motor – 121201
Pump Motor – 114330
Motor Lift With Temp And Brush Sensor
Manifold – One Speed
Manifold – Two Speed
Manifold – One Speed With Lifting Forks
Manifold – Two Speed With Lifting Forks
Drive Unit Parts
Drive Unit
Drive Unit Lubrication System
Drive Motor
Drive Motor – 24 V Ac – Ee
Ac Traction Motor – 24 V – Ee
Drive Tire
Electrical Parts
Electrical Components – Power Unit
Electrical Components – Platform
Power Unit Modules
Electrical – Power Unit Modules
Contactor Panel – Single / Dual Pump With Lifting Fork
Contactor Panel
Contactor Panel – Single/Dual Pump
Contactor Panel Dual Pump – Ee
Distribution Panel – Power Unit
Distribution Panel – Freezer Corrosion
Electrical – Distribution Panel – Platform
Lift Power Panel 1 And 2 Pump – Ee
Wire Guidance
Wire Guidance – Line Driver
Line Driver Assembly
Contactor
Contactor – Ee
Contactor – 1a P1 24 V
Control Cable – Tl Mast
Control Cable – Tt Mast
Control Module
Control Module – Back
Switch Panel
Connectors
Steering Feedback
Flashing Light
Overhead Console
Mast Mounted Lights
Mast Mounted Worklights
Strobe Light
Brake Parts
Brake Pedal
Brake
Steering Parts
Steering Command
Steering Gearbox
Steer Motor
Lifting Mechanism Parts
Mast – Tl
Tt Mast
Load Wheel
Yoke – Tt
Lift Chain – Tl Mast
Lift Chain – Tt Mast
Cylinder Parts
Mast Cylinder
Mast Cylinder – Tt
Free-Lift Cylinder – Tt
Free-Lift Cylinder – Tt
Mast Cylinder – Tl
Lifting Fork
Platform
Platform – Operator Side
Platform – Mast Side Tl
Electric Pallet Grab
Platform – Mast Side Tt
Side Gate
Platform Height Sensor
Pallet Grab
Fork
Platform Mesh Screen / Plexiglass Covers
Dual Height Encoder
Rear Gate (Saa)
Accessories
Aisle Guide Wheels
Infolink Accessories
Accessory Rail
Platform Load Deck
End Aisle Control (Eac)
Labels And Decals, Accessories
Labels And Decals
