Crown Reach Stacker 20WR 30WR Parts Manual

Description

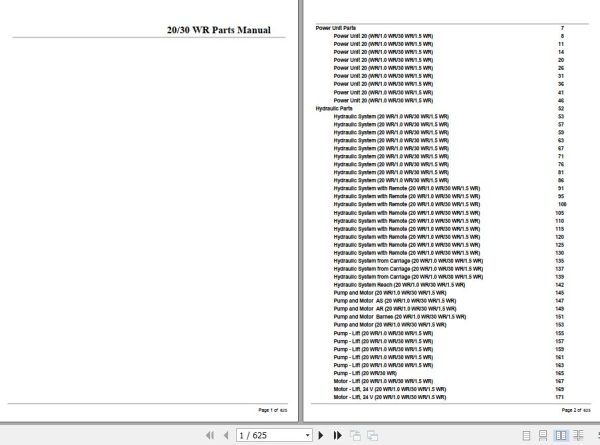

Contents:
Power Unit Parts
Power Unit 20 (Wr/1.0 Wr/30 Wr/1.5 Wr)
Power Unit 20 (Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic Parts
Hydraulic System (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System With Remote (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System With Remote (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System From Carriage (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System From Carriage (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System Reach (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hydraulic System Reach (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump And Motor (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump And Motor As (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump And Motor Ar (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump And Motor Barnes (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump – Lift (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Pump – Lift (20 Wr/30 Wr)
Motor – Lift (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Motor – Lift, 24 V (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Motor – Lift (20 Wr/30 Wr)
Valve, 3-Spool (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Valve, 3-Spool (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Valve, 2-Spool (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Valve Manifold (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Linkage (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Hose Reel (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Drive Unit Parts
Drive Unit Top (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Drive Unit Top (20 Wr/1.0 Wr/30 Wr/1.5 Wr)

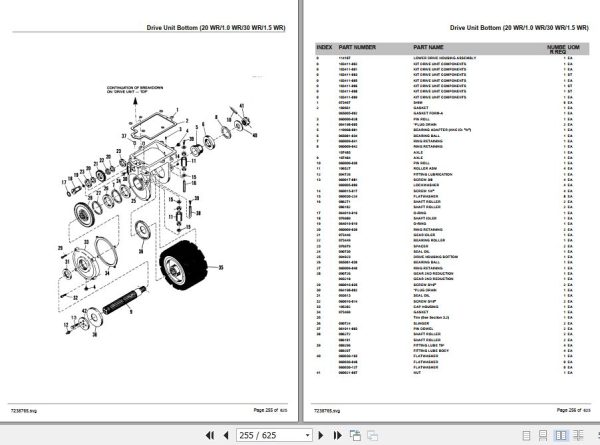

Drive Unit Bottom (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Drive Unit See Service Bulletin #100, #101 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Drive Unit See Service Bulletin #100, #101 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Drive Unit Top (20 Wr/30 Wr)
Drive Unit Bottom (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Motor – Drive (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Tire – Drive (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Electrical Parts
Contactor Panel (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor Panel C201 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor Panel Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor Panel Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Transistor Panel Sevcon (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Transistor Panel Sevcon (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Transistor Panel Curtis (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Transistor Panel Curtis (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor – 93574, 93575, 93576 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor
Contactor – 79567, 84654 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor – 104140 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Contactor (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Handle (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Handle (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod (20 Wr/30 Wr)
Control Pod (20 Wr/30 Wr)
Control Pod Resistor (20 Wr/30 Wr)
Control Pod Resistor (20 Wr/30 Wr)
Control Pod Resistor F/C (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod Resistor F/C (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Handle Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Handle Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod Transistor (20 Wr/30 Wr)
Control Pod Transistor (20 Wr/30 Wr)
Control Pod Scr F/C (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Control Pod Scr F/C (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Electrical Components Scr (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Push Button Station (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Battery Interrupt Curtis 933/E (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Battery Interrupt Curtis 933/3 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Battery Interrupt Anderson 850 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Brake Parts
Brake System (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Brake System (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Brake Assembly (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Lifting Mechanism Parts
Mast Assembly (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Mast Assembly (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Mast Assembly Tf&Tl (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Mast Assembly – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Mast Assembly – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Load Backrest (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Yoke Assembly – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Fork Assembly (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Fork
Cylinder Parts
Cylinder – Lift – Tl (20 Wr/1.0 Wr)
Cylinder – Lift – Tl (30 Wr/1.5 Wr)
Cylinder Lift
Cylinder Lift – Tl
Cylinder – Lift – Tl (30 Wr)
Cylinder – Lift – Tl (20 Wr/1.0 Wr)
Cylinder – Lift – Tf (20 Wr/1.0 Wr)
Cylinder – Lift – Tf (30 Wr/1.5 Wr)
Cylinder – Lift – Tf (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder Lift
Cylinder – Lift – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder – Lift – Tt (30 Wr/1.5 Wr)
Cylinder – Lift – Tt (20 Wr/1.0 Wr)
Cylinder – Reach – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder – Reach – Tl, Tf (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder – Reach – Tl, Tf, Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder – Tilt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Cylinder – Tilt, 116245 (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach & Attachment Parts
Reach Mechanism – Tl, Tf (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach Mechanism – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach Mechanism With Tilt – Tl, Tf (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach Mechanism With Tilt – Tl, Tf (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach Mechanism With Tilt – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Reach Mechanism With Tilt – Tt (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
Labels And Decals, Accessories
Labels And Decals (20 Wr/1.0 Wr/30 Wr/1.5 Wr)
