Name: Danfoss Bent Axis Motors H1B060 to H1B250 Repair Manual AX00000153en-000702
SKU: 445161
Price: 10.00 USD
Availability: InStock

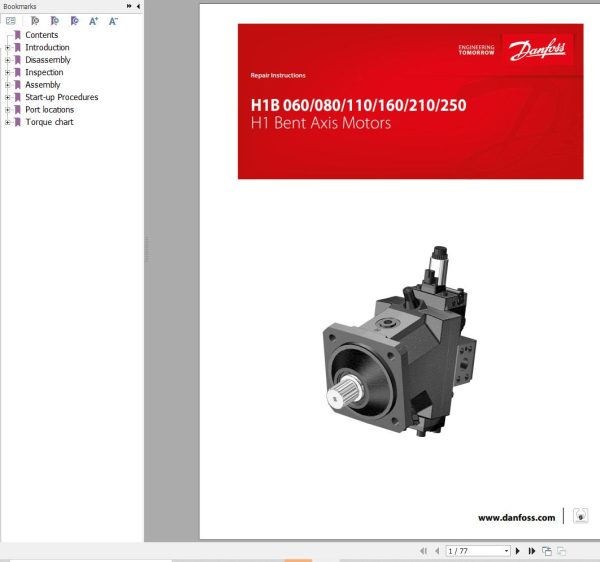

Danfoss Bent Axis Motors H1B060 to H1B250 Repair Manual AX00000153en 000702 1

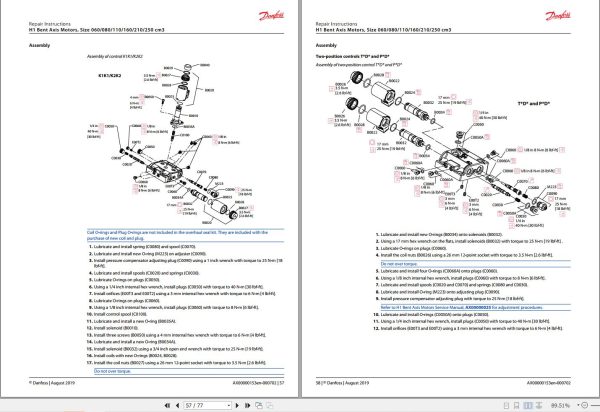

Danfoss Bent Axis Motors H1B060 to H1B250 Repair Manual AX00000153en 000702 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Danfoss Bent Axis Motors H1B060 to H1B250 Repair Manual AX00000153en-000702

Size: 8.65 MB

Format: PDF

Language: English

Brand: Danfoss

Type of Machine: Bent Axis Motors

Type of Manual: Repair Manual

Model: Danfoss H1B060 H1B080 H1B110 H1B160 H1B210 H1B250

Part Number: AX00000153en-000702

Number of Pages: 77 Pages

10 USD

Tag: Danfoss Repair Manual

Description

Description

Contents:
Introduction
About this manual
General Instructions
Safety precautions
Symbols used in Danfoss literature
Disassembly
Proportional controls disassembly
Two-position controls disassembly
Disassembly of controls with PCOR
Electric proportional controls M1CA/M2CA and L1BA/L2BA
Electric proportional controls D1MA/D2MA and K1KA/K2KA
Two-position controls T*D* and P*D*
Two-position controls T*G* and P*G*
Two-position control E*AA
Two-position controls HEHE and HFHF
Two-position control THHA
Two-position control THHB
Two-position control DHMA
Two-position control DHMH
Two-position control KHKA
Two-position control KHKH
Two-position controls MHCA and LHBA
Minimum displacement limiter
Maximum displacement limiterâ€”two-position control
Speed Sensor
Servo piston coverâ€”proportional controls
Loop flushing spool and charge relief valve
End-cap and servo pistonâ€”proportional control
End cap and servo pistonâ€”two-position controls
Cylinder block and sync Shaft assembly
Shaft assembly
Inspection
Overview
Shaft assembly
Pistons and piston rings inspection
Synchronizing shaft
Cylinder block
Bearing plate
Valve segment
Endcap
Housing
Control shuttle valve
Optional Minimum displacement limiter
Servo piston
Control
Assembly
Overview
Piston ring
Shaft in housing
Synchronizing shaft
Pistons and cylinder block
Bearing plate
Servo piston and valve segmentâ€”proportional control
Servo piston and valve segmentâ€”two position control
End-cap assembly
Loop flushing charge relief valve and spool
Shaft seal
Servo coverâ€”proportional control
Speed sensor
Minimum displacement limiter
Maximum displacement limiterâ€”two-position control
Electric proportional controls M1CA/M2CA and L1BA/L2BA
Electric proportional controls D1M1/D2M2 and K1K1/K2K2
Two-position controls T*D* and P*D*
Two-position controls T*G* and P*G*
Two-position control E*AA
Two-position controls HEHE and HFHF
Two-position control THHA
Two-position control THHB
Two-position control DHMA
Two-position control DHMH
Two-position control KHKA
Two-position control KHKH
Two-position controls MHCA and LHBA
Proportional controls installation
Two-position controls installation
Controls with PCOR installation
Start-up Procedures
Overview
Initial startup procedures
Adjustments
Pressure measurements
Port locations
Ports and Gauge Information
Torque chart
Fasteners and plugs
Fastener size and torque chart
Plug size and torque chart
