Name: Deutz Engine 2011 Workshop Manual 03124004en
SKU: 445104
Price: 20.00 USD
Availability: InStock

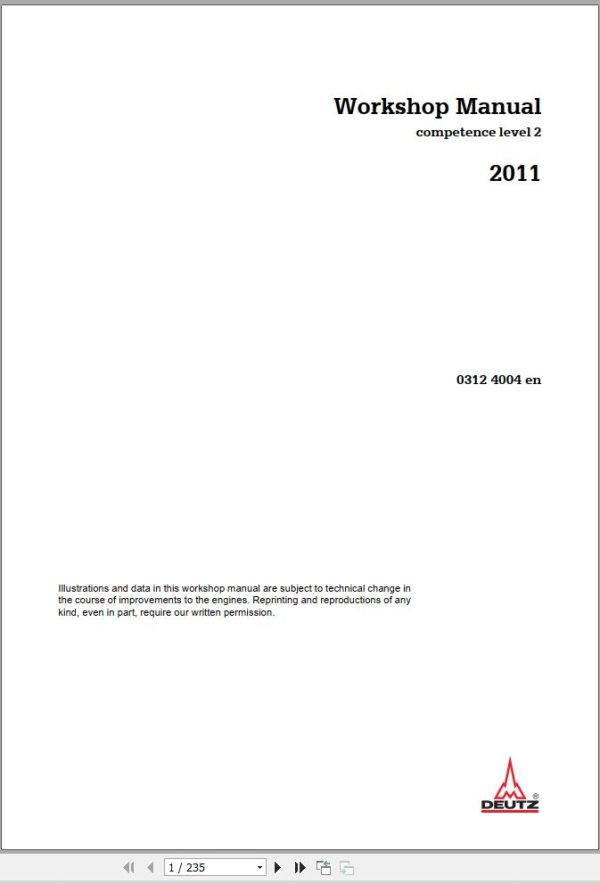

Deutz Engine 2011 Workshop Manual 03124004en 1

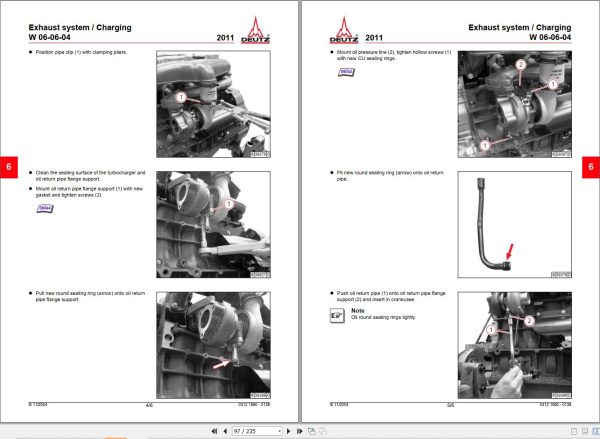

Deutz Engine 2011 Workshop Manual 03124004en 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Deutz Engine 2011 Workshop Manual 03124004en

Size: 8.07 MB

Format: PDF

Language: English

Brand: Deutz

Type of Machine: Engine

Type of Manual: Workshop Manual

Model: Deutz 2011 Engine

(EPA Tier2 – EU Stufe II)

Part Number: 03124004en

Number of Pages: 235 Pages

20 USD

Tag: Deutz Fahr Manual

Description

Description

Contents:
Workshop Manual
Foreword
General
User notes
Technical data (Test and adjustment data)
Technical data (Tightening specification)
Job card overview (Sorted alphabetically)
Job card overview (Sorted numerically)
Job card overview (Job card references)
W 00-02-06 Check compression
W 00-05-01 Mount engine on assembly stand and disassemble
W 01-01-01 Check and set valve clearance
W 01-02-02 Remove and install toggle lever and toggle lever block
W 01-02-06 Disassemble and complete, check toggle lever and toggle lever block
W 01-04-04 Remove and install cylinder head
W 03-01-11 Remove and install crankcase bleeding
W 06-01-05 Remove and install exhaust manifold
W 06-06-04 Remove and install turbocharger
W 06-07-03 Remove and install air intake pipe
W 07-02-07 Remove and install lifting magnet for start volume release
W 07-03-01 Renew injection lines
W 07-07-01 Remove and install injection valves (in engines with leak fuel line)
W 07-08-01 Remove and install solenoid valve (LDA)
W 07-08-02 Remove and install charge pressure full load stop (LDA)
W 07-10-06 Remove and install fuel lines (with Motorpal injection pumps)
W 07-10-06 Remove and install fuel lines (with Bosch injection pumps)
W 07-10-08 Remove and install fuel filter console
W 07-11-01 Remove and install fuel pump
W 08-08-02 Remove and install oil cooler
W 08-10-06 Remove and install oil filter cartridge
W 08-11-07 Remove and install oil filter console
W 08-11-08 Remove and install oil pressure switch
W 08-11-09 Remove and install oil pressure sensor
W 08-11-11 Remove and install oil temperature sensor
W 08-11-12 Remove and install oil thermostat (oil cooler)
W 08-15-01 Remove and install oil pressure line (turbocharger)
W 08-15-02 Remove and install oil return line (turbocharger)
W 08-16-01 Remove and install oil line for injection adjuster supply
W 09-11-01 Remove and install cooling blower
W 11-00-03 Remove and install lifting magnet (shutoff magnet)
W 12-02-01 Check, renew V-belt (in FM, BFM engines)
W 12-02-01 Check V-belt, renew (in FL and BFL engines)
W 12-02-06 Remove and install V-belt clamping roller
W 12-06-01 Remove and install flywheel
W 12-08-02 Remove and install hydraulic pump
W 13-01-02 Remove and install cable harness
W 13-02-03 Remove and install generator (in FL and BFL engines)
W 13-02-03 Remove and install generator (in FM and BFM engines)
W 13-03-02 Remove and install starter
W 13-06-01 Remove and install helical heater plug
Commercial tools
Special tools
