Name: Deutz Engine TCD4.1L4 Workshop Manual 03124983en
SKU: 445120
Price: 20.00 USD
Availability: InStock

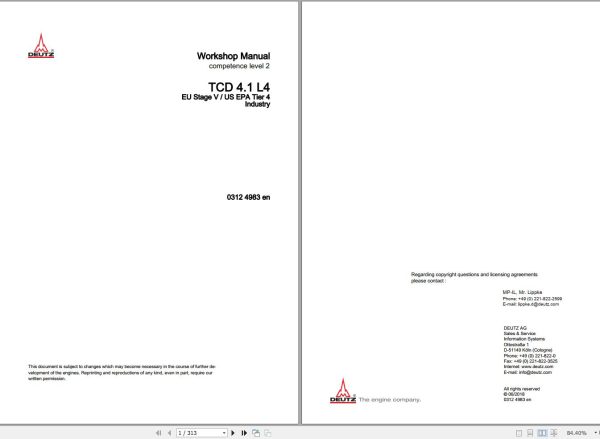

Deutz Engine TCD4.1L4 Workshop Manual 03124983en 1

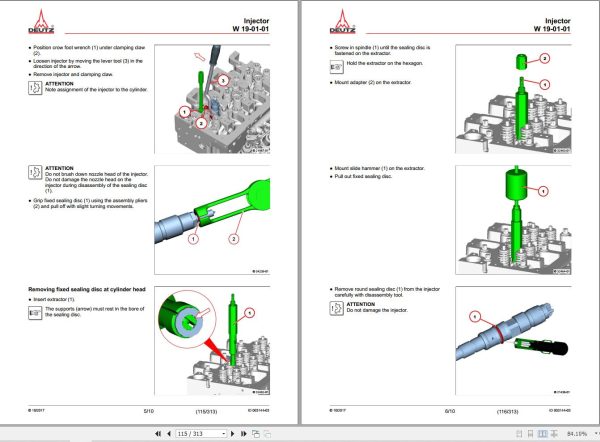

Deutz Engine TCD4.1L4 Workshop Manual 03124983en 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Deutz Engine TCD4.1L4 Workshop Manual 03124983en

Size: 42.67 MB

Format: PDF

Language: English

Brand: Deutz

Type of Machine: Engine

Type of Manual: Workshop Manual

Model: Deutz TCD4.1L4 Engine

(EPA Tier4 – EU Stufe V)

Part Number: 03124983en

Publication Date: 2018

Number of Pages: 313 Pages

20 USD

Tag: Deutz Fahr Manual

Description

Description

Contents:
Workshop Manual
General
Safety information / User information
Special tools
Job cards
01 Crankcase/Front cover
02 Oil pan
05 Crankshaft/Torsional vibration damper/
08 Cylinder head
09 Gear case/Gear drive
11 Control parts
15 Lubricating oil cooler/Lubricating oil filter
16 Lubricating oil pipe
17 Injection pump/High pressure pump
19 Fuel injector/Injector
20 Fuel filter/Fuel pump
21 Fuel pipes
22 Air filter/Suction pipe/Charge air line
37 Coolant pump
38 Coolant pipes/Thermostat housing
39 Cooling fan/Fan
41 Exhaust pipe/Exhaust gas recirculation
43 Exhaust gas turbocharger
44 Generator/Starter
47 Engine mounting elastic
48 Electric
49 Tools/Special tools
52 Connection housing
63 Start aid
71 Exhaust gas treatment
83 Hydraulic pump/Hydraulic pump drive
