DIACOM Marine 3.3.8 2023 Diagnostic Program

Description

What’s New in Version 3.38
Mercury / MerCruiser / Mercury Racing G3 2023 engine diagnostics: Version 3.38 supports G3 CAN based engine diagnostics through January 2023. Support added for the latest Mercury and Mercury Racing outboards as well as MerCruiser sterndrive and inboard engines. The latest engine support requires Diacom USB cable #94073 with a minimum cable software revision of 35. Note: G3 CAN based engine diagnostics require both adapters 94029 and 94032.

▪ Update For MEFI-7 Equipped Engines: Version 3.38 updates support for direct injected engines utilizing GM-Delphi’s MEFI-7
control system. This release adds an injector balance test allowing the comparison of direct injector fuel flow performance. The injector balance test feature requires Diacom USB cable #94073 with a minimum cable software revision of 35.

▪ Update For Indmar Engines: Version 3.38 updates support for Indmar’s direct injected 2.3L Ford EcoBoost engine

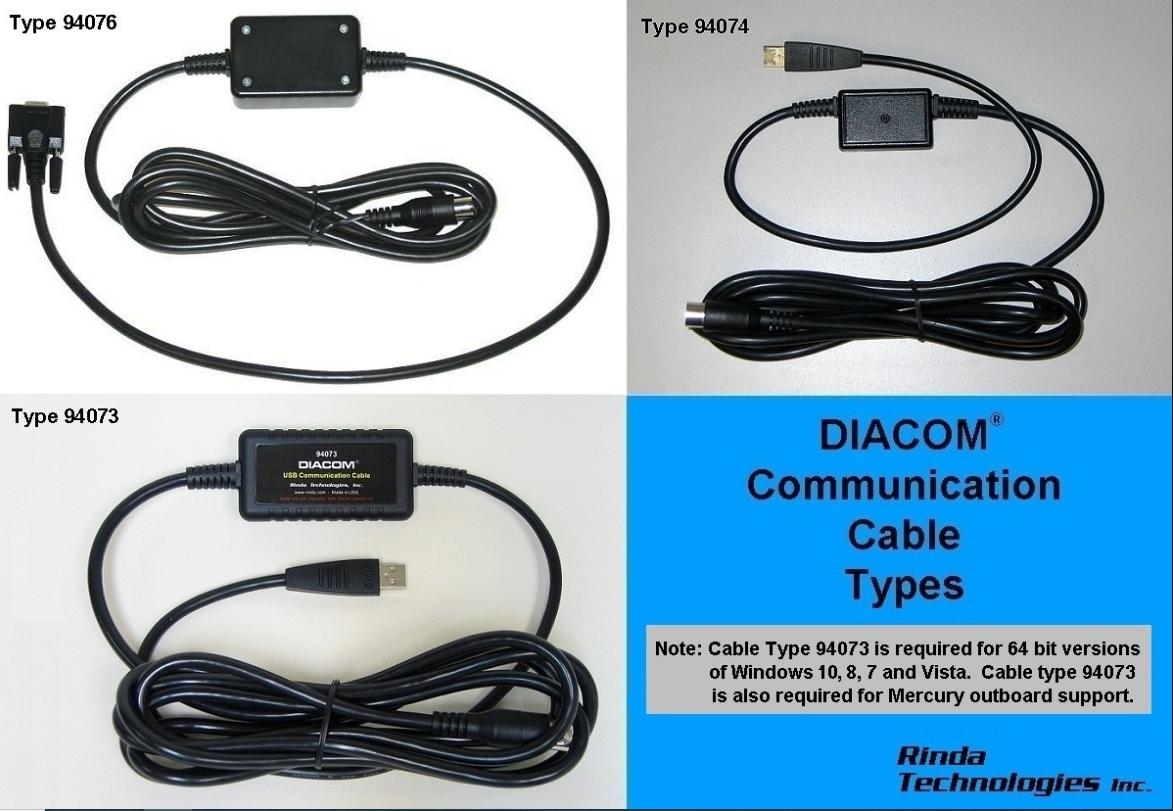

Example pictures for adapters

Diacom supports MerCruiser, Mercury Outboards, Volvo Penta, Indmar, Pleasurecraft Marine, Crusader, Ilmor, Marine Power, Kodiak, Flagship Marine, GM RamJet Engines and more. The Diacom PC based diagnostic system gives you the power and flexibility you need to troubleshoot today’s advanced marine EFI systems. Diacom Marine supports the broadest range of engines in the industry providing superior coverage in a single diagnostic tool. Harness the power of your Windows based notebook or netbook PC to diagnose EFI system problems quickly and accurately.
FEATURES:

• View EFI system data to monitor engine performance
• Read and reset system fault codes
• Exercise outputs and run EFI system tests
• Record live EFI data to capture elusive intermittent events
• Print hardcopy reports and export data to other PC programs
• ECM reflash capability for factory authorized marine dealers
• Plus many other troubleshooting and productivity features

INCLUDES:
Diacom CD, USB cable, and the following network adapters:

• Diacom CD
• USB cable
• 94005 MEFI network adapter
• 94006 PCM-555 network adapter
• 94029 CAN network adapter

Easily record and graph data from all accessible EFI system sensors and controls to capture elusive intermittent problems. Diacom Marine includes an extensive set of diagnostic features and has the broadest engine support in the marine industry. Compatible with Windows 8.1, 8, 7, Vista and XP.
The Diacom® PC based marine diagnostic system gives you the power and flexibility you need to troubleshoot today’s advanced EFI systems. DIACOM® unlocks the computing power of your Windows-based notebook or netbook PC and provides state-of the-art features to pinpoint EFI system problems quickly and accurately. In addition to supporting sterndrive and inboard marine engines, DIACOM® now supports Mercury outboards.

ADAPTOR COMPATIBILITY:
Marine Power

• 1992 – Up GM EFI engines: 1992 – 2008 (GM MEFI-1 thru MEFI-4) Adapter #94005 2008-Up (GM MEFI-5, MEFI-6, MEFI-7) Adapter #94023 or #94029

MerCruiser

• 1992 – Up EFI engines: 1992 thru 2000 (GM MEFI-1 thru MEFI-4) Adapter #94005 2001 – Up (PCM-555 / ECM-555) Adapter #94006 2008 – Up (PCM-09) (OBD-M diagnostics) Adapter #94023 or #94029 2008 – Up (PCM-09) (G3 factory diagnostics) Adapter #94029 + #94032
• 1996-up Carbureted engines with Thunderbolt V ignition: All models Adapter #94020

MerCruiser D-Tronic Diesels

• 1997 – 2007 2.8L 4-cylinder, 4.2L 6-cylinder Adapter #94014
• 1997 – 2005 7.3L V8 Adapter #94021

Mercury Racing (sterndrives)

• 1998 – Up EFI engines: 1998 – Up HP500 GM MEFI equipped Adapter #94005 2001-up PCM-555 equipped Adapter #94006 2010-up PCM-09 equipped Adapter #94029 + #94032

Mercury Outboards

• 2006 – Up Verado I-6: All models: Adapter #94006
• 2018 – Up Verado V8: All models: Adapter #94029 + #94032
• 2002 – Up 4-stroke EFI: 25hp, 30hp (Tohatsu EFI) Adapter #94039 40hp, 50hp, 60hp, (ECM-555)
  • 2002-05 Adapter #94028 40hp, 50hp, 60hp, (ECM-555) (2006-09) Adapter #94006 40hp, 50hp, 60hp, (ECM-70)
  • 2010-Up Adapter #94029 + #94032 75hp, 90hp, 115hp (Yamaha EFI) Adapter #94038 75hp, 90hp, 115hp (ECM-555)
  • 2007-13 Adapter #94006 75hp, 90hp, 115hp (ECM-70) (
  • 2014-Up Adapter #94029 + #94032 150hp (non-Verado) (ECM-70) (2012-Up) Adapter #94029 + #94032 175-300hp V6 and V8 (PCM-112)
  • 2018-Up Adapter #94029 + #94032

• 1998 – Up 4-stroke carbureted: 25hp, 30hp, 40hp, 50hp, 60hp Adapter #94011 + #940372001 – Up Optimax: 2001 thru approx 2006 Adapter #94028 2007 – Up Adapter #94006
• 1998 – 2000 DFI: All models Adapter #94028
• 1994 – Up 2-stroke EFI: 1994 – Up 150hp, 175hp, 200hp, 225hp Adapter #94028 1994 – 1999 225hp(3.0L) Adapter #94011 • 1994 – 1999 2-stroke carbureted: 225hp/(3.0L) Adapter #94011
• 1995-Up Racing 2-stroke EFI: 150hp, 200hp, 225hp, 2.5L, 280hp, 300hp, Contact Us Optimax XS series

Volvo Penta

• 1992 – Up Gasoline EFI engines: 1992 – 2005 (GM MEFI-1 thru MEFI-4) Adapter #94005 2006 – 2007 (EGC) Adapter #94024 2008 – Up (EGC) Adapter #94023 or 94029

Crusader

• 1992 – Up EFI engines: 1992 – 2006 (GM MEFI equipped) Adapter #94005 2007 – 2009 (ECM-07 equipped) Adapter #94026 2008 – Up (ECM-08 equipped) Adapter #94023 or 94029

Flagship Marine

• 1992 – Up GM EFI engines: GM MEFI-1 thru MEFI-4 equipped Adapter #94005 GM MEFI-5, MEFI-6, MEFI-7 Adapter #94023 or #94029 Ilmor Marine Engines
• 2009 – Up V10 engines: MV-650, MV-725 Adapter #94023 or #94029
• 2010-Up V8 engines: All models Adapter #94023 or #94029

Indmar

• 1992 – Up EFI engines: 1992 – 2006 (GM MEFI-1 thru MEFI-4) Adapter #94005 2007-Up All models Adapter #94023 or #94029 Kodiak Marine
• 1992 – Up GM EFI engines: 1992 – 2008 (GM MEFI-1 thru MEFI-4) Adapter #94005 2008-Up (GM MEFI-5, MEFI-6, MEFI-7) Adapter #94023 or #94029 Malibu
• 2018 – Up EFI engines: All models Adapter #94023 or #94029

Panther Air Boats

• 2000 – Up GM EFI engines: Engines equipped with MEFI 1 thru 6 EFI systems GM MEFI-1 thru MEFI-4 equipped Adapter #94005 GM MEFI-5, MEFI-6, MEFI-7 Adapter #94023 or #94029

Pleasurecraft Marine

• 1992 – Up EFI engines: 1992 – 2006 (GM MEFI equipped) Adapter #94005 2007 – 2009 (ECM-07 equipped) Adapter #94026 2008 – Up (ECM-08 equipped) Adapter #94023 or 94029

Seven Marine

• 2012 – Up Outboard EFI engines: All models Adapter #94023 or #94029

GM RamJet Crate Engines

• 2000 – Up EFI engines: RamJet 350, RamJet 502 Adapter #94005 TurnKey Engines
• 2001 – Up MEFI Engines Engines equipped with MEFI 1 thru 6 EFI systems GM MEFI-1 thru MEFI-4 equipped Adapter #94005 GM MEFI-5 Adapter #94023 or #94029
