Name: Doosan Forklift B13T2 B15T2 B18T2 B20T2 PLUS Parts Catalog SB1041
SKU: 616398
Availability: InStock

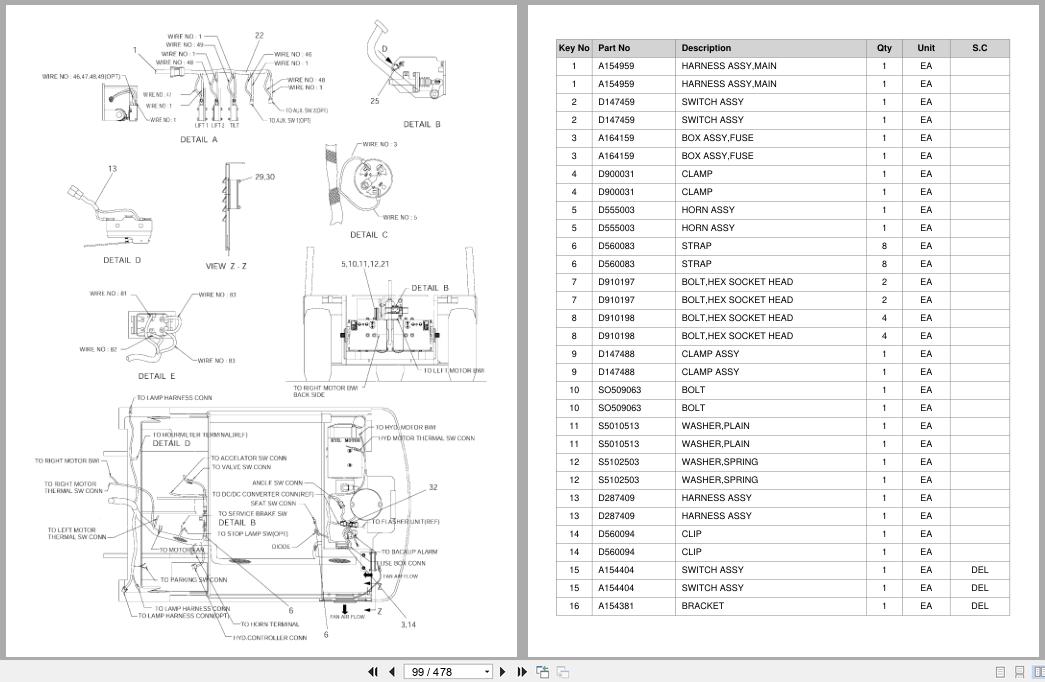

Doosan Forklift B13T2 B15T2 B18T2 B20T2 PLUS Parts Catalog SB1041 (1)

Doosan Forklift B13T2 B15T2 B18T2 B20T2 PLUS Parts Catalog SB1041 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Doosan Forklift B13T2 B15T2 B18T2 B20T2 PLUS Parts Catalog SB1041

Size: 9.33 MB

Format: PDF

Language: English

Brand: Doosan

Type of Machine: Forklift, Electric Powered Truck, Electric 1 Ton 3 Wheel

Type of Manual: Parts Catalog

Model: Doosan 1 Ton 3 B13T2, B15T2, B18T2, B20T2 PLUS Forklift

Part Number: SB1041

Number of Pages: 478 Pages

30 USD

Tags: B13T2, B15T2, B18T2, B20T2 PLUS, Doosan Forklift Manual, Doosan Parts Catalog

Description

Description

Contents:
[CHASSIS] Chassis
CYLINDER GROUP,TILT
FRAME
PISTON ASSY
AXLE ASSY,STEER
ACCELERATOR ASSY
CONSOLE ASSY
MOUNT GROUP
AXLE GROUP,STEER
BRAKE GROUP
LINE GROUP
LINES GP-BRAKE
LINES GP-MAST OPERATING
TANK ASSY,HYDRAULIC
MOTOR GROUP,HYDRAULIC
HOOD GROUP
PANEL ASSY
PANEL GP
WEIGHT GROUP,COUNTER
AXLE GROUP,DRIVE
AXLE,DRIVE
LIGHT GROUP
INSTRUMENT GROUP
SENSOR
MOTOR ASSY,PUMP
LOGIC GROUP
MOTOR ASSY,DRIVE
MOTOR GROUP,DRIVE
CONTACTOR
PANEL ASSY,CONTROL
WIRING GROUP
STEERING GROUP
BRAKE GROUP,PARKING
BRAKE ASSY
CYLINDER,MASTER
CONTACTOR ASSY
CONTROLLER ASSY
PUMP ASSY,HYDRAULIC
PUMP,HYDRAULIC
Fig. 1-058 [D840124]
LUBRICANT GROUP
CHART,LOCATION
TOOL GROUP
[CHASSIS] Driving Module
TIRE ASSY
TIRE,WIDE
TIRE,CUSHION
[CHASSIS] Electric Power
CONNECTER GROUP,BATTERY
CONNECTER ASSY,BATTERY
CONNECTER,BATTERY
[CHASSIS] Operating Module
TRAYGP
BELT GROUP,SEAT
TRAY GROUP
VALVE GROUP,SECTION
SWITCH ASSY
VALVE ASSY
VALVE GROUP,CONTROL VALVE
CONTROL GROUP
VALVE,CONTROL
ARRANGEMENT,CHANGEOVER
CHANGEOVER
BRACKET,VALVE MOUNTING
BRACKET ASSY,VALVE
CONTROL GP-VALVE-4 SECTION, 4 LEVER
CONTROL VALVE GP-VALVE-3 SECTION, 3LEVER
CONTROL VALVE GP-VALVE-3 SECTION, 2LEVER
CONTROL GP-2SPOOL
CONTROL VALVE GP-VALVE-2 SECTION, 2LEVER
CHOV AR.-3S/2L TO 3S/3L
CHANGE OVER AR.-3 SEC 2 LEVER TO 3 SEC 3 LEVER
CHOV AR.-3S/2L TO 4S/4L
CHANGE OVER AR.-3 SEC 2 LEVER TO 4 SEC 4 LEVER
DRAWING, INSTALLATION
CHANGEOVER AR.LONG LIFE HEAD LAMP
MIRROR ASSY,REAR VIEW
GUARD GROUP
GUARD ASSY,HEAD
GUARD GROUP,OVERHEAD
PLATE ASSY,FLOOR
SEAT GROUP
SEAT ASSY
SEAT
SEAT,OPERATOR
[FRONT END] Mast
PIPE GROUP
LINE GROUP,SIDE SHIFT
LINE GROUP,ATTACHMENT
PIPE ASSY
RELAY
MOUNT GROUP,LIFT
LINES GP PRIMARY
MAST ARRANGEMENT
CHARGER AS
LIFTER GROUP
CYLINDER GROUP,LIFT
LIFT GROUP,SECONDARY
RELAY ASSY
MAST ASSY
LIFT GP
CYLINDER ASSY
[FRONT END] Carriage
REST ASSY,BACK
POSITIONER GROUP,FORK
CYLINDER,GAS
SHIFT GROUP,SIDE
MOUNT
CARRIAGE AS
CARRIAGE GROUP-INTEGRAL S/S
CARRIAGE ASSY
