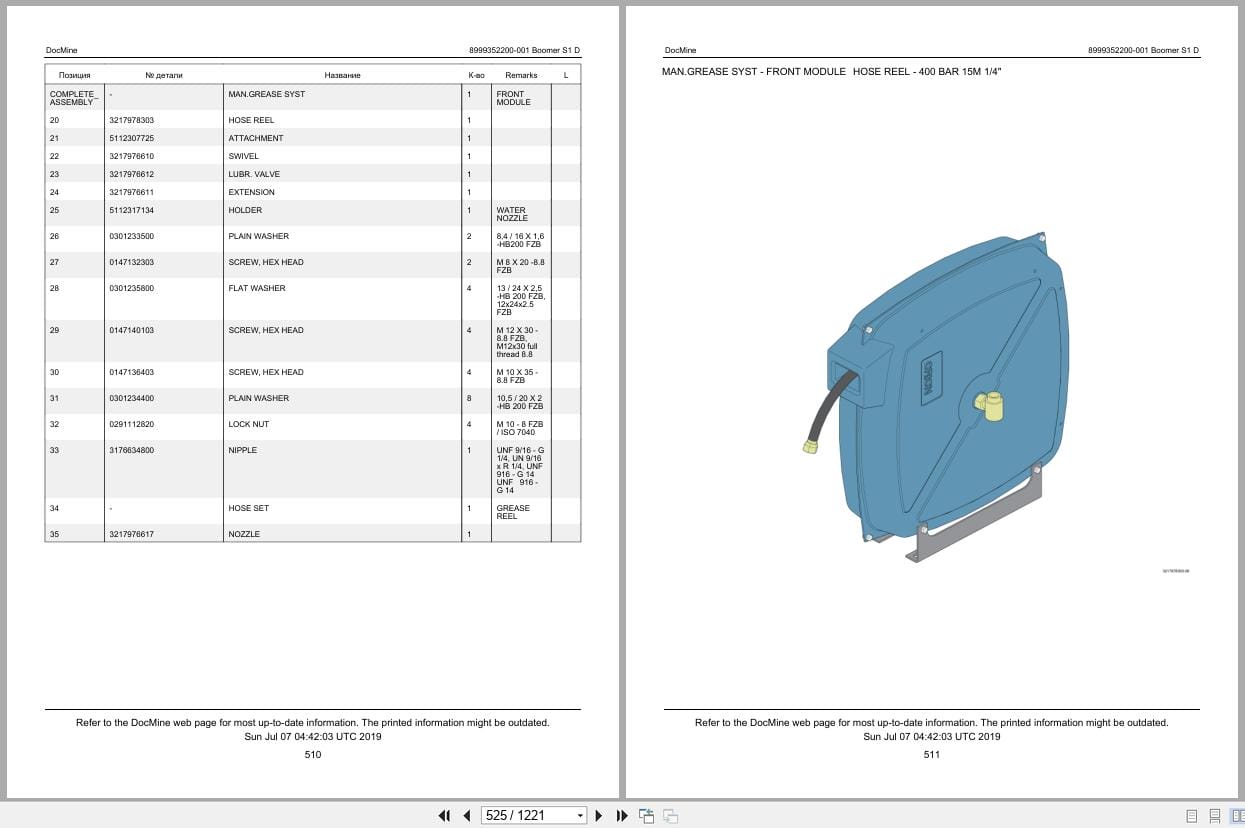

Epiroc Boomer S1D Spare Parts Catalog 8999352200

Description

Contents:
Parts & Service
Maintenance – Engine Hours, Deutz Td3.6, 55kw, Stage 3b
Pm-Kits – Td3.6 Stage 3b, 500 Engine Hours
Maintenance – Deutz Tcd 3.6 Tier 4 Final
Pm-Kits – 250 H
Pm-Kits – 1000 H
Maintenance – Engine Hours, Deutz D914, 55kw, Stage 3a
Pm-Kits – 500 Engine Hours, Deutz D914, 55kw, Stage 3a
Pm-Kits – 500 Engine Hours, Deutz Bf4l 914, 72kw, Stage 3a
Maintenance – Engine Hours, Deutz Bf4l 914, 72kw, Stage 3a
Maintenance – Canopy + Compressor Gar30
Pm-Kits
Service Kit – 1000 Percussion Hrs
Maintenance – Compressor Gar30 & Canopy
Rock Drill
Rock Drill – Cop 1838hd+
Front Part Comp – Cop 1838hd
Cover Group – Cop 1838hd
Cover Compl. – Cop 1838hd
Gear Housing Gr – Cop 1838 Hd+
Gear Housing – Cop 1838hd
Rot.Chuck,Compl
Interm.Part Grp
Interm. Compl. – Underground
Intermed. Part
Cylinder Group
Cylinder – Complete
Cylinder
Seal House Comp –
Front
Seal House Comp – Rear
Back Head Group
Hydraulic Motor – Msq 80 Sh
Hydraulic Motor – Msq 100 Sh
Hydraulic Motor – Msq 160 Sh
Hydraulic Motor – Msyq 250 Sh
Accumulator – Right
Accumulator – Left
Return Accum.
Label Set – Cop 1838hd+
Optional Set – Cop 1838hd+
Tools Set
Pres. Gauge Set
Fixture – Overhaul Fixture Attachment/Mounting Table
Chargin Device
Connect. Plate – For Hydraulic Motor (O)Ms(Q)
O-Ring Set
Seal Kit – Cop 1838hd+
Overhaul Kit – Cop 1838hd+ / 600 Impact Hours
Overhaul Kit – Cop 1838hd+ / 1200 Impact Hours
Conversion Kit – Cop 1838hd To Cop 1838hd+
Conversion Kit – To Four Corners, Straight Splines
Feed Module
Feed – Australien Centralizer
Feed – Bmht 2×43/25l Ac
Basic Part Set – Bmht 2000l Ac
Detail Set
Pulley Wheel
Holder Set
Detail Set – Bmht 2000 Ac
Cylinder Set – Lower
Hose Set – F21, F22
Hydr. Cylinder – Bmht 1000/2000
Limit Switch
Detail Set – Hose Holder Set
Hose Set – L=1500 Ar1ls1 L=1600 Ar2ls2
Rock Drill Kit
Hose Drum – Complete With Bushings
Feed Beam – Övre
Feed Beam – Undre
Cylinder Set
Hose Set – F1, F2
Hydr. Cylinder
Hose Nipple Set
Hose Set
Bushing – 42mm Inner Dia
Boom Module
Boom Left – But 29l Hd
Boom Part – Rear
Boom Attachment
Boom Link
Cylinder Link
Shaft Compl.
Expanding Shaft
Boom Body
Telescope Set
Brg. Hsg. Assy
Boom Part
Cylinder Bracke
Boom Bracket
Cover Set
Boom Head Left
Cylind.Bracket
Turning Device
Check Valve
Overcent.Valve
Cover Compl.
Hydr. Cylinder – Nicr 350
Assembly Set
Cyl. Prot. Kit
Protect. Plate
Protection Roof
Protection
Protection – Cylinder Protection
Hose Holder
Hose Holder Set
Bulkhead Conn.
Hose Frame Set
Tee – Watermist
Stop – Kompl.
Hydraulic Set – But 29
Hydraulic Set
Double Ch.Valve
Hose Set – Boom Suspension
Hose Holder – But 29
Assembly Set – Feed Holder, Bmht Left
Holder
Connection Set – Anslutningssats Ramar/Bom
Lubr. System – But 29
Lubrication Set – Rear Boom
Lubrication Set – Boom Extension
Front Module
Front Frame
Counterweight
Stage
Mudguard Compl. – Front Module
Box – Drill Bit Box
Electr.Syst.24v
Hydr. System
Direction Valve
Inlet Section
Valve Section
Outlet Section
Valve – Logik
Press.Red.Valve – 1/4″, 20-75bar
Valve Unit
Valve Block – Pressure Reg. Valve
Sequence Valve – 3217 8014 00 (4x G1/4″ Ports)
Direction Valve – Trackoscillation
Hose Set – Basic Hoses,Front Module
Hose Set – Support Legs Boom Frame
Hose Set – Valves , Right Side
Hose Set – Valves , Left Side
Valve Block
Hydraulic Set – S1 Front Module
Direction Valve – Replaces 8231 1127 86
Hose Set – Främre Modul
Hydraulic Set – Boom Suspension
Hydraulic Set – Telescopic Feed
Hose Set – Telescopic Feed
Hydraulic Set – S1d Air Condition Mk3
Direction Valve – P-Ab / A-T (P&B Blockerade)
Air/Watersystem – Front Module
Solenoid Valve
Hose Set – Watermist
Set Of Wheels – Nokian 9.00-20, Offset -25
Wheel Compl. – Offset 25mm
Rim Compl. – 7.5-20 Offset +25mm
Tire Set – 9.00-R20 Ag Mine Tt
Assembly Set – Bricka + M22x1.5 Flat Mutter
Drive Unit – Front Module
Drive Shaft
Crown Wheel Kit – Complete Kit Only
Diff.Kit – Complete Kit Only
Vane Kit
Planet Gear Kit
Brake
Cardan Shaft
Support Leg Kit – Nicr. Hyd. Cyl.
Support Leg – Nicr
Hydr. Cylinder – Nicr
Steer.Cyl.Set – Nicr
Cylinder – Nicr
Man.Grease Syst – Front Module
Hose Reel – 400 Bar 15m 1/4″
Hose Set – Grease Reel
Sign Set – Främre Modul
Drill Stop – Tme Drill Stop
System Kit – Drill Stop Warning.Front Modul
Assembly Set – Drill Stop
Cabine Module
Cabin Complete
Door Stop
Lock
Lock Set – Right
Lock Set – Left
Windshield Wip.
Attachment
Plastic Panel
Wiper Compl.
Windscreen Wash
Glass
Binder Box
Cab Attachment
Hoods Complet
Joint Fitting
Distributionset – A51:1 / A51:2
Cable Set – A51:1 A51:2
Junction Box – A58
Cable Set – A58
Panel – A71
Hour Meter
Emerg.Pushbutt.
Mushroom Pushb.
Ignition Lock
Plinth Module – A72
Plinth Module – A74
Panel – A76
Panel Plate
Cable Set – Cable Set Cabin
Flange
Junction Box – A53
Cable Set
Stair Lighting
Spotlight Set – Remote 1-Lampa E114/E116
Spotlight
Radio
Emerg.Set
Junction Box – A48
Junction Box
Guide Unit
Drill Panel
Hydraulic Set – Directional Valves
Direction Valve – Bore Valve Dcs (Ka 18)
Valve Section – Control Section
Lever Holder
Valve Block – Matning
Pr.Contr.Valve
Control Lever
Lever Joint
Electric Set – Drill Panel S1d/S7d
Switch
Lamppushbutton – Komplett
Lamppushbutton
Emerg.Pushbutt. – Incl M12 Cable 150mm
Mushroom Pushb. – Red 40mm Turn,2nc
Plinth Module – A20
Plinth Module – A20:1
Support
Hose Set – Cabin / Canopy
Hose Set – Drill Panel
Reamer Set
Electric Set – Boom Suspension Y802
Air/Watersystem
Lubricat.Pump – Ecl-Pump
Reservoir – 5l
Cable Set – B380
Electric Set
Lampswitch
Chair Compl.
Chair Swing
Chair
Air Conditioner
Air Cond.Unit – Air.Cond Evapurator
Condenser Unit
Compressor Set
Gear Motor
Electr. System – Heater 1.2kw
Lamp Attachment – Std
Protection Grid
Protect. Grid
Reservoir – Volym 5 Dm3
Accel. Pedal
Sign Set – Cabin Module
Drill Stop – Drill Stop
System Kit – Drillstop.Cabin/Platform Modul
Safety System
Assembly Set – Drillstop Cabin/Platform
Electric Set – Drillstop Dcs
Cable Set Rcs – Drill Stop. Warning. (Cabin)
Power Module
Mechanics – 95kw
Cable Set – A52:1
Push-Button-Box – A81
Cable Set – Power Module
Electric Motor – 95kw 380-420vd/690y 50hz
Heating Set
Connection Set
Valve Block – Pump Control
Hydr. Reservoir
Return Filter
Thermostat – 55 Degrees Celcius
Thermostat – 70 Grader C
Hose Set – Power Module
Pump Set – 180cc+(50+19+16)
Shaft Coupling
Cover Set – Kopplingshus Kraftpaket
Gear Pump
Hydraulic Set – Reamer/Big Hole Option
Hose Set – Kraftmodul
El.Oil Filler
Hose Set – Oil Filling
Sign Set – Kraftmodul
Middle Module
Mechanics – Mkiii Middle Module
Interm. Frame – Middle Module Frame
Drive Unit – Middle Module
Drive Axle – Int. Drop Box
Crown Wheel Kit
Diff.Kit
Drop Box
Trunnion
Fuel System
Tank Cover
Lubr. System – Manually
Lubr. Valve
Battery Box – Complete
Protection – Cable And Hose Protection
Cable Ladder
Mudguard Compl.
Cable Set – Middle Module
Cable Set – Engine Frame
Battery Module
Fuse Kit
Hydr. System – Middle Module
Hydraulic Pump
Filter Compl.
Hydraulic Motor
Hydraulic Pump – Carrier Pump
Hose Set – Middle Module
Air/Watersystem – Middle Module
Water Tank
Water Tank – 180l
Hose Set – Water Hoses
Swing Arm Compl
Coupling Set РMidjetappar, Midjel̴s
Diesel Eng.Unit
Diesel Engine
Fan Grid – F4l914
Coupling Compl. – Engine -> Pump
Drainage – Engine Oil
Air Filter Set
Air Filter
Throttle Contr.
Exhaust System – Deutz D914
Exhaust System – Catalyzer+Muffler
Cooling System
Cooler Support
Air Oil Cooler
Hose Set – Cooling System
Support Leg Kit – Nicr
Lubr. Pump Kit – Auto Boom Lubrication
Lubr. Pump Kit – Lincoln Mellanmodul
Lubricat.Pump – P203-2xn-1k6-24-1a1.10-V10
El Control Kit РBomsm̦rjning
Cable Set РI Sm̦rjpumpsats M12-Kontakter
Man.Grease Syst
Drum Pump
Sign Set
Rear Module
Mechanics – Rear Frame
Rear Frame
Cable Steering
Protection – Protection For Valves
Cable Reel Kit – Reel With Drive
Cable Reel
Collector Kit – K440/4
Collector Kit
Casing
Micro Switch
Hoods Complet – Bakre Modul, Luftoljekyld
Attachment – Luftoljekyl Mk3
Swing Arm Compl – Air-Oil Cooler
Lock Device
Cable Set – A50:1
Cable Set – A50:2
Flashing Beacon
Brake Light – With Connector And Screws
Apparatus Panel – A50
Electr.Cabinet – A50
Cabinet Door – A50
Cable Set – Rear Module
Electr. System
Electr.Cabinet
Limit Switch – Kit For Door Limit Switches
Fan Set – Fan Set A10:2
Main Switch – 160-200a 36ka
Plinth Module
Plinth Module – X41
Plinth Module – X2
Flange Connect. – A-Cabinet – Collector
Cable Complete – 3×95+3g16+2×1,5mm2
Cable Lug Set – Incl. Schackle+Wire Mesh Hose
Cable Set – A10
Flange Fit Set – 2xbuflex 25mm2
Flange Set – Flange Kit A10
Plug Connector
Wire Mesh Hose – Incl. Schackel
Reel Control
Control Box – A57
Push-Button-Box
Push Button
Flow Cont.Valve – Rx Z2fs6-2-4x-2q
Press.Red.Valve
Hose Set – Rear Module
Hose Set – Gar30 Compressor
Hose Set – Watermist Pump, Hyd
Air/Watersystem – Rear Module
Strainer
Water Pump Unit
Water Pump – Utan Elmotor, 4kw
Coupling Compl. – Ø110mm
Compressor Set – Internal Air/W-Cool
Water Pump
Hose Set – Air Hoses
Hose Set – Water Mist
Cable Set – Hole Blow,Internal
Air Receiv.Set – Air Tank
Sign Set – Rear Module
Certiq
Cable Set – Certiq. Dccm2+Wireless Bridge
System Kit Rcs – Dccm2 + Wireless Bridge Ii
Socket Coupler – Max 250a
Label Set
Luminous Tape
Fire Suppr.Syst
Fire Exting.Set – Ansul & Checkfire
Tank – Incl. Attachment
Hose List – Fire Suppression Hoses
Hose Connection
