Name: Epiroc Scooptram ST3.5 Spare Parts Catalog
SKU: 487496
Price: 20.00 USD
Availability: InStock

Epiroc Scooptram ST3.5 Spare Parts Catalog 1

Epiroc Scooptram ST3.5 Spare Parts Catalog 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Epiroc Scooptram ST3.5 Spare Parts Catalog

Size: 33.58 MB

Format: PDF

Language: English

Brand: Epiroc

Type of Machine: Scooptram

Type of Manual: Spare Parts Catalog

Model: ST3.5

Part Number: 8997840300

Number of Pages: 653 Pages

20 USD

Tag: Epiroc Heavy Equipment Manual

Description

Description

Contents:
PARTS & SERVICE
PARTS & SERVICE
MAINFRAME
LOADFRAME – MANUFACTURE IN CHINA
BOOM COMPL.
BOOM UPLOCK – BOOM UP-LOCK INST
BUCKET
POWERFRAME
BINDER BOX – OPERATORS MANUAL BOX INST
WHEEL CHOCKS – FENDER INST
SEAT – SEAT INST-GRAMMER W/BELT
LINK – STAB LINK INST.
SWIVEL – SWIVEL INST-TIMKEN
SWIVEL LOCK – SWIVEL LOCK INST
INSULATION – INSULATION INST-OPER COMP
TOOL BOX – TOOL BOX INST-ST-3.5
POWER UNIT
1-POWER UNIT
AIR FILTER
EXHAUST INST
FUEL SYS.ASSY
POWERTRAIN
FRONT AXLE – AXLE INST-FRONT,N/S
REAR AXLE – AXLE INST-REAR,WAGNER 406,OSC
DRIVELINE
TRANSMISSION – TRANS INST-32000 W/O BRAKE
WHEEL INST.
HYDR. SYSTEM
THROTTLE CONTR.
STEERING SYSTEM – CONTROL INST-MONO STEERING
GEAR CONTROL – CONTROL INST-HYD TRANS SHIFT
CYLINDER SET – HOIST CYLINDER
CYLINDER SET – STAB CYLINDER SET
CYLINDER SET – STEERING CYLINDER INST
REMOTE SYSTEM
RRC SYSTEM – RRC INST-ROCKTECH ST3.5
DUMP&HOIST SYS.
EMERGENCY CONTR
STEERING SYSTEM
HYDR. SYSTEM
TOWING SYSTEM – TOWING SYSTEM
HYDR. SYSTEM – PLMG-TRANS SHIFT CONTROL
RADIATOR ASSY.
CONVERTER – CONVERTER – DEUTZ W/FLEX PL
BRAKE SYSTEM
BRAKE PEDAL – BRAKE PEDAL INSTALLATION-DA04
BRAKE OVERRIDE – CONTROL INST-SAHR OVERRIDE
SAHR BRAKE
HYDR. SYSTEM – PLMG-REMOTE BRAKE BLEEDERS,JIC
EL.EQUIPMENT
ELECTR. SYSTEM
LIGHT SET
HORN – HORN INST-24V-WATERPROOF
BATTERY MODULE – BATTERY INST
SWITCH PANEL
REVERSE ALARM – ALARM-A/V BACK-UP,12V/24V
ELECTRIC SET – LOW HYD OIL LEVEL ALARM
FIRE EXTINGUIS.
FIRE EXTINGUIS. – FIRE EXTINGUISHER INST.
FIRE SUPPR.SYST – FIRE SUPPRESSION SYSTEM

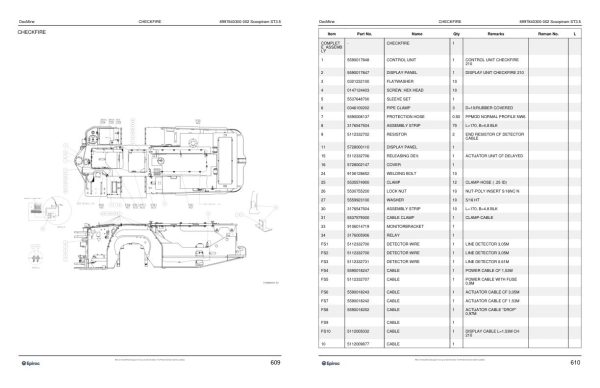

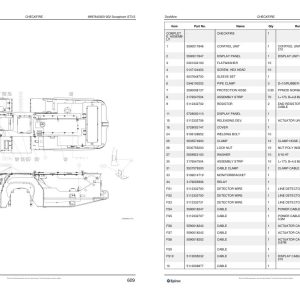

CHECKFIRE
LUBR. SYSTEM
LUBR. SYSTEM – PLMG-LINCOLN AUTO LUBE
AXLE VENT. – PLMG-RAISED AXLE VENTS
LABEL SET
LABEL SET
SAFETY LABEL
INSTRUCTIONSIGN
