Name: Geely Monjaro KX11 2023 Service Manual
SKU: 494741
Price: 30.00 USD
Availability: InStock

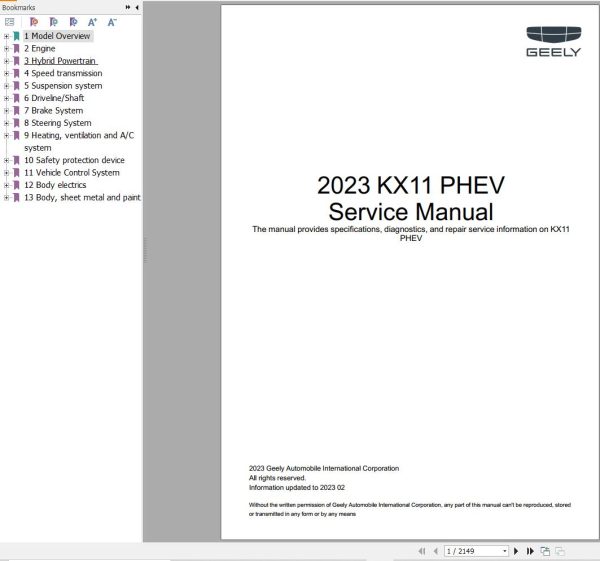

Geely Monjaro KX11 2023 Service Manual 1

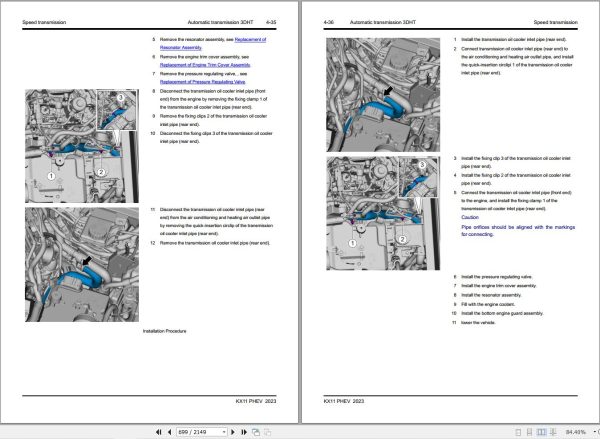

Geely Monjaro KX11 2023 Service Manual 2

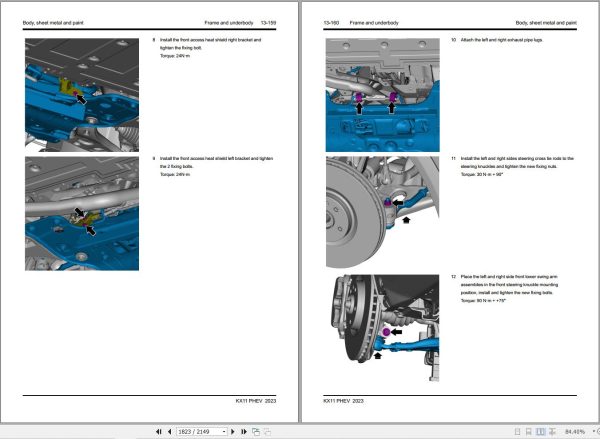

Geely Monjaro KX11 2023 Service Manual 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Geely Monjaro KX11 2023 Service Manual

Size: 118.24 MB

Format: PDF

Language: English

Brand: Geely

Type of Machine: Automotive

Type of Manual: Service Manual

Model: Geely Monjaro KX11 2023

Number of Pages: 2149 Pages

30 USD

Tag: Geely Service Manual

Description

Description

Contents:
1 Model Overview
1.1 Warnings and Cautions
1.2 Vehicle Inspection
1.3 Lifting vehicles
1.4 Maintenance
1.5 Maintenance Information System
1.6 Health and Safety
1.7 Vehicle specifications
1.8 Vehicle identification number
2 Engine
2.1 Warnings and Cautions
2.2 Engine control system DHE15-ESZ
2.3 Fuel system DHE15-ESZ
2.4 Auxiliary Emission Control Unit DHE15-ESZ
2.5 Mechanical Systems DHE15-ESZ
2.6 Intake system DHE15-ESZ
2.7 Exhaust system DHE15-ESZ
2.8 Cooling system DHE15-ESZ
2.9 Lubrication system DHE15-ESZ
2.10 Ignition system DHE15-ESZ
2.11 Charging system DHE15-ESZ
3 Hybrid Powertrain
3.1 Warnings and Cautions
3.2 Power battery
3.3 Power battery cooling system
3.4 High voltage distribution system
3.5 Charging system
3.6 Motor Control System
3.7 Motor Control Cooling System
4 Speed transmission
4.1 Warnings and Cautions
4.2 Automatic transmission 3DHT
5 Suspension system
5.1 Warnings and Cautions
5.2 Front Suspension
5.3 Rear suspension
5.4 Wheel and tires
6 Driveline/Shaft
6.1 Warnings and Cautions
6.2 Drive shaft system
7 Brake System
7.1 Warnings and Cautions
7.2 Front brake
7.3 Rear brake
7.4 Hydraulic Brake
7.5 Parking system
7.6 ABS/TCS/EBD/VDDM
7.7 Tire Pressure Monitoring System TPMS
8 Steering System
8.1 Warnings and Cautions
8.2 Electric power assisted steering
8.3 Steering Wheel
9 Heating, ventilation and A/C system
9.1 Warnings and Cautions
9.2 A/C system
10 Safety protection device
10.1 Warnings and Cautions
10.2 Assisted Restraint System
10.3 Pre-tensioner seat belt
10.4 Active safety
11 Vehicle Control System
11.1 Warnings and Cautions
11.2 Body control system
12 Body electrics
12.1 Warnings and Cautions
12.2 Audio Entertainment System
12.3 Lighting system
12.4 Glass/ window/ rearview mirror
12.5 Wiper/washer system
12.6 Combination instrument /Driver Information System
12.7 Panoramic sunroof
12.8 Center door lock
12.9 Remote anti-theft system
12.10 Power seat
12.11 Defrosting
12.12 Horn
12.13 Parking Assistance System
12.14 Backup power
12.15 Data communication system
12.16 Cruise control system
12.17 Electric trunk door
12.18 Low-speed alarm system
13 Body, sheet metal and paint
13.1 Warnings and Cautions
13.2 Body Front End
13.3 Body Rear End
13.4 Bumper
13.5 Vehicle doors
13.6 Frame and underbody
13.7 Seat
13.8 Instrument Panel, Instrument and Console
13.9 Interior trim
13.10 Exterior Trim
13.11 Plastic panel information and maintenance
13.12 Collision Repair
13.13 Paint/Coating
