Name: Gleaner Corn Head 330 335 430 435 630 Parts Catalog 79001583
SKU: 454860
Availability: InStock

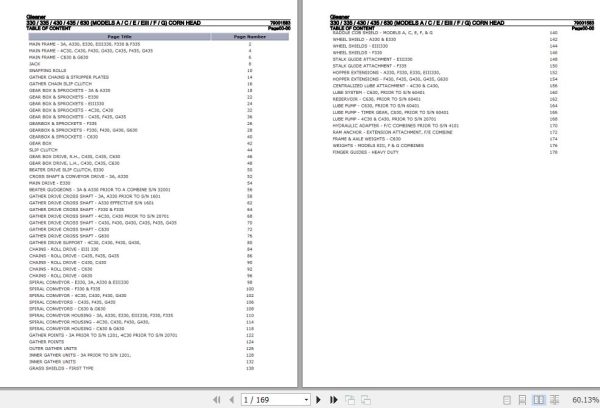

Gleaner Corn Head 330 335 430 435 630 Parts Catalog 79001583 1

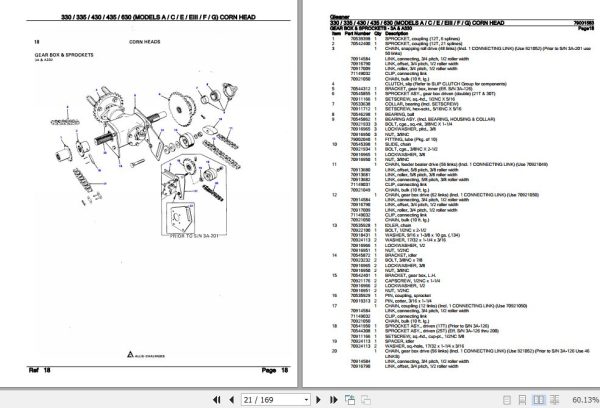

Gleaner Corn Head 330 335 430 435 630 Parts Catalog 79001583 2

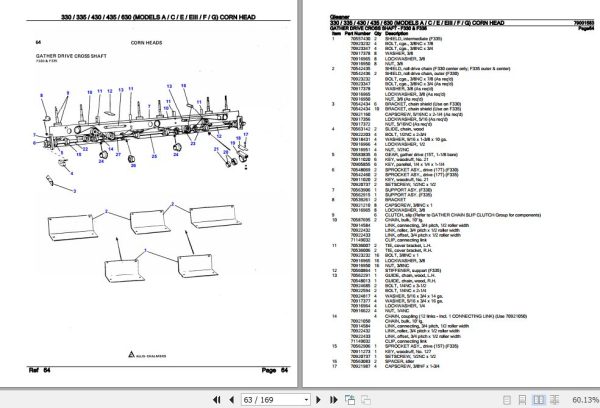

Gleaner Corn Head 330 335 430 435 630 Parts Catalog 79001583 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Gleaner Corn Head 330 335 430 435 630 Parts Catalog 79001583

Size: 5.18 MB

Format: PDF

Language: English

Brand: Gleaner

Type of Machine: Harvesting, Corn Head

Type of Manual: Parts Catalog

Model:

Gleaner 330 Corn Head

Gleaner 335 Corn Head

Gleaner 430 Corn Head

Gleaner 435 Corn Head

Gleaner 630 Corn Head

Part Number: 79001583

Number of Pages: 169 Pages

10 USD

Tag: Gleaner Parts Manual

Description

Description

Contents:
Main Frame – 3a, A330, E330, Eiii330, F330 & F335
Main Frame – 4c30, C430, F430, G430, C435, F435, G435
Main Frame – C630 & G630
Jack
Snapping Rolls
Gather Chains & Stripper Plates
Gather Chain Slip Clutch
Gear Box & Sprockets – 3a & A330
Gear Box & Sprockets – E330
Gear Box & Sprockets – Eiii330
Gearbox & Sprockets – F335
Gearbox & Sprockets – F330, F430, G430, G630
Gear Box & Sprockets – 4c30, C430
Gear Box & Sprockets – C435, F435, G435
Gearbox & Sprockets – C630
Gear Box
Slip Clutch
Gear Box Drive, R.H., C430, C435, C630
Gear Box Drive, L.H., C430, C435, C630
Beater Drive Slip Clutch, E330
Cross Shaft & Conveyor Drive – 3a, A330
Main Drive – E330
Beater Gudgeons – 3a & A330 Prior To A Combine S N 32001
Gather Drive Cross Shaft – 3a, A330 Prior To S N 1601
Gather Drive Cross Shaft – A330 Effective S N 1601
Gather Drive Cross Shaft – F330 & F335
Gather Drive Cross Shaft – 4c30, C430 Prior To S N 20701
Gather Drive Cross Shaft – C430, F430, G430, C435, F435, G435
Gather Drive Cross Shaft – C630
Gather Drive Cross Shaft – G630
Gather Drive Support – 4c30, C430, F430, G430,
Chains – Roll Drive – Eiii 330
Chains – Roll Drive – C435, F435, G435
Chains – Roll Drive – C430, C430
Chains – Roll Drive – C630
Chains – Roll Drive – G630
Spiral Conveyor – E330, 3a, A330 & Eiii330
Spiral Conveyor – F330 & F335
Spiral Conveyor – 4c30, C430, F430, G430
Spiral Conveyors – C435, F435, G435
Spiral Conveyors – C630 & G630
Spiral Conveyor Housing – 3a, A330, E330, Eiii330, F330, F335
Spiral Conveyor Housing – 4c30, C430, F430, G430,
Spiral Conveyor Housing – C630 & G630
Gather Points – 3a Prior To S N 1201, 4c30 Prior To S N 20701
Gather Points
Outer Gather Units
Inner Gather Units – 3a Prior To S N 1201,
Inner Gather Units
Grass Shields – First Type
Raddle Cob Shield – Models A, C, E, F, & G
Wheel Shield – A330 & E330
Wheel Shields – Eiii330
Wheel Shields – F330
Stalk Guide Attachment – Eiii330
Stalk Guide Attachment – F335
Hopper Extensions – A330, F330, E330, Eiii330,
Hopper Extensions – F430, F435, G430, G435, G630
Centralized Lube Attachment – 4c30 & C430,
Lube System – C630, Prior To S N 60401
Reservoir – C630, Prior To S N 60401
Lube Pump – C630, Prior To S N 60401
Lube Pump – Timer Gear, C630, Prior To S N 60401
Lube Pump – 4c30 & C430, Prior To S N 20701
Hydraulic Adapter – F C Combines Prior To S N 4101
Ram Anchor – Extension Attachment, F E Combine
Frame & Axle Weights – C630
Weights – Models Eiii, F & G Combines
Finger Guides – Heavy Duty
