Name: Gleaner Universal Draper Header Parts Catalog 79017023
SKU: 454900
Price: 10.00 USD
Availability: InStock

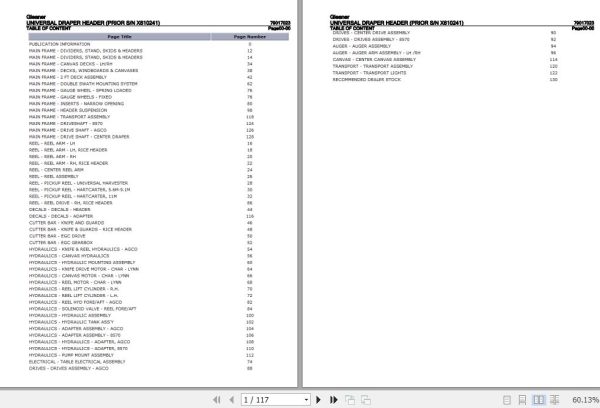

Gleaner Universal Draper Header Parts Catalog 79017023 1

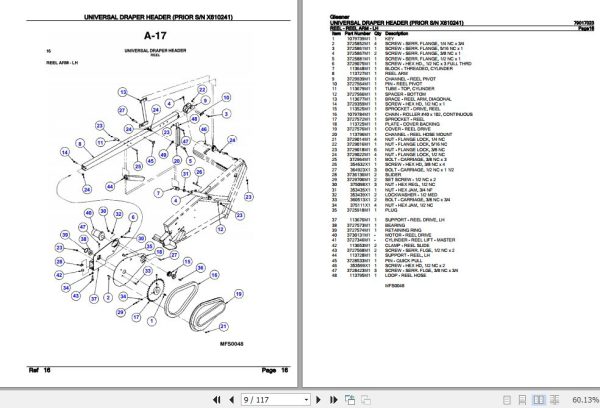

Gleaner Universal Draper Header Parts Catalog 79017023 2

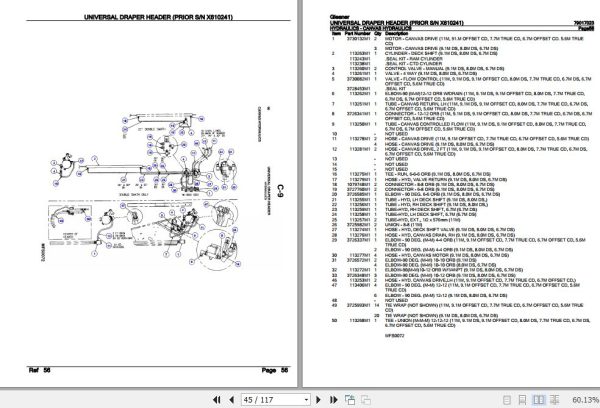

Gleaner Universal Draper Header Parts Catalog 79017023 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Gleaner Universal Draper Header Parts Catalog 79017023

Size: 4.59 MB

Format: PDF

Language: English

Brand: Gleaner

Type of Machine: Harvesting, Universal Draper Header

Type of Manual: Parts Catalog

Part Number: 79017023

Number of Pages: 117 Pages

10 USD

Tag: Gleaner Parts Manual

Description

Description

Contents:
Publication Information
Main Frame – Dividers, Stand, Skids & Headers
Reel – Reel Arm – Lh
Reel – Reel Arm – Lh, Rice Header
Reel – Reel Arm – Rh
Reel – Reel Arm – Rh, Rice Header
Reel – Center Reel Arm
Reel – Reel Assembly
Reel – Pickup Reel – Universal Harvester
Reel – Pickup Reel – Hartcarter, 5.6m-9.1m
Reel – Pickup Reel – Hartcarter, 11m
Main Frame – Canvas Decks – Lh Rh
Main Frame – Decks, Windboards & Canvases
Main Frame – 2 Ft Deck Assembly
Decals – Decals – Header
Cutter Bar – Knife And Guards
Cutter Bar – Knife & Guards – Rice Header
Cutter Bar – Egc Drive
Cutter Bar – Egc Gearbox
Hydraulics – Knife & Reel Hydraulics – Agco
Hydraulics – Canvas Hydraulics
Hydraulics – Hydraulic Mounting Assembly
Main Frame – Double Swath Mounting System
Hydraulics – Knife Drive Motor – Char – Lynn
Hydraulics – Canvas Motor – Char – Lynn
Hydraulics – Reel Motor – Char – Lynn
Hydraulics – Reel Lift Cylinder – R.H.
Hydraulics – Reel Lift Cylinder – L.H.
Electrical – Table Electrical Assembly
Main Frame – Gauge Wheel – Spring Loaded
Main Frame – Gauge Wheels – Fixed
Main Frame – Inserts – Narrow Opening
Hydraulics – Reel Hyd Fore Aft – Agco
Hydraulics – Solenoid Valve – Reel Fore Aft
Reel – Reel Drive – Rh, Rice Header
Drives – Drives Assembly – Agco
Drives – Center Drive Assembly
Drives – Drives Assembly – 8570
Auger – Auger Assembly
Auger – Auger Arm Assembly – Lh Rh
Main Frame – Header Suspension
Hydraulics – Hydraulic Tank Ass’y
Hydraulics – Adapter Assembly – Agco
Hydraulics – Adapter Assembly – 8570
Hydraulics – Hydraulics – Adapter, Agco
Hydraulics – Hydraulics – Adapter, 8570
Hydraulics – Pump Mount Assembly
Canvas – Center Canvas Assembly
Decals – Decals – Adapter
Main Frame – Transport Assembly
Transport – Transport Assembly
Transport – Transport Lights
Main Frame – Driveshaft – 8570
Main Frame – Drive Shaft – Agco
Main Frame – Drive Shaft – Center Draper
Recommended Dealer Stock
